BUILT-IN OVEN
OB90S9LEX1 model
USER GUIDE
NZ AU

Advertisement

Table of Contents
loading

Related Manuals for Fisher & Paykel OB90S9LEX1

Summary of Contents for Fisher & Paykel OB90S9LEX1

  • Page 1 BUILT-IN OVEN OB90S9LEX1 model USER GUIDE NZ AU...

  • Page 3: Table Of Contents

    CONTENTS Safety and warnings Introduction Control panel First use Using your oven Oven functions Using the rotisserie Using the timer Automatic cooking Cooking chart User preference settings Sabbath setting Care and cleaning Troubleshooting Alert codes Warranty and service IMPORTANT! SAVE THESE INSTRUCTIONS The models shown in this user guide may not be available in all markets and are subject to change at any time.

  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS Your oven has been carefully designed to operate safely during normal cooking procedures. Please keep the following safety instructions in mind when you are using it: WARNING! ELECTRIC SHOCK HAZARD Turn the oven off at the wall before replacing the oven lamp. Failure to follow this advice may result in electric shock or death.
  • Page 5 SAFETY AND WARNINGS WARNING! CUT HAZARD Take care — some edges are sharp. Failure to use caution could result in injury or cuts. IMPORTANT SAFETY INSTRUCTIONS Read this user guide carefully and keep for future reference. WARNING! Do not attempt to operate this oven with the door open. Keep the door closed to ●...
  • Page 6 SAFETY AND WARNINGS Electrical Never unplug your appliance by pulling on the power cord. Always grip the plug ● ● firmly and pull straight out from the outlet. Do not plug in any other appliance at the same power point as your appliance or ●...
  • Page 7 SAFETY AND WARNINGS IMPORTANT! Ensure that your oven is regularly cleaned to avoid damage to its surface that can result in hazards or potential injury. Cleaning Clean the oven regularly and remove any food deposits. Failure to maintain the oven ●...

  • Page 8: Introduction

    INTRODUCTION Congratulations on your new purchase. Your oven has a number of features to make cooking a great experience for you: a choice of nine oven functions, including Rotisserie (optional and can be purchased ● ● separately as a kit) intuitive electronic controls and displays ●...

  • Page 9: Control Panel

    CONTROL PANEL Timer indicator (see ‘Using the timer’) Cooking time indicator (see ‘Automatic cooking’) Control lock indicator (see ‘Locking the control panel’). Stop time indicator (see ‘Automatic cooking’) Scroll Select Cancel Function indicators (see ‘Oven functions’) Function dial halo Function dial (see ‘Using your oven’) Temperature indicator Temperature dial halo Temperature dial (see ‘Using your oven’)

  • Page 10: First Use

    FIRST USE Setting the clock Changing the time When your oven is first turned on, or Set the clock within the user after a power cut, the display will flash. preference menu. You will need to set the clock in order to use the oven.

  • Page 11: Using Your Oven

    USING YOUR OVEN Guard rail Stop notch Shelf positions Insert the shelves that you need. Select a function. Ensure that, The halo will glow white. ● ● they are between two wires of a ● ● shelf position the stop notches point down ●...

  • Page 12: Oven Functions

    OVEN FUNCTIONS Selecting this will turn the oven off. Bake This is the traditional method of baking. It is best to bake on only one shelf at a time in this function. Ideal for large cakes and dishes that bake for several hours. Fan Bake Ideal for dishes like lasagne that need to brown on top and also single trays of small cakes or biscuits that bake in less than an hour.
  • Page 13 OVEN FUNCTIONS Fan Forced Great for multi-shelf cooking. The consistent temperature ensures baking is well risen. Cookies baked on Fan Forced are crisp on the outside and chewy in the middle. Pastry Bake Excellent for sweet and savoury pastry foods, for moist breads and brownies and cookies that you want extra chewy.

  • Page 14: Using The Rotisserie

    USING THE ROTISSERIE IMPORTANT! If you want to use the rotisserie, a rotisserie kit is available separately for purchase. Contact your dealer for availability. Prepare the rotisserie supports. Place the grill tray on the benchtop. ● ● Insert the supports into the lock ●...
  • Page 15 USING THE ROTISSERIE Select the Rotisserie function. The skewer will start rotating. ● ● Check that the meat does not touch ● ● the grill tray or the grill element at the top of the oven. Set the temperature. We recommend around 210 °C. ●...

  • Page 16: Using The Timer

    USING THE TIMER You can use the timer at any time even if you are not using the oven. ● ● If the time is more than an hour, the display will count down in minutes (hr:min). ● ● If it is less than an hour, it will count down in seconds (min:sec). You can set the timer for up to 23 hours 59 minutes.

  • Page 17: Automatic Cooking

    AUTOMATIC COOKING You can set the oven to automatically turn on later, cook for a preset time ● ● (cooking time), then automatically turn off at a preset stop time. See the example and instructions below (steps 1 to 7). If you start cooking manually and only want the oven to turn off automatically ●...
  • Page 18 AUTOMATIC COOKING Select function and temperature Select a function. Set the temperature. When automatic cooking is set The oven and the lights will stay off, the halos will be unlit, but your oven is now set ● ● for automatic cooking. It will automatically turn on at the required time. In a few seconds, the display will show the time of day with the cooking time ●...

  • Page 19: Cooking Chart

    COOKING CHART Note: The settings in the following chart are guidelines only. Follow the instructions in your ● ● recipe or on food packaging and be prepared to adjust the oven settings and baking times to achieve the best possible results for you. Shelf positions are counted from the base up (1 is the lowest, 4 the highest).

  • Page 20: User Preference Settings

    USER PREFERENCE SETTINGS You can set your oven to: display the temperature in degrees Celsius or Fahrenheit ● ● give audio feedback (tones and beeps) or operate quietly ● ● display time as 12-hr or 24-hr ● ● operate with the display off ●...
  • Page 21 USER PREFERENCE SETTINGS Press the right scroll button to scroll Press the select button to save through the options for that particular the new option. setting. Refer to the table below. For all options except ‘Display off’ : press the cancel button to quit the user preference menu.

  • Page 22: Sabbath Setting

    SABBATH SETTING This setting is designed for religious faiths that observe a ‘no work’ requirement on the Sabbath. While your oven is in Sabbath setting The display, dial halos and indicators will be unlit, the buttons will be unresponsive. ● ● No tones or beeps will sound.
  • Page 23 SABBATH SETTING Press the scroll buttons to set Press the select button to the time (hrs). You may set the time activate the option. up to 99 hours. The display, indicators and dial halos will be unlit and unresponsive, but the oven will bake until you quit Sabbath setting.

  • Page 24: Care And Cleaning

    CARE AND CLEANING DON’TS Before any manual cleaning or maintenance, Don’t use a steam cleaner. ● ● ● ● first wait for the oven to cool down to a safe Don’t keep flammable substances ● ● temperature to touch, then disconnect it in the oven.
  • Page 25 CARE AND CLEANING Manual cleaning WHAT? HOW? IMPORTANT! Oven cavity To clean light soiling off the To prevent soiling from ● ● enamelled surfaces: becoming ‘baked on’ and Wipe with a damp cloth and stubborn, we recommend a solution of hot water and removing any spills, food mild detergent.
  • Page 26 CARE AND CLEANING Drop-down grill element IMPORTANT! Turn off the oven at the wall and wait until the element has cooled completely before starting. To lower the grill element: use a flat-head screwdriver or a small coin to loosen the ●...
  • Page 27 CARE AND CLEANING Removing the oven door We recommend to remove the door to easily clean the interior parts of the oven or replace the light bulb(s). IMPORTANT! Be careful when removing the door. If you are not sure, do not attempt to remove ●...
  • Page 28 CARE AND CLEANING Refitting the door Notch Hold the door firmly. Insert the hinge tongues into the slots, making sure that the notches on both sides drop into place as shown. Open the door to its full extent. Fully close the levers on the left and right hinges, as shown.

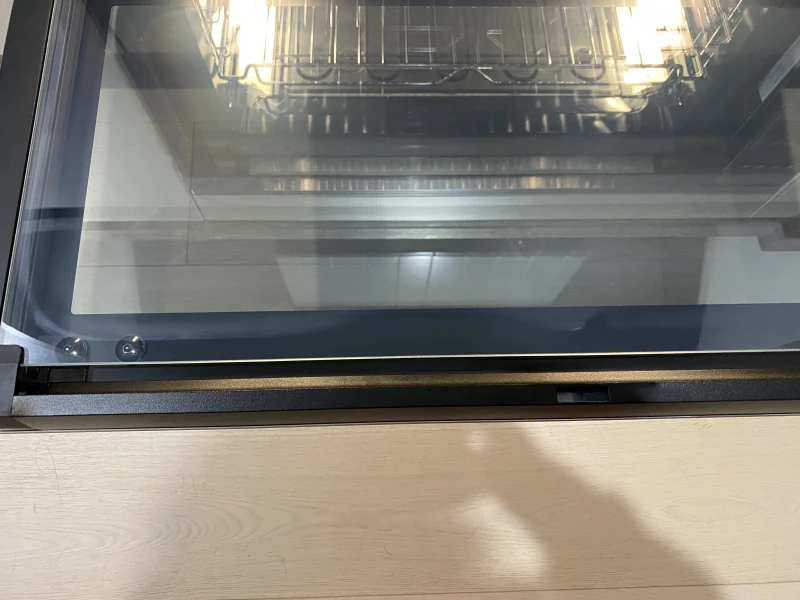

  • Page 29 CARE AND CLEANING Removing and replacing the inner glass pane The oven door has two panes of glass. inner The inner pane can be removed to make cleaning the glass easier. outer IMPORTANT! Take extreme care when handling the glass pane. Avoid the edges of the glass ●...
  • Page 30 CARE AND CLEANING Replacing the oven light bulbs The oven light bulbs (12V/20 W halogen) have a very long life, but if you should need to replace one, use only a replacement bulb purchased from your nearest Fisher & Paykel dealer and follow these steps. Note: oven bulb replacement is not covered by your warranty.

  • Page 31: Troubleshooting

    TROUBLESHOOTING Troubleshooting chart If there is a problem, check the chart below to see if you can fix it. If the problem cannot be fixed or persists, call your Authorised Repairer or Customer Care. PROBLEM POSSIBLE CAUSES WHAT TO DO General The oven does No power.
  • Page 32 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO General The oven has reached This is normal: when heating Wait until a long tone sounds the set temperature up from cold, your oven is and the temperature dial halo but the temperature designed to initially heat to a turns white: the oven will then dial halo is still red...

  • Page 33: Alert Codes

    ALERT CODES If there is a problem, the oven will: automatically suspend all oven functions ● ● beep five times ● ● display an alert code. ● ● IMPORTANT! Do not turn off the mains power supply to the oven (wall switch) if you get an alert code, unless the instructions in the chart following specifically instruct you to.

  • Page 34: Warranty And Service

    WARRANTY AND SERVICE Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &...
  • Page 36 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2019. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
