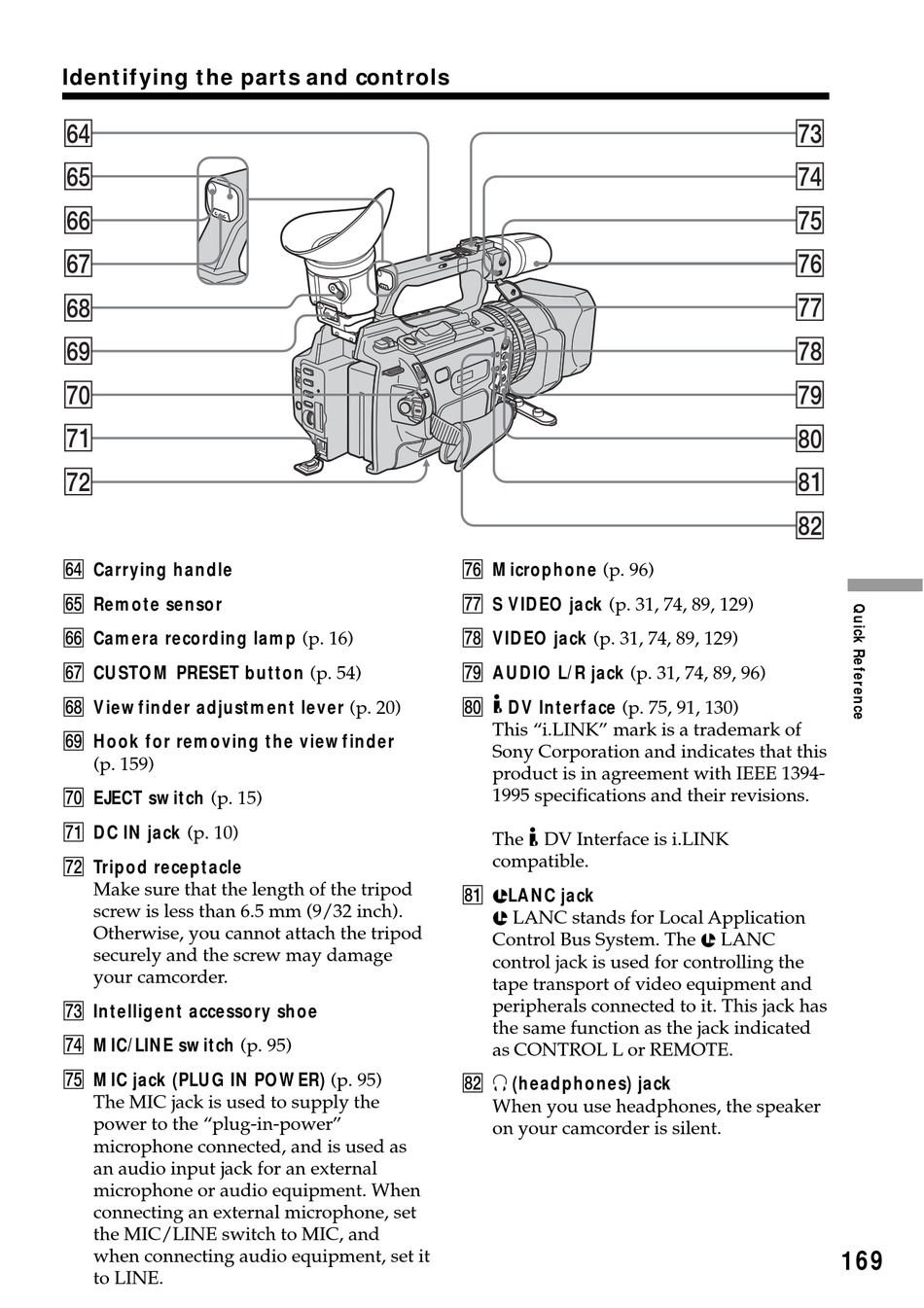

Identifying the parts and controls
yf
yg
yh
yj
yk
yl
u;
ua
us
yf Carrying handle
yg Remote sensor
yh Camera recording lamp (p. 16)
yj CUSTOM PRESET button (p. 54)
yk Viewfinder adjustment lever (p. 20)
yl Hook for removing the viewfinder
(p. 159)
u; EJECT switch (p. 15)
ua DC IN jack (p. 10)
us Tripod receptacle
Make sure that the length of the tripod
screw is less than 6.5 mm (9/32 inch).
Otherwise, you cannot attach the tripod
securely and the screw may damage
your camcorder.
ud Intelligent accessory shoe
uf MIC/LINE switch (p. 95)
ug MIC jack (PLUG IN POWER) (p. 95)
The MIC jack is used to supply the
power to the "plug-in-power"
microphone connected, and is used as
an audio input jack for an external
microphone or audio equipment. When
connecting an external microphone, set
the MIC/LINE switch to MIC, and
when connecting audio equipment, set it
to LINE.
uh Microphone (p. 96)
uj S VIDEO jack (p. 31, 74, 89, 129)
uk VIDEO jack (p. 31, 74, 89, 129)
ul AUDIO L/R jack (p. 31, 74, 89, 96)
i; DV Interface (p. 75, 91, 130)
This "i.LINK" mark is a trademark of
Sony Corporation and indicates that this
product is in agreement with IEEE 1394-
1995 specifications and their revisions.
The DV Interface is i.LINK
compatible.
LANC jack
ia
LANC stands for Local Application
Control Bus System. The
control jack is used for controlling the
tape transport of video equipment and
peripherals connected to it. This jack has
the same function as the jack indicated
as CONTROL L or REMOTE.
is i (headphones) jack
When you use headphones, the speaker
on your camcorder is silent.
ud
uf
ug
uh
uj
uk
ul
i;
ia
is
LANC
169
