Page 1

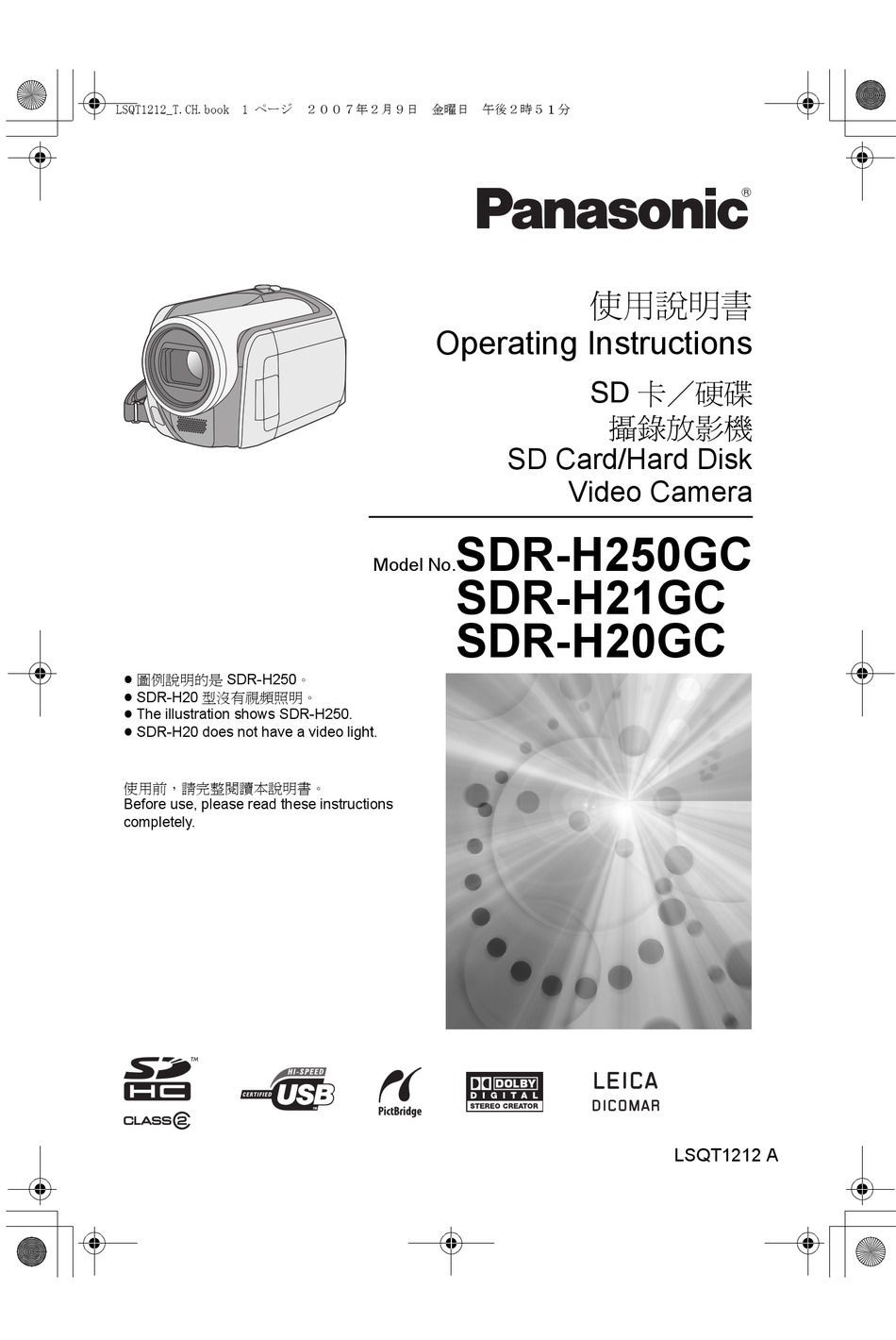

LSQT1212_T.CH.book 1 ページ 2007年2月9日 金曜日 午後2時51分 使用說明書 Operating Instructions SD 卡/硬碟 攝錄放影機 SD Card/Hard Disk Video Camera SDR-H250GC Model No. SDR-H21GC SDR-H20GC ≥ 圖例說明的是 SDR-H250。 ≥ SDR-H20 型沒有視頻照明。 ≥ The illustration shows SDR-H250. ≥ SDR-H20 does not have a video light. 使用前,請完整閱讀本說明書。...
Page 18
LSQT1212_T.CH.book 18 ページ 2007年2月9日 金曜日 午後2時51分 設定 充電時間和可拍攝時間 下表中所示的時間是指溫度為 25 oC,濕度為 60% 時的時間。 如果溫度高於或低於 25 oC,則充電時間 將會變長。 ∫ 充電時間 ≥ 表中所示的充電時間為估計值。 ≥“2 h 25 min”表示 2 小時 25 分鐘。 SDR-H250: 電池型號 電壓/容量 充電時間 提供的電池/ 7.2 V/1150 mAh 2 h 25 min CGA-DU12 (可選件) 7.2 V/1360 mAh 2 h 45 min CGA-DU14 (可選件)...
Page 19
LSQT1212_T.CH.book 19 ページ 2007年2月9日 金曜日 午後2時51分 設定 SDR-H21/SDR-H20: 最大可連續 電池型號 電壓/容量 錄製目的地 實際可拍攝時間 拍攝時間 提供的電池/ 1 h 35 min 40 min [HDD] CGR-DU06 7.2 V/640 mAh 1 h 45 min 45 min [SD] (可選件) 1 h 40 min 45 min [HDD] CGA-DU07 7.2 V/680 mAh (可選件)...
Page 24
LSQT1212_T.CH.book 24 ページ 2007年2月9日 金曜日 午後2時51分 設定 關於在每個模式中所顯示的操作圖示 關於自動模式和手動模式 (l 31) 影片拍攝模式 1/2 1/2 NEXT 1/2 NEXT NEXT 2/2 2/2 NEXT 2/2 NEXT NEXT 3/3 3/3 NEXT 3/3 NEXT NEXT 4/4 4/4 NEXT 4/4 NEXT NEXT 圖示 方向 功能 頁碼 背光補償 (1/2) 淡入淡出...
Page 25
LSQT1212_T.CH.book 25 ページ 2007年2月9日 金曜日 午後2時51分 設定 相片拍攝模式 1/2 1/2 NEXT 1/2 NEXT NEXT 2/2 2/2 NEXT 2/2 NEXT NEXT 3/3 3/3 NEXT 3/3 NEXT NEXT 4/4 4/4 NEXT 4/4 NEXT NEXT 圖示 方向 功能 頁碼 背光補償 Ø (1/2) 自拍計時器 幫助模式 柔化肌膚模式 (2/2) 遠攝微距...
LSQT1212_T.CH.book 27 ページ 2007年2月9日 金曜日 午後2時51分 設定 退出功能表螢幕 向右移動操縱桿或按下操縱桿。 按 MENU 按鈕。 MENU ≥ 拍攝或播放時,不會顯示功能表螢幕。 當顯示 上下移動操縱桿,選擇子功能表選 功能表螢幕時,不能開始其他操作。 項。 用遙控器操作 (SDR-H250) 功能表螢幕的變化與使用主機上的按鈕時是一樣 的。 按 MENU 按鈕。 MENU 向右移動操縱桿或按下操縱桿。 ENTER 選擇一個功能表項。 上下移動操縱桿,選擇需要的選項。 MENU ENTER ≥ 使用方向按鈕 (3,4,2,1) 和 ENTER 按鈕來代 替主機上的操縱桿。 按 MENU 按鈕退出功能表螢幕。 按下操縱桿確認選擇。...
LSQT1212_GC(EN).book 104 ページ 2007年2月15日 木曜日 午前10時13分 Information for Your Safety The socket outlet shall be installed near the equipment and easily accessible. WARNING: The mains plug of the power supply cord shall TO REDUCE THE RISK OF FIRE, remain readily operable. ELECTRIC SHOCK OR PRODUCT To completely disconnect this apparatus from DAMAGE, the AC Mains, disconnect the power supply...
Page 105
LSQT1212_GC(EN).book 105 ページ 2007年2月15日 木曜日 午前10時13分 ENGLISH -If you see this symbol- ∫ How to replace the Fuse Information on Disposal in other Countries The location of the fuse differ according to the outside the European Union type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow This symbol is only valid in the the instructions below.
Page 106
LSQT1212_GC(EN).book 106 ページ 2007年2月15日 木曜日 午前10時13分 ∫ Indemnity concerning recording ≥ Other names of systems and products mentioned in these instructions are usually the content registered trademarks or trademarks of the The manufacturer shall in no event be liable for manufacturers who developed the system or the loss of recordings due to malfunction or product concerned.
Page 107
LSQT1212_GC(EN).book 107 ページ 2007年2月15日 木曜日 午前10時13分 Soft skin mode ........147 Contents Tele macro function (SDR-H250) ... 148 Colour night view function...... 148 Information for Your Safety....104 Self-timer recording........ 149 Recording guideline function....149 Before using Wide mode..........150 Image stabilizer function ......150 Wind noise reduction function....
Page 108
With a computer Before using with a computer... 178 What you can do with a computer ..178 Operating environment......179 Installation .......... 181 Installing ImageMixer3 for Panasonic ..181 Reading the software help......182 Software uninstallation ......182 Connection and recognition ..... 182 Connection and recognition procedures ..........182...
LSQT1212_GC(EN).book 109 ページ 2007年2月15日 木曜日 午前10時13分 Before using Before using Features ∫ Extended recording! You can record the equivalent of approximately twenty-two 8 cm DVD discs on the 30 GB internal HDD. You can also record motion pictures and still pictures on an SD card. ∫...
Page 110
LSQT1212_GC(EN).book 110 ページ 2007年2月15日 木曜日 午前10時13分 Before using ∫ Editing scenes! (l 162, 163) You can create an original video (playlist) by collecting together your favourite scenes recorded on the HDD. ∫ Using with a computer! (l 178) If you use the supplied software, you can create a backup DVD of the scenes recorded on this unit with just one button.
LSQT1212_GC(EN).book 111 ページ 2007年2月15日 木曜日 午前10時13分 Before using Accessories Optional accessories Check the accessories before using this unit. Some optional accessories may not be available SD Memory Card (512 MB) in some countries. AC adaptor (VW-AD11E/EB) Battery pack Battery pack (lithium/CGR-DU06/640 mAh) (SDR-H250) (SDR-H21/SDR-H20) Battery pack...
Page 112
LSQT1212_GC(EN).book 112 ページ 2007年2月15日 木曜日 午前10時13分 Before using White balance sensor (l 153) 21 When recording: Zoom lever [W/T] Remote control sensor (SDR-H250) (l 144) (l 116) When playing back: Volume lever Microphone (built-in, stereo) [sVOLr] (l 158) 22 Photoshot button [ ] (l 140) 23 Illumination LED (l 191) Terminal cover...
Page 113
LSQT1212_GC(EN).book 113 ページ 2007年2月15日 木曜日 午前10時13分 Before using Rotate the lens cover open/close 33 Reset button [RESET] (l 202) 34 Mode select switch [AUTO/MANUAL/ ring. FOCUS] (l 136, 151, 152) 35 Card slot cover [SD CARD] (l 125) 36 Card access lamp [ACCESS] (l 120, 183) Attaching the lens cap (SDR-H21/SDR-H20) Attach the lens cap to protect the surface of the...
LSQT1212_GC(EN).book 114 ページ 2007年2月15日 木曜日 午前10時13分 Before using To attach or remove the lens cap, hold both sides of the lens cap Using the LCD monitor with the tips of your finger and You can record the image while viewing it on the thumb.
LSQT1212_GC(EN).book 115 ページ 2007年2月15日 木曜日 午前10時13分 Before using While pressing the stopper A, pull out the battery holder. Using the remote control (SDR-H250) START/ PHOTO STOP SHOT DISPLAY DATE/ ZOOM TIME Set the button-type battery with its (r) mark facing upward and then put the battery holder back SEARCH PLAY...
Page 116
LSQT1212_GC(EN).book 116 ページ 2007年2月15日 木曜日 午前10時13分 Before using ∫ Remote control usable range The distance between the remote control and the unit’s remote control sensor A: Within approx. Angle: Approx. 10o up and 15o down, left, and right ≥ The remote control is intended for indoor operation.
LSQT1212_GC(EN).book 117 ページ 2007年2月15日 木曜日 午前10時13分 Before using HDD and SD card This unit can be used for recording motion pictures and still pictures to the internal HDD and an SD card. Concerning the internal HDD and cards that can be used on this unit Internal HDD SDHC...
Page 118
We recommend using SD cards conforming to Class 2 or higher of the SD Speed Class Rating or the following SD cards made by Panasonic for motion picture recording. (If another kind of SD card is used, the recording may suddenly stop during motion picture recording.)
If the HDD fails, the recorded data cannot be repaired. ∫ Indemnity concerning recorded content Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content, and does not guarantee any content if recording or editing does not work properly.
Page 120
LSQT1212_GC(EN).book 120 ページ 2007年2月15日 木曜日 午前10時13分 Before using ∫ Card access lamp ≥ When this unit accesses the SD card (reading, recording, playback, erasing, etc.), the access lamp lights up. ≥ If the following operations are performed when the access lamp is lit, then the SD card or the recorded data may be damaged or this unit may malfunction.
≥ Battery charging time (l 122) ≥ We recommend using Panasonic batteries. (l 111) ≥ If you use other batteries, we cannot guarantee the quality of this product.
Page 122
LSQT1212_GC(EN).book 122 ページ 2007年2月15日 木曜日 午前10時13分 Setup Charging time and recordable time The times shown in the tables below are for when the temperature is 25 oC and the humidity is 60%. If the temperature is higher or lower than 25 oC, the charging time will become longer. ∫...
Page 123
LSQT1212_GC(EN).book 123 ページ 2007年2月15日 木曜日 午前10時13分 Setup SDR-H21/SDR-H20: Maximum Battery model Voltage/ Recording Actual recordable continuously number capacity destination time recordable time Supplied battery/ [HDD] 1 h 35 min 40 min CGR-DU06 7.2 V/640 mAh 1 h 45 min 45 min [SD] (optional) 1 h 40 min 45 min...
LSQT1212_GC(EN).book 124 ページ 2007年2月15日 木曜日 午前10時13分 Setup Connecting to the AC outlet How to turn on the power Set the OFF/ON switch to ON. The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet.
LSQT1212_GC(EN).book 125 ページ 2007年2月15日 木曜日 午前10時13分 Setup ∫ To turn on the power ≥ Check that the status indicator has gone off. Open the LCD monitor. Open the LCD monitor and then slide the card slot open lever A to open the card slot cover. The status indicator lights and the power turns ∫...
LSQT1212_GC(EN).book 126 ページ 2007年2月15日 木曜日 午前10時13分 Setup Securely close the card slot How to use the joystick cover. This unit has a joystick for selecting functions, performing operations, etc. so it is easy to operate this unit with one hand. Basic operations Operations on the menu screen and selection of files on the thumbnail view screen, etc.
Page 127
LSQT1212_GC(EN).book 127 ページ 2007年2月15日 木曜日 午前10時13分 Setup Move the joystick up, left or right to select an item. Operations during playback ¬ Rotate the mode dial to select Move the joystick up, down, left or right to select the scene to be played back and press the joystick.
Page 128
LSQT1212_GC(EN).book 128 ページ 2007年2月15日 木曜日 午前10時13分 Setup About the operation icons displayed in each mode About auto mode and manual mode (l 136) Video recording mode 1/2 1/2 NEXT 1/2 NEXT NEXT 2/2 2/2 NEXT 2/2 NEXT NEXT 3/3 3/3 NEXT 3/3 NEXT NEXT 4/4 4/4 NEXT 4/4 NEXT...
Page 129
LSQT1212_GC(EN).book 129 ページ 2007年2月15日 木曜日 午前10時13分 Setup Picture recording mode 1/2 1/2 NEXT 1/2 NEXT NEXT 2/2 2/2 NEXT 2/2 NEXT NEXT 3/3 3/3 NEXT 3/3 NEXT NEXT 4/4 4/4 NEXT 4/4 NEXT NEXT Icon Direction Function Page Backlight compensation Ø Self timer (1/2) Help mode Soft skin mode...
LSQT1212_GC(EN).book 130 ページ 2007年2月15日 木曜日 午前10時13分 Setup ∫ Help mode ≥ When the help mode is used, functions cannot The help mode explains the operation icons that be set. are displayed when the AUTO/MANUAL/FOCUS ≥ When the help mode is used, motion pictures switch is set to AUTO in video/picture recording and still pictures cannot be recorded.
Page 131
LSQT1212_GC(EN).book 131 ページ 2007年2月15日 木曜日 午前10時13分 Setup Move the joystick up or down in ≥ Do not switch the mode dial when the menu is displayed. order to select the desired item. Move the joystick up or down in order to select the desired top menu.
LSQT1212_GC(EN).book 132 ページ 2007年2月15日 木曜日 午前10時13分 Setup Select a menu item. Move the joystick left or right to select the item to be set. Then, move the joystick up or down to MENU set the desired value. ENTER ≥ Use the direction buttons (3,4,2,1) and ENTER button in place of the joystick on the main unit.
LSQT1212_GC(EN).book 133 ページ 2007年2月15日 木曜日 午前10時13分 Setup Move the joystick up or down to select the item to be adjusted. Display style Screen display Then, move the joystick left or [Y/M/D] 2007.12.15 right to make the adjustment. [M/D/Y] 12.15.2007 [D/M/Y] 15.12.2007 ≥ The date and time function are driven by a built-in lithium battery.
Page 134
LSQT1212_GC(EN).book 134 ページ 2007年2月15日 木曜日 午前10時13分 Setup Each time you press the button: 1 Original brightness 2 Bright 3 Brighter 4 Darker 5 Dark ≥ This will not affect the images to be recorded. ≥ If you turn on the unit when the AC adaptor is used, this function will automatically be “Bright”.
LSQT1212_GC(EN).book 135 ページ 2007年2月15日 木曜日 午前10時13分 Recording Recording Before recording Basic camera positioning 1 Hold the camera with both hands. 2 Put your hand through the grip belt. 3 Do not cover the microphones or sensors with your hands. 4 Keep your arms near your body. 5 Slightly open your legs.
Page 136
LSQT1212_GC(EN).book 136 ページ 2007年2月15日 木曜日 午前10時13分 Recording ∫ About auto mode Set the AUTO/MANUAL/FOCUS switch to AUTO, and colour balance (white balance) and focusing will be adjusted automatically. jAuto white balance (l 206) jAuto focusing (l 207) Depending on the brightness of the subject etc., the aperture and shutter speed are automatically adjusted for optimum brightness.
LSQT1212_GC(EN).book 137 ページ 2007年2月15日 木曜日 午前10時13分 Recording Recording motion pictures [HDD] [SD] This unit can be used for recording motion pictures to the internal HDD and an SD card. (l 117) Before recording, use the menu to select the recording destination. (l below) When the unit is turned on for the first time, the media select screen for recording motion pictures will appear.
Page 138
LSQT1212_GC(EN).book 138 ページ 2007年2月15日 木曜日 午前10時13分 Recording To end the recording Press the recording start/stop button again to pause recording. ≥ [¥] and [;] are red during recording. Do not move this unit until [;] is green. The images recorded between pressing the recording start/stop button to start recording and pressing it again to pause recording become one scene.
LSQT1212_GC(EN).book 139 ページ 2007年2月15日 木曜日 午前10時13分 Recording Recording modes and recordable time available for the motion picture Changing the recording mode of the motion picture. Press the MENU button, then select [BASIC] # [REC MODE] # desired item and press the joystick. MENU ≥...
LSQT1212_GC(EN).book 140 ページ 2007年2月15日 木曜日 午前10時13分 Recording Recording still pictures [HDD] [SD] This unit can be used for recording still pictures to the internal HDD and an SD card. (l 117) Before recording, use the menu to select the recording destination. (l below) When the unit is turned on for the first time, the media select screen for recording still pictures will appear.
Page 141
LSQT1212_GC(EN).book 141 ページ 2007年2月15日 木曜日 午前10時13分 Recording A Focus indication ± (The white lamp flashes.): Focusing ¥ (The green lamp lights up.): When in focus No mark: When focusing is unsuccessful. ≥ The focus indication is indicated as follows when the Photoshot button [ ] is not pressed halfway.
Page 142
LSQT1212_GC(EN).book 142 ページ 2007年2月15日 木曜日 午前10時13分 Recording Screen indications in picture recording mode A Size of still pictures B Selected recording destination C Remaining number of still pictures R 12345 R 12345 R 12345 (Flashes in red when [R 0] appears.) D Quality of still pictures ∫...
LSQT1212_GC(EN).book 143 ページ 2007年2月15日 木曜日 午前10時13分 Recording Number of pixels and picture quality for still picture recording ∫ [PICTURE SIZE] Changing the recording size. Press the MENU button, then select [BASIC] # [PICTURE SIZE] # desired item and press the joystick. MENU SDR-H250: Icon Aspect...
LSQT1212_GC(EN).book 144 ページ 2007年2月15日 木曜日 午前10時13分 Recording Various recording (SDR-H250)/2 cm (SDR-H21/SDR-H20) away from the lens. (Macro function) functions ≥ The zoom speed varies depending on the range over which the zoom lever is moved. (The zoom speed does not vary when Zoom in/out function operating with the remote control.) ≥...
LSQT1212_GC(EN).book 145 ページ 2007年2月15日 木曜日 午前10時13分 Recording ≥ This function cannot be used in picture recording mode. ≥ When the LCD monitor is rotated towards the lens side, the icon will not be displayed even if you press the joystick. To use the zoom microphone ≥...
LSQT1212_GC(EN).book 146 ページ 2007年2月15日 木曜日 午前10時13分 Recording Press the joystick. Then move SDR-H250: ≥ Video recording mode the joystick down to display the icon shown in the illustration. 1/2 1/2 NEXT 1/2 NEXT NEXT ≥ Picture recording mode Move the joystick up to select [ª].
LSQT1212_GC(EN).book 147 ページ 2007年2月15日 木曜日 午前10時13分 Recording Move the joystick left to select Press the MENU button, then select [ADVANCED] # [FADE COLOUR] # [WHITE] or [BLACK] and press the joystick. ≥ If you turn off the power, the fade function is cancelled.
LSQT1212_GC(EN).book 148 ページ 2007年2月15日 木曜日 午前10時13分 Recording ≥ If the background or anything else in the scene ≥ If a sharper focus cannot be achieved, adjust has colours similar to the skin colour, they will the focus manually. (l 152) also be smoothed. ≥...
LSQT1212_GC(EN).book 149 ページ 2007年2月15日 木曜日 午前10時13分 Recording To cancel the colour night view function is focused when the button is pressed halfway. (SDR-H250) Select [ ] again. ≥ When you press the Photoshot button [ fully in auto focus mode, the subject is focused ≥...
LSQT1212_GC(EN).book 150 ページ 2007年2月15日 木曜日 午前10時13分 Recording Press the MENU button, then select [ADVANCED] # [O.I.S.] # [ON] and Wide mode press the joystick. This is for selecting the screen’s aspect ratio when recording motion pictures. [HDD] [SD] MENU This allows you to record images compatible with wide-screen TVs (16:9) and regular TVs (4:3).
LSQT1212_GC(EN).book 151 ページ 2007年2月15日 木曜日 午前10時13分 Recording Press the MENU button, then select Set the AUTO/MANUAL/FOCUS [ADVANCED] # [WIND CUT] # [ON] switch to MANUAL. and press the joystick. MENU Press the MENU button, then select [BASIC] # [SCENE MODE] To cancel the wind noise reduction # desired item and press the function joystick.
LSQT1212_GC(EN).book 152 ページ 2007年2月15日 木曜日 午前10時13分 Recording Move the switch down and set it ≥ During normal playback, the image movement may not look smooth. to FOCUS position. ≥ Avoid recording under fluorescent light, mercury light or sodium light because the colour and brightness of the playback image may change.
Page 153
LSQT1212_GC(EN).book 153 ページ 2007年2月15日 木曜日 午前10時13分 Recording Set the AUTO/MANUAL/FOCUS switch to MANUAL. To set the white balance manually Select [ ], and fill the screen with a white subject. 3/3 3/3 NEXT 3/3 NEXT NEXT The icon shown in the illustration is displayed automatically.
LSQT1212_GC(EN).book 154 ページ 2007年2月15日 木曜日 午前10時13分 Recording ∫ About the black balance Set the AUTO/MANUAL/FOCUS adjustment (SDR-H250) switch to MANUAL. This is one of the 3CCD system functions that automatically adjusts the black when the white balance is set in the manual adjustment mode. When the black balance is adjusted, the screen will temporarily be black.
Page 155
LSQT1212_GC(EN).book 155 ページ 2007年2月15日 木曜日 午前10時13分 Recording ≥ When setting both the shutter speed and the iris/gain value, set the shutter speed and then set the iris/gain value. ∫ Manual shutter speed adjustment ≥ Avoid recording under fluorescent light, mercury light or sodium light because the colour and brightness of the playback image may change.
LSQT1212_GC(EN).book 156 ページ 2007年2月15日 木曜日 午前10時13分 Playback Playback Motion picture playback [HDD] [SD] Play back the motion pictures recorded on the internal HDD or SD card. Use the menu to select the desired playback medium. (l below) Rotate the mode dial to select Press the MENU button, then select [MEDIA SELECT] # [HDD] or [SD CARD] to select the desired medium and press the joystick.
Page 157
LSQT1212_GC(EN).book 157 ページ 2007年2月15日 木曜日 午前10時13分 Playback ≥ When the amount of time recorded on the scene is short, playback may not be possible. ≥ When a scene is displayed as [ ] on the thumbnail display, playback is not possible. ≥ The power will not turn off when the LCD monitor is closed. ≥...
Page 158
LSQT1212_GC(EN).book 158 ページ 2007年2月15日 木曜日 午前10時13分 Playback ∫ Operating with the remote control (SDR-H250) Press the E or D button. SEARCH PLAY SEARCH STILL ADV PAUSE STILL ADV SKIP STOP SKIP Frame-by-frame playback The motion picture is advanced one frame at a time. Move the joystick up during playback to pause the playback.
Page 159
LSQT1212_GC(EN).book 159 ページ 2007年2月15日 木曜日 午前10時13分 Playback Scenes recorded on the same day can be played back in succession. Press the MENU button, then select [PLAY SETUP] # [PLAY MODE] # [BY DATE] and press the joystick. MENU The [VIEW BY DATE] screen is displayed by month when playing back motion pictures on the HDD.
LSQT1212_GC(EN).book 160 ページ 2007年2月15日 木曜日 午前10時13分 Playback Still picture playback [HDD] [SD] Play back the still pictures recorded on the internal HDD or SD card. Use the menu to select the desired playback medium. (l below) Rotate the mode dial to select Press the MENU button, then select [MEDIA SELECT] # [HDD] or [SD CARD] to select the desired medium and press the joystick.
Page 161
LSQT1212_GC(EN).book 161 ページ 2007年2月15日 木曜日 午前10時13分 Playback ≥ The file format supported by this unit is JPEG. (Not all JPEG formatted files will be played back.) ≥ If a non-standard file is played back, the folder/file number may not be displayed. ≥ This unit may degrade or not play back data recorded or created on another product and another product may degrade or not play back data recorded on this unit.
LSQT1212_GC(EN).book 162 ページ 2007年2月15日 木曜日 午前10時13分 Editing Press the button in the Editing Editing scenes thumbnail display. Deleting scenes This is for deleting motion picture scenes. [HDD] [SD] The deleted scenes cannot be restored. Select [ALL] or [SELECT] and Deleting scenes one at a time press the joystick.
LSQT1212_GC(EN).book 163 ページ 2007年2月15日 木曜日 午前10時13分 Editing SET] # [YES] and press the To cancel deleting halfway Press the MENU button. joystick. ≥ Scenes are deleted from the last scene on the thumbnail display. The scenes that have already been deleted when the deletion is cancelled cannot be restored.
LSQT1212_GC(EN).book 164 ページ 2007年2月15日 木曜日 午前10時13分 Editing [PLAYLIST] # [CREATE] and ≥ If you create or delete playlists, the original scenes will not be modified. Editing scenes on press the joystick. a playlist will not affect the original scenes. MENU Select the scene to be added to the playlist, then press the joystick.
LSQT1212_GC(EN).book 165 ページ 2007年2月15日 木曜日 午前10時13分 Editing Playing back a playlist Editing a playlist [HDD] [HDD] ¬ Rotate the mode dial to select Editing scenes on a playlist will not affect the original scenes. ¬ Select [HDD] in [MEDIA SELECT]. Press the MENU button, then Adding scenes to playlist select [PLAY SETUP] # [PLAYLIST] # [VIEW LIST] and...
Page 166
LSQT1212_GC(EN).book 166 ページ 2007年2月15日 木曜日 午前10時13分 Editing The thumbnail view screen of the playlist that To continue moving other scenes in the scenes were added to is displayed. playlist Repeat steps 2-3. To continue adding scenes to the playlist To complete editing Repeat steps 1-4.
LSQT1212_GC(EN).book 167 ページ 2007年2月15日 木曜日 午前10時13分 Editing Select [ALL] or [SELECT] and ≥ When a playlist is deleted, the number of each subsequent playlist decreases by one. press the joystick. ≥ When [ALL] is selected, the selected playlist will be erased. Proceed to step 5. Editing still pictures (Only when [SELECT] is selected in step 2) Select the scene to be deleted,...
LSQT1212_GC(EN).book 168 ページ 2007年2月15日 木曜日 午前10時13分 Editing Press the button in the been deleted when the deletion is cancelled cannot be restored. thumbnail display. To complete editing Press the MENU button. ∫ Deleting still picture files recorded on an SD card by other products A still picture file (other than JPEG) that cannot be played back on this unit may be erased.
LSQT1212_GC(EN).book 169 ページ 2007年2月15日 木曜日 午前10時13分 Editing Press the MENU button, then [DPOF SET] # [SET] and press select [PHOTO SETUP] # [LOCK the joystick. SET] # [YES] and press the joystick. MENU MENU Select the file to be set, then press the joystick. Select the file to be protected, then press the joystick.
LSQT1212_GC(EN).book 170 ページ 2007年2月15日 木曜日 午前10時13分 Editing (Only when [SELECT] is selected in step 2) ≥ The DPOF setting can be established for up to Select the file to be copied, then 999 files. press the joystick. ≥ DPOF setting made on other devices may not be recognised by this unit.
LSQT1212_GC(EN).book 171 ページ 2007年2月15日 木曜日 午前10時13分 HDD and card management Press the MENU button, then select HDD and card management HDD management [SETUP] # [HDD STATUS] # [YES] and press the joystick. Formatting HDD This is for initializing HDD. [HDD] MENU Please be aware that if the HDD is formatted, then all the data recorded on the HDD will be erased.
Page 172
LSQT1212_GC(EN).book 172 ページ 2007年2月15日 木曜日 午前10時13分 HDD and card management When the confirmation message appears, select [YES], then press the joystick. ≥ When formatting is complete, press the MENU button to exit the message screen. ≥ Use this unit to format SD cards. If an SD card is formatted on other products (such as a computer), the time spent for recording may become longer and you may not be able to use...
LSQT1212_GC(EN).book 173 ページ 2007年2月15日 木曜日 午前10時13分 With other products ≥ The channel set will differ depending on the With other products With a TV terminal to which the unit is connected. Start playback on this unit. Playback on TV The image and audio are output on the TV. [HDD] [SD] ∫...
LSQT1212_GC(EN).book 174 ページ 2007年2月15日 木曜日 午前10時13分 With other products DVD recorder with the AV/S cable (supplied) and then dub. below) [TV ASPECT] setting [16:9] [4:3] Insert the SD card into the SD card slot on the DVD recorder, then dub the contents onto the hard disk or a disc.
LSQT1212_GC(EN).book 175 ページ 2007年2月15日 木曜日 午前10時13分 With other products Connect this unit and a video ≥ If the date and time display and function device. indication are unnecessary, cancel them before dubbing. (SDR-H250) (l 132, 174) S VIDEO IN VIDEO IN With a printer (PictBridge) AUDIO IN [HDD] [SD] To print pictures by directly connecting this unit to...
Page 176
LSQT1212_GC(EN).book 176 ページ 2007年2月15日 木曜日 午前10時13分 With other products Select a file to be printed, then [A4]: A4 size ≥ You cannot set paper sizes not supported on press the joystick. the printer. Select the layout setting on [PAGE LAYOUT]. The number of pictures set is displayed. Move the joystick up or down to select the desired number of prints, then press the joystick.
Page 177
LSQT1212_GC(EN).book 177 ページ 2007年2月15日 木曜日 午前10時13分 With other products ≥ You may not be able to print still pictures recorded with other products. ≥ When the unit is connected directly to the printer, the DPOF settings cannot be used. ≥ Connect the printer directly to this unit. Do not use a USB hub.
Before using with a computer What you can do with a computer When you have installed ImageMixer3 for Panasonic from the supplied CD-ROM and connected your computer to the unit, you can perform the operations described below. A You can play back the images recorded by this unit on your computer or import the images to your computer.
English, French, Spanish, German, Italian and Simplified Chinese supported ≥ You cannot use a Panasonic DVD Video Camera as a device for writing. ≥ Even if the system requirements mentioned in these operating instructions are fulfilled, some computers cannot be used.
Page 180
≥ Use discs made by a trustworthy manufacturer. It may not be possible to record images properly if you use low-quality discs. For technical inquiries about this software, contact the PIXELA support website. Website: http://www.pixela.co.jp/oem/panasonic/e/index.html (This website is in English only.) LSQT1212...
≥ You cannot install the application if you check [I computer while the software is being installed. do not accept the terms of the license agreement]. Installing ImageMixer3 for Panasonic Select where the application is to be installed, and click [Next]. Insert the CD-ROM into the computer.
LSQT1212_GC(EN).book 182 ページ 2007年2月15日 木曜日 午前10時13分 With a computer Select [ImageMixer3], then click [Remove]. The computer must be rebooted for the application to work. ≥ Depending on the operating environment, you may be required to install DirectX 9.0c. If so, click [Yes], and install it. If you install the software in a computer that is not compatible with DirectX 9.0c, the computer ≥...
LSQT1212_GC(EN).book 183 ページ 2007年2月15日 木曜日 午前10時13分 With a computer Connect this unit and a computer. About the computer display When the unit is connected to a computer, it is recognised as an external drive. ≥ This unit supports only the readout of data using the computer.
LSQT1212_GC(EN).book 184 ページ 2007年2月15日 木曜日 午前10時13分 With a computer Cam USB Device] is selected and SD card click [OK]. Click [Close], and you can safely disconnect the cable. ≥ If you disconnect the USB cable while the ACCESS/PC lamp or card access lamp is on or while appears on the LCD monitor, it may damage the data.
DVD disc again when a different user account is used. Insert a DVD disc into the DVD ≥ You cannot use a Panasonic DVD Video drive. Camera as a device for writing. ≥ It is recommended that you use a brand-new Playing back and importing DVD disc.
Page 186
Select [start] # ≥ Imported images can be checked by clicking [All Programs (Programs)] # [Library]. [PIXELA] # [ImageMixer3 for Panasonic] # [ImageMixer3 for ≥ Imported images can be edited using ImageMixer3. For details, refer to software Panasonic]. help. (l 182) ≥...
[All Programs (Programs)] # Creating DVD-Video discs [PIXELA] # [ImageMixer3 for with the selected images Panasonic] # [ImageMixer3 for Panasonic]. Use ImageMixer3 to import the images recorded by this unit that you want to write to a DVD disc and then create a DVD-Video.
Page 188
≥ Depending on the amount of data, writing to the disc may take time. ≥ You cannot use a Panasonic DVD Video Camera as a device for writing. Click [Source], and add the scene to the menu screen by drag and drop.
Page 191
LSQT1212_GC(EN).book 191 ページ 2007年2月15日 木曜日 午前10時13分 Others ≥ In the following cases, the unit may not turn off During motion picture recording (in orange) even when you set this to [5 MINUTES]. During playback and while connected to a jWhen using the AC adaptor computer, a printer, etc.
LSQT1212_GC(EN).book 192 ページ 2007年2月15日 木曜日 午前10時13分 Others Indications Soft skin mode Tele macro (SDR-H250) Fade (White), Fade (Black) Indications Colour night view function ∫ Media indications Video light (SDR-H250/ SDR-H21) HDD is selected Zoom microphone ZOOM SD card is selected Wind noise reduction ∫...
Page 193
LSQT1212_GC(EN).book 193 ページ 2007年2月15日 木曜日 午前10時13分 Others ∫ Playback indications Locked motion pictures and Motion picture playback still pictures Number of recording pixels for still pictures SDR-H250: 2048k1512 1920k1080 1280k960 Still picture playback 640k480 SDR-H21/ SDR-H20: 640k480 640k360 The picture size is not displayed for still pictures recorded with other products that have different picture sizes from the sizes shown Playback...
RECORDING IS STOPPED. to a computer, etc. before formatting the SD card. ≥ When using any other card Use a Panasonic SD card or another SD card which can be used to record motion pictures. (l 118) CANNOT RECORD IN AGS The AGS function is activated.
Page 195
LSQT1212_GC(EN).book 195 ページ 2007年2月15日 木曜日 午前10時13分 Others CHANGE TO MANUAL MODE. CANCEL NIGHT VIEW You are attempting to use a function that cannot be used MODE. simultaneously. TURN OFF THE VIDEO LIGHT. OPERATION FAILED. EXCESSIVE SHOCK The unit has detected that it is being dropped so the operation has DETECTED.
LSQT1212_GC(EN).book 196 ページ 2007年2月15日 木曜日 午前10時13分 Others Functions that cannot be used simultaneously Some functions in this unit are disabled or cannot be selected due to the unit’s specifications. The table below shows examples of functions restricted by various conditions. Conditions which Functions disable the functions Digital zoom...
LSQT1212_GC(EN).book 197 ページ 2007年2月15日 木曜日 午前10時13分 Others Frequently asked questions What kind of cards can be used on this unit? SD Memory Cards and SDHC Memory Cards can be used. (l 117) Can motion pictures be recorded on an SD card? Yes, they can be recorded. To record motion pictures, we recommend using SD cards from 256 MB to 4 GB that conform to Class 2 or higher of the SD Speed Class Rating.
Page 198
LSQT1212_GC(EN).book 198 ページ 2007年2月15日 木曜日 午前10時13分 Others Can I write data from a computer onto the unit’s HDD or SD card? No, you cannot. This unit’s USB terminal is read only. Is playback possible on a computer? Use ImageMixer3. Is editing possible on a computer? Use ImageMixer3.
LSQT1212_GC(EN).book 199 ページ 2007年2月15日 木曜日 午前10時13分 Others Troubleshooting Problem Check points ≥ Is the battery fully charged? # Charge the battery using the AC adaptor. (l 121) This unit cannot be ≥ The battery protection circuit may have operated. Attach the turned on. battery to the AC adaptor for 5 to 10 seconds.
Page 200
LSQT1212_GC(EN).book 200 ページ 2007年2月15日 木曜日 午前10時13分 Others Problem Check points The remote control does ≥ Has the button-type battery of the remote control run out? not function. # Replace it with a new button-type battery. (l 115) A function indication such as the remaining ≥...
Page 201
LSQT1212_GC(EN).book 201 ページ 2007年2月15日 木曜日 午前10時13分 Others Problem Check points ≥ Are you trying to record small or finely detailed objects with [PICT. QUALITY] set at [ Recorded still pictures # If you try to record small or finely detailed objects with are not clear.
Page 202
LSQT1212_GC(EN).book 202 ページ 2007年2月15日 木曜日 午前10時13分 Others Problem Check points ≥ Is this unit connected to a computer? # No operation can be performed on this unit when it is connected The indication to a computer. disappears. ≥ Turn off the power to this unit. If the power cannot be turned The screen is frozen.
Page 203
≥ To create DVD-Video discs using the DVD COPY function, you need to install ImageMixer3 for Panasonic from the supplied The DVD COPY function CD-ROM to your computer. (l 181) will not start even when I ≥...
LSQT1212_GC(EN).book 204 ページ 2007年2月15日 木曜日 午前10時13分 Others Cautions for use Do not spray insecticides or volatile chemicals onto the unit. ≥ If the unit is sprayed with such chemicals, its body may be marred and the surface finish About this unit may peel off. ≥...
Page 205
LSQT1212_GC(EN).book 205 ページ 2007年2月15日 木曜日 午前10時13分 Others ≥ When storing the unit in a cupboard or cabinet, ≥ When you travel, do not forget to bring an AC it is recommended that you place a desiccant adaptor so that you can recharge the batteries (silica gel) in with it.
LSQT1212_GC(EN).book 206 ページ 2007年2月15日 木曜日 午前10時13分 Others ≥ During prolonged use, the unit’s surfaces and may not work properly. Make every effort to the SD card will heat up slightly. This is normal. ensure that condensation does not form. If it does form, take the actions described below. When inserting or removing the SD card, Causes of condensation always set the OFF/ON switch to OFF.
Page 207
LSQT1212_GC(EN).book 207 ページ 2007年2月15日 木曜日 午前10時13分 Others This is called automatic white balance White balance adjustment determines the white adjustment. colour under different light sources. By However, since the unit only stores white colour recognising which is the white colour under information under certain light sources, sunlight and which is the white colour under a automatic white balance adjustment does not fluorescent light, the unit can adjust the balance...
Page 208
LSQT1212_GC(EN).book 208 ページ 2007年2月15日 木曜日 午前10時13分 Others recorded. The focus may become blurry when recording subjects at the beach, at night views or in scenes involving fireworks or special lights. Recording a subject in dark surroundings The unit cannot focus correctly because the light information that comes through the lens decreases considerably.
LSQT1212_GC(EN).book 209 ページ 2007年2月15日 木曜日 午前10時13分 Others Specifications SD Card/Hard Disk Video Camera Information for your safety Power source: DC 7.9 V/7.2 V Power consumption: Recording 5.7 W (SDR-H250)/4.7 W (SDR-H21)/4.4 W (SDR-H20) Signal system CCIR: 625 lines, 50 fields PAL colour signal SD card: Based on the SD-Video standard Recording format HDD: Independent standard...
Page 210
LSQT1212_GC(EN).book 210 ページ 2007年2月15日 木曜日 午前10時13分 Others Video output level 1.0 Vp-p, 75 ™ Y: 1.0 Vp-p, 75 ™ S Video output level C: 0.3 Vp-p, 75 ™ Audio output level (Line) 316 mV, 600 ™ Card reader function (No copyright protection support) HDD reader function Hi-Speed USB (USB 2.0) compliant PictBridge-compliant...
Page 211
LSQT1212_GC(EN).book 211 ページ 2007年2月15日 木曜日 午前10時13分 Others Still pictures SD Memory Card: 8 MB/16 MB/32 MB/64 MB/128 MB/256 MB/512 MB/1 GB/2 GB (removable type) (FAT12 and FAT16 format corresponding) Recording media SDHC Memory Card: 4 GB (removable type) (FAT32 format corresponding) HDD: 30 GB* (fixed type) JPEG (Design rule for Camera File system, based on Exif 2.2 Compression standard), DPOF corresponding...
