Panasonic SDR-H200P Service Manual

Sd card/hard disk video camera
Hide thumbs Also See for SDR-H200P:
Table of Contents

Advertisement

Quick Links

Download this manual

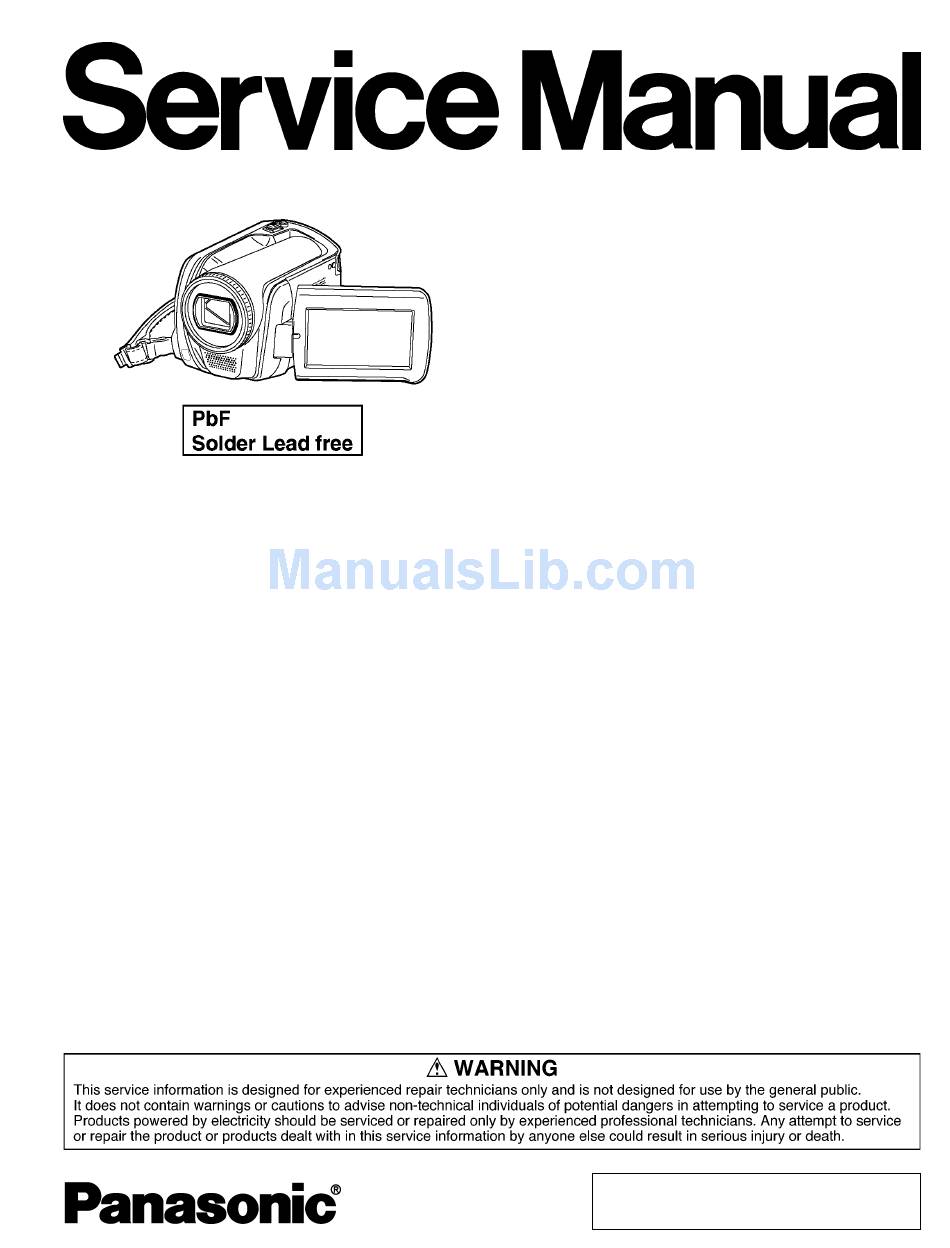

SD Card/Hard Disk Video Camera
SDR-H200P
SDR-H200PC
Vol. 2
Colours
(S)...................Silver Type
© 2007 Panasonic Shikoku Electronics Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MKE0703303CE
B27
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SDR-H200P

Summary of Contents for Panasonic SDR-H200P

  • Page 1 ORDER NO. MKE0703303CE SD Card/Hard Disk Video Camera SDR-H200P SDR-H200PC Vol. 2 Colours (S)....Silver Type © 2007 Panasonic Shikoku Electronics Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.

  • Page 2: Table Of Contents

    SDR-H200P / SDR-H200PC CONTENTS Page Page 1 Service Navigation 4.11. CAMERA (SYSTEM CONTROL (3/4)) SCHEMATIC 1.1. Introduction DIAGRAM 1.2. About Lead Free Solder (PbF) 4.12. CAMERA (SYSTEM CONTROL (4/4)) SCHEMATIC 2 Service Fixture & Tools DIAGRAM 2.1. Service Position 4.13. MAIN (MAIN CONNECTION (1/4)) SCHEMATIC 2.2.

  • Page 3: Service Navigation

    SDR-H200P / SDR-H200PC 1 Service Navigation 1.1. Introduction This service manual contains technical information which will allow service personnel´s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service manual.

  • Page 4: Service Fixture & Tools

    SDR-H200P / SDR-H200PC 2 Service Fixture & Tools 2.1. Service Position 2.1.1. Extension Cables for Service Position Using the following Extension Cables, place the unit as shown for check and service. Notes: 1. Use a grounded ESD wrist strap while disassembling the Lens portion.
  • Page 5 SDR-H200P / SDR-H200PC...
  • Page 6 SDR-H200P / SDR-H200PC...

  • Page 7: Replacement Proceudres For Csp (Chip Size Package) Ic

    SDR-H200P / SDR-H200PC 2.2. Replacement Proceudres for CSP (Chip Size Package) IC 2.2.1. EQUIPMENT 1. Pre-Heater 2. Spot Heater 3. Vacuum Pick-up 4. P.C.B. Holder Fig. C1 Fig. C2...
  • Page 8 SDR-H200P / SDR-H200PC 2.2.2. Removal of CSP IC Fig. C3...
  • Page 9 SDR-H200P / SDR-H200PC 2.2.3. Installation of CSP IC Fig. C4...
  • Page 10 SDR-H200P / SDR-H200PC Fig. C5...
  • Page 11 SDR-H200P / SDR-H200PC 2.2.4. Location for CSP IC´s of the Main P.C.B. & Camera P.C.B. Make sure to install CSP IC in the correct position of the Main P.C.B. & Camera P.C.B. as shown. 2.2.4.1. Main P.C.B. IC3202 Head Triangle...
  • Page 12 SDR-H200P / SDR-H200PC 2.2.4.2. Camera P.C.B. Triangle Pattern Head Mark IC601 (COMPONENT SIDE) Triangle Pattern Head Mark IC6001 (FOIL SIDE)
  • Page 13 SDR-H200P / SDR-H200PC 2.2.5. Temperature Profile for Heat Resistance of CSP IC Refer to the temperature profile. CSP ICs in the 2007 model have the following temperature profile.
  • Page 14 SDR-H200P / SDR-H200PC...

  • Page 15: Block Diagrams

    SDR-H200P / SDR-H200PC 3 Block Diagrams 3.1. CCD DRIVE BLOCK DIAGRAM CCD DRIVE BLOCK DIAGRAM REC VIDEO(CAMERA) SIGNAL IC105-27,28 STOP IC105-36 STOP 3.0Vp-p (20usec.div.) 3.0Vp-p(20usec.div.) IC107-22 REC IC107-1 REC IC105 (CCD DRIVE,PULSE GEN) 0.25Vp-p(20usec.div.) 4.0Vp-p (20usec.div.) PRISM UNIT IC107 (CDS/AGC/AD,R)

  • Page 16: Process Block Diagram

    SDR-H200P / SDR-H200PC 3.2. PROCESS BLOCK DIAGRAM PROCESS BLOCK DIAGRAM REC VIDEO(CAMERA) SIGNAL IC601 (DIGITAL SIGNAL PROCESSOR) MEGA PIX MEGA PIX TO/FROM DSTBO VIDEO MEGA DSTB BUSY MEGA BUSY G DATA MEGA Y C DATA VIDEO Y C DATA MEMORY...

  • Page 17: Af Block Diagram

    SDR-H200P / SDR-H200PC 3.3. AF BLOCK DIAGRAM AF BLOCK DIAGRAM IC601 IC6001 TOP OPERATION UNIT (DIGITAL SIGNAL PROCESSOR) (SYSTEM MICROCOMPUTER) G DATA CAMERA MAIN ZOOM AD ZOOM AD FP63 Z SW 148 ZOOM SW FROM R DATA CCD DRIVE PROCESSOR...

  • Page 18: Power Supply Block Diagram

    SDR-H200P / SDR-H200PC 3.4. POWER SUPPLY BLOCK DIAGRAM POWER SUPPLY BLOCK DIAGRAM Q1412,Q1413 LCD BL 5V LCD BL 5V SWITCHING TP17 LCD BL ON FROM MAIN VIDEO FP11 UNREG NOREG FROM BATTERY FP11 BATT DET CATCHER TP91 Q1091,Q1092 POWER HDD 3.3V...

  • Page 19: System Control Block Diagram

    SDR-H200P / SDR-H200PC 3.5. SYSTEM CONTROL BLOCK DIAGRAM SYSTEM CONTROL BLOCK DIAGRAM IC6001 (CONTROL MICROCOMPUTER) BT7001 CAMERA MAIN MAIN SIDE R LITHIUM BATTERY LI BATT FP62 FP6301 ADDRESS/ FROM/TO ADM (0-15) DATA VIDEO/CAMERA CPU VDD IC6006 CARD LED D6301 (EEPROM)

  • Page 20: Video/Audio Block Diagram

    SDR-H200P / SDR-H200PC 3.6. VIDEO/AUDIO BLOCK DIAGRAM VIDEO/AUDIO BLOCK DIAGRAM IC3001 (AUDIO/VIDEO PROCESSOR) HDD UNIT REC VIDEO SIGNAL PB VIDEO SIGNAL ADM 0 REC AUDIO SIGNAL ATA DD 0 TO/FROM ADM 7 MICROCONTROLLER ADM (0-15) MAIN HDD RELAY HDD RELAY...

  • Page 21: Lcd Drive Block Diagram

    SDR-H200P / SDR-H200PC 3.7. LCD DRIVE BLOCK DIAGRAM VIDEO SIGNAL(REC & PB) LCD BLOCK DIAGRAM IC8001 IC3001 (CONTROL/PROCESSOR:MONITOR LCD) TP8003 TP8002 TP8001 TP8004 (AUDIO/VIDEO SIGNAL PROCESSOR) DATA0 G OUT L Y C IO0 CONTRAST, PEDESTAL,LPF, VIDEO DATA1 BRIGHT, R OUT...
  • Page 22 SDR-H200P / SDR-H200PC...

  • Page 23: Schematic Diagrams

    SDR-H200P / SDR-H200PC 4 Schematic Diagrams 4.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES 1. Important safety notice 3. Parts marked "PT" are not used in any models included in this service model. Components identified by the sign have special characteristics important for safety.

  • Page 24: Camera (Camera Connection (1/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.2. CAMERA (CAMERA CONNECTION (1/4)) SCHEMATIC DIAGRAM NOTE: NOTE: CAMERA (CAMERA CONNECTION (1/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 25: Camera (Camera Connection (2/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.3. CAMERA (CAMERA CONNECTION (2/4)) SCHEMATIC DIAGRAM CAMERA (CAMERA CONNECTION (2/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 26: Camera (Camera Connection (3/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.4. CAMERA (CAMERA CONNECTION (3/4)) SCHEMATIC DIAGRAM CAMERA (CAMERA CONNECTION (3/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 27: Camera (Camera Connection (4/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.5. CAMERA (CAMERA CONNECTION (4/4)) SCHEMATIC DIAGRAM CAMERA (CAMERA CONNECTION (4/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 28: Camera (Tg/Afe) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.6. CAMERA (TG/AFE) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: CAMERA (TG/AFE) SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.
  • Page 29 SDR-H200P / SDR-H200PC IC102,IC104 IC- DETAIL BLOCK DIAGRAM IC107,IC108,IC109 IC- DETAIL BLOCK DIAGRAM TIMING GENERATOR AVDD BLKSH DC OFFSET COMPENSATION CIRCUIT BLKFB CDSIN 10 BIT BLKC IC105 IC- DETAIL BLOCK DIAGRAM BIAS BIAS GENERATOR AVDD AVSS DS 2B TEST IN...

  • Page 30: Camera (Lens Drive) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.7. CAMERA (LENS DRIVE) SCHEMATIC DIAGRAM NOTE: NOTE: CAMERA (LENS DRIVE) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 31: Camera (Orion) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.8. CAMERA (ORION) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: CAMERA (ORION) SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 32: Camera (System Control (1/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.9. CAMERA (SYSTEM CONTROL (1/4)) SCHEMATIC DIAGRAM NOTE: NOTE: CAMERA (SYSTEM CONTROL (1/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 33: Camera (System Control (2/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.10. CAMERA (SYSTEM CONTROL (2/4)) SCHEMATIC DIAGRAM CAMERA (SYSTEM CONTROL (2/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 34: Camera (System Control (3/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.11. CAMERA (SYSTEM CONTROL (3/4)) SCHEMATIC DIAGRAM CAMERA (SYSTEM CONTROL (3/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 35: Camera (System Control (4/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.12. CAMERA (SYSTEM CONTROL (4/4)) SCHEMATIC DIAGRAM CAMERA (SYSTEM CONTROL (4/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.
  • Page 36 SDR-H200P / SDR-H200PC I/O CHART OF IC6001 Pin No. Signal Name Description Pin No. Signal Name Description Pin No. Signal Name Description Pin No. Signal Name Description Not Used UARTI PC Data Input CLK RST Camera Reset TEST Serial Data Input...

  • Page 37: Main (Main Connection (1/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.13. MAIN (MAIN CONNECTION (1/4)) SCHEMATIC DIAGRAM NOTE: NOTE: MAIN (MAIN CONNECTION (1/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 38: Main (Main Connection (2/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.14. MAIN (MAIN CONNECTION (2/4)) SCHEMATIC DIAGRAM MAIN (MAIN CONNECTION (2/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 39: Main (Main Connection (3/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.15. MAIN (MAIN CONNECTION (3/4)) SCHEMATIC DIAGRAM MAIN (MAIN CONNECTION (3/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 40: Main (Main Connection (4/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.16. MAIN (MAIN CONNECTION (4/4)) SCHEMATIC DIAGRAM MAIN (MAIN CONNECTION (4/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 41: Main (Power Supply (1/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.17. MAIN (POWER SUPPLY (1/4)) SCHEMATIC DIAGRAM NOTE: NOTE: MAIN (POWER SUPPLY (1/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 42: Main (Power Supply (2/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.18. MAIN (POWER SUPPLY (2/4)) SCHEMATIC DIAGRAM MAIN (POWER SUPPLY (2/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 43: Main (Power Supply (3/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.19. MAIN (POWER SUPPLY (3/4)) SCHEMATIC DIAGRAM MAIN (POWER SUPPLY (3/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 44: Main (Power Supply (4/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.20. MAIN (POWER SUPPLY (4/4)) SCHEMATIC DIAGRAM MAIN (POWER SUPPLY (4/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.
  • Page 45 SDR-H200P / SDR-H200PC IC1001 / IC1002 IC- DETAIL BLOCK DIAGRAM ERROR AMP ERROR AMP DRIVE CONTROL DRIVE ON/OFF DRIVE CONTROL CONTROL DRIVE V-REF DRIVE CONTROL TRIANGLE WAVE OSCILLATOR DRIVE CONTROL SHORTCIRCUIT PROTECT ERROR AMP ERROR AMP IC1001 / IC1002 IC-DETAIL BLOCK DIAGRAM...

  • Page 46: Main (Memory) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.21. MAIN (MEMORY) SCHEMATIC DIAGRAM NOTE: NOTE: MAIN (MEMORY) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 47: Main (Video (1/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.22. MAIN (VIDEO (1/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN (VIDEO (1/4)) SCHEMATIC DIAGRAM PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 48: Main (Video (2/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.23. MAIN (VIDEO (2/4)) SCHEMATIC DIAGRAM MAIN (VIDEO (2/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 49: Main (Video (3/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.24. MAIN (VIDEO (3/4)) SCHEMATIC DIAGRAM MAIN (VIDEO (3/4)) SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, be sure to use the part number listed in the parts list. PARTS MARKED "PT" ARE NOT USED.

  • Page 50: Main (Video (4/4)) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.25. MAIN (VIDEO (4/4)) SCHEMATIC DIAGRAM MAIN (VIDEO (4/4)) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, NOTE: NOTE: PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.
  • Page 51 SDR-H200P / SDR-H200PC I/O CHART OF IC3001 (1/2) Pin No. Signal Name Description Pin No. Signal Name Description Pin No. Signal Name Description Pin No. Signal Name Description ( Not used ) DRAMSDAT(6) SDRAM Data 6 DRAMSADR(9) SDRAM Address 9 +1.2V...
  • Page 52 SDR-H200P / SDR-H200PC I/O CHART OF IC3001 (2/2) Pin No. Signal Name Description Pin No. Signal Name Description Pin No. Signal Name Description ADAT(10) Flash Memory Data 10 ADC0 (Not used) YCIN(5) (Not used) ADAT(11) Flash Memory Data 11 ADC1...

  • Page 53: Main (Lcd) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.26. MAIN (LCD) SCHEMATIC DIAGRAM NOTE: NOTE: MAIN (LCD) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 54: Main (Av Io) Schematic Diagram

    SDR-H200P / SDR-H200PC 4.27. MAIN (AV IO) SCHEMATIC DIAGRAM NOTE: NOTE: MAIN (AV IO) SCHEMATIC DIAGRAM NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list.

  • Page 55: Voltage Chart

    SDR-H200P / SDR-H200PC 4.28. VOLTAGE CHART NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MAIN P.C.B. MODE MODE MODE MODE MODE MODE MODE MODE PIN NO. PIN NO. PIN NO. PIN NO. PIN NO.
  • Page 56 SDR-H200P / SDR-H200PC NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MODE MODE MODE MODE MODE MODE MODE PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. FP63...
  • Page 57 SDR-H200P / SDR-H200PC NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. CAMERA P.C.B. MODE MODE MODE MODE MODE MODE MODE MODE MODE PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO.
  • Page 58 SDR-H200P / SDR-H200PC NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. FRONT P.C.B. CAMERA P.C.B. LCD BACKLIGHT P.C.B. HDD RELAY P.C.B. MODE MODE MODE MODE MODE MODE MODE MODE MODE PIN NO. PIN NO.

  • Page 59: Printed Circuit Board

    SDR-H200P / SDR-H200PC 5 Printed Circuit Board 5.1. CAMERA P.C.B. CAMERA P.C.B. LSEP8390A1 NOTE: MULTILAYER P.C.B. THIS P.C.B. IS Multi-Layer P.C.B.THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT PATETRNS ARE SINGLE PATTERN FOR EACH SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.
  • Page 60 SDR-H200P / SDR-H200PC CAMERA P.C.B. LSEP8390A1 NOTE: MULTILAYER P.C.B. THIS P.C.B. IS Multi-Layer P.C.B.THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT PATETRNS ARE SINGLE PATTERN FOR EACH SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.
  • Page 61 SDR-H200P / SDR-H200PC 5.1.1. CAMERA P.C.B. ADDRESS INFORMATION Parts Location CAMERA P.C.B. Integrated circuit D6003 C601 C6033 R707 R6039 R6130 IC101 D6004 C602 C6035 R708 R6040 R6131 IC102 Filter C603 C6037 R709 R6041 R6132 IC103 FL101 C604 C6038 R710 R6043...

  • Page 62: Main

    SDR-H200P / SDR-H200PC 5.2. MAIN P.C.B. MAIN P.C.B. LSEP8389A1 (COMPONENT SIDE) NOTE: MULTILAYER P.C.B. THIS P.C.B. IS Multi-Layer P.C.B.THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT PATETRNS ARE SINGLE PATTERN FOR EACH SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.
  • Page 63 SDR-H200P / SDR-H200PC MAIN P.C.B. LSEP8389A1 (FOIL SIDE) NOTE: MULTILAYER P.C.B. THIS P.C.B. IS Multi-Layer P.C.B.THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT PATETRNS ARE SINGLE PATTERN FOR EACH SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.
  • Page 64 SDR-H200P / SDR-H200PC 5.2.1. MAIN P.C.B. ADDRESS INFORMATION Parts Location MAIN P.C.B. Integrated circuit TP81 D1501 C1023 C1281 C3054 C8004 R1111 R3040 R3181 IC1001 TP91 D1502 C1024 C1291 C3055 C8005 R1121 R3042 R3182 IC1002 TP92 D1503 C1031 C1292 C3056 C8006...

  • Page 65: Appendix Information Of Schematic Diagram

    SDR-H200P / SDR-H200PC 6 Appendix Information of Schematic Diagram 6.1. CHECKING POINT TABLE OF THE CSP IC Check Point of the IC601 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name YCOS2 PLLAVS...
  • Page 66 SDR-H200P / SDR-H200PC Check Point of the IC601 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name MSPA14 EXT_WE MSPA13 EXT_RASL MSPA12 EXT_DQMLL MSPA11 EXT_A7 MSPA10 EXT_CASL MSPA9 VDDSDRAM VDDI EXT_CSL MSPA8 EXT_A9...
  • Page 67 SDR-H200P / SDR-H200PC Check Point of the IC601 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name TSTO13 TMODE3 R628(LEFT) CAMERA P.C.B. (C) WF-1 TSTO12 TMODE2 R631(LEFT) WF-1 CAMERA P.C.B. (C) VDDI TMODE1...
  • Page 68 SDR-H200P / SDR-H200PC Check Point of the IC601 CSP IC Check Point WF NO. Remarks Name (C): COMPONENT SIDE (F): FOIL SIDE...
  • Page 69 SDR-H200P / SDR-H200PC Check Point of the IC3001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name R3015(UPPER) WF-1 MAIN P.C.B. (F) R3015(LOWER) WF-1 MAIN P.C.B. (F) SCK0 R3017(UPPER) WF-1 MAIN P.C.B. (F)
  • Page 70 SDR-H200P / SDR-H200PC Check Point of the IC3001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name R3031(UPPER) WF-1 MAIN P.C.B. (F) TP92 WF-1 MAIN P.C.B. (C) PWM0 R1414(UPPER) WF-1 MAIN P.C.B. (C)
  • Page 71 SDR-H200P / SDR-H200PC Check Point of the IC3001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name VDDIO6 ADIN[0] ADIN[1] ADIN[2] ADIN[3] ADIN[4] AADR[5] ADIN[5] AADR[6] ADIN[6] AADR[7] ADIN[7] AADR[8] ADIN[8] AADR[9] ADIN[9]...
  • Page 72 SDR-H200P / SDR-H200PC Check Point of the IC3001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name YCIN[5] YCIN[6] YCIN[7] LCDHD LCDVBLK LCDPOL AVDD0 AVSS0 VDDIO4 AVDD1 OSDCLK AVSS1 OSDVR AVDD2 OSDVG AVSS2...
  • Page 73 SDR-H200P / SDR-H200PC Check Point of the IC3001 CSP IC Check Point WF NO. Remarks Name (C): COMPONENT SIDE (F): FOIL SIDE...
  • Page 74 SDR-H200P / SDR-H200PC Check Point of the IC3202 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name VDDQ DQM3 VSSQ VDDQ VSSQ DQM1 DQM0 /CAS /RAS VDDQ DQ10 VSSQ DQ11 A10/AP DQ12 VDDQ...
  • Page 75 SDR-H200P / SDR-H200PC Check Point of the IC3203 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name TP3014 WF-1 MAIN P.C.B. (F) R3218(RIGHT) WF-2 MAIN P.C.B. (F) /AVD R3219(LOWER) WF-231 MAIN P.C.B. (F)
  • Page 76 SDR-H200P / SDR-H200PC Check Point of the IC6001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name UARTO R6098(LEFT) WF-1 CAMERA P.C.B. (F) ADM[0] UARTI R6097(LEFT) WF-1 CAMERA P.C.B. (F) ADM[1] TP3003 WF-218 MAIN P.C.B.
  • Page 77 SDR-H200P / SDR-H200PC Check Point of the IC6001 CSP IC CSP IC Check Point WF NO. Remarks Check Point WF NO. Remarks Name Name P125 R6068(RIGHT) WF-1 CAMERA P.C.B. (F) LED_CNT Q702-B WF-1 CAMERA P.C.B. (C) P126 R6069(RIGHT) WF-1 CAMERA P.C.B. (F)

  • Page 78: Waveform Table Of The Csp Ic

    SDR-H200P / SDR-H200PC 6.2. WAVEFORM TABLE OF THE CSP IC WF-1 WF-2 WF-3 WF-4 WF-5 WF-6 WF-7 WF-8 WF-9 WF-10 WF-11 WF-12 WF-13 WF-14 WF-15 WF-16 WF-17 WF-18 WF-19 WF-20 WF-21 WF-22 WF-23 WF-24 WF-25 WF-26 WF-27 WF-28 WF-29 WF-30...
  • Page 79 SDR-H200P / SDR-H200PC WF-41 WF-42 WF-43 WF-44 WF-45 WF-46 WF-47 WF-48 WF-49 WF-50 WF-51 WF-52 WF-53 WF-54 WF-55 WF-56 WF-57 WF-58 WF-59 WF-60 WF-61 WF-62 WF-63 WF-64 WF-65 WF-66 WF-67 WF-68 WF-69 WF-70 WF-71 WF-72 WF-73 WF-74 WF-75 WF-76 WF-77...
  • Page 80 SDR-H200P / SDR-H200PC WF-81 WF-82 WF-83 WF-84 WF-85 WF-86 WF-87 WF-88 WF-89 WF-90 WF-91 WF-92 WF-93 WF-94 WF-95 WF-96 WF-97 WF-98 WF-99 WF-100 WF-101 WF-102 WF-103 WF-104 WF-105 WF-106 WF-107 WF-108 WF-109 WF-110 WF-111 WF-112 WF-113 WF-114 WF-115 WF-116 WF-117...
  • Page 81 SDR-H200P / SDR-H200PC WF-121 WF-122 WF-123 WF-124 WF-125 WF-126 WF-127 WF-128 WF-129 WF-130 WF-131 WF-132 WF-133 WF-134 WF-135 WF-136 WF-137 WF-138 WF-139 WF-140 WF-141 WF-142 WF-143 WF-144 WF-145 WF-146 WF-147 WF-148 WF-149 WF-150 WF-151 WF-152 WF-153 WF-154 WF-155 WF-156 WF-157...
  • Page 82 SDR-H200P / SDR-H200PC WF-161 WF-162 WF-163 WF-164 WF-165 WF-166 WF-167 WF-168 WF-169 WF-170 WF-171 WF-172 WF-173 WF-174 WF-175 WF-176 WF-177 WF-178 WF-179 WF-180 WF-181 WF-182 WF-183 WF-184 WF-185 WF-186 WF-187 WF-188 WF-189 WF-190 WF-191 WF-192 WF-193 WF-194 WF-195 WF-196 WF-197...
  • Page 83 SDR-H200P / SDR-H200PC WF-201 WF-202 WF-203 WF-204 WF-205 WF-206 WF-207 WF-208 WF-209 WF-210 WF-211 WF-212 WF-213 WF-214 WF-215 WF-216 WF-217 WF-218 WF-219 WF-220 WF-221 WF-222 WF-223 WF-224 WF-225 WF-226 WF-227 WF-228 WF-229 WF-230 WF-231 WF-232 WF-233 WF-234 WF-235 WF-236...

  • Page 84: Replacement Parts List

    SDR-H200P / SDR-H200PC 7 Replacement Parts List BEFORE REPLACING PARTS, READ THE FOLLOWING: Ref. Part No. Part Name & Description Remarks 1. Use only original replacement parts: IC3301 C1AB00002663 IC, LINEAR To maintain original function and reliability of repaired units,...
  • Page 85 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks B1ABCF000110 TRANSISTOR SI NPN CHIP D1471 MA2S111008 DIODE SI CHIP Q1413 B0ACCK000003 DIODE SI CHIP Q1431 2SB09700RL TRANSISTOR SI PNP CHIP...
  • Page 86 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1361 ERJ2RHD563X MGF CHIP 1/16W 56K R3103 ERJ2GEJ330X MGF CHIP 1/16W 33 R1362 ERJ2RHD152X MGF CHIP 1/16W 1.5K R3104 ERJ2GEJ330X MGF CHIP 1/16W 33...
  • Page 87 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R4502 ERJ2GEJ561X MGF CHIP 1/16W 560 C1213 F1H1A105A036 C CHIP 10V 1UF R4503 ERJ2GEJ561X MGF CHIP 1/16W 560 C1218 F3F0J106A032 TANTALUM CHIP 6.3V 10UF...
  • Page 88 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C3043 F1G1C103A048 C CHIP 16V 0.01UF C8006 F1H0J1050012 C CHIP 6.3V 1UF C3044 F1G1A1040006 C CHIP 10V 0.1UF C8008 F1H0J1050012 C CHIP 6.3V 1UF...
  • Page 89 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks FP11 K1KA09AA0051 CONNECTOR 9P Q6011 UNR31A500L TRANSISTOR SI PNP CHIP FP41 K1MN18BA0196 CONNECTOR 18P B1GDCFJA0025 TRANSISTOR SI PNP CHIP Q6011 FP61...
  • Page 90 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R715 D0GA472JA015 MGF CHIP 1/16W 4.7K R6064 ERJ2GEJ105X MGF CHIP 1/16W 1M R716 D0GA472JA015 MGF CHIP 1/16W 4.7K R6067 ERJ2GEJ104X MGF CHIP 1/16W 100K...
  • Page 91 SDR-H200P / SDR-H200PC Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C108 F1G1A1040006 C CHIP 10V 0.1UF C716 ECJ0EB1H392K C CHIP 50V 3900PF C109 F1H1A224A012 C CHIP 10V 0.22UF C717 F1G1E472A059 CERAMIC CAPACITOR,MULTILAYER...
  • Page 92 SDR-H200P / SDR-H200PC CRYSTAL OSCILLATOR Ref. Part No. Part Name & Description Remarks X101 H1A5405B0011 CRYSTAL OSCILLATOR X6001 H0J327200085 CRYSTAL OSCILLATOR CHIP X6002 H0J135500031 CRYSTAL OSCILLATOR CHIP PIN HEADERS Ref. Part No. Part Name & Description Remarks K1KAF0A00003 2-PIECE CONNECTORS...
