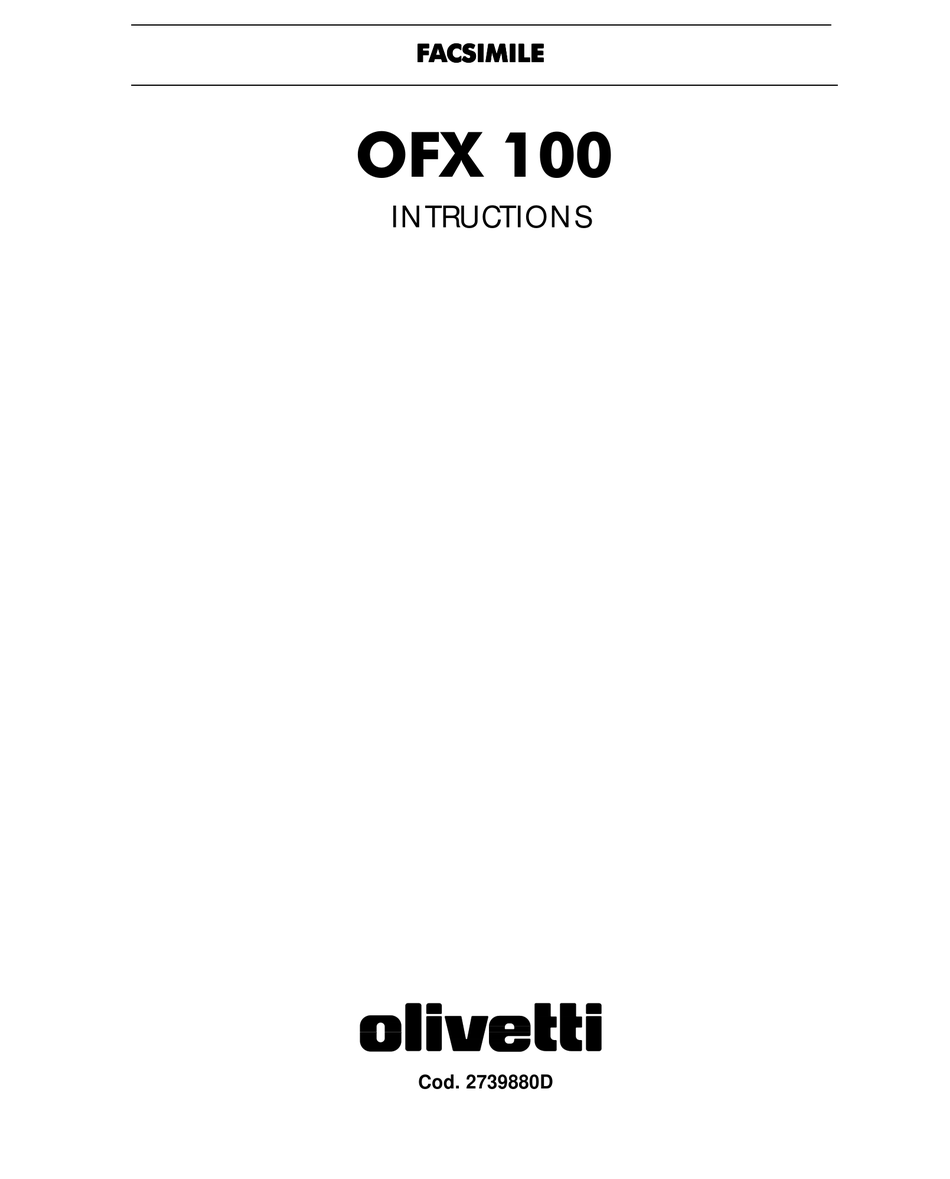

- Page 1 F F F F F A A A A A CSIMILE CSIMILE CSIMILE CSIMILE CSIMILE OFX 100 INTRUCTIONS Cod. 2739880D...
- Page 2 PUBBLICAZIONE EMESSA DA: Ing. C. Olivetti & C., S.p.A. Servizi di Documentazione Via Jervis, 77 - 10015 Ivrea (To) Copyright © 1994 Olivetti Tutti i diritti riservati Si dichiara che questa apparecchiatura è conforme alle disposizioni della direttiva CEE 87/ 308 per la prevenzione ed eliminazione dei radiodisturbi (D.M.
-
Page 3: Table Of Contents
Contents Important Safeguards ................1 Environment ................... 3 Package contents ................... 3 Taking a look at the machine parts ............3 Installation instructions ................4 Function descriptions ................6 a. Keys ....................6 b. Indicators ..................6 c. Resolution ..................7 d. -
Page 4: Important Safeguards
A. Important Safeguards First read all of these instructions. • Unplug this machine from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners except for the parts mentioned in the CLEANING section. Use a damp cloth for cleaning. •... - Page 5 • Do not attempt to service this machine yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. • Unplug this machine from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power cord or plug is damaged or frayed.
-
Page 6: Environment
B. Environment Temperature: 5 C ~ 35 C (41 F ~ 95 F); humidity: 25% ~ 80%. Place the machine horizontally on a stable surface, away from vibrations and away from electronic machines to avoid interference, e.g.: television, radio etc..C. -
Page 7: Installation Instructions
Installation instructions Connect the power cord to the machine and plug into a 3 pronged grounded wall outlet. Caution: Do not use a 2 pronged adaptor. Turn power switch on (located at rear of chine). “POWER/COMM” indicator will light. Open the paper cover. Insert the 210 paper holder before loading the 210 mm - type thermal paper roll. - Page 8 Insert paper between the paper guide ribs and the upper case, and feed the paper into the slot. . Wind the excess paper back, and close the paper cover. . Paper will be automatically fed after the cover is closed. If needed repeat step #3 to adjust the position of paper.
-
Page 9: Function Descriptions
F. Function descriptions a. Keys: STAND BY MODE COMM. MODE . Start transmission. (Par. J) .Talk request (toggle) . Manual reception. (Par. K) . Copy. (Par. I) . Paper feed. . Stop copy. . Stop transmission. . Clear Comm. trouble. . -
Page 10: Resolution
c. Resolution: Selected by moving the switch to the desired setting. STANDARD FINE PICTURE . For normal . For detailed . For picture transmission. transmission. transmission. (See NOTE 1) (16 - level halftone) . Normal. . Dark. (See NOTE 2) (See NOTE 2) NOTE 1: When making copies, FINE mode is automatically selected in STD mode. -
Page 11: Alarm Signals
e. Alarm signals: 1 Sec. : . Action complete. 3 Sec. : . Communication trouble. . Document is too long. . Document jam. . No thermal paper. . Paper cover is opened. (See NOTE) . TPH has overheated. 5 Sec. : . -
Page 12: Recommended Thermal Paper Roll
210 mm (8.27") or 216 mm (8.5"). . Thickness: 0.064 mm. . A qualified thermal paper roll must be used for good printing result and long life of TPH. Recommended thermal paper: Only use paper recommended by your Olivetti dealer. -
Page 13: Omr (Optical Mark Reader) Setting
H. OMR (Optical Mark Reader) setting a. Use of the OMR sheet: 1. The machine comes from the factory set default value to: (a) answer on the 2nd ring in AUTO mode, (b) print reports in English, (c) press “#” “*” and “7” keys to control the machine to receive messages after in-coming call mode. -
Page 14: To Enter Omr Setting Mode
- Remote telephone receiving code: To select the key which is pressed after “#” and “*” key to form the remote telephone receiving code, if the code is in conflict with your TAD control code. - Silence detection setting: To select to use or not use this function. If you want to use this function, you have 3 kinds of silence time to select, 6 , 9 or 12 seconds. -
Page 15: To Program The Omr Setting
d. To program the OMR setting: 1. Insert the completed OMR sheet face down into the machine in the direction of the arrow and against the left side of the document slot. 2. After pressing “START” key, the machine begins to read it. Insert the next sheet and press “START”... -
Page 16: Copy
I. Copy a. Copy: 1. You can copy document(s) with the machine by inserting the first sheet into the machine with face down and against the left side of the slot, and pressing “START” key to execute. 2. Insert the next sheet into the machine within the 5 Sec. - inter - page alarm time. 3. -
Page 17: Transmission
J. Transmission a. Start transmission: 1. Place one document at a time into the document feeder, face down. Dial fax No., and then press “START” key to begin transmission. 2. After the transmission of one page is completed, there will be a 5 Sec. - inter - page alarm. -
Page 18: Error Code
Example of “TRANSMISSION REPORT”: TRANSMISSION REPORT FAX ID: 001 403 7123456 COMPANY NAME: ABC LTD. REMOTE ID: 7646616 TOTAL PAGES: 01 RESULT: ERROR CODE 4-22: POOR PICTURE QUALITY, P 01 d. Error code: # 1-01, # 3-01, # 3-02. Aborted. # 4-00, # 4-01, # 4-10, # 4-11, # 4-12, # 4-13, # 4-14, # 4-20, # 4-24, # 5-01, # 5-21, # 5-30. -
Page 19: Reception
K. Reception AUTO mode: The reception switch is set to AUTO. position: Please refer to Par. G, b for the setting of TEL/FAX auto switch. • The TEL/FAX auto switch is set to off (NO): The fax machine will enter fax reception mode directly when a call comes in. -
Page 20: Tel. Mode
b. TEL. mode: When telephone rings. Lift handset. If you are requested to receive a fax mes- sage, or if you hear fax tone or if there is silence. Fax reception: Press “#” , “*” and “7” keys on Press “START” key. the extension phone connected to the fax machine. -
Page 21: Tad Mode: (Telephone Answering Device)
c. TAD mode: (Telephone Answering Device) The reception switch is set to TAD position, and the reception procedure is as below: Make sure that your TAD is connected to the machine, and is turned on. The TAD will automatically answer after some rings, which depend on your ring count setting to the TAD, and which must be less than your... - Page 22 NOTE 2: If the power switch of your TAD is not turned on, the machine will automatically enter into fax reception mode after 6 rings. NOTE 3: Preparation for TAD: 1. Connect your TAD to TEL 2 jack. 2. Since there is no international standard for TADs, some TADs may not be compatible with the machine.
-
Page 23: Voice Request
L. Voice request If you wish to speak after sending or receiving a fax: Press the “START” key again during The “TALK” LED will light up. the transaction. (See NOTE 1) If the remote user If the remote user (a2) responds. -
Page 24: Maintenance
M. Maintenance Troubleshooting: CAUSE AND SOLUTION PROBLEM No response. . Check electrical wall outlet, on/off switch, and power connection. . Always use a transmittable document. Document is not set correctly. . Use a copied one, and avoid using improper paper document. (Par. G) . -
Page 25: Cleaning
Cleaning: Scanner If the machine will be used frequently everyday, a once - a - month cleaning is necessary to keep the good quality of copy and transmission. The cleaning paper can be used repeatedly, and be cleaned by the soap-suds. .
