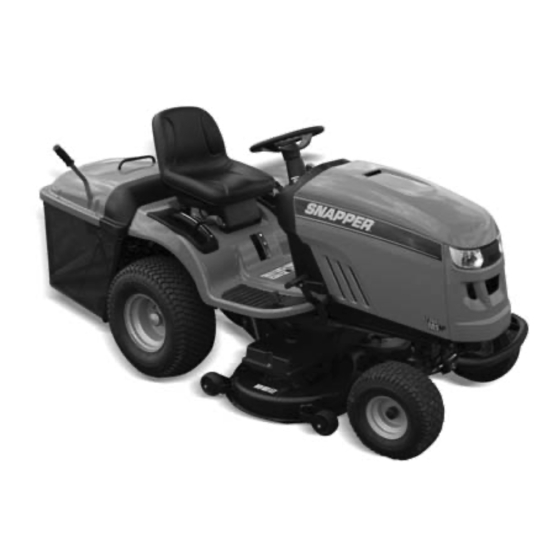

Snapper ELT19540RD Operator's Manual

Snapper ELT19540RD Operator's Manual

Regent xl series; regent rd series 19.5/22 hp hydro tractors 19.5 hp simplicity/snapper 22 hp simplicity/snapper regent xl rd, 19.5 hp ohv regent xl rd, 22 hp v-twin
Table of Contents

Advertisement

OPERATOR'S
MANUAL
Regent XL / RD Series
19.5 HP Hydro Tractors
Mfg. No.
Title
2690782
19.5 HP Simplicity
2690784
19.5 HP Snapper
22 HP Hydro Tractors
Mfg. No.
Title
2690783
22 HP Simplicity
2690785
22 HP Snapper
Description
Regent XL RD, 19.5 HP OHV
ELT19540RD
Description
Regent XL RD, 22 HP V-Twin
ELT2240RD
Rev. Date 1/2008
TP-100-4841-00-RG-SN
1736042
Revision 00

Advertisement

Table of Contents
loading

Summary of Contents for Snapper ELT19540RD

  • Page 1 OPERATOR’S MANUAL Regent XL / RD Series 19.5 HP Hydro Tractors Mfg. No. Title 2690782 19.5 HP Simplicity 2690784 19.5 HP Snapper 22 HP Hydro Tractors Mfg. No. Title 2690783 22 HP Simplicity 2690785 22 HP Snapper Description Regent XL RD, 19.5 HP OHV...
  • Page 3: Table Of Contents

    Safety Rules & Information...2 Identification Numbers...7 Safety Decals ...8 Safety Icons ...8 Features & Controls ...10 Control Functions ...10 Parking Brake Function...12 Cruise Control Operation ...12 Hour Meter ...12 Operating the Tractor ...13 Safety Interlock System ...13 General Operating Safety ...13 Adding Fuel ...13 Starting the Engine ...13 Stopping the Tractor &...
  • Page 4: Safety Rules & Information

    Safety Rules & Information Read the Manual The operator’s manual contains important safety information you need to be aware of BEFORE you operate your unit as well as DURING operation. Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment.
  • Page 5: Safety Rules And Information

    Moving Parts This equipment has many moving parts that can injure you or someone else. However, if you are seated in the seat properly, and follow all the rules in this book, the unit is safe to operate. The mower deck has spinning mower blades that can amputate hands and feet. Do not allow anyone near the equipment while it is running! To help you, the operator, use this equipment safely, it is equipped with an operator-present safety system.
  • Page 6: General Operation

    Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
  • Page 7 SLOPE OPERATION Slopes are a major factor related to loss-of-control and tip- over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not operate on it.
  • Page 8 Safety Rules & Information SERVICE AND MAINTENANCE Safe Handling of Gasoline 1. Extinguish all cigarettes, cigars, pipes, and other sources of ignition. 2. Use only approved gasoline containers. 3. Never remove the gas cap or add fuel with the engine running.
  • Page 9: Identification Numbers

    Identification Numbers When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identification numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown.
  • Page 10: Safety Decals

    Safety Decals Safety Decals This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind you of this important information while you...
  • Page 11: Ce Safety Icons

    Decal Locations Fuel Level Part No. S532-0-8732-762-3 Operating Instructions, CE Models, Part No. 1734027 Ignition Switch Positions Part No. 1722806 173xxxx Transmission Release Part No. 1735265 CE Safety Icons Attachment Lift Part No. 1730264...
  • Page 12: Features & Controls

    Features & Controls Control Functions The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing require the combined use of several controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section. Throttle Control The throttle controls engine speed.
  • Page 13: Cruise Control

    Reverse Mowing Option (RMO) The Reverse Mowing Option allows for mowing (or use of other PTO driven attachments) while traveling in reverse. If you choose to mow in reverse, turn the RMO key after the PTO is engaged. The L.E.D. light will illuminate, and the operator can then mow in reverse.
  • Page 14: Parking Brake Function

    Features & Controls Parking Brake Function Applying the Parking Brake - See Figure 2. To lock the parking brake, release the ground speed pedals (A), fully depress the brake pedal (B), pull UP on the parking brake knob (C), and then release brake pedal. Releasing the Parking Brake - See Figure 2.
  • Page 15: Operating The Tractor

    Safety Interlock System Tests This unit is equipped with safety interlock switches and other safety devices. These safety systems are present for your safety: do not attempt to bypass safety switches, and never tamper with safety devices. Check their operation regularly. Operational SAFETY Checks Your unit is equipped with a seat switch safety system.
  • Page 16: Stopping The Tractor & Engine

    Operating the Tractor Stopping the Tractor & Engine 1. Return the ground speed control(s) to neutral. 2. Disengage the PTO and wait for all moving parts to stop. 3. Briggs & Stratton Models: Move the throttle control to SLOW position and turn the ignition key to OFF. Remove the key.
  • Page 17: Mower Deck Removal & Installation

    WARNING Engage parking brake, disengage PTO, stop engine and remove key before attempting to install or remove the mower. Mower Deck Removal & Installation Removing the Mower Deck 1. Park tractor on a hard, level surface such as a concrete floor. Turn off PTO switch and engine, remove the key and apply parking brake.
  • Page 18: Catcher Removal & Installation

    Operating the Tractor Installing the Mower Deck 1. Park tractor, shut off PTO and engine, remove the key and apply parking brake. Turn the wheels fully to the left and slide mower deck under right side of tractor. 2. From the rear with the grass catcher open pull discharge chute to rear.
  • Page 19: Mower Cutting Height

    Figure 9. Raising & Lowering Mower A. Mower Lift Lever Cutting Height Adjustment The mower lift lever (A, Figure 9) is used to lower the deck to cutting position and raise the deck to transport position. To lower the deck, pull back slightly on the mower lift lever (A), push it to the left and slide it down.
  • Page 20: Regular Maintenance

    Maintenance Schedule & Procedures The following schedule should be followed for normal care of your tractor and mower. SAFETY ITEMS Check Safety Interlock System Check Tractor Brakes Check Mower Blade Stopping Time TRACTOR MAINTENANCE ITEMS Check Timing Belt Tension Check Moving System V Belt Tension Check Tractor/Mower for loose hardware Check / Clean Cooling Fins (If Equipped) Check / Adjust PTO Clutch...
  • Page 21: Safety Interlock System Check

    Safety Interlock System Check Service Interval: Every Fall & Spring Check the function of the safety interlock system using the test procedure found on page 13 of this manual. If the tractor fails any of the tests, see your dealer. Blade Brake Check Service Interval: Every 100 Hours or Fall &...
  • Page 22: Transmission Identification

    Regular Maintenance Transmission Identification To determine what transmission is in your tractor, check the identification tag attached to the axle of the transmission (Figure 13), or check your tractor’s parts book. Transmission Maintenance The K46 transmission is a sealed unit and does not require regular maintenance.
  • Page 23: Lubrication

    Lubrication Service Interval: Every 25 Hours Lubricate the unit at the locations shown in Figures 16- 20 as well as the lubrication points listed. Generally, all moving metal parts should be oiled where contact is made with other parts. Keep oil and grease off belts and pulleys.
  • Page 24: Lubricate Rear Axle Shafts

    Regular Maintenance Figure 18. Arbor Lubrication Points Figure 19. Lubricate Deck Linkage (Typical) Lubricate Rear Axle Shafts Service Interval: Yearly We recommend removing the rear wheel hubs and lubricating the axle shafts yearly. This prevents the wheel hubs from seizing onto the axle shaft and makes future service easier.
  • Page 25: Servicing The Mower Blades

    WARNING For your personal safety, do not handle the sharp mower blades with bare hands. Careless or improper handling of blades may result in serious injury. WARNING For your personal safety, blade mounting capscrews must each be installed with a hex washer and spring washer, then securely tightened.
  • Page 26: Check Mower Blade Timing

    Regular Maintenance Check Mower Blade Timing Service Interval: Yearly 1. Turn the PTO OFF, engage the parking brake, turn the engine off, and remove the key. Remove the mower deck (see “Mower Deck Removal”). 2. Turn the mower deck over and check the position of the blades.
  • Page 27: Check & Fill Engine Oil

    Check & Fill Engine Oil Service Interval: Before each use, and every 8 hours. 1. Turn the engine off, and set the parking brake to PARK. 2. Clean the area around the dipstick (C, Figure 26 or 27). 3. Remove the dipstick (C) and clean it with a paper towel.
  • Page 28: Oil Drain Operation

    Regular Maintenance Oil Drain Valve Operation 1. Place a suitable container with a 4 quart capacity under the oil drain valve (A, Figure 26 or 27). 2. Loosen or remove the dipstick (C). 3. Wipe oil drain valve (B, Figure 29) and cover (C) with paper towel or rag.
  • Page 29: Air Filter & Pre-Cleaner Service (V-Twin Models)

    Air Filter & Pre-Cleaner Service V-TWIN MODELS Service Interval: Pre-Cleaner: Every 25 hours or as required. Air Filter: Every 50 hours or as required. Replacement Interval: Pre-Cleaner: As required. Air Filter: Every 200 hours or once per season. Air Filter Removal & Installation 1.
  • Page 30: Air Filter & Pre-Cleaner Service (Single Cylinder Models)

    Regular Maintenance Air Filter & Pre-Cleaner Service SINGLE CYLINDER MODELS - BRIGGS & STRATTON Service Interval: Pre-Cleaner: Every 25 hours or as required. Air Filter: Every 50 hours or as required. Replacement Interval: Pre-Cleaner: As required. Air Filter: Every 200 hours or once per season. Air Filter Removal &...
  • Page 31: Replace Spark Plugs

    Replace Spark Plug Service Interval: Yearly Spark Plug Gap: .030” (.76mm) Replacement Spark Plug Resistor Spark Plug, Champion RC12YC 1. Stop the engine and allow it to cool. 2. Clean the area around the spark plug (see Figure 34 or 35). 3.
  • Page 32 Regular Maintenance...
  • Page 33: Troubleshooting, Adjustment & Service

    Troubleshooting, Adjustment, & Service Troubleshooting While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, their causes, and remedies.
  • Page 34: Troubleshooting The Mower

    Troubleshooting, Adjustment, & Service Tractor Troubleshooting Cont. Tractor drive belt slips. Brake will not hold. Tractor steers hard or handles poorly. Troubleshooting the Mower PROBLEM Mower will not raise. Mower cut is uneven. Mower cut is rough looking. Engine stalls easily with mower engaged.
  • Page 35: Seat Adjustment

    Seat Adjustment The seat can be adjusted forward and back. Move the lever (A, Figure 36), position the seat as desired, and release the lever to lock the seat into position. Brake Adjustment This unit does not have a manually adjustable brake. If the brake does not function properly, see your dealer.
  • Page 36: Pto Clutch Adjustment

    Troubleshooting, Adjustment, & Service PTO Clutch Adjustment WARNING To avoid serious injury, perform adjustments only with engine stopped, key removed and tractor on level ground. Check the PTO clutch adjustment after every 250 hours of operation. Also perform the following procedure if the clutch is slipping or will not engage, or if a new clutch has been installed.
  • Page 37: Mower Belt Replacement

    Mower Belt Replacement To avoid damaging belts. DO NOT PRY BELTS OVER PULLEYS. 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, shut the engine off, and remove the key.
  • Page 38: Arbor Drive Belt Replacement

    Troubleshooting, Adjustment, & Service Figure 42. Mower Blade Timing Arbor Drive Belt Replacement 1. With the deck installed, park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, shut the engine off, and remove the key.
  • Page 39: Specifications

    NOTE: Specifications are correct at time of printing and are subject to change without notice. ENGINE: 22 HP* Briggs & Stratton Make Briggs & Stratton Model Intek Horsepower 22 @ 2700 +/- 100 rpm Displacement 44.2 Cu. in (724 cc) Electrical System 12 Volt, 9 amp.
  • Page 40: Parts & Accessories

    Parts & Accessories Replacement Parts Replacement parts are available from your authorized dealer. Maintenance Items Many convenient and helpful service and maintenance items are available from you authorized dealer. Some of these items include: Engine Oil Tire Sealant Touch-Up Paint Degrimer/Degreaser Grease Gun Kit Gas Stabilizer...
  • Page 42 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com Briggs & Stratton Yard Power Products Group Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA.
