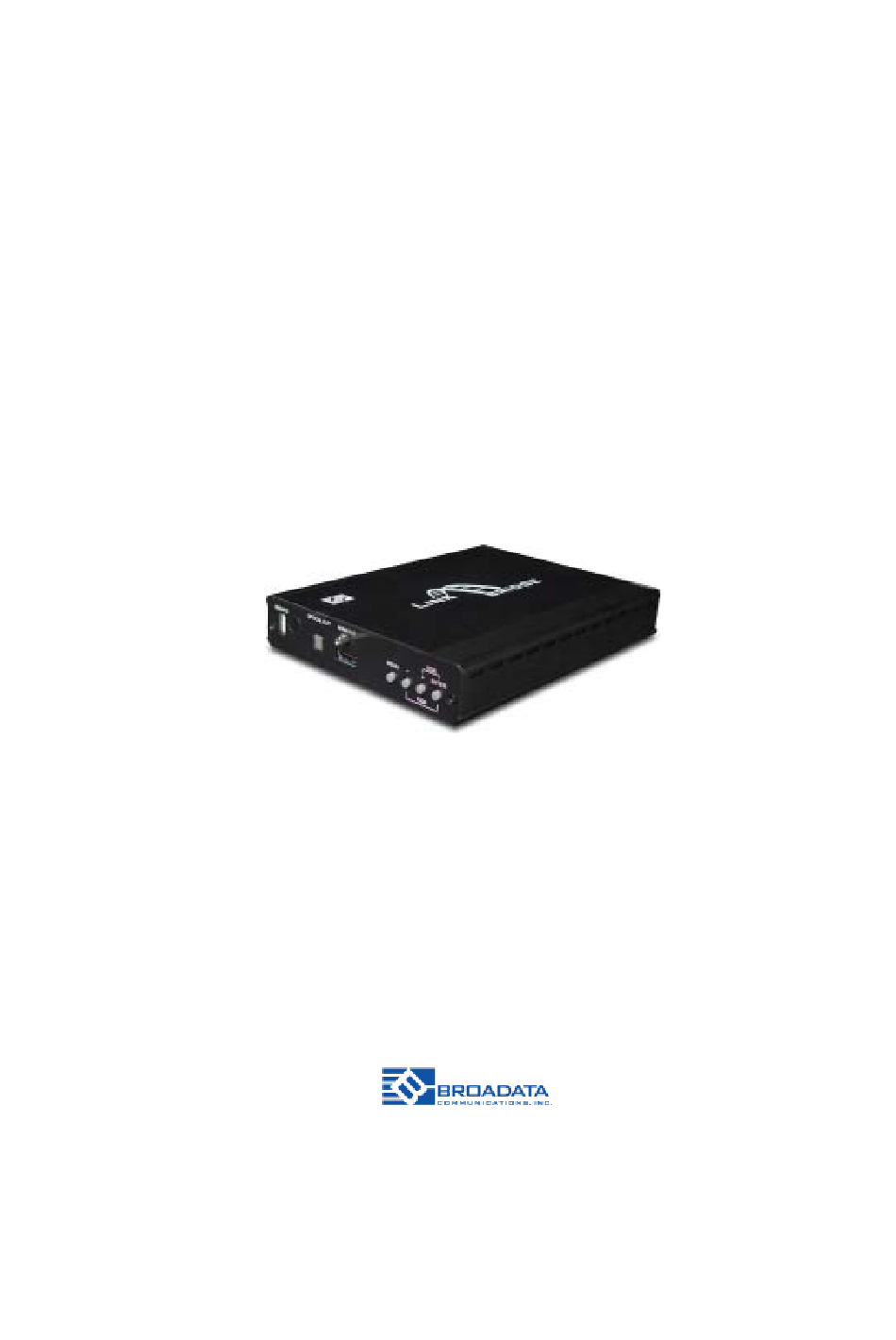

- Page 1 HDMI RIDGE CALER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 3: Table Of Contents
6.0 SPECIFICATIONS ............18 7.0 SERVICE PROCEDURE ..........19 7.1 REPLACEMENT POLICY ..........19 7.2 RETURN AND REPAIR SERVICE ......... 19 8.0 LIMITED WARRANTY ............ 20 9.0 APPENDIX A ..............21 10.0 APPENDIX B ..............22 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
• Supports HDMI, Optical (S/PDIF) audio sampling rate up to 48kHz Package Contents • HDMI/CAT5e/6/7 to HDMI with LAN/IR/RS-232/Bidirectional PoH Receiver • IR Extender x 1 • IR Blaster x 1 • 24 V/2.7A DC power adapter • IR Remote Control • User Manual Broadata Technical Support, Sales@Broadatacom.com... -
Page 5: Operation Controls And Functions
Press this button to confirm the selection. Press this button together with [–] key to switch output timing to 720p@60 instantly. Press this button together with [+] key to switch output timing to XGA (1024x768) instantly. Broadata Technical Support, (800) 214-0222... -
Page 6: Rear Panel
CAT5e/6/7 port. Doing so may trigger power shut down and ruin the device 5. IR Blaster: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. Broadata Technical Support, Sales@Broadatacom.com... - Page 7 This LED will illuminate when the slot has been connected to the Transmitter and the Transmitter has connected with sources that shows image on screen. 9. CAT5e/6 IN: Connect to the Transmitter unit with a Single CAT5e/6/7 cable for receiving all data signals. Broadata Technical Support, (800) 214-0222...
-
Page 8: On Screen Display
1920x1080I 60, 1920x1080P 60 (setting upon shipment), 720x576P 50, 1280x720P 50, 1920x1080I 50, 1920x1080P 50 SIZE: OVERSCAN, FULL (Factory Default upon reset), UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO (setting upon shipment), UNDER 2, UNDER 1 MODE INFO: INFO, ON, OFF Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Color
0 ~ 60 of Brightness Level HUE: 0 ~ 60 of Hue Level SATURATION: 0 ~ 60 of Saturation Level SHARPNESS: 0 ~ 30 of Sharpness Level OFF (Factory Default upon reset), LOW, MIDDLE, HIGH Broadata Technical Support, (800) 214-0222... -
Page 10: Audio
LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System AUDIO VOLUME: 0 ~ 100 DELAY: OFF, 40ms, 110ms, 150ms SOUND: ON, MUTE Broadata Technical Support, Sales@Broadatacom.com... -
Page 11: Setup
LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System SETUP: Factory Reset, Keylock FACTORY RESET: YES, NO KEY LOCK: OFF, ON Broadata Technical Support, (800) 214-0222... -
Page 12: Information
LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System INFORMATION: Input, Output, Revision INPUT: Input Resolution Displayed OUTPUT: Output Resolution Displayed REVISION: Firmware Revision Displayed Broadata Technical Support, Sales@Broadatacom.com... -
Page 13: Connector Pin Assignment
Link Bridge HDMI Scaler System 4.0 CONNECTOR PIN ASSIGNMENT 4.1 IR Pin Assignment IR Blaster Power 5V IR Blaster Signal IR Receiver IR Signal Power Grounding Figure 4-1 IR Blaster and IR Extender Pin Assignment Broadata Technical Support, (800) 214-0222... -
Page 14: Rs-232 Pin Assignment
4.2 RS-232 Pin Assignment Baud Rate: 9600bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 Table 1 RS-232 Pin Assignment Note: The RS-232 command set is shown in the Table of Appendix B. Broadata Technical Support, Sales@Broadatacom.com... -
Page 15: Maintenance And Troubleshooting
Check to see that the attached user equipment is turned b. Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. Broadata Technical Support, (800) 214-0222... - Page 16 LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 17: Specifications
Chassis material Metal Box Color Black Operating Temperature C~40 C / 32 F~104 ÚF Relative Humidity 20 ~ 90 % RH (non-condensing) Power Supply 110–240v AC 50/60 Hz, 24v @ 2.7 A DC Power Consumption Broadata Technical Support, (800) 214-0222... -
Page 18: Service Procedure
The LBC-HDMI-R-SCL System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 19: Limited Warranty
HDMI Scaler System 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... -
Page 20: Appendix A
LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System 9.0 APPENDIX A: SUPPORTED INPUT RESOLUTIONS Broadata Technical Support, Sales@Broadatacom.com... -
Page 21: Appendix B
LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System 10.0 APPENDIX B: RS-232 COMMANDS Broadata Technical Support, (800) 214-0222... - Page 22 3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded. 4. Digital audio supports LPCM 2CH only, please ensure the source input audio is set to send LPCM 2CH audio in order to avoid unwanted audio noise. Broadata Technical Support, Sales@Broadatacom.com...
- Page 23 LBC-HDMI-R-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, (800) 214-0222...
- Page 24 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-HDMI-R-SCL...
