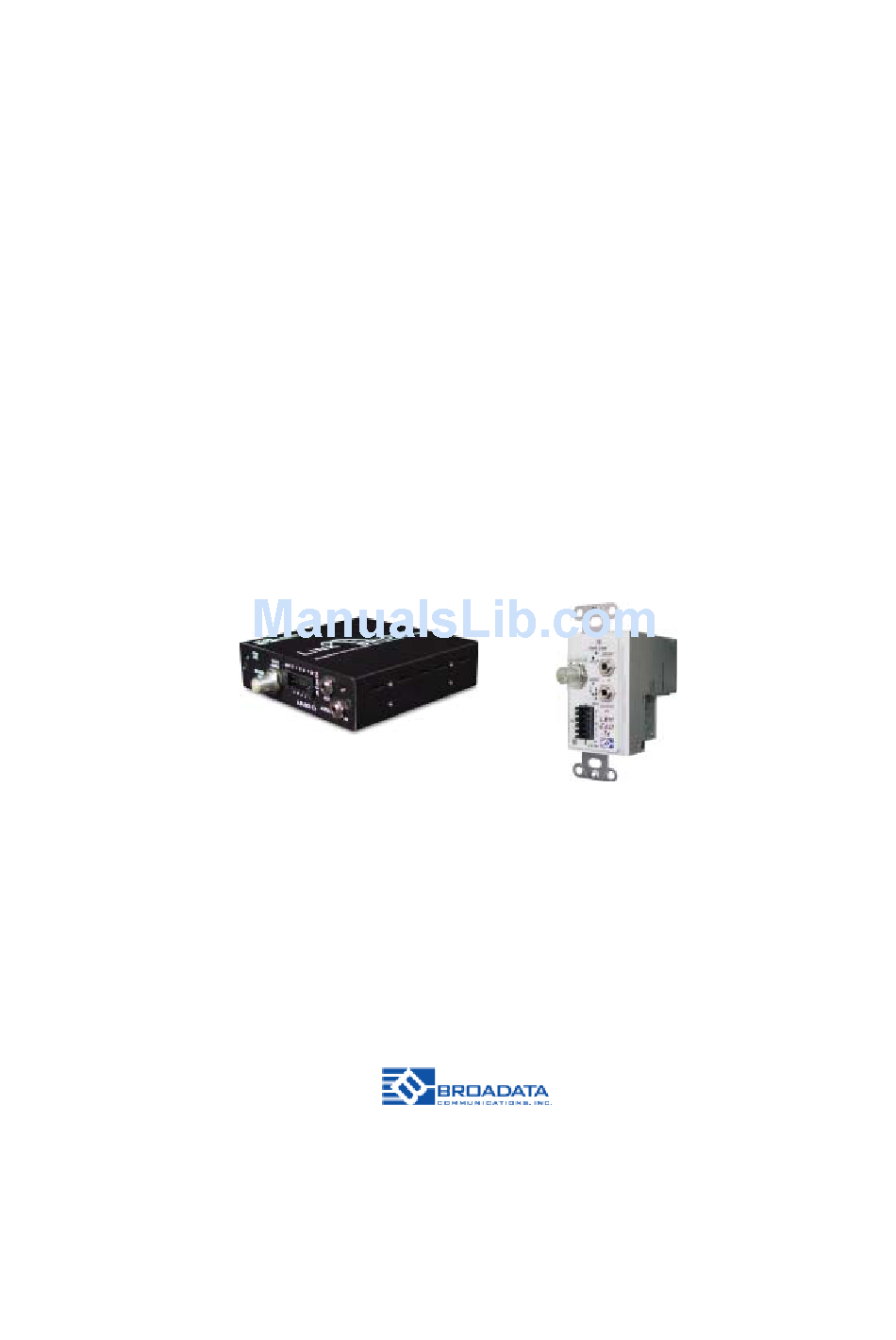

LBH-SDI-EAD-T
L
B
HDB
T
TM
INK
RIDGE
ASE
SDI V
C
IDEO
ONVERTING
T
S
RANSMITTER
YSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2013 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata LBH-SDI-EAD-T
Summary of Contents for Broadata LBH-SDI-EAD-T
- Page 1 IDEO ONVERTING RANSMITTER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
- Page 2 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System CAUTION This symbol alerts the user that important literature concerning the operation of this unit has been included. Therefore, it should be read carefully in order to avoid potential problems.
- Page 3 This device complies with Part 15 of FCC rules and 93/42/EEC of the Council Directives of European Standards Directive as amended by 2007/47/EC. Operation is subject to the following two conditions: (1) This device may not Broadata Technical Support, (800) 214-0222...
- Page 4 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable results. 1. Use the specified cables with this device so as not to interfere with radio and television reception.
- Page 5 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, (800) 214-0222...
-
Page 6: Table Of Contents
LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........6 2.0 SETUP ................9 2.1 MOUNTING ..............9 2.2 CABLING AND CONNECTORS ........9 2.2.1 ELECTRICAL CABLE CONNECTIONS ..... 10 2.2.1.1 SDI VIDEO INTERFACE ........... 10 2.2.1.2 AUDIO INTERFACE .......... -
Page 7: Product Description
4K2K Ultra HD and WUXGA (1920x1200 @ 60Hz) or 720p/1080i/1080p HDTV video resolution. No user adjustment is required for the LBH-SDI-EAD-T system due to the use of advanced digital HDBT transmission system technology with zero compression and zero bit reduction. - Page 8 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System FRONT PANEL (STANDALONE) Power SPDIF In Data Data Link LED SDI In Audio In Figure 1-1 LBH-SDI-EAD-T Front Panel REAR PANEL (STANDALONE) LINK +24VDC 1.5AMP CAT-5e/6 Output Connector Power...
- Page 9 HDBT SDI Video ConvertingTransmitter System FRONT PANEL (WALL PLATE) Power Link LED SPDIF In SDI In Audio Data/IR Data/IR Figure 1-3 LBH-SDI-EAD-T-WP Front Panel REAR PANEL (WALL PLATE) Power Connector +24V CAT-5e/6 Connector Figure 1-4 LBH-SDI-EAD-T-WP Rear Panel Broadata Technical Support, (800) 214-0222...
-
Page 10: Setup
Link Bridge HDBT SDI Video Converting Transmitter System 2.0 SETUP LBH-SDI-EAD-T is a transmitter that can be paired with any DVI/HDMI centric LBH receiver (such as LBH-HDMI-R). One LBH-SDI-EAD-T transmitter unit is located at the near-end and connected through one CAT-5e/6, to the LBH-HDMI-EAD-R receiver located at the far-end of the link. -
Page 11: Electrical Cable Connections
Use the following instructions to properly connect your component video as illustrated in Figure 2-2. 1. Connect the LBH-SDI-EAD-T (Transmitter) unit’s SDI video input port to the user’s VGA video source with the appropriate HDMI cables. -
Page 12: Audio Interface
The audio interface supports single stereo channel high fidelity transmissions. One stereo channel is transmitted in one direction. Line-level audio signals are connected to the LBH-SDI-EAD-T units. The following steps illustrate the installation procedures for audio devices. To send audio signals, label and connect one stereo audio-jack cable to the “AUDIO OUTPUT”... -
Page 13: Serial Data Interface
LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video ConvertingTransmitter System 2.2.1.3 Serial Data Interface Each LBH-SDI-EAD-T unit can be used for RS-232 and IR interface. RS-232/IR Dataata The LBH-SDI-EAD-T transmits two channels of data signals. Follow the procedures for installing data terminal devices. -
Page 14: Status Led's
2. It is recommended to use shielded CAT-5e/6 cabling. 3. Connect the CAT-5e/6 from one unit to the other connecting the near end LBH-SDI-EAD-T unit’s HDBT port to the far end of the LBH-HDMI-EAD-R unit’s CAT-5e/6 RX port as illustrated in Figure 2-6. - Page 15 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video ConvertingTransmitter System LINK LBH-SDI-EAD-T +24VDC 1.5AMP LBH-HDMI-EAD-R LINK +24VDC 1.5AMP LBH-SDI-EAD-T-WP LBH-HDMI-EAD-R-WP Figure 2-6 CAT-5e/6 Connection Broadata Technical Support, (800) 214-0222...
-
Page 16: Dc Power Connection
HDBT SDI Video Converting Transmitter System 2.3 DC Power Connection Congratulations! You are now ready to power up the LBH-SDI-EAD-T and set up your network connection. In order to make sure that you have a proper installation, please observe the following: 1. -
Page 17: In-Wall Power/Cat-5E/6 Wiring Instruction
2. Terminated CAT-5e/6 with RJ45 connector to be directly plugged into the RJ45 connector port of the LBH-SDI-EAD-T-WP units (see Figure 2-6). 3. Before connecting power wire to the LBH-SDI-EAD-T-WP unit, make sure power supply is off. - Page 18 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System Wall Clamp Junction Box LBH-DVI-EAD-WP Unit Power Wire +24V CAT-5e/6 Cable Link Port Figure 2-7 In-wall CAT-5e/6/power cable installation Captive Screw Connector +24V Figure 2-8 Power Connection Broadata Technical Support, Sales@Broadatacom.com...
- Page 19 Note 5: The power supply is to be located within the same vicinity as the A/V processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium or desk. Broadata Technical Support, (800) 214-0222...
-
Page 20: Operation
HDBT SDI Video Converting Transmitter System 3.0 OPERATION After the installation procedure is completed, the units are ready for operation. To operate the LBH-SDI-EAD-T units, simply apply power as indicated in the previous sections. The following describes the LED activity. -
Page 21: Maintenance And Troubleshooting
However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBH-SDI-EAD-T units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance. - Page 22 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System b. Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. c. Cable connections at both the video/audio channels are securely fastened to each connector. Turn the power off, then back on to reset the link.
-
Page 23: Specifications
>70 @ 1k Hz (Stereo Audio) Connector 3.5mm Stereo Jack Serial Data Channel Capacity 2 RS-232/1 IR Signal Format RS-232/IR Data Rate Up to 57.6kbaud Connector Terminal Block Transmission Cable Type CAT-5e/6 Shielded Number of Cables Connector RJ45 Broadata Technical Support, (800) 214-0222... - Page 24 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video Converting Transmitter System Physical Dimension Standalone 4.17”(W) x 4.1”(D) x 1.1”(H) Wallplate 1.69”(W) x 2.70”(D) x 2.81”(H) Power Level (max.) +24VDC @ 1.0A Operating Temperature 0 to +50 Humidity 0 to 95% RH,...
-
Page 25: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The LBH-SDI-EAD-T System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 26: Limited Warranty
HDBT SDI Video Converting Transmitter System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... - Page 27 LBH-SDI-EAD-T User’s Manual Link Bridge HDBT SDI Video ConvertingTransmitter System Broadata Technical Support, (800) 214-0222...
- Page 28 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBHSDI-EAD-080814...
