Broadata LBC-H/V-T-SCL User Manual

Link bridge hdmi scaler system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

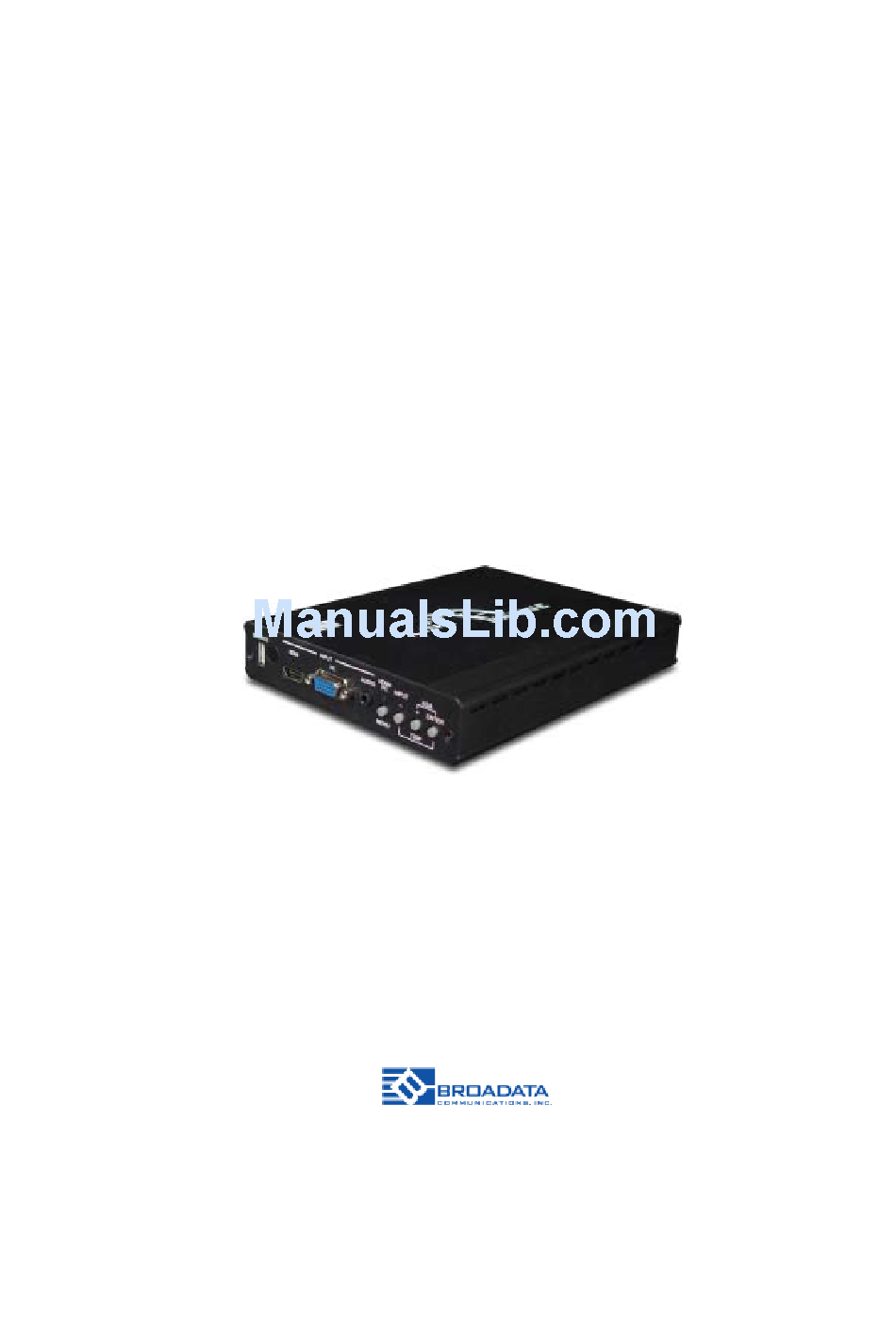

LBC-H/V-T-SCL
L
B
HDMI
TM
INK
RIDGE
S
S
CALER
YSTEM
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2013 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata LBC-H/V-T-SCL

Summary of Contents for Broadata LBC-H/V-T-SCL

  • Page 1 HDMI RIDGE CALER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
  • Page 2 LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    6.0 SPECIFICATIONS ............19 7.0 SERVICE PROCEDURE ..........20 7.1 REPLACEMENT POLICY ..........20 7.2 RETURN AND REPAIR SERVICE ......... 20 8.0 LIMITED WARRANTY ............ 21 9.0 APPENDIX A ..............22 10.0 APPENDIX B ..............23 Broadata Technical Support, (800) 214-0222...

  • Page 4: Product Description

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 1.0 PRODUCT DESCRIPTION The LB-H/V-T-SCL video scaler with LAN/IR/RS-232/Bidirectional PoH (Power over HDBT) over Single CAT5e/6/7 transmitter can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 m. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232, and OSD (On Screen Display menu).

  • Page 5: Operation Controls And Functions

    Press to select HDMI or PC source input. When in HDMI mode the LED will illuminate in Red, when in PC mode the LED will illuminate in Green. 8. +/- : Press these buttons to scroll up and down through the OSD menu. Broadata Technical Support, (800) 214-0222...

  • Page 6: Rear Panel

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 9. Enter: Press this button to confirm the selection. Press this button together with [–] key to switch output timing to 720p@60 instantly. Press this button together with [+] key to switch output timing to XGA (1024x768) instantly.
  • Page 7 This LED will illuminate when the slot has been connected to the Transmitter and the Transmitter has connected with sources that shows image on screen. 9. CAT5e/6 OUT: Connect to the Receiver unit with a Single CAT5e/6/7 cable for transmitting all data signals. Broadata Technical Support, (800) 214-0222...

  • Page 8: Remote Control

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 2.3 Remote Control 1. INPUT: Press this button to switch HDMI/PC input source instantly. 2. EXIT: Press this button to exit the menu or escape the current selection under OSD. 3. MENU: Press this button to enter into the OSD menu.

  • Page 9: On Screen Display

    1920x1080I 60, 1920x1080P 60 (setting upon shipment), 720x576P 50, 1280x720P 50, 1920x1080I 50, 1920x1080P 50 SIZE: OVERSCAN, FULL (Factory Default upon reset), UNDERSCAN, LETTERBOX, PANSCAN, ASPECT RATIO (setting upon shipment), UNDER 2, UNDER 1 MODE INFO: INFO, ON, OFF Broadata Technical Support, (800) 214-0222...
  • Page 10 LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 3.2 PC AUTO SETUP: NO, YES H-POSITION: 0 ~ 60 (30) V-POSITION: 0 ~ 60 (30) PHASE: 0 ~ 31 (15) CLOCK: 700 ~ 2300 WXGA/XGA: WXGA, XGA RESET: NO, YES Broadata Technical Support, Sales@Broadatacom.com...

  • Page 11: Color

    0 ~ 60 of Brightness Level HUE: 0 ~ 60 of Hue Level SATURATION: 0 ~ 60 of Saturation Level SHARPNESS: 0 ~ 30 of Sharpness Level OFF (Factory Default upon reset), LOW, MIDDLE, HIGH Broadata Technical Support, (800) 214-0222...

  • Page 12: Audio

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System AUDIO VOLUME: 0 ~ 100 DELAY: OFF, 40ms, 110ms, 150ms SOUND: ON, MUTE Broadata Technical Support, Sales@Broadatacom.com...

  • Page 13: Setup

    SETUP: Factory Reset, Keylock, Auto Scan, PC Type FACTORY RESET: YES, NO KEY LOCK: OFF, ON AUTO SCAN: OFF, ON PC TYPE: PC, YPbPr INFORMATION: Input, Output, Revision INPUT: Input Resolution Displayed OUTPUT: Output Resolution Displayed REVISION: Firmware Revision Displayed Broadata Technical Support, (800) 214-0222...

  • Page 14: Connector Pin Assignment

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 4.0 CONNECTOR PIN ASSIGNMENT 4.1 IR Pin Assignment IR Blaster Power 5V IR Blaster Signal IR Receiver IR Signal Power Grounding Figure 4-1 IR Blaster and IR Extender Pin Assignment Broadata Technical Support, Sales@Broadatacom.com...

  • Page 15: Rs-232 Pin Assignment

    HDMI Scaler System 4.2 RS-232 Pin Assignment Table 1 RS-232 Pin Assignment The Baud Rate for sending serial commands to the LBC-H/V-T-SCL. (Refer to Appendix B for all available commands) Baud Rate: 9600bps Data Bit: 8 bits Parity: None Flow Control: None...

  • Page 16: Maintenance And Troubleshooting

    However, observe the following light indicators to make sure that the unit is working properly: 5.2 Troubleshooting If the LBC-H/V-T-SCL units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance.
  • Page 17 LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, (800) 214-0222...

  • Page 18: Specifications

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 6.0 SPECIFICATIONS Ethernet Speed 100 Mbps Output Video Bandwidth 165MHz/ 1.65 Gbps Input Video Bandwidth 300MHz / 10.2Gbps Input Port 1 x HDMI, 1 x PC or YPbPr, 1 x 3.5mm Phone Jack (L/R) , 1 x RS-232, 1×LAN,...

  • Page 19: Service Procedure

    U.S. Please call Customer Service at 800-214-0222 for information. 7.2 Return/Repair Service The LBC-H/V-T-SCL System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc.

  • Page 20: Limited Warranty

    HDMI Scaler System 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole...

  • Page 21: Appendix A

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 9.0 APPENDIX A: SUPPORTED INPUT RESOLUTIONS Broadata Technical Support, (800) 214-0222...

  • Page 22: Appendix B

    LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System 10.0 APPENDIX B: RS-232 COMMANDS Note: 1. RS-232 commands will not execute unless followed with carriage return and LF (Line Feed). 2. Commands are not case-sensitive. 3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded.
  • Page 23 LBC-H/V-T-SCL User’s Manual Link Bridge HDMI Scaler System Broadata Technical Support, (800) 214-0222...
  • Page 24 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-H/V-T-SCL...
