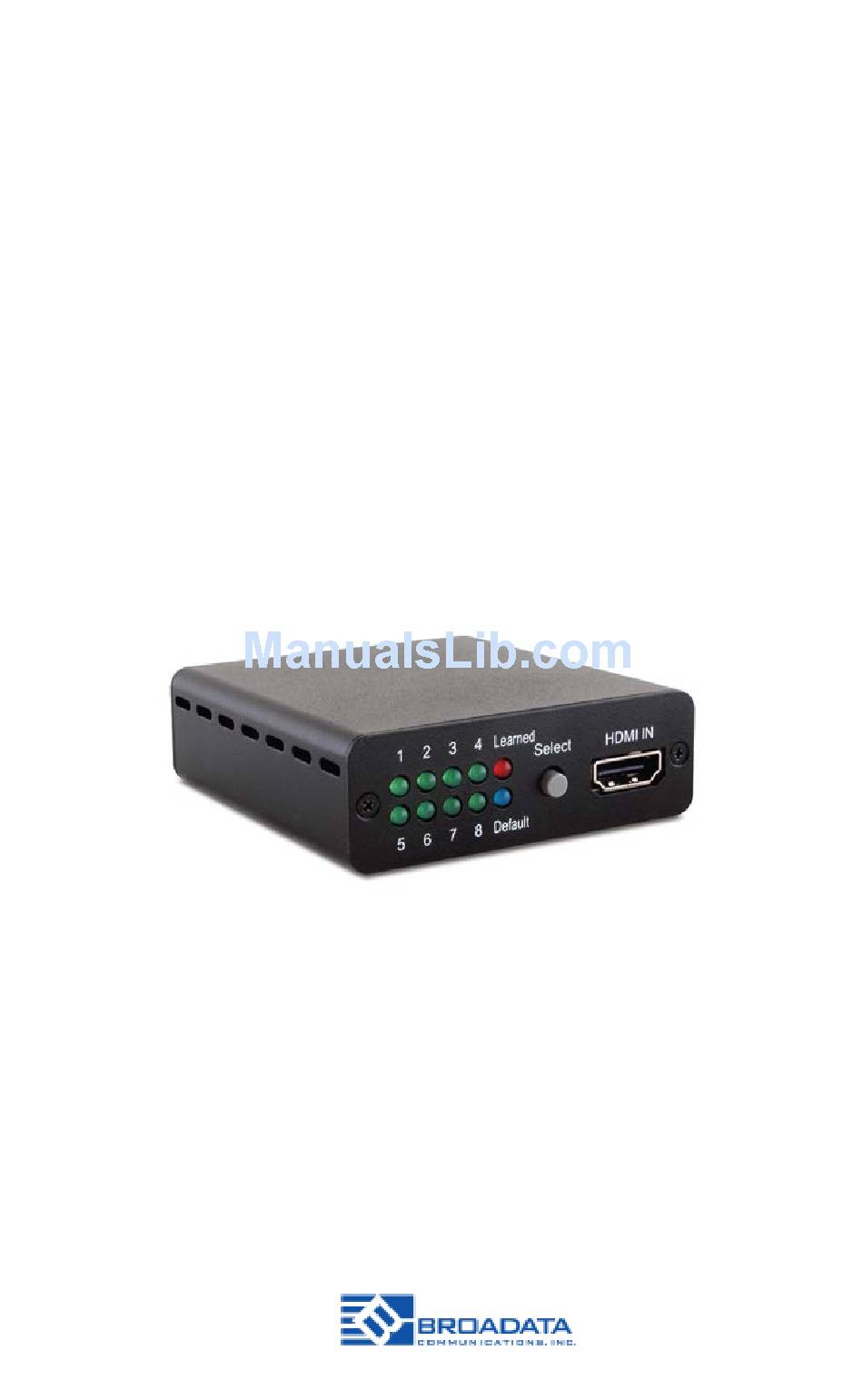

- Page 1 Link Bridge HDMI 1.4 EDID Emulator BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
- Page 3 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 4: Table Of Contents
3.0 USING THE EDID APPLICATION............16 4.0 MAINTENANCE AND TROUBLESHOOTING ......... 19 4.1 MAINTENANCE ................19 4.2 TROUBLESHOOTING ..............19 5.0 SPECIFICATIONS ................21 8.0 SERVICE PROCEDURE..............22 8.1 REPLACEMENT POLICY ..............22 8.2 RETURN & REPAIR SERVICE............22 9.0 LIMITED WARRANTY...............23 Broadata Technical Support, Sales@Broadatacom.com... -
Page 5: Product Description
• Resolutions up to 1080p@60 Hz and 4K×2K@24/30 Hz Supports • Supports four different EDID Modes: Read, Write, Emulator, and Bypass • Supports 8 sets of default EDID • Supports CEC and EDID pass-through • Supports being powered by USB or HDMI input Broadata Technical Support, Sales@Broadatacom.com... -
Page 6: Operation Controls And Functions
3. Select Button: Press for 3 seconds to switch between the ‘Learned’ and ‘Default’ modes, the LED will illuminate to indicate the selected mode. Then repeatedly press the ‘Select’ button to cycle through EDID settings (1 to 8). Broadata Technical Support, Sales@Broadatacom.com... - Page 7 Link Bridge HDMI 1.4 EDID Emulator 4. HDMI IN: Connect to an HDMI source such as a DVD/ Blu-ray or settop box. The unit can also be powered by an source device that provides power over the HDMI connection. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 8: Rear Panel
‘Select’ button to switch between settings, the LED will illuminate to indicate the current selected settings. Bypass: When the DIP switch is set to ‘Bypass’ position, the Video/Audio source device will read HDMI TV/display’s EDID settings directly. Broadata Technical Support, Sales@Broadatacom.com... -
Page 9: Edid Learning Procedure
Warming: Once the writing is successfully done the original EDID will be erased. It is recommended that the original EDID settings are backed-up by storing them in the unit before performing the overwrite. Caution is advised when using this function. Broadata Technical Support, Sales@Broadatacom.com... -
Page 10: Default Edid Settings
LB-H- EDID User’s Manual Link Bridge HDMI 1.4 EDID Emulator 4.0 Default EDID Settings Broadata Technical Support, Sales@Broadatacom.com... -
Page 11: Edid Application Installation
‘Downloads’ tab. Once the software has downloaded to the PC, navigate to the download location and extract the installation folder from the compressed file by right clicking on the .zip file and selecting ‘Extract to Folder’. Broadata Technical Support, Sales@Broadatacom.com... - Page 12 Link Bridge HDMI 1.4 EDID Emulator Once the software has extracted, enter the folder and double click on the ‘setup’ application icon (highlighted below) to begin the installation process. The installation wizard will appear, click ‘Next’ to continue the installation. Broadata Technical Support, Sales@Broadatacom.com...
- Page 13 Click on ‘I accept …’ and then ‘Next’ to accept the license terms to continue the installation. Insert the user name and set the access rights for this application as required and click on ‘Next’ to continue. Broadata Technical Support, Sales@Broadatacom.com...
- Page 14 LB-H- EDID User’s Manual Link Bridge HDMI 1.4 EDID Emulator Choose a location to install the application, default is ‘C:\Program Files\CYP\CED-1M’. Click on ‘Next’ to continue. Click on ‘Install’ to confirm the user name and save location. Broadata Technical Support, Sales@Broadatacom.com...
- Page 15 LB-H- EDID User’s Manual Link Bridge HDMI 1.4 EDID Emulator Click on ‘Finish’ to complete the installation. An icon will appear on the desktop to indicate the successful installation of the application. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 16: Using The Edid Application
Ensure that the HDMI EDID Emulator device is connected to the PC and that the driver has installed successfully before double clicking on the ‘CED-1M’ icon to start using the application. The EDID Application includes EDID Learning, Reading, Writing and Default settings. Broadata Technical Support, Sales@Broadatacom.com... - Page 17 Click on ‘File’ to save the Learned and Default EDID settings (up to 8 sets each). Click on the ‘Learned/Default’ button to switch between modes. Click on ‘Extended EDID’ with File’s ‘Open .text file’ to save the contents of the Learned EDID’s amended contents. Broadata Technical Support, Sales@Broadatacom.com...
- Page 18 LB-H- EDID User’s Manual Link Bridge HDMI 1.4 EDID Emulator Click on ‘Parsing’ to display the contents of EDID Block 0 and 1. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 19: Maintenance And Troubleshooting
Check to see that the attached user equipment is turned on. b. Both ends of the link are connected to the corresponding equipment and to the same corresponding channel port. Broadata Technical Support, Sales@Broadatacom.com... - Page 20 LB-H- EDID User’s Manual Link Bridge HDMI 1.4 EDID Emulator c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 21: Specifications
(Read, Write, Emulator, Bypass) Physical Dimensions (W x D x H) 2.80” x 2.56” x 0.91” Operating Temperature 0°C to 40°C Storage Temperature -20°C to 60°C Power Supply USB Power, 5V@500ma Ordering Information LB-H-EDID HDMI 1.4 EDID Emulator Broadata Technical Support, Sales@Broadatacom.com... -
Page 22: Service Procedure
The LBC-SPH8-1H7B-IR System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 23: Limited Warranty
Link Bridge HDMI 1.4 EDID Emulator 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that... - Page 24 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com LB-H- EDID...
