9
Battery charging

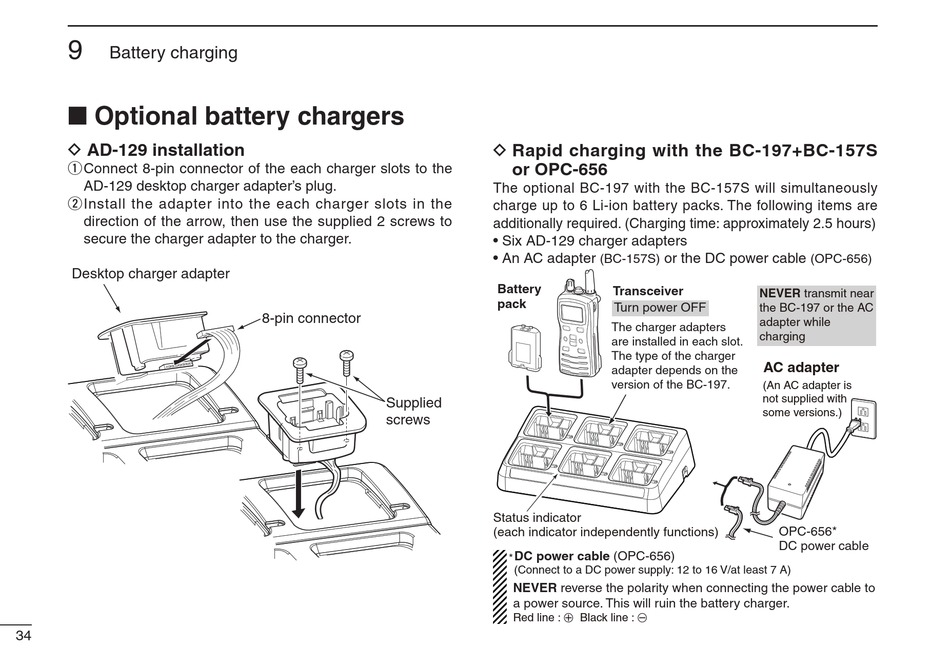

■ Optional battery chargers

D AD-129 installation
q Connect 8-pin connector of the each charger slots to the
AD-129 desktop charger adapter's plug.
w Install the adapter into the each charger slots in the
direction of the arrow, then use the supplied 2 screws to
secure the charger adapter to the charger.
Desktop charger adapter
34
8-pin connector
Supplied
screws
D Rapid charging with the BC-197+BC-157S
or OPC-656
The optional BC-197 with the BC-157S will simultaneously
charge up to 6 Li-ion battery packs. The following items are
additionally required. (Charging time: approximately 2.5 hours)
• Six AD-129 charger adapters
• An AC adapter or the DC power cable
(BC-157S)
Battery
Transceiver
pack
Turn power OFF
The charger adapters
are installed in each slot.
The type of the charger
adapter depends on the
version of the BC-197.
Status indicator
(each indicator independently functions)
DC power cable (OPC-656)
*
(Connect to a DC power supply: 12 to 16 V/at least 7 A)
NEVER reverse the polarity when connecting the power cable to
a power source. This will ruin the battery charger.
Red line : + Black line : _
(OPC-656)
NEVER transmit near
the BC-197 or the AC
adapter while
charging
AC adapter
(An AC adapter is
not supplied with
some versions.)
OPC-656*
DC power cable
