Riello F5 Owner's Instructions

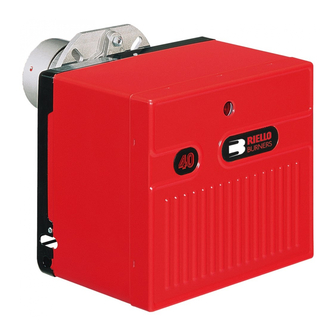

RIELLO 40 SERIES OIL BURNER
MODELS F3, F5, F10 F15, F20
Dear Purchaser:
Thank you for choosing a Riello oil burner. We are proud of our products and have developed this burner to combine
state of the art technology with stringent quality control to give you the very best in heat generation.
Proper installed and maintained, your Riello burner will give you many years of efficient, clean burning, worry-free com-
bustion. Please read the Owner's instructions below and save this sheet for future reference.
OWNERS OPERATING INSTRUCTIONS
FUEL OIL: Your burner is not to be used with oil heavier than No.2. Never use gasoline, crankcase oil or any oil contain-
ing gasoline.
COMBUSTION AIR: An adequate air supply is required for proper combustion. Do not block the flow of air into your fur-
nace or boiler room. Details on air requirements are found in your installation manual.
OIL FILTER: The oil line filter cartridge should be replaced annually, and the filter container thoroughly cleaned by your
service technician.
MOTOR: The motor on your Riello oil burner is permanently lubricated and does not require oiling.
WARNINGS:
NEVER try to light oil by putting burning material into the furnace or boiler.
DO not store combustible or flammable material near your heating appliance.
IF THE BURNER FAILS TO OPERATE
First, check the following:
1) Check the thermostat: Turn it up well above room temperature.
2) Check your master on/off furnace/boiler switch - is it on?
3) Check your electrical panel for blown fuses or tripped breakers.
4) Make sure there is oil in the tank.
If the burner has shut down on safety, the red reset button will illuminate. The button is located on the front of the burner
cover, near the top. Set your thermostat well above room temperature. Then, press the reset button ONCE ONLY. The
burner should restart. Should the burner shut down a second time, or fail to operate when the reset button is pushed,
call your service technician.
THERE AR NO OWNER SERVICEABLE PARTS INSIDE THE BURNER COVER DO NOT TAMPER WITH THE UNIT
OR CONTROLS. CALL YOUR SERVICE TECHNICIAN.
TO STOP THE BURNER:
Turn your thermostat off, or as low as it will go. Locate the master on/off switch for the furnace or boiler and switch it to
the OFF position. If the burner will be shut down for an extended period of time, close your oil valve in addition to the
above
For best efficiency, and to keep your burner in operating condition, have it serviced annually by a qualified oil service
technician.
For service, contact: (fill in the name and phone number)
Riello Canada Inc., 2165 Meadowpine Blvd., Mississauga Ontario L5N 6H6
Riello Corporation of America, 35 Pond Park Road, Hingham, Massachusetts 02043
2903233 (0)
