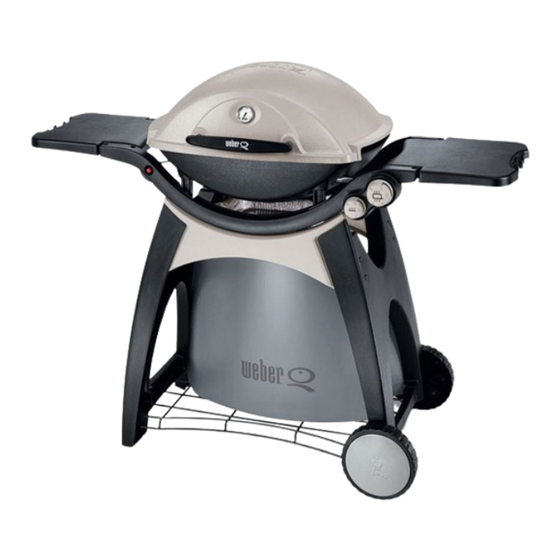

Weber 320 Owner's Manual

Lp gas grill
Hide thumbs Also See for 320:

Advertisement

GAS GRILL
LP Gas Grill Owner's Guide
Assembly - Pg. 9
Register your grill online at www.weber.com
YOU MUST READ THIS OWNER'S GUIDE
BEFORE OPERATING YOUR GAS GRILL.
m DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odour continues, keep away from the
appliance and immediately call your gas
supplier or your fire service.
Leaking gas may cause a fire or explosion,
which can cause serious bodily injury or
death, or damage to property.
m WARNING
1. Do not store or use petrol or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
2. A gas supply cylinder not connected for
use should not be stored in the vicinity
of this or any other appliance.
PLACE STICKER HERE
m WARNING: Follow all leak-check
m WARNING: Do not ignite this appliance
INFORMATION FOR THE INSTALLER:
This manual must remain with the owner,
who should keep it for future use.
OUTDOOR USE ONLY.
procedures carefully in this manual
before operating barbecue. Do this even
if barbecue was dealer-assembled.
without first reading the BURNER
IGNITION sections of this manual.
0845BQ-0033
0845
EN - INTERNATIONAL ENGLISH
#59753
®
59753 09/01/11 LP

Advertisement

Table of Contents
loading

Summary of Contents for Weber 320

  • Page 1 GAS GRILL LP Gas Grill Owner’s Guide Assembly - Pg. 9 #59753 PLACE STICKER HERE Register your grill online at www.weber.com ® YOU MUST READ THIS OWNER’S GUIDE m WARNING: Follow all leak-check BEFORE OPERATING YOUR GAS GRILL. procedures carefully in this manual before operating barbecue.
  • Page 2: Warnings

    Do not build this model of grill in any built-in or slide in construction. Ignoring this warning could cause a fire or m Do not use charcoal, briquettes or lava rock in your Weber ® an explosion that can damage property and cause serious gas barbecue.
  • Page 3: Table Of Contents

    CLEANING ............34 TAbLE OF cONTENTS ....... . . 3 WEBER ®...
  • Page 4: Exploded View - Q300

    EXPLODED VIEW - Q300 Q300 Q300_EURO_LP_082511...
  • Page 5: Exploded View List - Q300

    22. Bridge Piece Wire Brace 14. Catch Pan 23. Right Leg Outside Burner Tube 15. Left Leg 24. Wheel Cover Inside Burner Tube 16. Tank Skirt 25. Hubcap Electrode Assembly Bottom Rack 26. Wheel Front Cradle Frame 18. Lid Axle WWW.WEbER.cOm ®...
  • Page 6: Exploded View - Q320

    EXPLODED VIEW - Q320 Q320 Q320_EURO_LP_081711...
  • Page 7: Exploded View List - Q320

    25. Right Leg Wire Brace 16. Left Leg 26. Wheel Cover Outside Burner Tube Tank Skirt Hubcap Inside Burner Tube 18. Bottom Rack 28. Wheel Electrode Assembly 19. Lid 29. Axle 10. Front Cradle Frame 20. Warming Rack WWW.WEbER.cOm ®...
  • Page 8: Parts List

    PARTS LIST TOOLS NEEDED: WOOD BLOCK ¼-20 x 1" ¼-20 x 2¼" TRUSS HEAD PAN HEAD PHILLIPS SCREW PHILLIPS SCREW (BLACK) Q320...
  • Page 9: Assembly

    ASSEmbLY WWW.WEbER.cOm ®...
  • Page 10 ASSEmbLY m Place wheel frame on the right. Ignition instruction sticker faces forward.
  • Page 11 ASSEmbLY WWW.WEbER.cOm ®...
  • Page 12 ASSEmbLY...
  • Page 13 ASSEmbLY WWW.WEbER.cOm ®...
  • Page 14 ASSEmbLY...
  • Page 15 ASSEmbLY WWW.WEbER.cOm ®...
  • Page 16 ASSEmbLY A) Uncoil the hose and regulator of the Weber ® Q™ 300/320. B) Remove leg screw and secure hose and retention clip (1) to cart leg. m WARNING: The hose must be secured to the cart leg by the hose retention clip. Failure to do so...
  • Page 17 ASSEmbLY WWW.WEbER.cOm ®...
  • Page 18 ASSEmbLY...
  • Page 19 ASSEmbLY Q320 You may hear a rattle in lightpod. This is normal. Q300 WWW.WEbER.cOm ®...
  • Page 20 Use alkaline batteries only. Do not mix old and new batteries or different types of batteries (standard, alkaline or rechargeable). If you do not plan to use the Weber Q Grill Out Handle Light for a month or more, remove ™...
  • Page 21 ASSEmbLY 16 Q320 17 Q320 WWW.WEbER.cOm ®...
  • Page 22: Warranty

    Weber does not authorise any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment;...
  • Page 23: General Instructions

    ® Liquid Propane (LP) gas is quicker to use and gives you more cooking control than charcoal fuel. • These instructions will give you the minimum requirements for assembling your Weber gas barbecue. We therefore request that you read them carefully before you use the Weber ® gas barbecue. • Not for use by children.
  • Page 24: Gas Instructions

    IMPORTANT NOTICE: We recommend that you replace the • Liquid Propane (LP) gas is a petroleum product as are petrol and natural gas. LP gas hose assembly on your Weber gas barbecue every gas is a gas at normal temperature and pressure. Under moderate pressure, inside a 5 years. Some countries may have requirements that the cylinder, LP gas is a liquid.
  • Page 25: Connecting The Liquid Propane Cylinder

    (11). Failure to do so could cause damage to hose resulting in a fire or explosion, which can cause serious bodily injury or death and damage to property. m DANGER Do not store a spare LP cylinder under or near this appliance. ◆ WWW.WEbER.cOm ®...
  • Page 26: Check For Gas Leaks

    GAS INSTRUcTIONS CHECK FOR GAS LEAKS Check that the burner valves are off. Check by pushing the control knob in and turning clockwise. Confirm that the knob is set in the OFF indicator position. If the control knob does turn, continue turning clockwise until it stops. It is now in the OFF position. m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting.
  • Page 27 DO NOT OPERATE THE BARBECUE. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® D) Regulator-to-cylinder connection (4). m WARNING: If there is a leak at connection (4), remove LP cylinder.
  • Page 28: Refilling The Liquid Propane Cylinder

    GAS INSTRUcTIONS REFILLING THE LIQUID PROPANE CYLINDER We recommend that you refill the LP cylinder before it is completely empty. To refill, take LP cylinder to a “Gas Propane” dealer. Removal of the gas supply cylinder: A) Shut off gas supply and disconnect hose and regulator assembly from the cylinder. Follow one of the specific regulator connection instructions illustrated based on your regulator type.
  • Page 29: Before Using The Barbecue

    WARNING: Always check hose before using barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorised replacement hose. Contact ® the Customer Service Representative in your area using the contact information on our web site.
  • Page 30: Ignition & Usage

    IGNITION & USAGE IGNITION Summary ignition instructions are posted on the cart leg under the control knobs. m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up which can cause serious bodily injury or death.
  • Page 31: Manual Ignition

    G) After the outside burner is lit you can turn on the inside burner (7). The inside burner is ignited by the outside burner. ◆ TO EXTINGUISH Push in and turn each burner control knob clockwise to the OFF position. Turn gas supply OFF at the source. ◆ START/HI MEDIUM WWW.WEbER.cOm ®...
  • Page 32: Grilling Tips & Helpful Hints

    10 to 15 minutes of barbecuing. Small whole chicken Don’t forget to regularly brush off your cooking grate and clean out the drip pan under the barbecue. For more barbecuing tips and recipes, visit www.weber.com ® ◆ MEDIUM...
  • Page 33: Troubleshooting

    THIS IS NOT A DEFECT. If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® HANDLE LIGHT TROUbLESHOOTING - Q320...
  • Page 34: Maintenance

    CLEANING WEBER SPIDER/INSECT SCREENS ® m WARNING: Turn your Weber gas barbecue OFF and wait for Your Weber ® gas barbecue, as well as any outdoor gas appliance, is a target for spiders ® and other insects. They can nest in the venturi section (1) of the burner tube. This blocks it to cool before cleaning.
  • Page 35: Burner Tube Cleaning Or Replacement

    BURNER TUBE CLEANING OR REPLACEMENT You will need a flathead screwdriver. A) Your Weber ® gas barbecue must be OFF and cool. B) Turn gas OFF at source. C) Open lid and remove the cooking grates. Burner Tube Removal A) Remove the 1/4 x 20 inch screw that holds the burner tube to the cookbox (1).
  • Page 36: Push-Button Ignition System Operations

    • Make sure the Electronic Ignition button is working by listening and looking for sparks at burner. If the Electronic Ignition System still fails to light, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® ◆ ELECTRONIC IGNITION SYSTEM REPLACEMENT If replacement of the ignition module is necessary it must be removed and disposed of properly.
  • Page 37: Annual Maintenance

    Insect screen and burner is clean, replace the burner. If the Spider/Insect screen becomes damaged or cannot be cleaned, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® Main Burner Flame Pattern...
  • Page 38: Memo

    mEmO...
  • Page 39 WWW.WEbER.cOm ®...
  • Page 40 ATTENTION: This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
