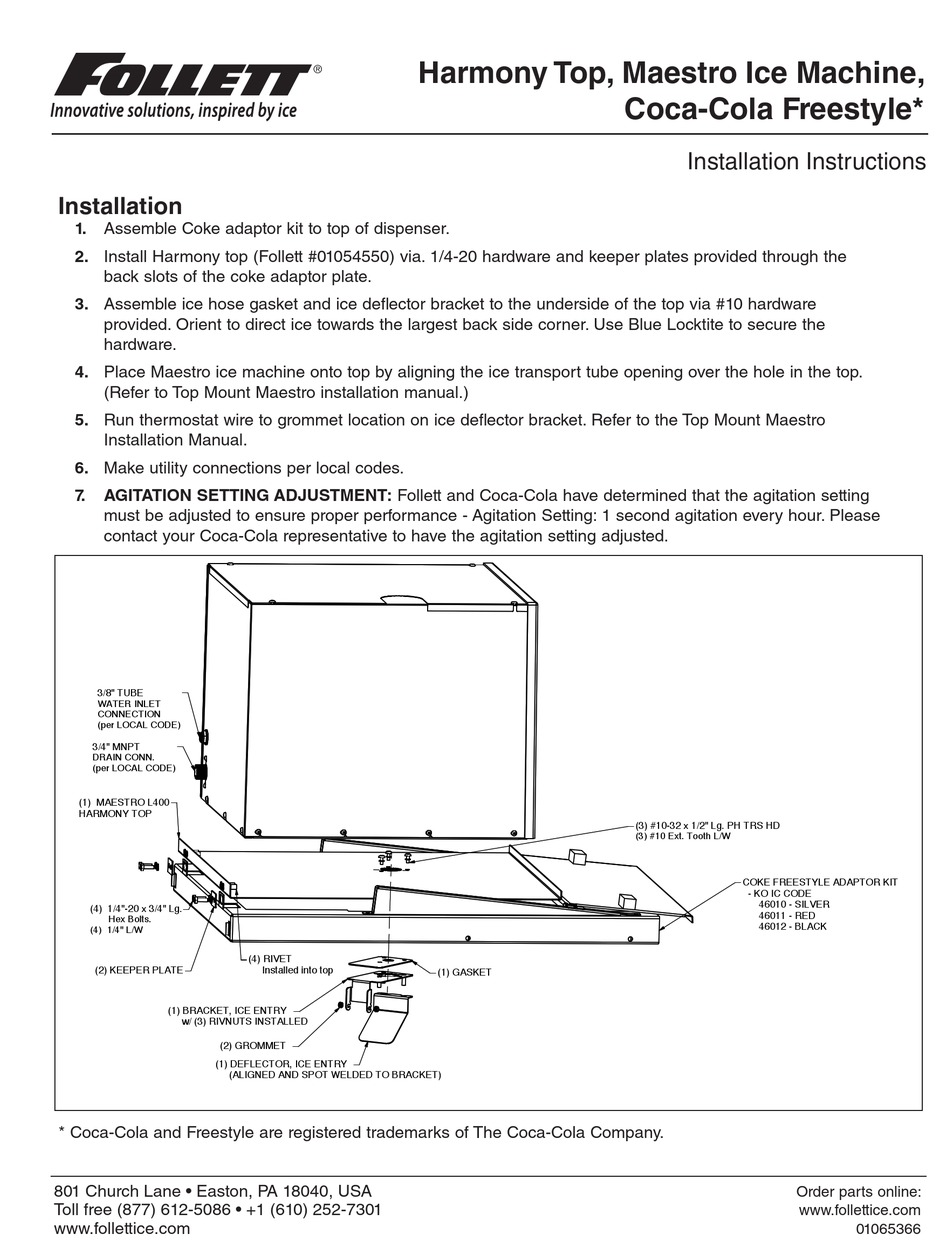

Follett Maestro Installation Instructions

Installation
1. Assemble Coke adaptor kit to top of dispenser.
2. Install Harmony top (Follett #01054550) via. 1/4-20 hardware and keeper plates provided through the
back slots of the coke adaptor plate.
3. Assemble ice hose gasket and ice deflector bracket to the underside of the top via #10 hardware
provided. Orient to direct ice towards the largest back side corner. Use Blue Locktite to secure the
hardware.
4. Place Maestro ice machine onto top by aligning the ice transport tube opening over the hole in the top.
(Refer to Top Mount Maestro installation manual.)
5. Run thermostat wire to grommet location on ice deflector bracket. Refer to the Top Mount Maestro
Installation Manual.
6. Make utility connections per local codes.
7. AGITATION SETTING ADJUSTMENT: Follett and Coca-Cola have determined that the agitation setting
must be adjusted to ensure proper performance - Agitation Setting: 1 second agitation every hour. Please
contact your Coca-Cola representative to have the agitation setting adjusted.
3/8" TUBE
WATER INLET
CONNECTION
(per LOCAL CODE)
3/4" MNPT
DRAIN CONN.
(per LOCAL CODE)
(1) MAESTRO L400
HARMONY TOP
(4) 1/4"-20 x 3/4" Lg.
Hex Bolts.
(4) 1/4" L/W
(2) KEEPER PLATE
(1) BRACKET, ICE ENTRY
w/ (3) RIVNUTS INSTALLED
(2) GROMMET
(1) DEFLECTOR, ICE ENTRY
(ALIGNED AND SPOT WELDED TO BRACKET)
