Optoma ZH506T User Manual

4k compatible, full 3d
Hide thumbs
Table of Contents

Advertisement

Quick Links

DLP
Projector
®
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma ZH506T

Summary of Contents for Optoma ZH506T

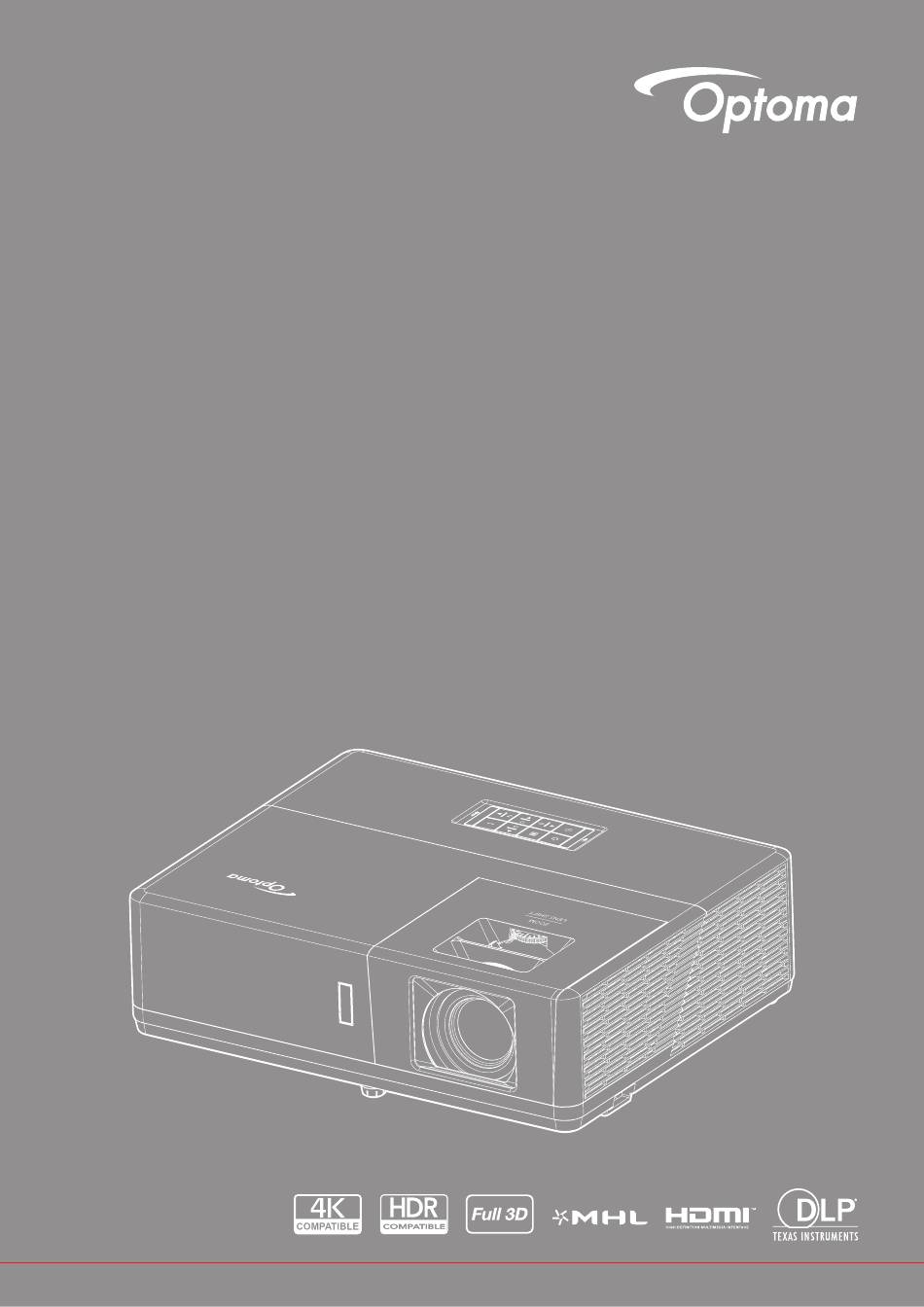

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Laser Radiation Safety Information ................... 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................6 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION ..................
  • Page 3 Compatible resolutions ......................55 Image size and projection distance ..................58 Projector dimensions and ceiling mount installation ..............61 IR remote codes ........................62 Troubleshooting ........................64 Warning indicators ........................66 Specifications ........................... 67 Optoma global offices ....................... 68 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: Laser Radiation Safety Information

    ‡ The unit should only be repaired by authorized service personnel. ‡ Only use attachments/accessories specified by the manufacturer. ‡ Do not look into straight into the projector lens during operation. The bright light may harm your eyes. ‡ This projector will detect the life of the light source itself. ‡...

  • Page 6: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2018 Disclaimer The information in this document is subject to change without notice.

  • Page 7: Declaration Of Conformity For Eu Countries

    Operation Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003.

  • Page 8: Introduction

    Remote control Power lead Documentation Note: ‡ The remote control is shipped with the battery. ‡ *(1) For European warranty Information, please visit www.optoma.com. ‡ *(2) Available only for Asian region. Optional accessories Lens cap CD user manual*(3) Carry bag...

  • Page 9: Product Overview

    INTRODUCTION Product Overview Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item IR Receivers Ventilation (outlet) Keypad Tilt-Adjustment Feet Lens Shift Dial...

  • Page 10: Connections

    INTRODUCTION Connections Type 1 (11 IO) Type 2 (15 IO) English...
  • Page 11 INTRODUCTION Item Type 1 (11 IO) Type 2 (15 IO) HDMI 2 Connector √ √ HDMI 1 / MHL Connector √ √ USB Power Out (5V 1.5A) Connector √ √ VGA In / VGA In 1 Connector √ √ Composite Connector √...

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item Lamp LED Temp LED Power and Power LED Re-Sync Menu Four Directional Select Keys Keystone Correction Source Enter 10. Information English...

  • Page 13: Remote Control

    INTRODUCTION Remote control Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Item Item Power on 18. YPbPr (not supported) Geometric Correction 19. Numeric keypad (0-9) Function button (F1) (Assignable) 20.

  • Page 14: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard installation advise please contact Optoma. English...
  • Page 15 SETUP AND INSTALLATION Projector installation notice ‡ Place the projector in a horizontal position. The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.

  • Page 16: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Type 1 (11 IO) English...
  • Page 17 SETUP AND INSTALLATION Type 2 (15 IO) English...
  • Page 18 SETUP AND INSTALLATION Item Type 1 (11 IO) Type 2 (15 IO) HDMI Cable √ √ MHL Cable √ √ HDMI Dongle √ √ USB Power Cable √ √ VGA In Cable √ √ RCA Component Cable √ √ Video Cable √...

  • Page 19: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom, lens shift, and focus...

  • Page 20: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 21 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 60 degrees perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 22: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Lens cap Format Freeze Remote S-Video HDMI1 HDMI2 Powering on HDBaseT Video HDMI3 Remove the lens cap. YPbPr DisplayPort Securely connect the power lead and signal/source cable.

  • Page 23: Selecting An Input Source

    USING THE PROJECTOR Geometric Correction PIP/PBP Selecting an input source Mode AV Mute Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or the Source button on the remote control to select the desired input.

  • Page 24: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press the button on the projector keypad or the Menu button on the remote control.

  • Page 25: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation Bright HDR SIM. Cinema Display Mode Game sRGB DICOM SIM. User Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink Gray...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Warm Standard Color Temperature Cool Cold Red [Default] Green Blue Color Cyan Yellow Magenta Color Matching White(*) Hue / R(*) -50 ~ 50 [Default: 0] Saturation / G(*) -50 ~ 50 [Default: 0] Gain / B(*)
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu -50 ~ 50 (depends on signal) H. Position [Default: 0] Signal -50 ~ 50 (depends on signal) V. Position [Default: 0] DynamicBlack Image Settings Power Brightness Mode (Power = 100%/ 95%/ 90%/ 85%/...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Audio 1 HDMI1/MHL Audio 2 Default [Default] Audio 1 HDMI2 Audio 2 Default [Default] Audio Audio Input Audio 1 Audio 2 Audio 1 Component Audio 2 Audio 1...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Mutual [Default] Power On Link PJ → Device HDMI Link Device → PJ Settings [Default] Power Off Link Green Grid Magenta Grid Test Pattern White Grid White [Default]...
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Polski Nederlands Svenska Norsk/Dansk Suomi ελληνικά 繁體中文 簡体中文 日本語 한국어 Language Русский Magyar Čeština ไทย Türkçe Tiếng Việt Bahasa Indonesia Română Setup Options Slovenčina Closed Captioning...
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Default [Default] HDMI1/MHL Custom Default [Default] HDMI2 Custom Default [Default] Input Name Custom Default [Default] Component Custom Default [Default] Video Custom Auto [Default] VGA Out VGA1 VGA2...
  • Page 32 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Crestron On [Default] Note: Port 41794 Extron On [Default] Note: Port 2023 PJ Link On [Default] Note: Port 4352 Network Control AMX Device On [Default] Discovery Note:...

  • Page 33: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Presentation: This mode is suitable for showing in front of public in connection to the PC. ‡ Bright: Maximum brightness from PC input.
  • Page 34 USING THE PROJECTOR Sharpness Adjust the sharpness of the image. Color Adjust a video image from black and white to fully saturated color. Tint Adjust the color balance of red and green. Gamma Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.
  • Page 35 USING THE PROJECTOR Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: ‡ AUTO, RGB, or YUV. ‡ Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV. ‡...

  • Page 36: Display 3D Menu

    USING THE PROJECTOR Display 3D menu Note: ‡ This projector is a 3D ready projector with DLP-Link 3D solution. ‡ Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. ‡ This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports. ‡...

  • Page 37: Display Aspect Ratio Menu

    USING THE PROJECTOR Display aspect ratio menu Aspect Ratio Select the aspect ratio of the displayed image between the following options: ‡ 4:3: This format is for 4:3 input sources. ‡ 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV. ‡...
  • Page 38 USING THE PROJECTOR 1080p auto mapping rule: Input resolution Auto/Scale Auto H-resolution V-resolution 1920 1080 1440 1080 1440 1080 1024 1440 1080 1280 1024 1440 1080 1400 1050 1440 1080 1600 1200 1440 1080 1280 1920 1080 Wide Laptop 1280 1800 1080 1280...
  • Page 39 USING THE PROJECTOR WUXGA auto mapping rule (screen type 16:10): Input resolution Auto/Scale Auto H-resolution V-resolution 1920 1200 1600 1200 1600 1200 1024 1600 1200 1280 1024 1600 1200 1400 1050 1600 1200 1600 1200 1600 1200 1280 1920 1080 Wide Laptop 1280 1920...

  • Page 40: Display Edge Mask Menu

    USING THE PROJECTOR WUXGA auto mapping rule (screen type 16:9): Input resolution Auto/Scale Auto H-resolution V-resolution 1920 1080 1440 1080 1440 1080 1024 1440 1080 1280 1024 1440 1080 1400 1050 1440 1080 1600 1200 1440 1080 1280 1920 1080 Wide Laptop 1280 1800...

  • Page 41: Audio Mute Menu

    USING THE PROJECTOR Auto Keystone Correct keystone digitally to fit the projected image on the area on which you are projecting. Note: ‡ The image size will reduce slightly when adjusting the horizontal and vertical keystone. ‡ When the Auto Keystone is used, the Four Corner Adjustment function will be disabled. Reset Resets the lamp hour counter after replacing the lamp.

  • Page 42: Setup Projection Menu

    USING THE PROJECTOR Setup menu Setup projection menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Setup screen type menu Screen Type (for WUXGA model only) Choose the screen type from 16:9 and 16:10. Setup power settings menu Direct Power On Choose “On”...

  • Page 43: Setup Security Menu

    USING THE PROJECTOR Setup security menu Security Enable this function to prompt for a password before using the projector. ‡ On: Choose “On” to use security verification when the turning on the projector. ‡ Off: Choose “Off” to be able to switch on the projector without password verification. Security Timer Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used.

  • Page 44: Setup Test Pattern Menu

    USING THE PROJECTOR Setup test pattern menu Test Pattern Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off). Setup remote settings menu IR Function Set the IR function setting. ‡ On: Choose “On”, the projector can be operated by the remote control from the top and front IR receivers.

  • Page 45: Setup Reset Osd Menu

    USING THE PROJECTOR Input Source Select the input source between HDMI1/MHL, HDMI2, VGA, Component, and Video. Input Name Use to rename the input function for easier identification. The available options include HDMI1/MHL, HDMI2, VGA, Component, and Video. VGA Out Specify which the VGA Out connector to be used to connect the projector with the external display device. High Altitude When “On”...

  • Page 46: Network Lan Menu

    USING THE PROJECTOR Network menu Network LAN menu Network Status Display the network connection status (read-only). MAC Address Display the MAC address (read-only). DHCP Use this option to enable or disable the DHCP function. ‡ Off: To assign IP, subnet mask, gateway, and DNS configuration manually. On: Projector will obtain an IP address automatically from your network.

  • Page 47: Network Control Menu

    USING THE PROJECTOR Making a direct connection from your computer to the projector* Turn “Off” the DHCP option on the projector. Configure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”). Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector.

  • Page 48: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 49 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). On the PC (Laptop), select Start > Control Panel > Network Connections. Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
  • Page 50 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ±...
  • Page 51 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Information page Main page Tool page Contact IT helpdesk English...
  • Page 52 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 53: Info Menu

    USING THE PROJECTOR Info menu Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Color Depth ‡ Color Format ‡ Power Mode (Standby) ‡ Light Source Hours ‡...

  • Page 54: Maintenance

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Note: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 55: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital compatibility B0 / Established B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing Timing 720 x 400 @ 70Hz SVGA: Native timing: 640 x 480p @ 60Hz 720 x 480p @ 60Hz 640 x 480 @ 60Hz 800 x 600 @120Hz XGA:...
  • Page 56 ADDITIONAL INFORMATION Analog compatibility B0 / Established Timing B0 / Standard Timing B0 / Detail Timing B1 / Detail Timing 720 x 400 @ 70Hz SVGA: Native timing: 1366 x 768 @ 60Hz 640 x 480 @ 60Hz 800 x 600 @120Hz XGA: 640 x 480 @ 67Hz 1024 x 768 @120Hz...
  • Page 57 If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode. ‡ Support NVIDIA 3DTV Play if there is no patent fee from Optoma. ‡ 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.

  • Page 58: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance 1080P Desired Image Size Projection Distance (C) Diagonal Width Height Wide Tele inch inch inch feet feet 0.91 0.80 31.38 0.45 17.65 3.66 5.86 1.02 0.89 34.86 0.50 19.61 4.07 6.51 1.27 1.11 43.58 0.62 24.51...
  • Page 59 ADDITIONAL INFORMATION WUXGA Desired Image Size Projection Distance (C) Diagonal Width Height Wide Tele inch inch inch feet feet 0.91 0.78 30.53 0.48 19.08 3.56 5.70 1.02 0.86 33.92 0.54 21.20 3.96 6.33 1.27 1.08 42.40 0.67 26.50 4.95 7.91 1.52 1.29 50.88...
  • Page 60 ADDITIONAL INFORMATION English...

  • Page 61: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 62: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0 customer 1 data 0 data 1...
  • Page 63 ADDITIONAL INFORMATION Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0 customer 1 data 0 data 1 Laser Laser Source Source #BYTE3 #BYTE3 Re-Sync Re-Sync #BYTE3 Volume + #BYTE3 Volume Volume - #BYTE3 D Zoom + #BYTE3 D Zoom D Zoom - #BYTE3 Menu...

  • Page 64: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 65 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...

  • Page 66: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ “Lamp” LED indicator is lit red and if “Power” indicator flashes red. ‡ “Temp” LED indicator is lit red and if “Power” indicator flashes red. This indicates the projector has overheated.

  • Page 67: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Maximum resolution 1920x1200@60Hz(RB) ‡ 1080p Native resolution ‡ WUXGA Lens Manual zoom and manual focus ‡ 1080p: 26.2”~301.1” Image size (diagonal) ‡ WUXGA: 27”~309” Projection distance 1.3m~9.4m (focus range with optimized@1.873m) Electrical Description ‡ HDMI 1.4a ‡...

  • Page 68: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 47697 Westinghouse Drive, 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 69 *36.7D901G001-A* P/N:36.7D901G001-A www.optoma.com...
