Optoma ZW340e User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DLP
Projector
®
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma ZW340e

Summary of Contents for Optoma ZW340e

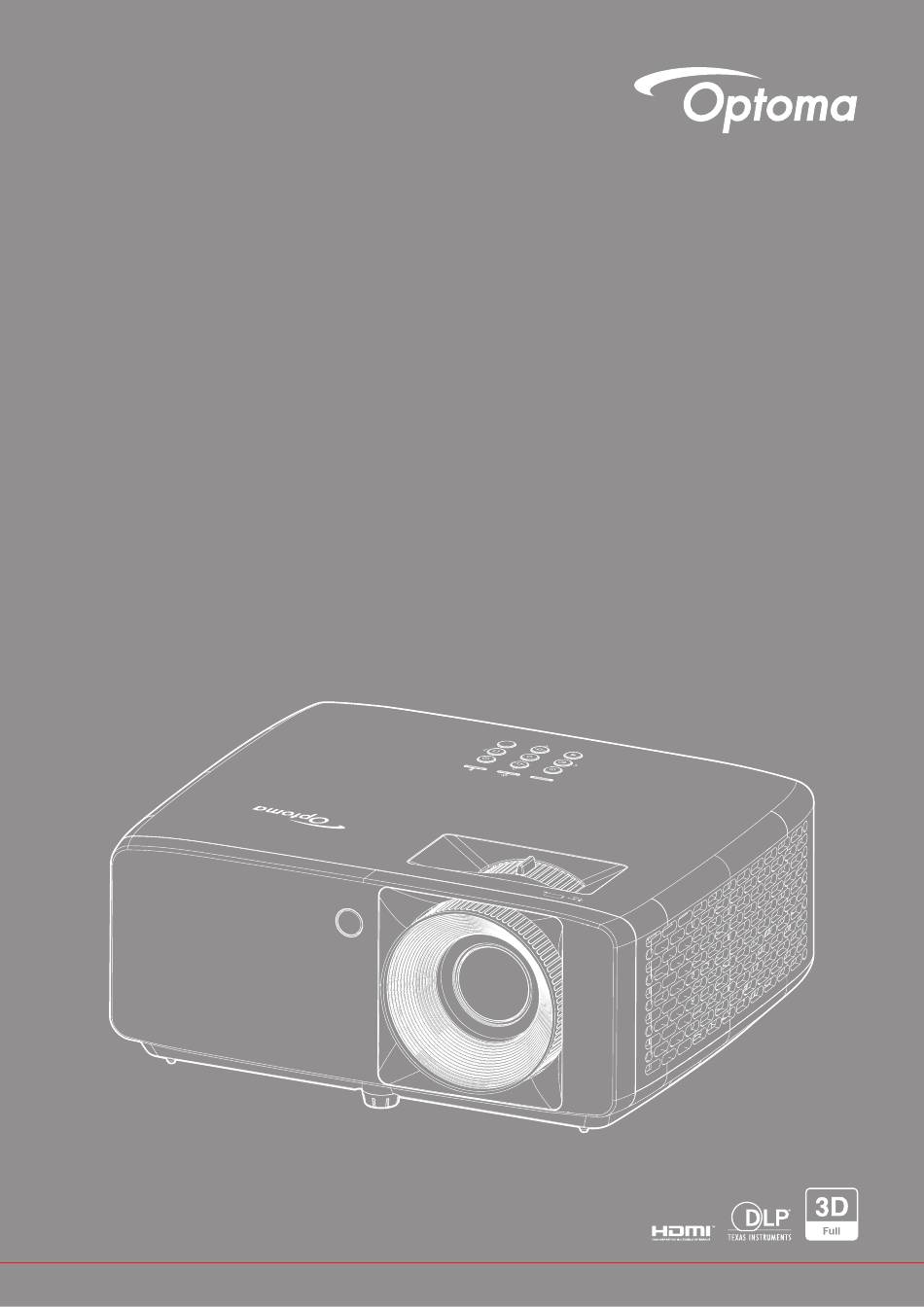

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Laser Radiation Safety Information ................... 5 Laser Notice ..........................6 Copyright ........................... 7 Disclaimer ..........................7 Trademark Recognition ......................7 FCC ............................7 Declaration of Conformity for EU countries ................8 WEEE ............................
  • Page 3 Compatible resolutions ......................42 Image size and projection distance ..................46 Projector dimensions and ceiling mount installation ..............48 IR remote control codes ......................50 Troubleshooting ........................52 Warning indicators ........................54 Specifications ........................... 55 Optoma global offices ....................... 56 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: Laser Radiation Safety Information

    ‡ When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down. ‡ Turn off and unplug the power plug from the AC outlet before cleaning the product. ‡...

  • Page 6: Laser Notice

    ‡ Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation. ‡ Do not stare into beam when the projector is on. The bright light may result in permanent eye damage. Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation Laser Notice IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2.

  • Page 7: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2022 Disclaimer The information in this document is subject to change without notice.

  • Page 8: Declaration Of Conformity For Eu Countries

    Operation Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES-003.

  • Page 9: Introduction

    INTRODUCTION Thank you for purchasing an Optoma laser projector. For full list of features please visit the product page on our website, where you will also find additional information and documentation such as FAQs. Package Overview Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase.

  • Page 10: Product Overview

    INTRODUCTION Product Overview Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item IR Receivers Ventilation (outlet) Keypad Tilt-Adjustment Feet Zoom Lever...

  • Page 11: Connections

    INTRODUCTION Connections XGA/WXGA model 1080p model Item Item HDMI 1 Connector Audio Out Connector HDMI 2 Connector DC Jack RS-232 Connector Kensington Lock Port USB Power Out (5V 1.5A) Connector Note: Signal mode support varies from different model in each sales region. English...

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item Power LED IR Receiver Lamp LED Enter Temp LED Keystone Correction Information 10. Menu Re-Sync 11. Source Four Directional Select Keys 12. Power English...

  • Page 13: Remote Control

    INTRODUCTION Remote control Item Item Aspect Ratio Freeze Power On / Off AV Mute Mode 11. Volume + Enter Menu Return 13. Four Directional Select Keys Mute 14. Settings/Setup Menu Volume - 15. Source Keystone Correction Note: ‡ Some keys may have no function for models that do not support these features. ‡...

  • Page 14: Setup And Installation

    SETUP AND INSTALLATION Installing the projector Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
  • Page 15 SETUP AND INSTALLATION Projector installation notice ‡ 360° free orientation operation ‡ Allow at least 30 cm clearance around the exhaust vent. Minimum 100mm Minimum 300mm Minimum 300mm (3.94 inches) (11.81 inches) (11.81 inches) Minimum 100mm (3.94 inches) Minimum 100mm Minimum 100mm (3.94 inches) (3.94 inches)

  • Page 16: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item HDMI Cable Power Adapter HDMI Dongle Power Cable USB Power Cable RS232 Cable Audio Out Cable Note: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or Premium Certified HDMI cables up to 5 meters.

  • Page 17: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom and focus...

  • Page 18: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Press firmly and slide the battery cover off. Install new battery into the compartment. Remove the old battery and install new one (CR2025). Ensure that the side with a “+” is facing Put the cover back.
  • Page 19 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 20: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Powering on Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red. Turn on the projector by pressing the button on the projector keypad or the button on the remote control.

  • Page 21: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or remote control to select the desired input.

  • Page 22: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press the button on the projector keypad or remote control.

  • Page 23: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add or remove items to improve product performance without notice. Main Sub Menu Sub Menu 2...
  • Page 24 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Blackboard Light Yellow Light Green Wall Color Light Blue Pink Gray 3D Mode DLP-Link 3D Sync Type 3D Sync Image 3D-2D Conversion Auto Frame Packing Side by Side 3D Format...
  • Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto Keystone -40 ~ 40 V Keystone [-30 ~ 30, for 1080p model] Geometric Correction -40 ~ 40 H Keystone [-30 ~ 30, for 1080p model] Four Corner Adjustment Display Reset...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Menu Timer Menu Settings Information Hide High Altitude Direct Power On Power Settings Signal Power On Auto Power Off (min) 0 ~ 180 (1 min increments) Sleep Timer (min) 0 ~ 990 (30 min increments) Security...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto Source Auto Input Switch HDMI Link Inclusive of TV Input HDMI CEC Settings Mutual Power On Link PJ --> Device Device --> PJ Power Off Link Reset Volume...

  • Page 28: Image Picture Mode Menu

    USING THE PROJECTOR Image menu Image picture mode menu There are several predefined display modes that you can choose from to suit your viewing preference. Each mode has been fine-tuned by our expert colour team to ensure superior colour performance for wide range of content. ‡...

  • Page 29: Image Contrast Menu

    USING THE PROJECTOR Image contrast menu The contrast controls the degree of difference between the lightest and darkest parts of the picture. Image sharpness menu Adjust the sharpness of the image. Image gamma menu Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

  • Page 30: Image 3D Menu

    USING THE PROJECTOR Image 3D menu Note: ‡ This projector is a 3D ready projector with DLP-Link 3D solution. ‡ Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. ‡ This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2 ports. ‡...

  • Page 31: Display Projection Orientation Menu

    USING THE PROJECTOR Display menu Display projection orientation menu Select the preferred projection between front, rear, ceiling-top, and rear-top. Display light source mode menu Select a light source mode depending on the installation requirements. Display dynamic black menu Use to automatically adjust the picture brightness in order to give optimum contrast performance. Display gaming mode menu Enable this feature to reduce response times (input latency) during gaming to 8.6ms (1080p@120Hz).

  • Page 32: Display Aspect Ratio Menu

    USING THE PROJECTOR Display aspect ratio menu Select the aspect ratio of the displayed image between the following options: 4:3: This format is for 4:3 input sources. ‡ 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV. ‡...
  • Page 33 USING THE PROJECTOR WXGA scaling table (screen type 16x10): 16 : 10 screen 480i/p 576i/p 1080i/p 720p Scale to 1066x800. 16x10 Scale to 1280x800. Scale to 1280x960, then get the central 1280x800 image to display. Native 1:1 mapping centered. 1:1 mapping 1280x720 1:1 mapping display...
  • Page 34 USING THE PROJECTOR WXGA auto mapping rule (screen type 16x9): Input resolution Auto/Scale Auto H-resolution V-resolution 1280 1024 1280 1024 1400 1050 1600 1200 1280 1280 Wide Laptop 1280 1200 1280 1152 1280 SDTV 1280 1280 1280 HDTV 1920 1080 1280 1080p scaling table: 16:9 screen...

  • Page 35: Display Geometric Correction Menu

    USING THE PROJECTOR Display geometric correction menu Auto Keystone Correct keystone digitally to fit the projected image on the area on which you are projecting. Note: ‡ The image size will reduce slightly when adjusting the horizontal and vertical keystone. ‡...

  • Page 36: Setup Test Pattern Menu

    USING THE PROJECTOR Setup menu Setup test pattern menu Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off). Setup language menu Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Danish, Finnish, Greek, Traditional Chinese, Simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, and Romanian.

  • Page 37: Setup Security Menu

    USING THE PROJECTOR Setup security menu Security Enable this function to prompt for a password before using the projector. ‡ On: Choose “On” to use security verification when the turning on the projector. ‡ Off: Choose “Off” to be able to switch on the projector without password verification. Note: The default password is 1234.

  • Page 38: Input Auto Source Menu

    USING THE PROJECTOR Input menu Input auto source menu Choose this option to let the projector automatically find an available input source. Input auto input switch menu When HDMI input signal is detected, the projector will automatically switch the input source. Input HDMI CEC settings menu Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them...

  • Page 39: Audio Volume Menu

    USING THE PROJECTOR Audio menu Audio volume menu Adjust the volume level. Audio mute menu Use this option to temporarily turn off the sound. ‡ On: Choose “On” to turn mute on. ‡ Off: Choose “Off” to turn mute off. Note: “Mute”...

  • Page 40: Control Device Id Menu

    USING THE PROJECTOR Control menu Control device ID menu ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command. Note: For a full list of RS232 commands, please refer to the RS232 user manual on our website. Control remote settings menu IR Function Set the IR function setting.

  • Page 41: Information Menu

    USING THE PROJECTOR Information menu Information menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Color Info ‡ Light Source Hours ‡ Picture Mode ‡ Device ID ‡ Filter Usage Hours ‡ Light Source Mode ‡...

  • Page 42: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Input Signal for HDMI Signal Resolution Refresh Rate(Hz) Notes for Mac 640 x 480 Mac 60/72/85/ SVGA 800 x 600 60(*2)/72/85/120(*2) Mac 60/72/85 1024 x 768 48/50(*4)/60(*2)/70/75/85/120(*2) Mac 60/70/75/85 SDTV(480I) 720 x 480 SDTV(480P) 720 x 480 SDTV(576I) 720 x 576 SDTV(576P)
  • Page 43 ADDITIONAL INFORMATION True 3D Video Compatibility Input timing 1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom 1280 x 720P @ 50Hz Frame packing HDMI 1.4a 1280 x 720P @ 60Hz Frame packing 3D Input 1920 x 1080i @ 50Hz Side-by-Side(Half) 1920 x 1080i @ 60Hz Side-by-Side(Half)
  • Page 44 ADDITIONAL INFORMATION EDID (Digital) XGA/WXGA B0 / B0 / B0 / B1 / B1 / Established Timing Standard Timing Detail Timing Video Mode Detail Timing 640 x 480 @ 60Hz 1600 x 1200 @ 60Hz Native timing: 640 x 480p @ 60Hz XGA: 640 x 480 @ 67Hz 1440 x 900 @ 60Hz...
  • Page 45 ADDITIONAL INFORMATION 1080p B0 / B0 / B0 / B1 / B1 / Established Timing Standard Timing Detail Timing Video Mode Detail Timing 4096 x 2160p @ 60 Hz 256:135 720 x 480p @ 60 Hz 16:9 720(1440) x 480i @ 60 Hz 16:9 720 x 576p @ 50 Hz 16:9 2880 x 480i @ 60 Hz 16:9 1440 x 480p @ 60 Hz 16:9...

  • Page 46: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Screen Size (W x H) Projection Distance (D) Offset (Hd) Diagonal Length Size of (inch) (feet) (16:9) Screen Width Height Width Height Wide Tele Wide Tele (inch) 25.4 0.52 0.39 20.32 15.24 1.00 1.11 3.28 3.64...
  • Page 47 ADDITIONAL INFORMATION 1080p Screen Size (W x H) Projection Distance (D) Offset (Hd) Diagonal Length Size of (inch) (feet) (16:9) Screen Width Height Width Height Wide Tele Wide Tele (inch) 24.5 0.54 0.31 21.35 12.01 0.80 0.88 2.89 0.04 1.57 0.66 0.37 26.15...

  • Page 48: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...
  • Page 49 ADDITIONAL INFORMATION For ceiling mounting, you could purchase a cable tie whose length is over 250mm to fix the AC adapter if needed. Install the cable tie to the designated holes on the bottom of the projector. Then place the AC adapter onto its slot.

  • Page 50: Ir Remote Control Codes

    ADDITIONAL INFORMATION IR remote control codes Customer Code Key Code Description format Byte 1 Byte 2 Byte 3 Byte 4 Power Format 1 Press to turn on / off the projector. Press to change the aspect ratio of a Aspect ratio Format 1 displayed image.
  • Page 51 ADDITIONAL INFORMATION Customer Code Key Code Description format Byte 1 Byte 2 Byte 3 Byte 4 Volume + Format 2 Press to increase the volume. Freeze Format 1 Press to freeze the projector image. Press to adjust image distortion Keystone Format 1 caused by tilting the projector.

  • Page 52: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 53 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...

  • Page 54: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ “Lamp” LED indicator is lit red and if “Power” indicator flashes red. ‡ “Temp” LED indicator is lit red and if “Power” indicator flashes red. This indicates the projector has overheated.

  • Page 55: Specifications

    ADDITIONAL INFORMATION Specifications Item Description ‡ XGA: Texas Instrument DMD, 0.55" S450 DMD Technology ‡ WXGA: Texas Instrument DMD, 0.65" S450 DMD ‡ 1080p: Texas Instrument DMD, 0.65" S600 ‡ XGA: 1024 x 768 Native Resolution ‡ WXGA: 1280 x 800 ‡...

  • Page 56: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan Optoma Technology, Inc. 888-289-6786 https://www.optoma.com/jp/ 47697 Westinghouse Drive. 510-897-8601 Fremont, Ca 94539 services@optoma.com Taiwan https://www.optoma.com/tw/ Canada Optoma Technology, Inc. 888-289-6786 China 47697 Westinghouse Drive. 510-897-8601...
  • Page 57 www.optoma.com...

This manual is also suitable for:

Zh400Zh350Zw350eZx350e
