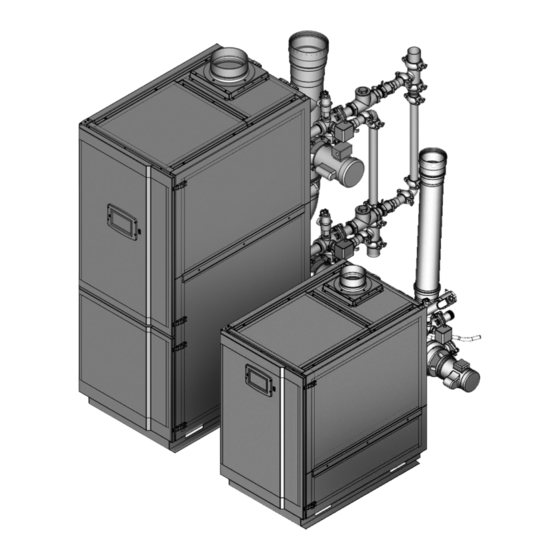

A.O. Smith 100 Series Service Handbook

Commercial boilers/water heaters
Hide thumbs Also See for 100 Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Instruction and Installation Manual
Service Handbook
COMMERCIAL BOILERS/WATER HEATERS
FOR MODELS: XB/XWH
1000, 1300, 1700
2000, 2600, 3400
SERIES 100/101
25589 Highway 1
McBee, SC 29101
INSTALLATION CONSIDERATIONS - PRE SERVICE CHECKS
- BOILER/WATER HEATER CONSTRUCTION -
OPERATION & SERVICE - TROUBLESHOOTING
SERVICING SHOULD ONLY BE PERFORMED BY A QUALIFIED SERVICE AGENT
PRINTED IN THE U.S.A. 0513
320822-003
