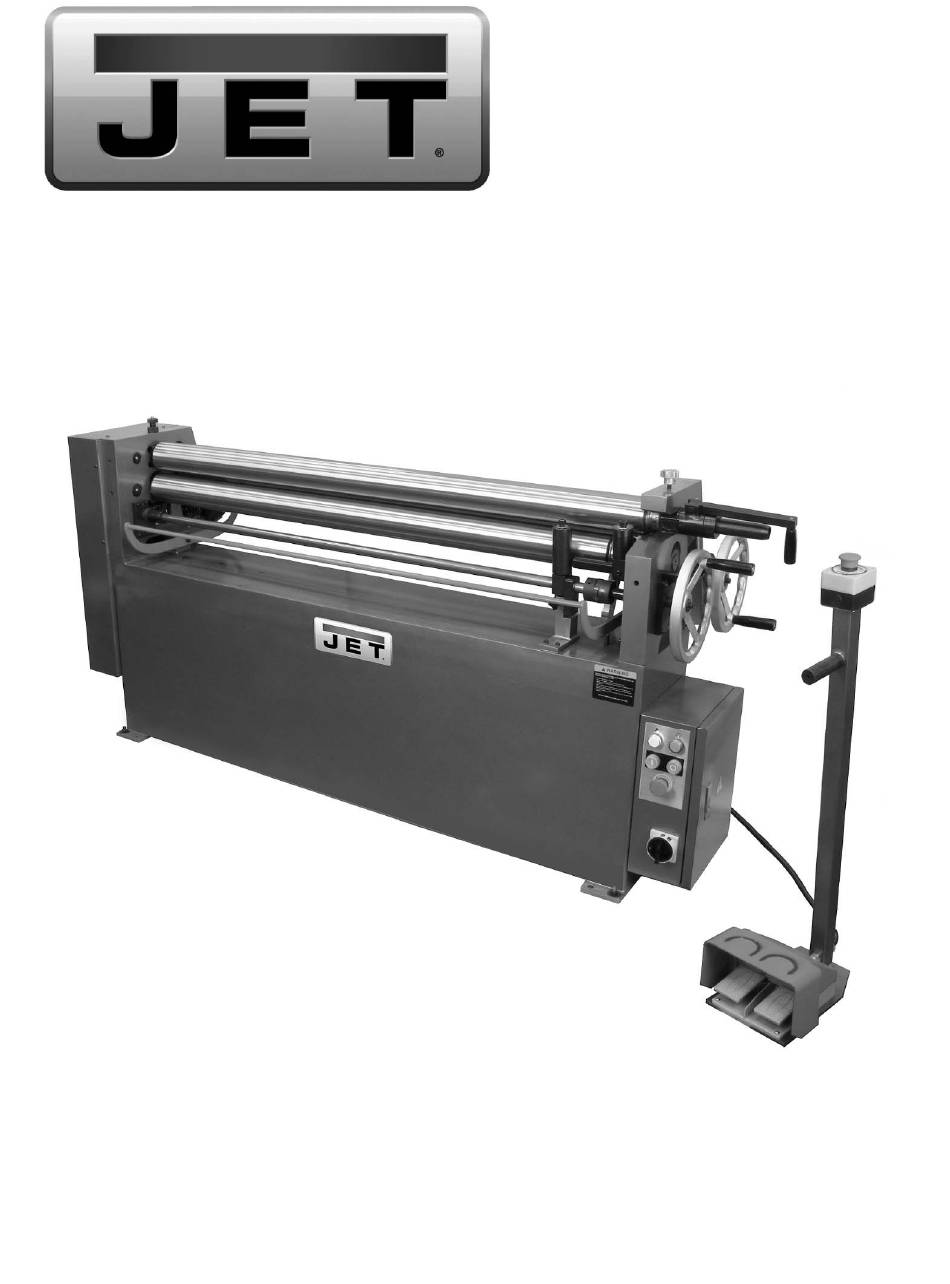

- Page 1 Operating Instructions and Parts Manual 14ga. x 60in. Electric Plate Roller Model EPR-1460-3 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-756030 Ph.: 800-274-6848 Edition 2 08/2018 www.jettools.com Copyright © 2016 JET...
-
Page 2: Important Safety Instructions
Do not use this plate roller for other than its working position can cause you to fall into the machine or allow clothing to get caught, pulling intended use. If used for other purposes, JET you into the machine. disclaims any real or implied warranty and holds itself harmless from any injury that may result 21. -
Page 3: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
3.0 Table of contents Section Page 1.0 IMPORTANT SAFETY INSTRUCTIONS ....................... 2 2.0 About this manual ............................3 3.0 Table of contents ............................4 4.0 Specifications ..............................5 5.0 Features and Terminology ..........................6 6.0 Floor mounting holes ............................6 7.0 Setup and assembly ............................ -
Page 5: Specifications
L= length; W=width; H=height The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Features And Terminology
5.0 Features and Terminology Figure 5-1: Features 6.0 Floor mounting holes Figure 6-1: Hole centers... -
Page 7: Setup And Assembly
8.0 Electrical connections Read and understand the entire contents of this manual before attempting set- up or operation! Failure to comply may cause Electrical connections must be serious injury. made by a qualified electrician in compliance with all relevant codes. This machine must be 7.0 Setup and assembly properly grounded to help prevent electrical shock and possible fatal injury. -
Page 8: Grounding Instructions
It is recommended that the Plate Roller be Ampere Total length of Volts connected to a dedicated 10 amp circuit with a Rating cord in feet circuit breaker or fuse. If connected to a circuit protected by fuses, use time delay fuse marked “D”. More More NOTE: Local codes take precedence over... -
Page 9: Roll Adjustment
9.2 Roll adjustment For example: To find length of material needed (C) to form a tube 4" in diameter, multiply 3.1417 by 4". (Figure 5-1 identifies machine elements.) Result: 12.5667" circumference approximate length of material needed. Cut several The front handwheel raises or lowers the pinch roll pieces of material to this length for a forming test (counterclockwise to raise), so that the correct gap run. -
Page 10: Forming A Tube
10.4 Forming a tube A tube can often be made with a single pass through the machine, as follows: Adjust pinch roll as needed to accommodate workpiece thickness. Feed workpiece into machine. As it nears the end (Figure 10-3a), stop machine and reverse direction (Figure 10-3b). -
Page 11: User-Maintenance
Insert grease into each of 5 fittings, shown in Figure 11-1. 11.3 Additional servicing Any additional servicing should be performed by an authorized JET service center. Figure 10-8: cone forming Figure 11-1: oil fittings... -
Page 12: Troubleshooting Epr-1460 Plate Roller
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 13: Epr-1460 Electric Plate Roller - Exploded View
13.1.1 EPR-1460 Electric Plate Roller – Exploded View... -
Page 14: Epr-1460 Electric Plate Roller - Parts List
13.1.2 EPR-1460 Electric Plate Roller – Parts List Index No. Part No. Description Size 1 ....EPR1460-1 ....Side Cover ..................... 1 2 ....TS-2246102 ....Socket Head Button Screw ........M6x10 ......5 3 ....TS-1492021 ....Hex Cap Screw ............M12x30 ......3 4 .... - Page 15 Index No. Part No. Description Size 61 ....EPR1460-61 ....Plate....................... 2 62 ....EPR1460-62 ....Trans Shaft Bushing ..................2 63 ....EPR1460-63 ....Worm Shaft ....................1 64 ....TS-2279301 ....Socket Set Screw ............ M10X30 ......1 65 ....
- Page 16 149 .... EPR1460-149 .... Chain ............... 10A-2x84 ...... 1 150 .... EPR1460-150 .... Scale (not shown) ............ metric/imperial ....1 ....JET-203 ..... JET Logo (not shown) ..........203x84mm ....1 ....LM000220 ....ID Label, EPR-1460 (not shown) ..............1...
- Page 17 ....EPR1460-TB ..... Tool Box (not shown – includes following items) ........... 1 ............ Oil can......................1 ............ Adjustable wrench ..................1 ............ Hex Key Set ....................1 ............ Grease Gun ....................1 ....
-
Page 18: Electrical Connections For Epr-1460 Plate Roller
14.0 Electrical Connections for EPR-1460 Plate Roller... -
Page 19: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
