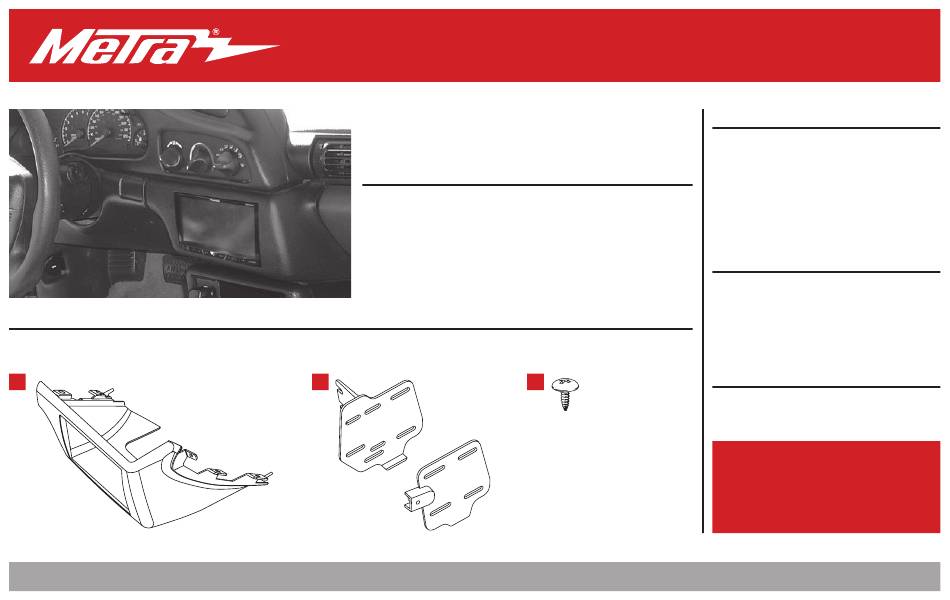

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) (1) #10 x 1/2" Phillips screw
A
Chevrolet Camaro 1993-1996
KIT FEATURES
• ISO DDIN radio provision
• Replacement trim panel is textured to match the factory finish
B
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Preparation . ......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1858
Antenna Adapter: 40-GM10
TOOLS REQUIRED
C
• Panel removal tool • Phillips screwdriver
• 9/32", 10mm Socket wrench • Cutting tool
95-3009
I N S TA L L AT I O N I N S T R U C T I O N S
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 1/4/18 INST95-3009
Advertisement
Related Manuals for Metra Electronics 95-3009
Summary of Contents for Metra Electronics 95-3009
- Page 1 95-3009 I N S TA L L AT I O N I N S T R U C T I O N S Chevrolet Camaro 1993-1996 TABLE OF CONTENTS Dash Disassembly ..........2 Kit Preparation ............2 KIT FEATURES Kit Assembly ............3 • ISO DDIN radio provision • Replacement trim panel is textured to match the factory finish WIRING &...
- Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Remove (2) Phillips screws from the top 1. Using a cutting tool, remove the section of the driver’s side knee bolster. of subdash indicated. (Figure A) 2. Remove (2) 9/32” screws from the Continue to Kit Assembly bottom of the knee bolster. 3. Open the glove box, remove (3) 9/32” screws exposed on the right edge of the radio trim bezel and remove the bezel. (Figure A) 4. Remove (2) 9/32” screws securing the left side of the factory radio and (1) (Figure A) (Figure A) 10mm nut securing the right. 5. Slide the radio from the dash and disconnect the wiring. Continue to Kit Preparation...
- Page 3 KIT ASSEMBLY ISO DDIN radio provision 1. Attach the radio brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness and connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra. Test the radio for proper operation. 3. Secure the completed assembly into the dash. Use the factory screws for the drivers side radio bracket and (1) #10 x 1/2” Phillips screw provided into the passenger side of the radio bracket. (Figure A) 4. Reassemble the dash in reverse order of disassembly, using the radio trim panel instead of the factory panel. REV. 1/4/2018 INST95-3009 Learn more about car stereo video installation parts we have.
