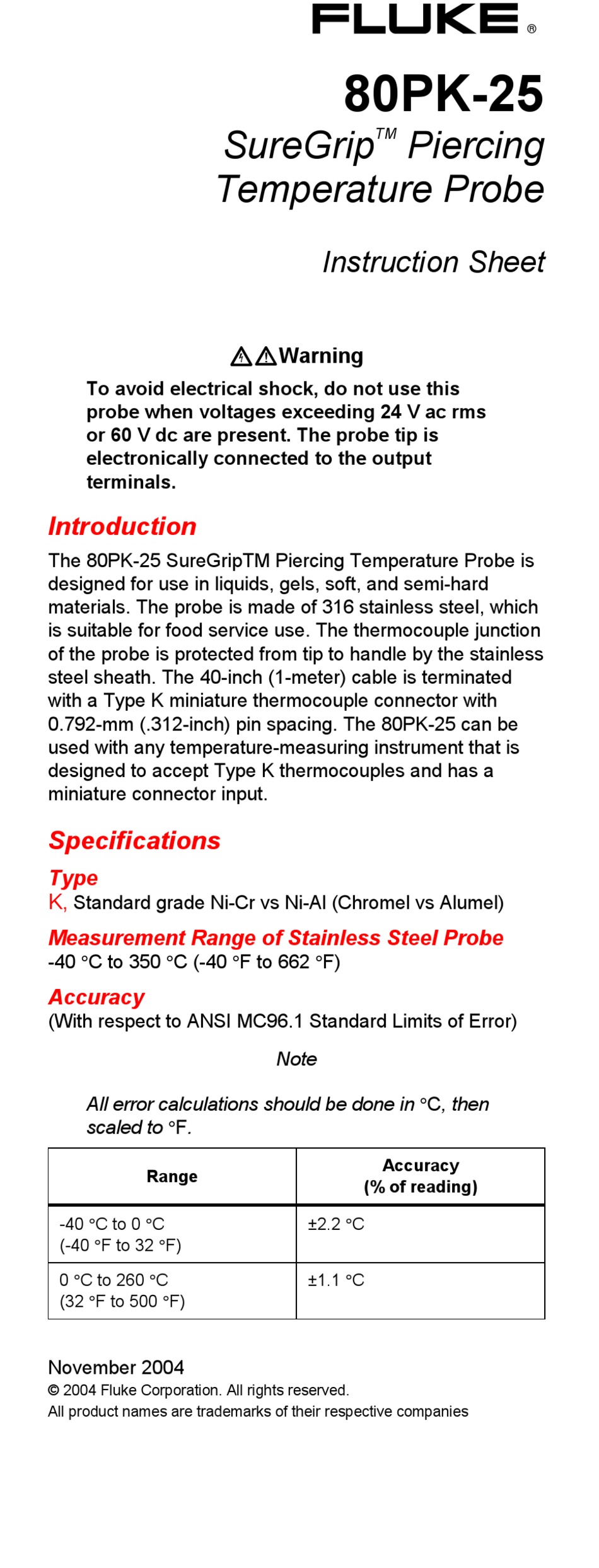

To avoid electrical shock, do not use this
probe when voltages exceeding 24 V ac rms
or 60 V dc are present. The probe tip is
electronically connected to the output
terminals.
Introduction
The 80PK-25 SureGripTM Piercing Temperature Probe is
designed for use in liquids, gels, soft, and semi-hard
materials. The probe is made of 316 stainless steel, which
is suitable for food service use. The thermocouple junction
of the probe is protected from tip to handle by the stainless
steel sheath. The 40-inch (1-meter) cable is terminated
with a Type K miniature thermocouple connector with
0.792-mm (.312-inch) pin spacing. The 80PK-25 can be
used with any temperature-measuring instrument that is
designed to accept Type K thermocouples and has a
miniature connector input.
Specifications
Type
K,
Standard grade Ni-Cr vs Ni-Al (Chromel vs Alumel)
Measurement Range of Stainless Steel Probe
-40 °C to 350 °C (-40 °F to 662 °F)
Accuracy
(With respect to ANSI MC96.1 Standard Limits of Error)
All error calculations should be done in °C, then
scaled to °F.
Range
-40 °C to 0 °C
(-40 °F to 32 °F)
0 °C to 260 °C
(32 °F to 500 °F)
November 2004
© 2004 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies
SureGrip
Temperature Probe
Instruction Sheet
XWWarning
Note
±2.2 °C
±1.1 °C
80PK-25
Piercing
TM
Accuracy
(% of reading)
®
Advertisement
Related Manuals for Fluke SureGrip 80PK-25
Summary of Contents for Fluke SureGrip 80PK-25
-
Page 1: Temperature Probe
-40 °C to 0 °C ±2.2 °C (-40 °F to 32 °F) 0 °C to 260 °C ±1.1 °C (32 °F to 500 °F) November 2004 © 2004 Fluke Corporation. All rights reserved. All product names are trademarks of their respective companies... - Page 2 Output @ 25 °C (77 °F) =1.00 mV (reference junction at 0 °C) Seebeck Coefficient @ 25 °C (77 °F) = 40.50 µV / °C Measurement Time (Time Constant): 3.0 seconds in 100 °C still water at sea level pressure (5 time constants = 1 complete step change, i.e., 5 seconds) Maximum Voltage 24 V ac rms or 60 V dc...
-
Page 3: Measurement Considerations
Measurement Considerations Instrument Compatibility The 80PK-25 is compatible with any temperature- measuring instrument that accepts Type K thermocouples, has a miniature thermocouple connector, and has cold reference junction compensation. Accuracy of the temperature-measuring instrument must be considered along with the 80PK-525 accuracy specification to determine the overall accuracy of the combination. - Page 4 (All Fluke temperature-measuring instruments have this feature.) Refer to the owner’s manual accompanying the measuring instrument to see if this feature is available. Short the two input pins of the measuring instrument with a piece of wire.
-
Page 5: Contacting Fluke
To register your product, visit register.fluke.com ONE YEAR LIMITED WARRANTY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
