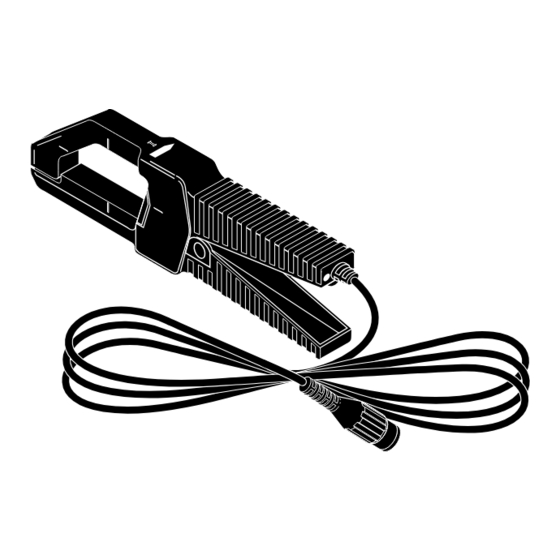

- Page 1 Fluke 80i-500s Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/probes/fluke/ac-current-probes/Fluke%2080i-500s...
- Page 2 The probe’s performance is optimized for accurate reproduction of currents at line frequency and up to the 50th harmonic. The 80i-500s is also compatible with any instrument capable of millivolt measurements.
-
Page 3: Box Contents
BOX CONTENTS The shipping container includes the 80i-500s Current Probe, this Instruction Sheet, a Quick Reference Card, and a product registration card. SAFETY INFORMATION Read the following safety information carefully before attempting to operate or service the current probe. •... -
Page 4: General Specifications
Output Signal: 1 mV ac/A ac Influence of Temperature on Accuracy: <0.15% per 10°C (18°F) for temperatures from -10 to 18°C (14 to 64°F) and from 28 to 50°C (82 to 122°F). Basic Accuracy (45 to 65 Hz): Input Current: Error: Phase Shift: 1 to 20A... -
Page 5: Instrument Compatibility
• Accepts a standard BNC connector. A BNC-to-bannana adapter (order PM 9053 from Fluke) can also be used with standard inputs on a digital multimeter (DMM). • Range and resolution capable of displaying 1mV of output per amp of measured current. -
Page 6: Maintenance
INSTRUCTION SHEET BEFORE PROCEEDING. Repairs or servicing not covered in this instruction sheet should be performed only at a Fluke Service Center. A probe under warranty will be promptly repaired or replaced (at Fluke’s discretion) and returned at no charge. See the registration card for warranty terms. -
Page 7: Performance Verification
500A. Otherwise, the maximum current rating of the shunt will be exceeded. Table 1. Required Test Equipment REQUIRED RECOMMENDED MODEL AC Calibrator Fluke Model 5100B Transconductance Amplifier Fluke Model 5220A Digital Multimeter (DMM) Fluke Model 8050A Phase Meter Clarke-Hess Model 6000 0.05Ω, 2A, non-inductive shunt... - Page 8 50 TURNS WOUND ON 10.5 CM CYLINDRICAL FORM USING (4 INCHES) 10-GAUGE MAGNET WIRE REMOVE FORM AND TAPE COIL TOGETHER MAKING SURE 50 WIRES ARE TAPED TAPE FAN OUT COIL TO 270° WITH SPACING 1 CM (0.4 INCH) USING TAPE TO MAINTAIN COIL SHAPE Figure 5.
-
Page 9: Troubleshooting
500A. Otherwise, the maximum current rating of the shunt will be exceeded. TROUBLESHOOTING If the 80i-500s does not perform properly, use the following steps to help isolate the problem: Inspect the jaw mating surface for cleanliness. If any foreign material is present, the jaws will not close properly and errors will result. -
Page 10: Warranty & Limitation Of Liability
Fluke will submit an estimate of the cost to repair shipment damage. Fluke will be happy to answer all questions to enhance the use of this instrument. Please address your requests or correspondence to: FLUKE CORPORATION, P.O. BOX 9090, EVERETT, WA 98206-9090, ATTENTION: Sales Department. - Page 11 SERVICE For service information, call 1-800-825-9810 (USA and Canada). From other countries, contact the nearest Fluke Service Center. For application or operation assistance, or information on Fluke products, call: USA: 1-888-99-FLUKE (1-888-993-5853) Canada: 1-800-36-FLUKE (1-800-363-5853) Europe: +31 402-678-200 Japan: +81-3-3434-0181...
