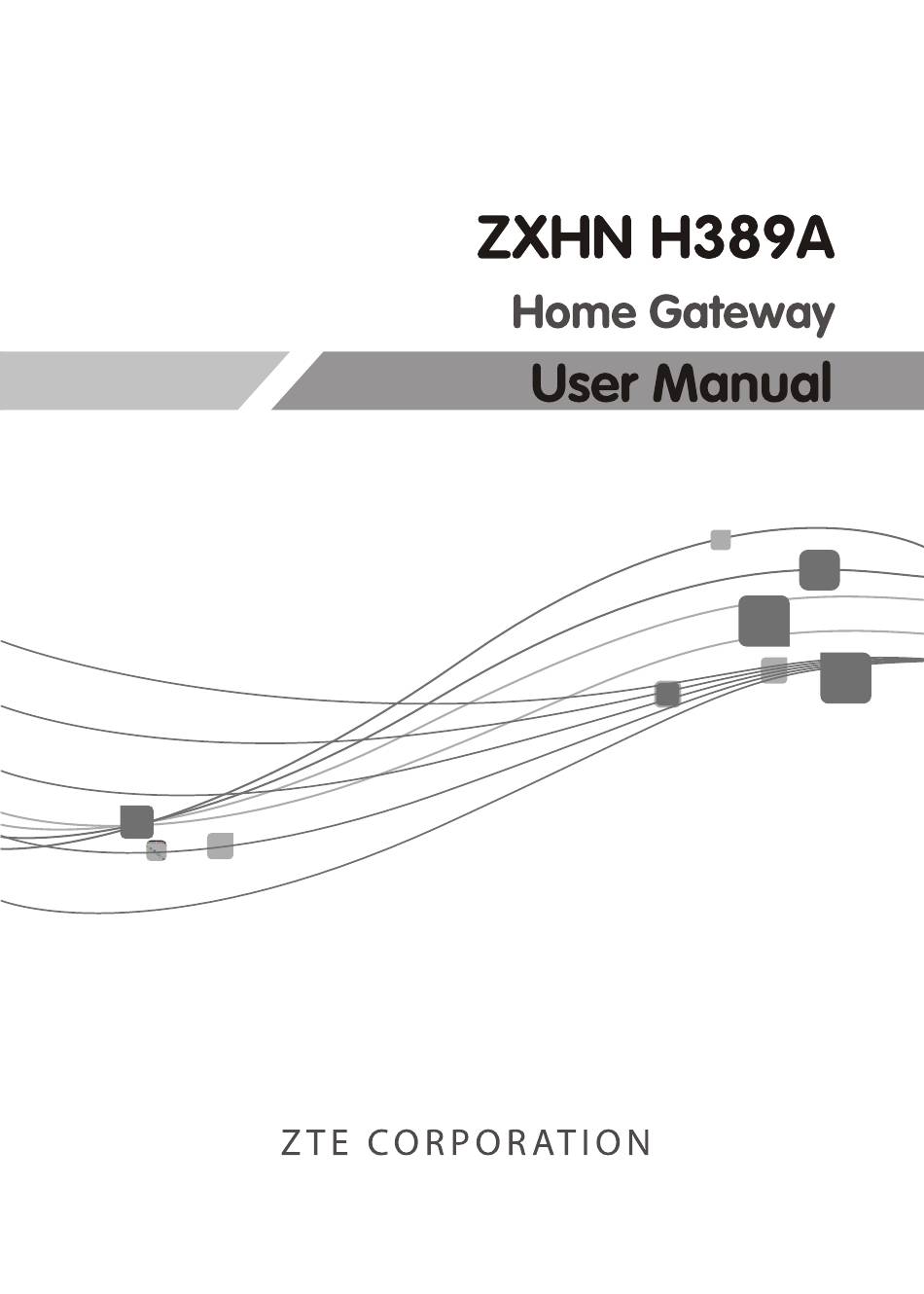

Zte ZXHN H389A User Manual
  1. Manuals
  2. Brands
  3. Zte Manuals
  4. Gateway
  5. ZXHN H389A
  6. User manual

Zte ZXHN H389A User Manual

Home gateway
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXHN H389A

Summary of Contents for Zte ZXHN H389A

  • Page 2 Additionally, the contents of this document are protected by contractual obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners. This document is provided “as is”, and all express, implied, or statutory...

  • Page 3: Safety Precautions

    Safety Precautions Note: Before using the device, read the following safety precautions. ZTE bears no liability to the consequences incurred by violation of the safety instructions. Usage Cautions � Read all the safety cautions carefully before using the device. �...
  • Page 4 Ethernet, Wi-Fi, phone ports. 2.1 Features It supports the following features: � It provides Internet access through ADSL/VDSL/G.fast uplink or GE uplink. So it is possible for ZXHN H389A to provide multiple Internet access choices to suit various broadband access network.

  • Page 5: Product Specifications

    5% ～ 95% (non-condensing) Storage humidity Weight 700g（Single device） Input: AC 100 V~240 V, 50 Hz/60 Hz Power adapter Output: DC 12 V, 2 A 2.3 Package Check After unpacking the ZXHN H389A product, check that the following items are complete.

  • Page 6: Hardware Description

    If any item is found to be wrong, missing, or damaged, contact your service provider. Keep the package and all the items in good condition if you want to replace the product. Installation Preparation 3.1 Hardware Description Front panel Figure 3-1 shows the indicators on the front panel of the ZXHN H389A...
  • Page 7 Figure 3-1 The Front Panel Table 3-1 describes the indicators on the front panel of the ZXHN H389A unit. Table 3-1 Descriptions of Indicators Description Status Indicator Link has not been established. Slow Flashing Physical link exists, however carrier wave green has not been detected.
  • Page 8 Description Status Indicator No SIP account is registered. At least one SIP account is registeredy. IP connected (the device has a WAN IP Solid green VoIP address from IPCP, DHCP or statically configured). At least one SIP account is registered, and Flashing green the SIP/RTP packets is transmitting.
  • Page 9 Solid orange The version software is being upgraded. Top panel Figure 3-2 shows the buttons on the top panel of the ZXHN H389A. Figure 3-2 The Top Panel Table 3-2 describes the buttons on the top panel of the ZXHN H389A.
  • Page 10 Table 3-2 The Top Panel Interface/But- Function After pushing the button for longer than 0.5 s, the WPS function will be enabled. After pushing the button for longer than 0.5 s, the WLAN WLAN function will be enabled or disabled. Figure 3-3 shows the interfaces and buttons on the back panel of the ZXHN H389A.

  • Page 11: Hardware Connection

    Figure 3-4 shows the devices that are connected to interfaces of the ZXHN H389A Figure 3-4 Cable Connection After the devices are connected to the ZXHN H389A device, press the power button. When the corresponding indicators on the front panel are On, you can enjoy various services provided by the service provider.
  • Page 12 4. Make sure that the ZXHN H389A with the WiFi function keeps far away from the following devices: Keep at least two meters far away from electrical devices or components that generate RF noise.

  • Page 13: Troubleshooting

    � Sometimes, the DSL users cannot access to the Internet normally First check whether the ZXHN H389A is in the normal state (Check the in- dicators according to this user manual). If yes, the computer or application network may be faulty. This is unrelated with DSL. If the ZXHN H389A is abnormal, check the status of indicators one by one to remove the fault.

  • Page 14: Fcc Statement

    If the DSL suddenly fails to be synchronized (link down) during application, usually the Link indicator on the ZXHN H389A will not be On. It is suggested to check the following steps one by one: i.
  • Page 15 frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol- lowing measures:...
  • Page 16 ZTEDL01AHNH389A. If requested, this number must be provided to the tele- phone company. This equipment uses the following USOC jacks: RJ-11, RJ-45, USB Jack, Power Jack. REN (Ringer Equivalent Numbers) Statement Notice: The Ringer Equivalence Number (REN:0.1A) assigned to each termi- nal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface.
