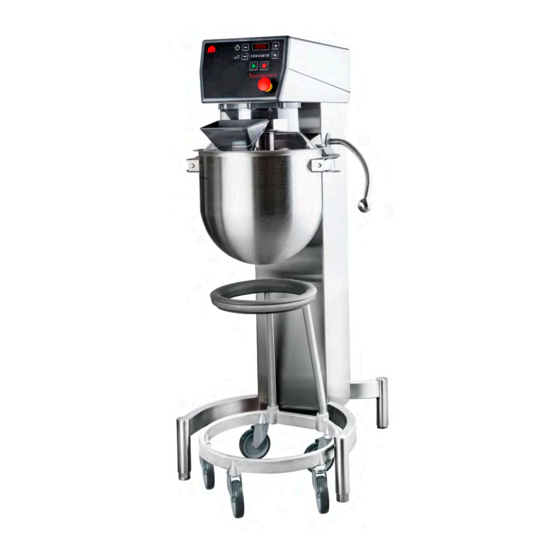

Summary of Contents for Varimixer V30K
- Page 1 Version Machine no. Part Page 102018 Round 30006732 Bowl Accessories SPARE PART AND OPERATION MANUAL FOOD MIXER Model V30K Dec. 2018...
- Page 2 Caution -READ BEFORE OPERATING- Caution Varimixer recommends that mixer operators be at least 18 years of age and be thoroughly trained on the use of the mixer. Varimixer recommends that the following precautions be adopted to help make the mixer operation safer and more efficient.
- Page 3 LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Varimixer shall be the repair and/or replacement at the option of Vari- mixer, of the appliance or component or part thereof Such repair or replacement shall be the expense of Varimixer except that travel over 100 miles or two hours, overtime, and holiday charges shall be,, the expense of the purchaser.
-
Page 4: Table Of Contents
ontents : ................................4 eneral : ................................5 npackinG : ................................5 ransport : ..........................5 nstallation and djUstments : ...............................6 ommissioninG : ..........................6 ecommended Use of the machine : ..............................6 echnical data : ..........................6 capacity of the machine : ..........................7 omponents of the machine ................................8 afety : .................................8... -
Page 5: I Nstallation And
ransport Lifting equipment should always be used to move the machine. The machine must not be pulled or lifted by the bowl lift handle. When the machine is moved, it should be in a vertical position at all times. nstallation and adjUstments The ambient temperature around the machine must not exceed 113 When the mixer is delivered, the adjustable feet will be turned right to the bottom. - Page 6 Electrical connection: Users can connect the mixer to the power supply themselves; refer to the section on Electrical connection which must be followed. For the benefit of service staff, it should be clear to see when the mains plug to the mixer has been removed from the socket in the wall. The cable is fixed to the machine in the plug made of silicone, see “Components of the machine”...
-
Page 7: Ommissioning
ommissioninG Bowl, tools and Bowl Screen should be cleaned before use – see section on Cleaning, page 11. The bowl arms should be at the correct height above the floor before the machine is taken into use – see Adjustments, page 5. ecommended Use of the machine The machine is designed for the manufacture of products that do not trigger any reactions or release substances that may be harmful to the user when in use. -
Page 8: Omponents Of The Machine
omponents of the machine Mixer head Lifting handle Control panel Control panel with attachment drive Socket on the back of the ma- chine; contains 10A fuse, see page 13. Bowl Screen Mixer tool Bowl Bowl truck Bowl arms; see page 5 for attachment between bowl arms and bowl Adjustable legs;... -
Page 9: User Friendliness
kodiak User friendliness KODIAK has been designed in partnership with kitchen and bakery staff, which has resulted in a number of user benefits: The machine itself Can be connected to the mains by the user Is made of stainless steel Has height-adjustable feet to ensure that the high bowl trolley works properly Is easy to clean, with large surfaces and a removable safety guard which can be machine-washed The power cord is connected to a waterproof silicone plug and can not be shaken from the machine... -
Page 10: Perating The Mixer
peratinG the mixer Timer (timer field) Increase time Decrease time Increase speed Decrease speed Speed indicator Start Emergency stop Stop Before starting the machine: Display of running time – Timer function: Place the bowl in the bowl trolley. Select a running time for the mixer by pressing next to The running time is shown in minutes and seconds in the timer Put the desired tool into the bowl and wheel it into position bet-... -
Page 11: P Rocedure In Case Of Overloading
verloadinG orrect Use of tools Recommended uses of tool: The mixer must not be overloaded. Whip Beater Hook Possible overload situations: Cream Cake mix Bread dough • Working with excessively tough and heavy dough Egg whites Buttercream Rye bread Waffle mix •... - Page 12 ystematic maintenance Part Action Frequency Note Bowl screen Check the safety of the bowl screen: Regularly If the tool does not immediately Does the tool stop rotating when the stop rotating on tilting/removal of screen is tilted/removed? the screen, the machine must not be used.
-
Page 13: E Rror Codes And Possible Solutions
rror codes and possible solUtions For some errors, the control system will show an error code in the display: User pressed without raising the bowl to working height. Solution: Raise bowl to working height. without fitting the safety guard. User pressed Solution: Fit the bowl screen. -
Page 14: Ircuit Diagram
ircUit diaGram... - Page 16 ixer pare arts TRANSMISSION ..............................16 BOWL SCREEN ..............................17 BOWL ARMS ................................17 LIFTING SYSTEM ..............................18 PLANETARY HEAD ..............................20 ATTACHMENT HUB ...............................22 MACHINE COLUMN ...............................24 ELECTRIC-BOX..............................26 FRONT PANEL ...............................28 FRONT PANEL, attachment drive ........................30 CABLES ..................................31 ACCESSORIES ..............................32 TRANSMISSION ITEM QTY Part number Name UK CR30-90 Micro-V PJ1016-12 CR30-61.3...
-
Page 17: Bowl Screen
BOWL SCREEN Part number Name 56CR30P-22 56CR30P-22 Removeable plastic bowl screen BOWL ARMS Part number Name CR30-23M Bowl arm mounted CR30-23M with pins... -
Page 18: Lifting System
LIFTING SYSTEM ITEM QTY Part number Name Sold as CR30-65.1 Lifting nut CR30-83.1M STA5806 Hexagon nut M10 CR30-83.1M STA2515 Bearing MB2030DU STA6205 Spring cotters for bolt ø2,5 CR30-83.1 Lifting bolt CR30-83.1M CR30-68.5 Shaft STA3410 Circlip A25 CR30-63M Crankshaft CR30-68.6 Absorber crossbar CR30-604 Shock absorber with Cap CR30-310... - Page 19 A ( 0,30 : 1 ) CR30-83.1M...
-
Page 20: Planetary Head
PLANETARY HEAD ITEM QTY Part number Name STA6460 Dowel pin ø8x24-KS4 STA3515 Retainning ring J55 HK2016 Needel bearing 6006 2RS Ballring 6006 6206 2RS Ballring 6206 STA3518 Retainningring J62 R20-235 Axial washer LR17 Bushing STA3470 Circlip SW17 R20-32 Toothed wheel 1 R20-31 Toothed wheel STA2008... - Page 21 CR30-2M CR30-2.10Z CR30-2.11Z CR30-2.1M RN20-3.7Z CR30-2Z CR30-36Z 42CR20-105Z RN20-101Z CR30-30.5Z CR30-30.6Z CR30-33Z...
-
Page 22: Attachment Hub
ATTACHMENT HUB ITEM QTY Part number Name Sold as 1 RN20-8.2 Bearing house machined RN20-10.5Z 1 STA6316 Dowel pin ø8x20 DIN6325 1 CR30-50.1R Attachment hub shaft CR30 CR30-50.1Z 1 RN20-37 Distance bushing 1 R100-143 Spacer 1 RN20-9 Worm wheel 2 6005 2RS Ball ring 6005 2RS 1 STA2031 Feather Key 8x7x30... - Page 23 CR30-50.1Z RN20-10.5Z...
-
Page 24: Machine Column
MACHINE COLUMN ITEM Part number Name CR30-22R Machine frame welded CR30-2.1M Planetary head scraber STA5712 Socket head screw M4x16 CR30-304 NSF Coverplate 56SN20-31 Micro switch CE U83160.7 56CR30-109 Micro switch ring CR30-291 Ventilation cover STA3103 Shield Clamp CR30-218 Adjustable leg CR30-21R Top cover STA5750... -
Page 26: Electric-Box
ELECTRIC-BOX ITEM Part number Name CR30-601 Inverter CR30-552.1 Converter box U.S. WR30-22.17A Backplate US CR30-194.26M Frequency converter Cable CR30-602 Shield bracket STA5803 Wingnut M6 CR30-194.7M Grounding cable with connectors M6 R20E-416.01 Fuse holder ø10x38 R20E-418.01 Fuse ø10x38 500V - 1Amp STA6161 Cable holder self adhensive 3M nr.790 CR30-194.2M... - Page 27 WR30-552.1M...
-
Page 28: Front Panel
FRONT PANEL ITEM QTY Part number Name CR30-650.20 Front panel CR30-553 Controller print box CR30-501 Control print CR10-174.11 Emergency stop STA5762 pan head screw M3x8 STA5763 pan head screw M3x12 CR30-149 Front foil CR30-501M Front panel complete CR30-561M... - Page 29 FRONT PANEL, attachment hub ITEM QTY Part number Name CR30-501 Control print CR10-174.11 Emergency stop CR30-650.20 Front panel CR30-553 Controller print box CR30-211 Attachment drive collar STA5762 pan head screw M3x8 STA5763 pan head screw M3x12 CR30-149.1 Frontfoil attach. hub CR30-501.1M Front panel complete erial ng text...
-
Page 30: Cables
CABLES QTY Part number Name Placement CR30-194.01M Ground Cable Front panel CR30-194.02M Ground Cable 60mm Front panel CR30-194.7M Grounding cable with connectors M6 Converter CR30-194M City Cable Converter CR30-194.2M Cable for box Converter Converter CR30-194.26M Frequency Converter Cable Converter CR30-542 Main Cable Front panel CR30-194.01M... -
Page 31: Accessories
ACCESSORIES ITEM Part number Name CR30-75M Bowl 30L CR30-75.2M Bowl 30L old version CR30-75AM Bowl 30/15L CR30-75.2AM Bowl 30/15L old version CR30-78M 30L hook, stainless steel OBS ITEM 1, 1A and 2, 2A CR30-78AM 30/15L hook, stainless steel The bowl has been modified around machine CR30-27.3M 30L flat beater, stainless steel number 30006732. - Page 32 14240 South Lakes Drive Charlotte, NC 28273 (800) 222-1138 www.varimixerusa.com...
