- Page 1 Operator’s Manual Model 642B • Laboratory Centrifuge P/N 03-0-0002-0078 Rev. B...
-
Page 2: Model Description

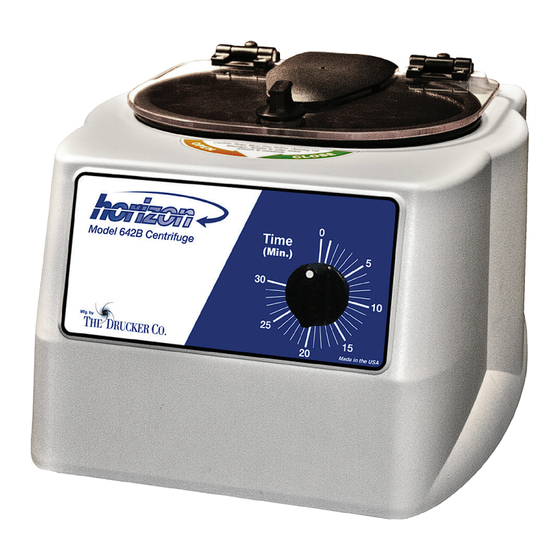

Model Description: The Horizon Model 642B is a continuous-duty, horizontal centrifuge. The unique rotor design allows for horizontal operation without the need for any extra parts beyond tube carriers.The unit is controlled by a mechanical timer settable from 1 to 30 minutes. -
Page 3: Replacement Parts
1525 p/n 9150 p/n 7786061 Specifications: Shield caps 100mm tube 75mm tube General Specifications for the Horizon, Model 642B Centrifuge p/n 7713011 holders holders Nominal Speed (Horizontal): 3,380 (± 100) RPM p/n 7713031 p/n 7713033 Nominal RCF (Horizontal): 1,590 (±... -
Page 4: Setup Location
Choose a setup location which will allow for a clearance envelope of at least 24” x 24”, (with the centrifuge at the center). The Horizon Model 642B complies with all requirements of the following standards. UL standard 61010-1... -
Page 5: Care And Preventative Maintenance
Operation: Care and Preventative Maintenance: NOTE: Follow the initial setup procedure on page 4 before initial operation. With proper care and maintenance your Horizon centrifuge will provide years of Plug the centrifuge into an approved 115 Volt A.C., 60 Hz. outlet. laboratory service. -
Page 6: Tube Holder Configurations
Tube Holder Configurations: Before using any cleaning or decontamination methods except those The Horizon is capable of spinning test tubes up to 17mm x 100mm with its recommended by the manufacturer, users should check with the manufacturer horizontal rotor. Use the following chart and drawing to determine which tube that the proposed method will not damage the equipment.
