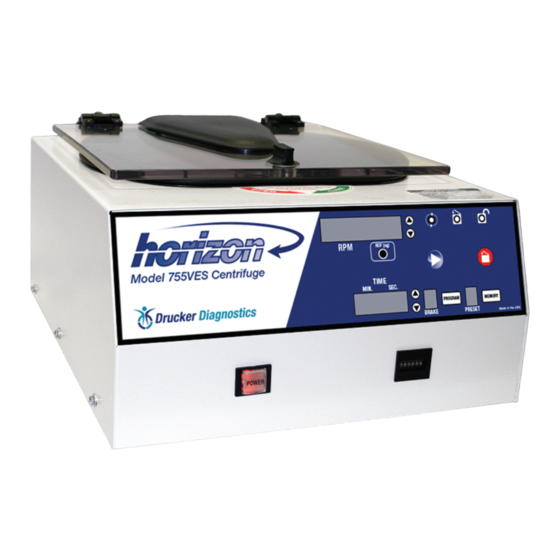

MODEL 755VES
Model 755VES Operator's Manual
Laboratory Centrifuge
P/N 7711010
Rev. D

Advertisement

Table of Contents
loading

Summary of Contents for Horizon Fitness 755VES

  • Page 1 MODEL 755VES Model 755VES Operator’s Manual Laboratory Centrifuge P/N 7711010 Rev. D...
  • Page 2: Table Of Contents

    Table of Contents Model Description ..............3 Supplied Equipment ............... 3 Warranty Information ............. 3 Specifications ................. 4 Control Panel / Parts of the Centrifuge ........ 5 Setup Location ................ 6 Initial Setup Procedure ............6-7 Operation ................7 Tube Holder Configurations Horizontal Rotor ..............
  • Page 3: Model Description

    Drucker’s Performance Series centrifuges. Its standard horizontal rotor and carriers can accommodate up to 24 test tubes. The 755VES offers control over almost every aspect of the unit’s operation from variable acceleration and deceleration to easy time and speed input. High speed and force capability produces platelet-poor/free plasma and greatly reduces processing times.
  • Page 4: Specifications

    Specifications General Specifications for the Horizon Model 755VES Centrifuge Overall Dimensions (H x W x D): ....10.5˝ x 14.5˝ x 17˝ Centrifuge Motor: ........1/2 H.P. Brushless DC Protection Breaker: ........4 Amp. re–settable Timer: ............Electronic, with hold or 0 to 99 minutes, +/- 1% Weight: ............
  • Page 5: Control Panel / Parts Of The Centrifuge

    Control Panel / Parts of the Centrifuge Lid Knob Lid Safety Interlock System Control Panel (see below) Cycle Counter Power Button Cabinet Running Up/Down RPM Latched Unlocked Indicator Change Buttons Indicator Indicator Light Light Light RPM Display Start Button Open / Stop RCF Conversion Button Button...
  • Page 6: Setup Location

    Setup Location 1. Unpack the centrifuge and verify that all of the supplied equipment is present. 2. Choose a setup location which meets the following criteria: a) A bench top clearance height of 20” is required in order to open the lid. b) The clearance envelope is the space around the centrifuge which is required for safety.
  • Page 7: Operation

    Initial Setup Procedure (continued) 10. The ‘RUNNING’ indicator light will illuminate. 11. The test tube carriers will slide up into the horizontal position (horizontal rotor only) and the unit will accelerate to the current set speed. 12. Listen to the sound of the centrifuge. A smooth whirring sound should be heard. If there are any loud or unusual sounds, stop the centrifuge by pressing the ’OPEN / STOP’...
  • Page 8: Tube Holder Configurations

    Tube Holder Configurations The next two pages will describe proper balancing and tube loading. Use the appropriate section for the rotor installed in your centrifuge. Improper loading can result in damage to the centrifuge or test tube samples. Six (6) Carrier Horizontal Rotor (standard) This rotor is designed to hold up to 6 tube carriers.
  • Page 9: 6-Place 50 Ml Fixed-Angle Rotor

    Six (6) Place 50 mL Fixed-angle Rotor (optional) This rotor is designed to hold up to six (6) 50 mL tube holders. Your centrifuge must contain a balanced load in order to work properly. To ensure that the load is balanced, keep these rules in mind when inserting test tube samples into the 6 place, 50 mL fixed-angle rotor: 1.
  • Page 10: Control Panel Functions Time Adjustment And Timer Operation

    Control Panel Functions Time Adjustment and Timer Operation: The run time may be set from 30 seconds to 99 minutes and 30 seconds. Press the up and down arrow buttons next to the time display to adjust the run time. Adjustments may be made prior to a run or after a run begins.
  • Page 11: Braking Rate

    Advanced User Settings (continued) Braking Rate: The user may adjust the braking rate from minimum (slowest deceleration, 0) to maximum (quickest deceleration, 9) using the following procedure: 1. While the centrifuge is idle, press the PROGRAM button. 2. Use the UP/DOWN arrow buttons next to the speed display until “BRAKE” is displayed in the speed display.
  • Page 12: Memory Locations / Storing And Recalling

    Memory Locations / Storing and Recalling The Performance Series centrifuges are capable of storing up to 10 user-defined presets. These memory presets contain all of the settings needed to define a specific run, (run time, speed, acceleration rate, braking rate, etc.). The user can use these memory locations to quickly configure the centrifuge for a specific test type and ensure that the test is run in the same way each time by recalling this same setting.
  • Page 13: Care And Preventative Maintenance

    Care and Preventative Maintenance With proper care and maintenance your Horizon centrifuge will provide years of laboratory service. For proper care, the following steps should be taken: 1. Provide Adequate Ventilation: For cooling purposes, the Horizon draws in ambient air through the air intake cover on the top of the lid and exhausts this air in the rear of the base.
  • Page 14: Troubleshooting

    Troubleshooting: 1. Problem: The rotor does not spin freely. Solutions: • Make sure that nothing has fallen into the rotor chamber. • If there is nothing obstructing the rotor, the motor may be damaged. Contact your authorized dealer or Drucker Diagnostics for further assistance. 2.
  • Page 15: Safety

    The Horizon model 755 complies with all requirements of UL’s Electrical Equipment for Measurement, Control, and Laboratory Use; Part 1: General Requirements, UL 61010-1, Issued: 7/12/2004, Ed: 2nd, Rev: 10/28/08; Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use Part 1: General Requirements, CSA/C22.2 #61010-1, Issued: 7/12/2004, Ed: 2nd Safety: Horizon Lid Safety Switch:...
  • Page 16: Replacement Parts

    Replacement Parts: Part No. Description 6-Carrier Horizontal Rotor 7728052 ....Foot, rubber p/n 7786015 7751068 ....Lid Tray Micro-Switch 7723002 ....Lid Tray Solenoid 7735016 ....Motor, 1/2 H.P. Brushless DC 7717041 ....PC Control Board 3056001 ....Step Down Transformer 7751043 ....
