Section 2 General Information and Setup

16
6
11
5
Generator Components
1 120 Volt AC, 20 Amp, GFCI Duplex
Receptacle (NEMA 5-20R)
2 120/240 Volt AC, 30 Amp Locking
Receptacle (NEMA L14-30R)
3 Circuit Breakers (AC)
4 Oil Drain
5 Air Filter
6 Choke Knob
7 Fuel Tank
8 Grounding Lug
9 Stop/Run/Start Switch (if equipped)
10 Muffler
11 Handle
12 Gas Cap
13 Fuel Gauge
14 Oil Check/Fill
15 Recoil Starter
16 Fuel Shut Off
17 Hour Meter
18 Battery Charger Input (if equipped)
19 Battery Location (if equipped)
20 Spark Arrestor
Owner's Manual for Portable Generator
7
15
14
4

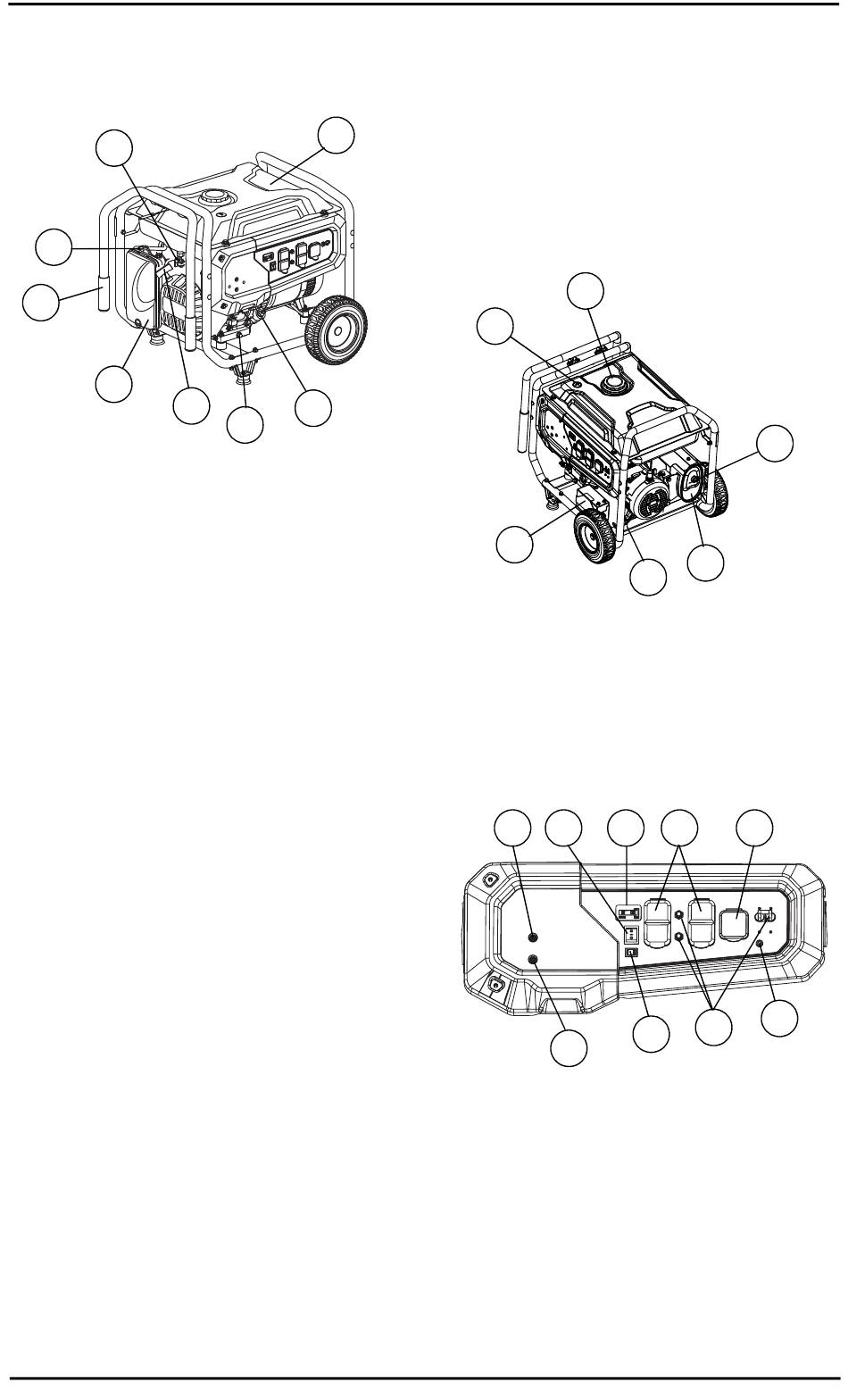

Figure 2-1. Features and Controls
13
006616
19
21 CO-SENSE RED (Hazard) (if equipped)
22 CO-SENSE YELLOW (Fault) (if equipped)
23 Idle Control (if equipped)
21
Figure 2-2. Control Panel (Electric Start and
12
10
8
9 17 1
23
22
Idle Control) (if equipped)
20
006617
2
18
3
006619
5
