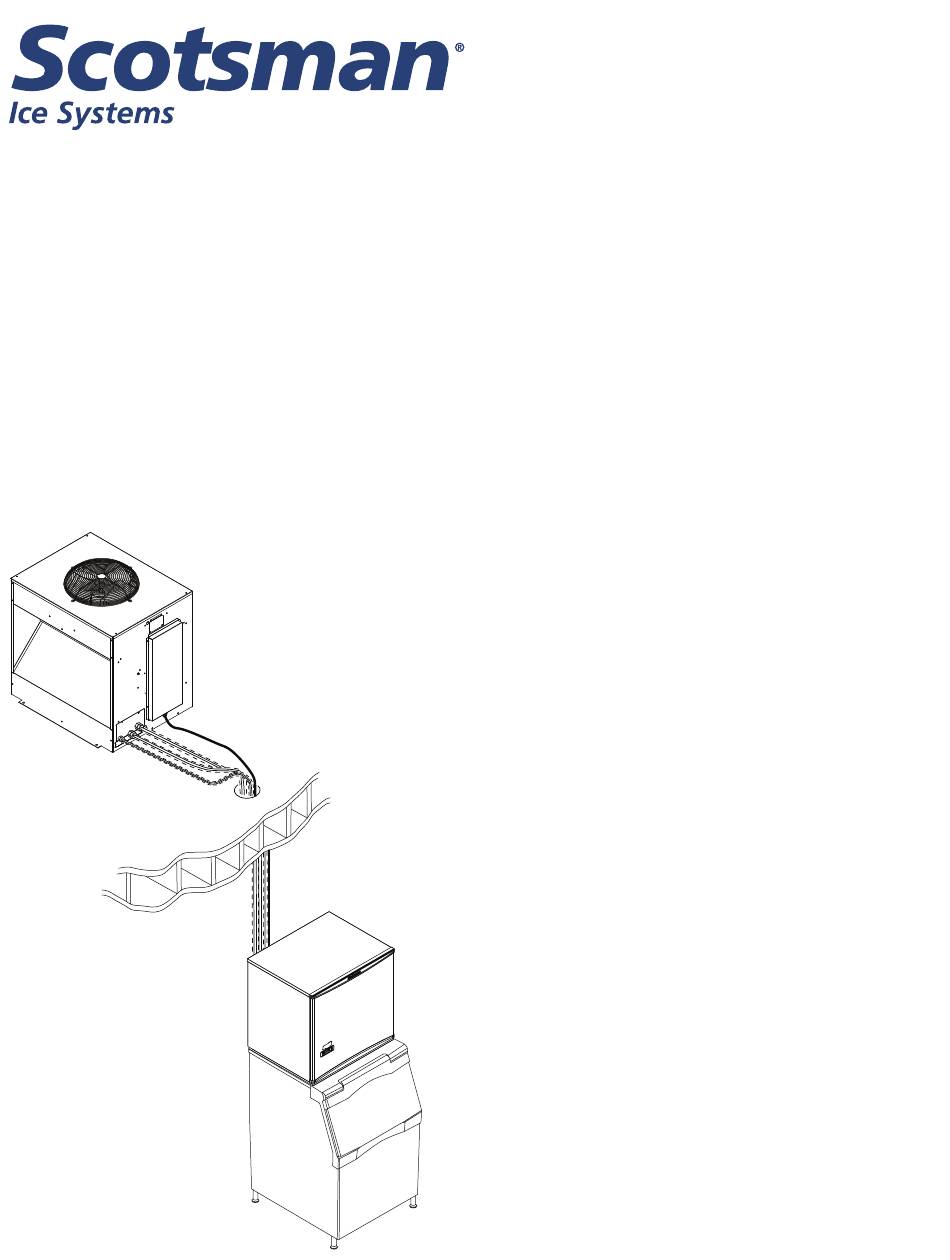

- Page 1 Installation and User Manual for Eclipse Cuber Prodigy Plus E Series models EH330 E and EH430 E, with ECC Condensing Unit ECC1200, ECC1410, ECC1800...
-
Page 2: Table Of Contents
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Introduction: This manual covers the assembly, installation, start up, operation and maintenance of the 1200, 1400 and 1800 remote low side cuber systems. Contents Configuration ..............Page Technical Specifications . -
Page 3: Configuration
Warning: approved by Scotsman. Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and design are subject to change without notice. System Information... -
Page 4: Technical Specifications
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Technical Specifications Model Electrical Minimum Maximum System Cabinet Size* Approx. Unit (volts/Hz/phase) Circuit Fuse Size Charge oz of w” x d” x h” Weight (lb) Ampacity R-404A EH330SL-1E 115/60/1 30 x 24 x 23... -
Page 5: Cabinet Drawings, Eh330 Ice Making Head
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Cabinet Drawings, EH330 Ice Making Head August 2017 Page 4... -
Page 6: Cabinet Drawings, Eh430 Ice Making Head
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Cabinet Drawings, EH430 Ice Making Head August 2017 Page 5... -
Page 7: Cabinet Drawings, Ecc Condensing Unit
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Cabinet Drawings, ECC Condensing Unit TOP VIEW 992.81 39.09 814.22 32.06 SIDE VIEW LINE SET AND ELECTRICAL ATTACHMENT SIDE 750.06 29.53 32.05 330.86 1.26 13.03 TYP. FRONT VIEW 887.73 34.95 .88"... -
Page 8: Pre-Installation Details
Dispenser Adapter Kits: impact its performance, consideration should be given • Scotsman ID200 or ID250: KBT44 to improving the water’s quality. Bin Adapter Kits: There are two ways water can contain impurities: in suspension or in solution. -
Page 9: Create The System
Interconnecting wires: A low voltage interconnecting wire harness is included with the condensing unit. In 2013 Scotsman made a change to the Eclipse One end plugs into the ice making head and the other tubing kits: into the condensing unit. -
Page 10: System Example
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual System Example August 2017 Page 9... -
Page 11: Place Remote System
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Place Remote System Roof preparation Roof Pipe Curb or Pitch Pocket: Most installations of this system will place the To avoid potential kinking of the refrigeration tubing, avoid small, tight radius types of covers on pitch condensing unit on the roof of a building. -
Page 12: Place Ice Making Head
See sales information for the correct kit. Place adapter kit onto bin or dispenser top. If adapter does NOT have gasket tape install tape such as Scotsman part number 19-0503-04. Connect Communication Cable Here... -
Page 13: Condensing Unit Electrical
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Condensing Unit Electrical Route interconnecting control wire through proper hole in side of CU unit and plug into the connection on the side of the control box. Route power conduit (liquid tight) and wires to the hole in the side of the CU unit. -
Page 14: Water And Drain
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Water and Drain All models require connection to cold, potable water. 2. Connect drain tubing to drain fitting. A hand actuated valve within sight of the machine 3. -
Page 15: Connect Refrigeration
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Connect Refrigeration Requires brazing, steps must be performed by an At Head EPA certified type II or higher technician. 1. With nitrogen flowing from condensing unit, braze At Head: the liquid, vapor and suction line connections. -
Page 16: Complete The Installation
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Complete the Installation After the utilities and refrigeration connections have Open door to access On been made, secure the unit to the dispenser or bin and Off switch buttons. top. -
Page 17: Reference For Start Up: Controller Operation
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Reference for Start Up: Controller Operation The controller has four indicator lights, a code display, Component indicator lights four push buttons, and eleven component indicator lights. • Fan - not used on this model •... -
Page 18: Initial Start Up
11. Fill out and mail the warranty registration form or water pump will start. The F will be on steady. register it on line at www.scotsman-ice.com. Note: Because the condensing unit is external to the ice making section, no visible signs of operation will be noticeable until the water begins to cool and frost forms on the evaporator tubing. -
Page 19: Ice Thickness And Water Purge Adjustment
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Ice Thickness and Water Purge Adjustment Bridge Thickness - For the Service Tech Only Small Depression 1. Push and hold Off till the machine stops. 2. Remove evaporator cover. 3. -
Page 20: Cleaning, Sanitation And Maintenance
6. Pour 20 ounces (EH330) or 24 ounces (EH430) of Scotsman Clear 1 ice machine scale remover 11. Wash the sensor and the adjustment screw with into the reservoir. The unit will circulate the scale ice machine scale remover solution, rinse with remover, then drain and flush it. - Page 21 EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual The remote air cooled condenser coil must be Step 13. cleaned occasionally to keep the system operating at Release high efficiency. Airflow is from the outside in. probes by pushing in on Remove any large debris from the outside of the coil.
-
Page 22: Operational Characteristics 1200 Lb System
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Operational Characteristics 1200 lb system Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F. 70/70/50 90/90/70 120/110/100 Freeze 9 to 11 minutes 12 to 14 minutes 17 to 19 minutes Harvest 1 to 1.5 minutes... -
Page 23: Operational Characteristics 1800 Lb System
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual Operational Characteristics 1800 lb system Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F. 70/70/50 90/90/70 120/110/100 Freeze 10 to 14 minutes 12 to 16 minutes 17 to 19 minutes Harvest 1 to 1.5 minutes... -
Page 24: What To Do Before Calling For Service
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual What to do before calling for service: Reasons the machine might shut itself off: • Lack of water. • Freeze cycle takes too long. • Harvest cycle takes too long. •... -
Page 25: Eh330 Or Eh430 Schematic Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual EH330 or EH430 Schematic Diagram June 2018 Page 24... -
Page 26: Eh330 Or Eh430 Wiring Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual EH330 or EH430 Wiring Diagram June 2018 Page 25... -
Page 27: Ecc 3 Phase Schematic Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual ECC 3 Phase Schematic Diagram June 2018 Page 26... -
Page 28: Ecc 3 Phase Wiring Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual ECC 3 Phase Wiring Diagram June 2018 Page 27... -
Page 29: Ecc 1 Phase Schematic Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual ECC 1 Phase Schematic Diagram June 2018 Page 28... -
Page 30: Ecc 1 Phase Wiring Diagram
EH330, EH430 E and ECC Condensing Unit Remote Low Side Cuber User Manual ECC 1 Phase Wiring Diagram June 2018 Page 29... - Page 31 SCOTSMAN ICE SYSTEMS 101 Corporate Woods Parkway Vernon Hills, IL 60061 www.scotsman-ice.com 1-800-726-8762 17-3603-01 Rev.A...
