Magellan™ 9800i
USB Bridge
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Magellan 9800i

Summary of Contents for Datalogic Magellan 9800i

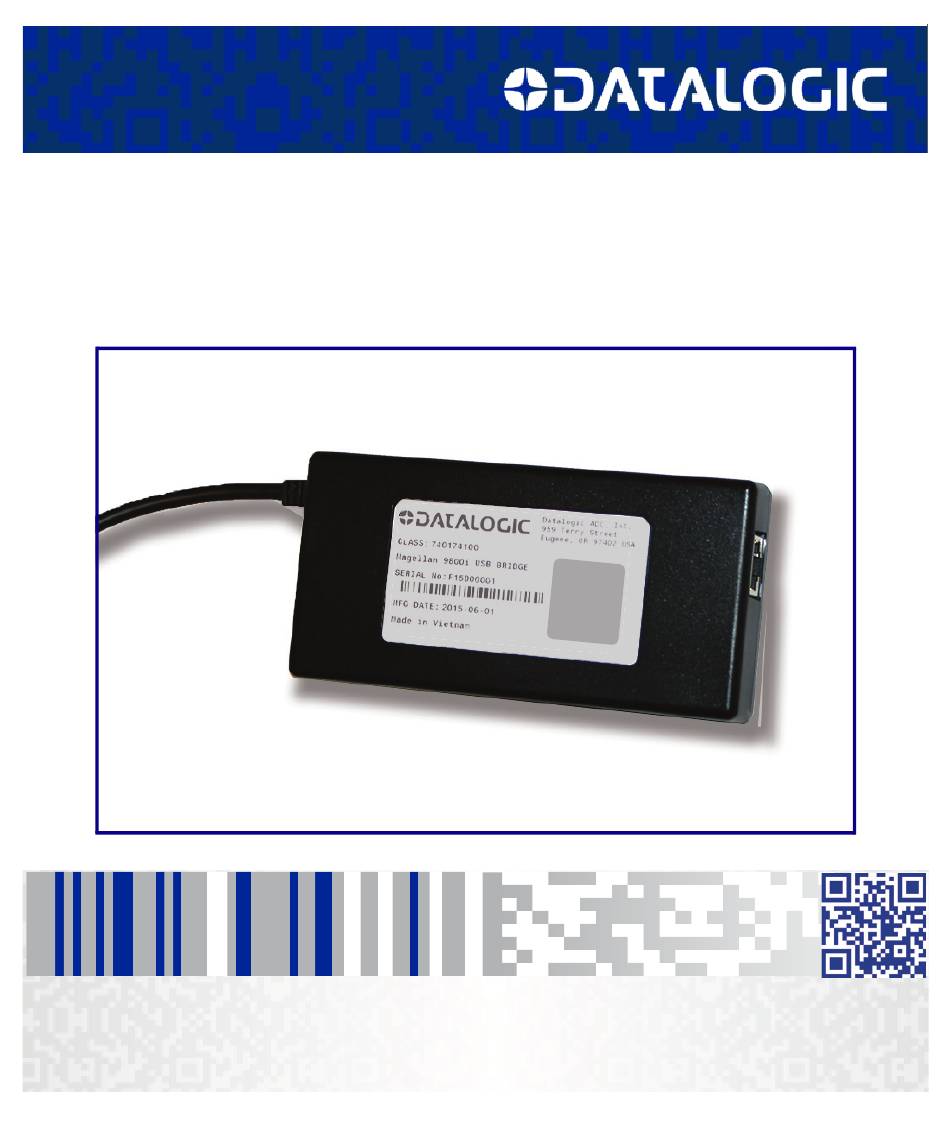

  • Page 1 Magellan™ 9800i USB Bridge Quick Reference Guide...
  • Page 2 Datalogic representative. Electronic versions may either be downloadable from the Data- logic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.

  • Page 3: Table Of Contents

    Table of Contents Magellan™ 9800i USB Bridge ..................1 Overview ........................1 Installation ........................2 Compatible Operating Systems and Software ............2 Linux ........................2 - VLC (for Linux)..................2 - Gstreamer ....................3 - Cheese ..................... 3 Microsoft Windows® OS ..................4 - VLC (for Windows).................. 4 - WebcamViewer ..................
  • Page 4 NOTES...

  • Page 5: Magellan™ 9800I Usb Bridge

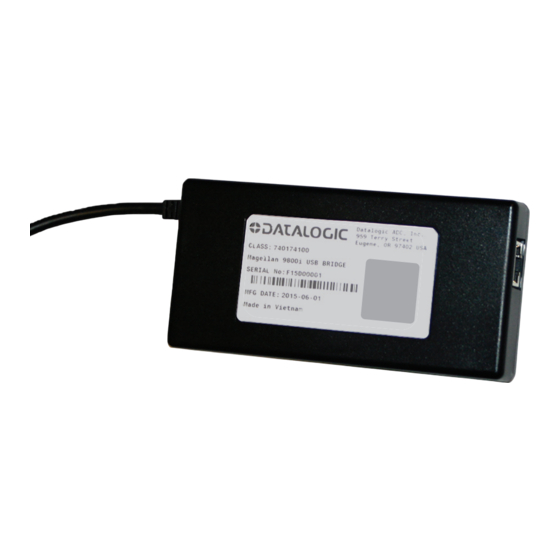

    The Magellan™ 9800i USB Bridge is an accessory that facilitates the streaming of data from Magellan scanners to a host computer. The USB Bridge connects a Magellan 9800i USB host port to a PC' s USB port, allowing it to function as a USB camera device.

  • Page 6: Installation

    Installation Plug the cable from the Scanner USB host port to the USB Bridge. Connect to Host/Terminal Scanner Side USB Host Port Compatible Operating Systems and Software To view data from the Scanner, you must have video viewing software installed on your host system.

  • Page 7: Gstreamer

    2. Select the "Capture Device" Tab, 3. Ensure the Capture mode is set to: "Video for Linux 2", 4. Under Device Selection set the Video device name to your video device: (/dev/video0 if Video Bridge is the only USB camera device connected), 5.

  • Page 8: Microsoft Windows® Os

    Microsoft Windows® OS If using Windows (Windows Vista/XP, Windows or Windows 8), Microsoft pro- vides the USB Video Class (UVC) driver. It is an AVStream minidriver that pro- vides driver support for USB Video Class devices. The device works automatically with the system-supplied driver. Windows uses the (USB) Video Class driver, Usbvideo.sys.
  • Page 9 2. The Open Media dialog will open. Select "Capture Device", Quick Reference Guide...
  • Page 10 3. Ensure the Capture mode is set to: "DirectShow", 4. Under Device Selection set the Video device name to "UVC Camera", 5. Click "Play". Magellan™ 9800i USB Bridge...
  • Page 11 Figure 1. Microsoft' s Device Manager showing USB Bridge Quick Reference Guide...

  • Page 12: Webcamviewer

    Figure 2. Devices and Printers (in Windows 7 Control Panel) with USB Bridge attached - WebcamViewer V1.0, Select "UVC Camera", Click the "Connect" Button Other Windows Resources Machine Learning and Computer Vision Libraries: OpenCV.org EmguCV AForge.Net Magellan™ 9800i USB Bridge...

  • Page 13: Troubleshooting

    3. Verify that the cable is securely attached to the scanner. If the USB Bridge still does not function properly, contact your local supplier or Datalogic Customer Support Services. Quick Reference Guide...

  • Page 14: Warranty

    Customer will allow Datalogic to scrap all parts removed from the repaired product. The warranty period shall extend from the date of shipment from Datalogic for the duration published by Datalogic for the product at the time of purchase (Warranty period). Datalogic warrants repaired hardware devices...
  • Page 15 Datalogic does not guarantee, and it is not responsible for, the mainte- nance of, damage to, or loss of configurations, data, and applications on the repaired units and at its sole discretion can return the units in the “factory default”...
  • Page 16 Warranty Exclusions The Datalogic Factory Warranty shall not apply to: any product which has been damaged, modified, altered, repaired or upgraded by other than Datalogic service personnel or its authorized representatives; (ii) any claimed defect, failure or damage which Datalogic determines was...
  • Page 17 DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s pos- session. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
  • Page 18 NOTES Magellan™ 9800i USB Bridge...

  • Page 19: Appendix

    Device Descriptor: bLength bDescriptorType bcdUSB 2.00 bDeviceClass Miscellaneous Device bDeviceSubClass bDeviceProtocol Interface Association bMaxPacketSize0 idVendor 0x05f9 PSC Scanning, Inc. idProduct 0x0511 bcdDevice 3.14 iManufacturer Datalogic ADC, Inc. iProduct Scanner Video Bridge iSerial bNumConfigurations Configuration Descriptor: bLength bDescriptorType wTotalLength Quick Reference Guide...
  • Page 20 bNumInterfaces bConfigurationValue iConfiguration Video bmAttributes 0x80 (Bus Powered) MaxPower 250mA Interface Association: bLength bDescriptorType bFirstInterface bInterfaceCount bFunctionClass Video bFunctionSubClass Video Interface Collection bFunctionProtocol iFunction UVC Camera Interface Descriptor: bLength bDescriptorType bInterfaceNumber bAlternateSetting bNumEndpoints bInterfaceClass Video bInterfaceSubClass Video Control bInterfaceProtocol iInterface UVC Camera VideoControl Interface Descriptor: bLength...
  • Page 21 bLength bDescriptorType bDescriptorSubtype (INPUT_TERMINAL) bTerminalID wTerminalType 0x0201 Camera Sensor bAssocTerminal iTerminal wObjectiveFocalLengthMin wObjectiveFocalLengthMax wOcularFocalLength bControlSize bmControls 0x00000002 Auto-Exposure Mode VideoControl Interface Descriptor: bLength bDescriptorType bDescriptorSubtype (PROCESSING_UNIT) Warning: Descriptor too short bUnitID bSourceID wMaxMultiplier 16384 bControlSize bmControls 0x00000001 Brightness iProcessing bmVideoStandards 0x 9 None SECAM - 625/50...
  • Page 22 iTerminal Endpoint Descriptor: bLength bDescriptorType bEndpointAddress 0x81 EP 1 IN bmAttributes Transfer Type Interrupt Synch Type None Usage Type Data wMaxPacketSize 0x0010 1x 16 bytes bInterval Interface Descriptor: bLength bDescriptorType bInterfaceNumber bAlternateSetting bNumEndpoints bInterfaceClass Video bInterfaceSubClass Video Streaming bInterfaceProtocol iInterface Video Streaming VideoStreaming Interface Descriptor: bLength...
  • Page 23 bmaControls( 0) bmaControls( 1) VideoStreaming Interface Descriptor: bLength bDescriptorType bDescriptorSubtype (FORMAT_UNCOMPRESSED) bFormatIndex bNumFrameDescriptors guidFormat {59555932-0000-1000-8000-00aa00389b71} bBitsPerPixel bDefaultFrameIndex bAspectRatioX bAspectRatioY bmInterlaceFlags 0x00 Interlaced stream or variable: No Fields per frame: 2 fields Field 1 first: No Field pattern: Field 1 only bCopyProtect VideoStreaming Interface Descriptor: bLength...
  • Page 24 dwFrameInterval( 2) 5000000 VideoStreaming Interface Descriptor: bLength bDescriptorType bDescriptorSubtype (COLORFORMAT) bColorPrimaries (BT.709,sRGB) bTransferCharacteristics (BT.709) bMatrixCoefficients (SMPTE 170M (BT.601)) Interface Descriptor: bLength   bDescriptorType bInterfaceNumber bAlternateSetting bNumEndpoints bInterfaceClass Video bInterfaceSubClass Video Streaming bInterfaceProtocol iInterface Video Streaming Endpoint Descriptor: bLength bDescriptorType bEndpointAddress 0x8d EP 13 IN bmAttributes...
  • Page 25 Device Descriptor: bcdUSB: 0x0200 bDeviceClass: 0xEF bDeviceSubClass: 0x02 bDeviceProtocol: 0x01 bMaxPacketSize0: 0x40 (64) idVendor: 0x05F9 (PSC Scanning, Inc.) idProduct: 0x0511 bcdDevice: 0x0314 iManufacturer: 0x01 0x0409: "Datalogic ADC" iProduct: 0x02 0x0409: "Scanner Video gadget" iSerialNumber: 0x00 bNumConfigurations: 0x01 Quick Reference Guide...
  • Page 26 Microsoft's Device Manager with Video Bridge attached: Microsoft's Devices and Printers (in Control Panel), with the Video Bridge attached (Windows 7): Magellan™ 9800i USB Bridge...
