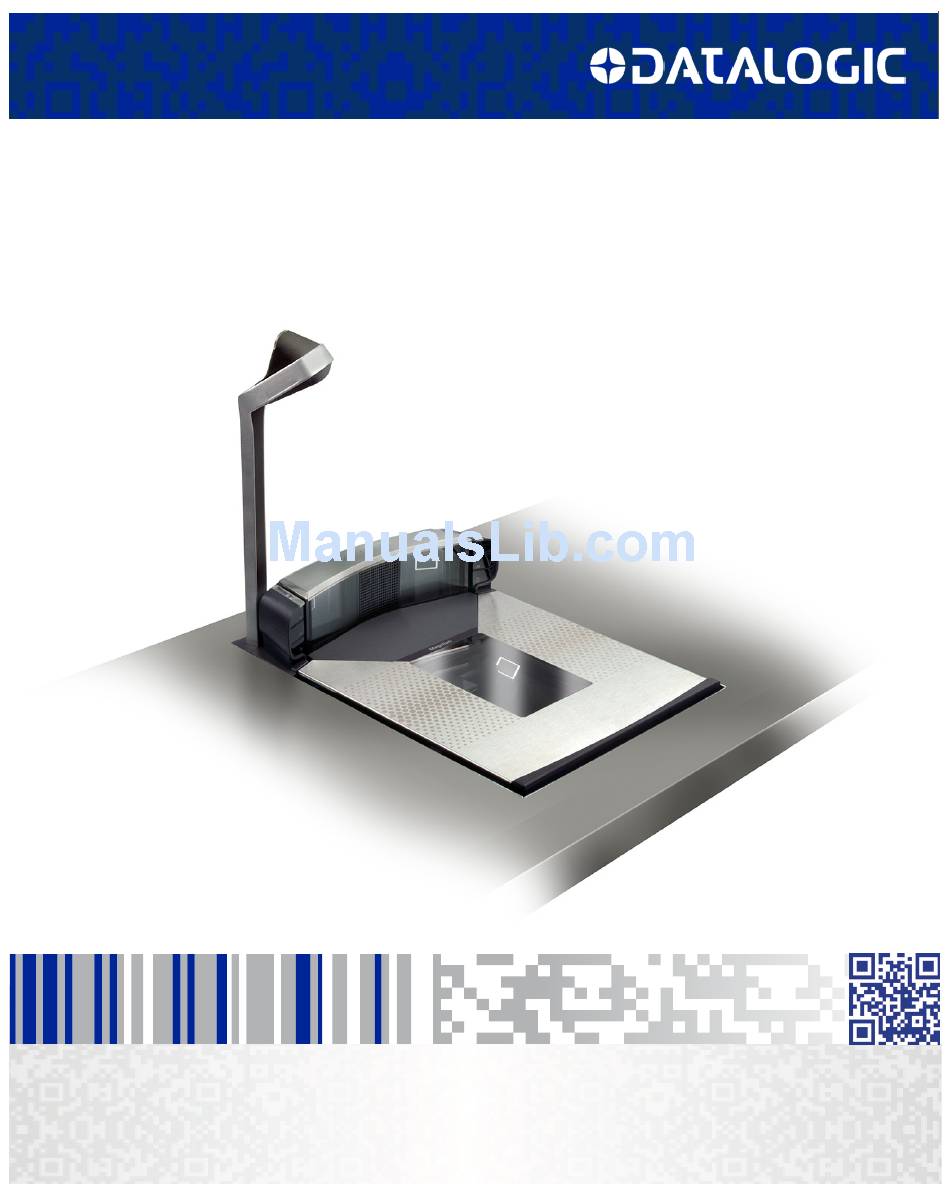

  • Page 1 Magellan 9800i Scanner and Scanner-Scale with Imaging Technology Quick Reference Guide...
  • Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser' s own internal busi- ness purposes.

  • Page 3: Operation

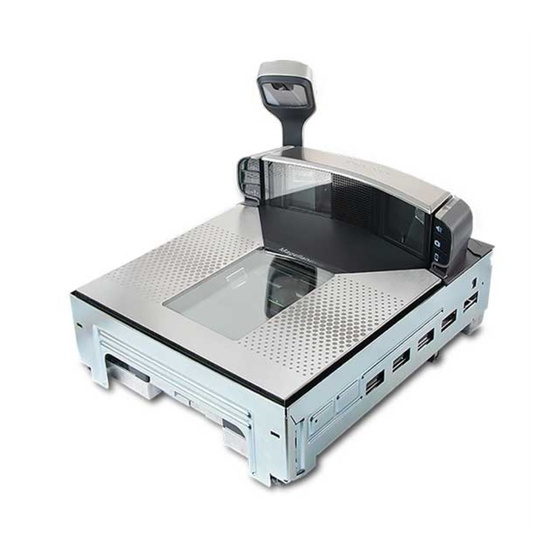

    Introduction The Magellan 9800i is a multi-plane imaging bar code scanner with an optional integrated scale, designed to serve in supermarket peripheral lanes. This manual describes its basic operation. For more detailed information about setup, instal- lation and programming, see the Product Reference Guide for this product. These manuals are provided in Portable Document Format (PDF) for viewing and print- ing from the website listed on the back cover of this manual.

  • Page 4: Certification Label

    Certification Label At the time the local scale regulatory authority certifies the scanner/scale for use, a certification label is affixed to the unit. Depending upon the size and shape of Figure the label, placement can be made in one of the locations shown in Figure 1.

  • Page 5: Scanning Items

    Scanning Items Slide or push items through the SurroundScan scan zone in a right-to-left or left-to-right movement. The scanner is equally efficient at scanning items in either direction. It is unnecessary to shift the position of the bar code, as the scanner can “read”...

  • Page 6: Scan Motion

    Scan Motion The SurroundScan™ scan pattern and advanced FirstStrike™ decoding software ensures the scanner will read most hard-to-read codes quickly and without a need to particularly reorient items. It is important to verify that the platter has been installed flush with the counter- top to enhance slide-through scanning (see Figure 1).
  • Page 7 Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris accu- mulation require periodic cleaning to assure best performance during scanning and weighing operations. Use a clean, lint-free cloth or paper towel dampened with a nonabrasive, mild, water-based window cleaner to wipe away stains, smudges, fingerprints, spills, etc.

  • Page 8: Weighing Items (Scale Models)

    Weighing Items (Scale Models) The unique platter design allows you to place items anywhere on its surface, including leaning atop its vertical section, to be weighed accurately. In addition, the Produce Rail allows items to rest above the counter and other non-weigh- Figure ing surfaces.

  • Page 9: Top Down Reader (Tdr) Option

    Top Down Reader (TDR) Option The scanner’s exclusive Top Down Reader (TDR) is an optional feature of the scanner, and is available in two different heights in order to provide flexibility for installations. The TDR can perform multiple functions: • The TDR contributes significantly to the overall bar code read zone by scanning items from a unique top-down angle.

  • Page 10: Controls And Indicators

    Electronic Article Survellance (EAS) Deactivation Options Deactivation of Sensormatic® or Checkpoint® EAS tags is an optional function. The scanner must be expressly enabled to perform in either capacity. Sensormatic Coupled Mode When the scanner is configured to use Coupled EAS Deactivation Mode, deactiva- tion of a given item happens automatically following its bar code being success- fully read.

  • Page 11: Control Buttons And Indicator Leds

    Figure 8. Control Buttons and Indicator LEDs Scale Zero Button ScaleSentry Indicator LED (Red) With all weight removed from the scale, This LED indicates the current ScaleSentry condition. See the push this button to set the scale to LED and Beeper Indications section for more information. zero.
  • Page 12 NOTES Magellan 9800i...

  • Page 13: Led And Beeper Indications

    LED and Beeper Indications The scanner’s beeper sounds and its lamps and indicator LEDs illuminate to indicate various functions or errors. The tables in this section list some of these indications. Reference the PRG for a more complete listing. One exception to the behaviors listed in the tables is that some functions are programmable, and may or may not be turned on.

  • Page 14: Error Codes

    Error Codes Label Programming Mode Indications Upon startup, if the scanner sounds a long error tone followed by alternating flashing of the green and yellow LED indicators, and an error code is These indications occur only when the scan- displayed on the Health & Status Indicator, this ner is in means the scanner has not passed its automatic Programming Mode or when placing the scan-...

  • Page 15: Datalogic Adc Limited Factory Warranty

    Customer will allow Datalogic to scrap all parts removed from the repaired prod- uct. The warranty period shall extend from the date of shipment from Datalogic for the duration published by Datalogic for the product at the time of purchase (Warranty period). Datalogic warrants repaired hardware devices against defects...
  • Page 16 Datalogic shall pay for the return of the product to Cus- tomer if the shipment is to a location within the country in which the Datalogic service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
  • Page 17 Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, INCLUD- ING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT.
  • Page 18 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s posses- sion. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
  • Page 20 © 2012-2015 Datalogic ADC, Inc. • All rights reserved. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402...
