Page 1 Magellan™ 9800i Product Reference Guide...
Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
Page 3: Table Of Contents
1D Symbologies ..................................12 2D Symbologies ..................................12 References ....................................... 13 Technical Support ................................... 13 Datalogic Website Support ..............................13 Reseller Technical Support ..............................13 Telephone Technical Support ..............................13 SITE PREPARATION AND INSTALLATION ...............................15 SECTION I. Pre-Installation Considerations ..........................15 Checkstand Design .................................
Page 4 Scanning Items ..................................50 Proper Weighing Technique (Scale Models) ......................... 51 Deactivating Security Labels ..............................52 Operational Controls ..................................53 Operational Modes ..................................53 Power-Up/Selftest & Pre-Operation ........................... 53 Operating Mode ..................................54 Additional Functions ..................................55 Programming ..................................55 Diagnostic Mode ..................................
Page 5 Bar Code Mask ..................................93 Integrating the Scanner With Your Host System ........................94 Customizing Your Scanner’s Operation ............................94 Programming Overview ................................. 95 Programming via Handheld Device ............................95 What Is Programming Mode? ..............................95 Entering and Exiting Programming Mode........................... 96 Programming Session ................................
Page 6 PIR / CT ......................................145 PIR/CT Auxiliary Port Baud Rate ............................146 EAS FEATURES ...................................... 149 EAS Features — Sensormatic ..............................149 EAS Mode ....................................149 EAS Notification ..................................151 EAS Security Level ................................152 EAS Good Beep Mode ................................153 EAS Beep Duration ................................
Page 7 Set Single Cable RS-232 STX Character ..........................207 Single Cable RS-232 Use ETX .............................. 208 Set Single Cable RS-232 ETX Character ..........................209 Single Cable RS-232 Datalogic Extensions ........................210 Single Cable RS-232 Pacesetter Plus ..........................211 USB Keyboard and Keyboard Wedge Features ......................... 212 USB Keyboard and Keyboard Wedge Intercharacter Delay .....................
Page 8 Expand EAN-8 to EAN-13 ..............................255 EAN-8 Minimum Read ................................. 256 EAN-8 Guard Insertion ................................. 257 EAN-8 Guard Substitution ..............................258 EAN-8 Stitch Exact Label Halves ............................259 EAN-8 Stitch Unlike Label Halves ............................260 Other UPC/EAN Options ................................261 In-Store Printed Label Minimum Read ..........................
Page 9 EAN-128 Enable .................................... 317 Interleaved 2 of 5 (I 2 OF 5) Enable ............................. 318 I 2 of 5 Check Character Calculation ........................... 319 I 2 of 5 Check Character Transmission ..........................320 I 2 of 5 Minimum Read ................................. 321 I 2 of 5 Correlation ................................
Page 10 Accepting Commands from an RS-232 Scanner Host ......................411 FACTORY DEFAULTS ....................................413 HANDHELD DATA FORMAT REQUIREMENTS............................431 Handheld Data Format Requirements General ........................ 431 Datalogic Handheld Data Format Requirements ......................432 AIM Formats ..................................437 viii Magellan™ 9800i Scanner...
Page 11: Introduction
Chapter 1 Introduction This manual provides details for installation, configuration, calibration and operation of the scanner or scanner-scale. For the purposes of this manual, any Magellan 98xx model may be termed as simply “scanner” (including scanner-scale mod- els). Because of differences due to multiple model types and NOTE options, the llustrations shown in this manual may vary from the model(s) in use at your location.
Page 12: How To Use This Manual
Appendix A, LED/Audio Indications & Controls, lists the various functions and indications of the scanner’s control panel features. Appendix B, Cable Information, outlines wire requirements, connector specifi- cations and pinout details for associated product cabling. Appendix C, Keypad, furnishes bar codes representing the digits and characters required to enter extended programming data needed during certain program- ming sessions.
Page 13: Scanner Overview

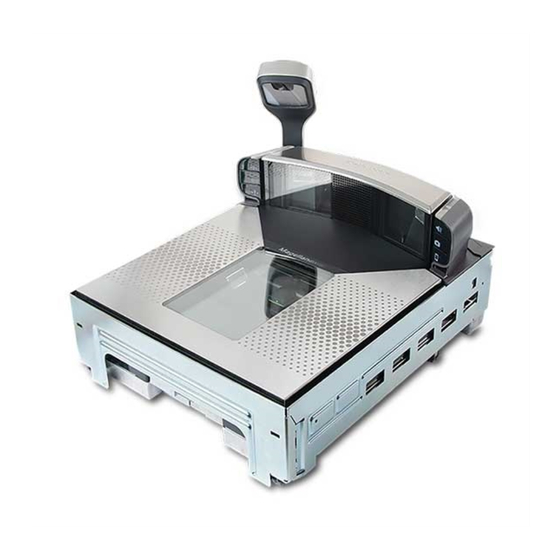

Scanner Overview Scanner Overview Features The parts and features of the scanner are shown in Figure 1. Control Panel but- tons and indicators are described in more detail in Appendix A Optional features include the Scale (for weighing items) Top Down Reader (TDR) and Electronic Article Survellance (EAS).
Page 14: Connectors And Ports
Connectors and Ports Connector port availability and appearance will differ between models, since these optional features may sometimes be added at the time of purchase. Ref- erence Figure 1 and the section entitled "Connect cables," starting on page • Checkpoint ®...
Page 15: Eas Tag Deactivation System
Physical Parameters EAS Tag Deactivation System Scanners can be ordered from the factory to include an optional EAS (Electronic Article Surveillance) deactivation system. Two different EAS system types are available: Checkpoint and Sensormatic ® The Sensormatic deactivation system requires connection as shown in a. Ref- erence Chapter 3, Deactivating Security Labels for more information.
Page 16: Scale Sentry™ Option
manually “zeroed” by pushing the Scale Zero Button located on the control panel. The limits for zeroing with the button push are nominally +/- 0.60 lbs (+/- 0.300 kg). The limits for zeroing on powerup are nominally +6lbs - 0.60 lbs (+ 3kg - 0.300kg).
Page 17: Warm-Up Time
(2,152 LUX) Humidity Hot / Wet 40°C / 95% RH Spill Proof Hot / Dry 40°C / 5% RH (Datalogic MS-0006-13-0004) Cold / Dry 10°C / 5% RH Warm / Wet 25%C / 50% RH Storage +70° C +158° F -40°...
Page 18: Electrical Specifications
Electrical Specifications Before installation, always verify that the site’s electrical service meets the scanner’s requirements. The scanner has been engineered for compatibility with most international electrical systems operating in ranges from 100 to 240VAC at 50-60 Hz. Verify that the power source will supply “clean” electrical power to the equipment;...
Page 19: Labeling
Labeling Labeling Regulatory, reference and safety labeling are shown below. Figure 4. Labeling 0.00 SCALE HOST IMAGE REMOTE POWER HOST PORT PORT DISPLAY REMOTE HOST SCALE IMAGE 0.00 POWER DISPLAY PORT HOST PORT Beneath the Platter Underside of Scanner Scale Regulatory Label (units with scales Regulatory - I/F Label only) Serial Number Label...
Page 20: Agency Compliances
Agency Compliances The scanner and scanner-scale meets or exceeds the requirements for its device type as set forth by the following agencies and regulations: COUNTRY COMPLIANCE COMMENTS Safety United States UL60950-1 cULus Approved Canada CAN/CSA C22.2 No. 60950-1 cULus Approved World IEC60950 CB certification...
Page 21 Safety CNS 14336-1 and EMC Taiwan BSMI CNS 13438 China Safety and EMC Argentina IRAM S mark Safety South Africa SABS Safety Contact Datalogic ADC, Inc. or your Datalogic representative for a complete listing of approvals for other countries. Product Reference Guide...
Page 22: Bar Codes Supported
Bar Codes Supported The scanner can read/decode the following 1D and 2D bar code types (symbol- ogies): 1D Symbologies • UPC Versions A & E • Plural Stage Dual UPC Bar Codes for Japan ( 2 label read) • GSI DataBar Omnidirectional, DataBar Expanded, DataBar Stacked •...
Page 23: References
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.
Page 24 NOTES Magellan™ 9800i Scanner...
Page 25: Site Preparation And Installation
Chapter 2 Site Preparation and Installation This chapter provides instructions for design and preparation of the checkstand for scanner or scanner-scale installation. It also specifies physical parameters, power and ventilation considerations, cable routing information and unit instal- lation for different models. There are three basic steps: SECTION I.
Page 26 Site Preparation and Installation Ergonomic Recommendations 1. Select a design which allows load-sharing by several muscle groups (for example designs which allow the cashier to use both hands for scanning and bagging). 2. Use a powered in-feed conveyor to help cashiers bring the items to their best work zone, rather than leaning and reaching to get items further up the conveyor.
Page 27: Checkstand Design
SECTION I. Pre-Installation Considerations Checkstand Design Counter Preparation Since the majority of grocery checkout lanes are designed as “left-hand take away,” the counter drawings in this section focus on this counter design. Simply reverse the layout for a “right-hand take away” requirement. The unit scans equally well in either configuration.
Page 28: Site Requirements
Site Preparation and Installation Site Requirements Consider the following factors before installing the scanner/scanner-scale and its optional Remote Scale Display. Ventilation Requirements The scanner operates without the use of a ventilation fan. As long as there is adequate convective air flow and no major heat producing equipment in close proximity, the unit’s housing provides adequate heat dissipation.
Page 29 SECTION I. Pre-Installation Considerations Service Access Requirements The scanner and scanner-scale have been engineered to allow performance of all routine service and maintenance (such as “zeroing” and calibration) without removing the scanner from the checkstand. Additionally all cable connections made at the scanner can be connected and removed while the unit is sitting on the countertop.
Page 30 Site Preparation and Installation Vertical Clearance A minimum vertical clearance of 3.8 cm (1.5”) MUST be provided (reference Fig- 7). This will facilitate ease of scanning, and allow adequate space above the scanner bonnet for removal and replacement of the All Weighs™ Platter (the L- shaped platter).
Page 31 SECTION I. Pre-Installation Considerations Display Clearance With TDR Display Clearance With No TDR Display ~30° minimum 6 cm (2.36”) Face of Display MUST be ≥ 2 cm (.79”) 2 cm behind this line (.79”) Figure 8. Scanner and Scanner/Scale Models Model 9801 Short Scanner Model 9803...
Page 32 Site Preparation and Installation Scanner Weights When selecting materials and designing supports for scanner installation, don't forget to factor in the weight of the scanner or scanner-scale and the products that will need to be weighed or scanned during checkout. Scanner Weight Scanner/Scale Model...
Page 33: Scanner Dimensions
SECTION I. Pre-Installation Considerations Scanner Dimensions For reference only - see "Counter Cutout" on page 25 for actual counter cutout dimensions for your model. NOTE 9.46cm (3.72”) Window 6.9cm (2.72”) 10.36cm 10.06cm (4.08”) (3.96”) 11.73cm (4.62”) 29.21cm (11.5”) SHORT (SHELF MT) Model 9801 35.19cm (13.85”) 9.46cm...
Page 34 Site Preparation and Installation Scanner Dimensions (continued) For reference only - see "Counter Cutout" on page 25 for actual counter cutout dimensions for your model. NOTE 43.7cm (17.20”) 9.46cm (3.72”) 1.26cm Window (0.5”) 6.9cm 1.26cm (2.72”) (0.5”) 10.36cm 10.06cm (4.08”) (3.96”) 3.49cm 29.21cm...
Page 35: Section Ii. Checkstand Preparation
SECTION II. Checkstand Preparation SECTION II. CHECKSTAND PREPARATION When performing a first-time installation into a new checkstand, verify before cutting that room will be allowed for cabling and the AC/DC Power Supply. When making the opening, take extra care to accurately cut to the correct dimensions.
Page 36 Site Preparation and Installation Follow these basic steps to prepare the counter for the unit: 1. Select a position for the scanner that offers a smooth product flow which best accommodates the reaching distance of the average operator. 2. Cut the opening in the countertop. Select the appropriate drawing for your model.
Page 37 SECTION II. Checkstand Preparation MEDIUM (SHELF MT) Max. Radius = 0.64cm (0.25") 4x 40.2cm (15.83") min. 29.53cm (11.63") min. 10.36cm (4.08") Liquid Liquid Drainage Support Rails Drainage Product Reference Guide...
Page 38 Site Preparation and Installation LONG (FLANGE MOUNT) Models 9805 and 9806 Counter Cutout Dimensions 51.12cm Max. Radius = 0.64cm (20.13") (0.25") 4x Flange Support 47.31cm (18.63") 1.91cm (0.75") 7.62cm 29.53cm (3.0") (11.63") 7.62cm (3.0") Flange Support 1.91cm (0.75") 0.95cm 0.95cm (0.38") (0.38") If leveling screws are needed for models 9805 and 9806,...
Page 39: Section Iii. Installation
SECTION III. Installation SECTION III. INSTALLATION Overview The preceding Site Requirements on page 18 dealt with installed location and counter preparations to accommodate the scanner or scanner-scale. Having completed those steps, physical installation of the scanner or scanner-scale can begin. The following instructions apply to all models. These setup and installation procedures assume that you have already prepared your checkstand to receive the scanner or scanner-scale.
Page 40 Site Preparation and Installation Figure 12. Remove Protective Vinyl Protective vinyl MUST be removed from the platter before use. (Models vary) If equipped with scale... scale spacer (below platter) MUST be removed before use. Removal of the scale spacer is not applicable to Adaptive Scale models.
Page 41: Install Tdr (Optional)
SECTION III. Installation Install TDR (optional) A Top Down Reader (TDR) module can be optionally included with a scanner for installation. If not installing a TDR, skip to "Route & Connect Cables" starting on page 35. NOTE Installing the Optional TDR A TDR is available in several heights to allow for flexibility of installation.
Page 42 Site Preparation and Installation Depending upon the model, steps to install will vary slightly. 1. Determine on which corner of the scanner you want to install the TDR. It can be placed in either the left or right-hand corner just behind the scan- ner’s bonnet.
Page 43 SECTION III. Installation 7” or 12” 9” TDR Bolts Corner Piece Corner Piece Riser Bolts TDR Cable TDR Cable 4. [For 9” TDR ONLY]- slide the provided long bolts through both the TDR and the Riser. Use a 3mm ball end hex driver to secure the TDR with the two bolts pro- vided for this purpose, tightening them evenly to 1.74Nm (15 in-lb).
Page 44 Site Preparation and Installation 7. Verify that the cable is not pinched or caught between assemblies, then connect it to its 8-pin Din connection in the center of the bulkhead. Corner Piece TDR Cable Bolts Plug in the TDR cable before connecting power to the scanner. NOTE Magellan™...
Page 45: Route & Connect Cables
SECTION III. Installation Route & Connect Cables Route the Cables Considerations when routing the power and interface cables for the scanner and scanner-scale are: • Ensure that cables are not pinched, kinked or pierced. • Do not route interface cables in close proximity to electrical motors or other sources of electromagnetic interference.
Page 46 Site Preparation and Installation AC/DC Adapter Figure 15 provides physical dimensions for the AC/DC Adapter (part number 90ACC0078). Figure 15. Physical Measurements: AC/DC Adapter 2.9 cm 10.3 cm (1.14”) (4.01”) 4.2 cm (1.65”) Grounding The AC/DC Power Supply should have an AC outlet with a clean earth ground. If you are not sure how to verify the amount of electrical noise (interference) on the power line, ask a qualified electrician to measure the input line voltage.
Page 47 SECTION III. Installation Figure 16. Connecting Cables to the Scanner/Scale 0.00 SCALE HOST REMOTE IMAGE POWER DISPLAY PORT HOST PORT REMOTE TOP DOWN SCALE AUXILIARY IMAGE POWER USB PORTS HOST PORT EAS* DISPLAY READER* HOST PORT* PORT* Scale Data Expands the (dual cable USB Handheld Label Data...
Page 48: Power Up & Operational Verification
Site Preparation and Installation Power up & Operational Verification Connect the power cable first at the scanner, then at the AC outlet. 1. Plug your scanner into an electrical outlet that has been wired to meet all applicable electrical codes, laws, and regulations and has a common ground with the Point-of-Sale terminal.
Page 49 SECTION III. Installation The unit should be permitted to reach thermal equilibrium before pro- Warm-Up Time on page 7 ceeding to the next steps (see ). When the unit is moved from a cooler temperature (such as a storage area) to a warmer environment (such as a checkstand location), a period of 60 NOTE minutes must be allowed to acclimate the unit to ambient conditions.
Page 50 Site Preparation and Installation Verify that 0.00 lb (0.000 kg) is displayed, then place an Remote Scale Display — item on the weighing platter. Verify that the display shows a weight and that the yellow LED goes out. Remove the item and observe that Remote Scale Display shows 0.00 lb (0.000 kg) and that the yellow LED is On.
Page 51 SECTION III. Installation Is the value of a custom data string (if present — no data may customdata be displayed if the item value is not set. The sequence will be repeated Upon successful completion, the scanner will automatically reset, displaying an 8. If the diagnostics routine is not completed successfully, the scanner will sound a series of tones and the Health &...
Page 52: Integration With Pos
Site Preparation and Installation Integration with POS The System Power-Up procedure may vary depending upon the requirements of your POS system. It is generally a good practice to power down (switch off) all equipment prior to connecting cables. Check with your System Supervisor and/ or refer to your POS terminal manual for proper powerdown and powerup pro- cedures and interface requirements when connecting any peripheral device.
Page 53: Scanner In-Counter Installation
SECTION III. Installation Scanner In-Counter Installation These setup and installation procedures assume that you have already prepared your checkstand to receive the scanner or scanner-scale. If you have not already made the counter cutout and routed power and interface cables, do so now as described in the previous instructions.
Page 54 Site Preparation and Installation 1. Remove the All Weighs™ Platter to gain access to the lift handles. Lift the top edge of the platter bezel as shown in Figure 20 and gently lift it from the scanner. If the top edge of the platter is blocked, you may find it easier to grasp edges of the platter as shown by the blue arrows.
Page 55: Optional Remote Scale Display
SECTION III. Installation air bubble should appear fully within the circle indicated. The air bubble can touch the circle, but must not overlap it. Apply shims beneath the scanner flange or adjust the leveling feet to allow level installation. 5. Mount the horizontal surface of the All-Weighs Platter flush with the coun- tertop to encourage slide scanning rather than lifting.
Page 56 Site Preparation and Installation Figure 22. Modular/Adjustable Remote Scale Display 15° 15° 15° Upward or Downward Tilt Dual Display Heads 180° Rotation Single Display Head 180° Rotation Remote Display Cabling Your installation should also take into account the routing of Remote Display cabling.
Page 57 SECTION III. Installation Figure 23. Remote Display Physical Measurements 1.85cm (0.73”) 2.84cm (1.12”) 6.0cm 6.0cm (2.36”) (2.36”) 1.12cm 1.12cm 32.9cm (0.44”) (0.44”) 29.25cm (12.95”) 26.4cm (10.39”) (11.52”) 32.5cm 22.75cm (8.96”) (12.80”) 11.64cm (4.58”) 11.64cm (4.58”) Dual Display Single Display 5. Feed the entire length of the Remote Scale Display interface cable through the cable routing hole so that the assembled Remote Scale Display can be positioned over the mounting screw holes.
Page 58 Site Preparation and Installation Figure 25. Remote Scale Display Mounting Template 11.6cm (4.68”) 2.55cm (1.0”) 4.20cm (1.65”) 8.51cm (3.35”) Magellan™ 9800i Scanner...
Page 59: Operation And Maintenance
Chapter 3 Operation and Maintenance The information contained in this section describes how to operate and main- tain the scanner, scale and EAS system. Topics include “how to’s” on scanning, EAS tag deactivation, weighing, re-zeroing the scale, removing the top cover and cleaning the upper and lower windows.
Page 60: Scanning Items
Operation and Maintenance Scanning Items To scan items, slide or push them over the scanner as shown in Figure 26. Also Figure 2 for views showing the scan zone. The scanner will work equally well with either a left-to-right or right-to-left motion through the scan zone. There is no need to reorient an item’s bar code since the scanner and its Top Down Reader (TDR) can read the left, right, front and back side, as well as the top and bottom of an item.
Page 61: Proper Weighing Technique (Scale Models)
Scanner Usage Proper Weighing Technique (Scale Models) 1. The L-shaped All-Weighs platter allows you to place items anywhere on its surface, including leaning against its vertical section, to be weighed accurately. The raised lip on the end also provides a convenient way to ensure items do not rest on the counter or other non-weighing surfaces.
Page 62: Deactivating Security Labels
Operation and Maintenance Deactivating Security Labels Two different types of Electronic Article Surveillance (EAS) systems can be optionally enabled for certain scanner models. Your system may or may not be equipped with EAS deactivation functionality. NOTE Checkpoint ® Checkpoint systems require a wired connection as shown in When this system is armed, Checkpoint EAS-tagged items are automatically deactivated as they are slid over the scanner’s platter area during scanning.
Page 63: Operational Controls
Operational Controls The item will be deactivated and a message to store management that this has occurred will be sent. In a case where an item’s bar code is damaged or obscured by an EAS tag or other obstruction, the operator will need to key enter the bar code number and use the Manual EAS Deactivation Push Button to manually deactivate NOTE the EAS tag.
Page 64: Operating Mode
Operation and Maintenance Error Reporting If a fatal error is detected during Selftest or operation, the unit will not advance to Normal Operation Mode. Selftest diagnostics will cause the unit to sound a long, low tone and/or display an error message on the Health & Status Indicator indicating where the failure occurred.
Page 65: Additional Functions
Additional Functions scanner without scale model, the yellow lamp will not be lit when the scanner is ready for scanning. Yellow and Green LED indications are configurable. Your scanner may not be programmed to operate in the standard manner described above. NOTE Once the scanner enters Normal Operation, it begins a countdown sequence.
Page 66: Scale Adjustments
Operation and Maintenance Pressing and holding the Scanner Control Button for ten seconds initiates a reset, which is sounded by a rapid number of beeps. For more information, see the topic, Power-Up/Selftest & Pre-Operation on page 53 earlier in this section. Scale Adjustments The scale allows two user adjustments: zeroing and calibration.
Page 67: Operational Maintenance
Operational Maintenance responsible for regulating weighing devices in your area to ensure that you are meeting all legal and regulatory requirements Chapter 6, Calibration Proce- dures, describes the calibration sequence and verification process. Calibration can only be performed if the tamper seal that secures access to the Calibration Switch is broken and the switch cover is removed.
Page 68: Vertical Scan Window Replacement
Operation and Maintenance Vertical Scan Window Replacement The two Vertical Scan Windows enclosed in the All Weighs™ Platter are replace- able. Follow these instructions to remove and replace a vertical window: To remove a Vertical Scan Window: 1. Grasp the platter as shown in Figure 29 and gently lift it from the scanner until the edges can be grasped, and then lift straight up.
Page 69 Operational Maintenance Figure 30. Vertical Scan Window Removal/Replacement Push in to release 6 tabs Press window(s) in or out of the frame Lift off the wedge-shaped plastic piece Carefully dispose of the damaged glass 4. Carefully align the new vertical scan window its window frame. Push in and upwards to seat the window in the frame and secure it in place.
Page 70: Horizontal Scan Window Replacement (Dlc)
Operation and Maintenance Horizontal Scan Window Replacement (DLC) Diamond-Like Carbon coated (DLC) horizontal scan windows are replaceable. Sapphire glass does not require replacement, so it is permanently fastened in place. Do not attempt to remove Sapphire glass from the platter. NOTE 1.
Page 71: Tdr, Camera And Mobile Commerce
Chapter 4 TDR, Camera and Mobile Commerce The scanner can optionally include a Top Down Reader (TDR), Camera and/or a Mobile Commerce Reader. These premium features offer state-of-the-art func- tionality to point of sale transactions, while increasing first pass read rates for item scanning.
Page 72: Camera Feature
Camera Feature In addition to scanning bar codes, the TDR can optionally be used to photo- graph images presented to the down-facing TDR window. The sales associate presses the scanner’s Camera button to initiate Camera Mode and take pic- tures. The way in which the TDR takes pictures in Camera Mode is a configurable feature.
Page 73: Problem Isolation
Chapter 5 Problem Isolation The troubleshooting references provided in this section should be used in the event of a suspected functional problem. This information will assist you in identifying and resolving any problems. The scanner/scale has a number of features that indicate when a scanner, EAS deactivation system, or scale problem occurs.
Page 74: Diagnostic Procedures
Diagnostic Procedures Your Point-Of-Sale (POS) system may contain many components that operate as a system. Since almost all scanner or scale problems are caused by either the scanner, scale, POS terminal or communication links between them, these trou- bleshooting flowcharts focus on these components. Additionally, the optional Remote Scale Display, AC/DC Power Supply and their cables are potential prob- lems addressed in this section.
Page 75 Error Codes Figure 33. FRU Indication Sequence Step 1 Step 2 Step 3 Step 4 Sequence Divider Start Symbol Indication Symbol Code (”Equals”) (Varies) (”Hyphen”) (Varies) Health and Status Indicator (Samples) (Samples) Table 1 describes what the FRU indication codes in step 2 mean, and what cor- rective action might be taken for each.
Page 76 Table 1. Error Code Table Health & Probable Cause Corrective Action Status Indicator Make sure the correct interface is selected, then scan the factory defaults Chapter 7, Programming, for Configuration Error bar code and reset the unit. Also, see details about configuring the scanner using programming bar codes. Host Interface Main Board Unplug unit and call technical support personnel.
Page 77: Scale Error Reporting
Scale Error Reporting Scale Error Reporting Scale diagnostics uses the optional Remote Scale Display and the Zero Status lamp to communicate specific scale failures. This does not apply to Adaptive Scale models. NOTE The following chart shows the Remote Display messages, the Scale Status lamp indication, the problem that the scale is experiencing and what action should be taken.
Page 78: Flowcharts
Flowcharts The problem isolation flowcharts on the following pages allow you to identify and troubleshoot problems with your system. Figure 35. Problem Isolation: Start For units using an AC/DC adapter, verify that... 1. AC power cord is connected to a functional AC outlet. 2.
Page 79 Flowcharts Figure 36. Problem Isolation: Selftest SELFTEST START Scan the Factory Does the Does the Does the Defaults bar code in Health & Status Health & Status Health & Status Section 6 to enable the Indicator show Indicator show Indicator show default configuration file.
Page 80 Figure 37. Problem Isolation: Poor/No Reading Have you verified that all scan windows are clean and scratch-free? POOR/NO READING Before proceeding, verify that START bar code samples presented to scanner are of good quality and a symbology the scanner Enter Scanner Diagnostic Mode by is configured to read.
Page 81 Flowcharts Figure 38. Problem Isolation: No Transmit to POS NO TRANSMIT TO POS START Check the interface (I/F) Verify programmable cable connections. If parameters using the possible, retest the Does the information and programming system using a scanner pass bar codes provided in the DONE known-good I/F cable.
Page 82 Figure 39. Problem Isolation: Scale If this is a new installation, SCALE START make sure any foam packing pieces have been removed from the scale cavity before proceeding. Lift off the platter View the Remote to verify, then set the platter Call Tech Support Display and/or the back into position.
Page 83 Flowcharts Figure 40. Problem Isolation: Remote Display REMOTE DISPLAY Scanner-scale models that include START a Remote Display when shipped from the factory, are configured for use with the display. If you're unsure of the settings for your unit, contact Tech Support. Is the Use the programming bar unit configured...
Page 84 Figure 41. Problem Isolation: EAS System NO EAS DEACTIVATION Ensure operator has been trained in START proper EAS system use (reference the topic “Deactivating Security Labels”). Verify programmable Check all EAS parameters using the Does the If possible, retest the cable connections.
Page 85: Calibration Procedures
Chapter 6 Calibration Procedures This section applies to scanner/scale models with single or dual interval. Make sure to follow the proper associated procedure for each of these options. Procedures specific to Single interval units are highlighted in a pink color. Procedures specific to Dual inter- NOTE...
Page 86: Description Of Calibration Sequence
Description of Calibration Sequence The Calibration Sequence sets the scale to an accurate reference point for weighing. This process involves the use of a Field Standard Weight Set (31.5- pounds) for calibration in pounds, (18.5-kilograms) for Metric calibration. Once calibration has been successfully completed, the scanner/scale uses the certi- fied weight as a reference for subsequent weighing activities.
Page 87: Automatic Zero Setting Test
Automatic Zero Setting Test Automatic Zero Setting Test This test verifies that the scanner/scale automatic zero setting mechanism is operating correctly. SINGLE INTERVAL DUAL INTERVAL Place 0.006 pounds (3 grams for metric) on the cen- Place 0.0035 pounds (1.6 grams for metric) on the ter of the weighing platform.
Page 88: Calibrating The Scale (Pounds & Kilograms)
Calibrating the Scale (Pounds & Kilograms) 1. Before proceeding, ensure that the scanner/scale has been prepared for this process by performing the preceding steps titled, Preparing the Scan- ner/Scale for Calibration 2. Verify that there are no obstructions under the weigh platter. Remove the weigh platter (L-Platter) and make sure that there are no obstructions in the debris chutes (see...
Page 89 Calibrating the Scale (Pounds & Kilograms) You have completed the scale calibration procedure. Before replacing the Cali- bration Switch Cover and sealing the scale, you must now continue with the cal- ibration verification tests to complete the scale’s calibration. If you are weighing in pounds, continue with the following procedures to verify that the scale was successfully calibrated and that it weighs properly.
Page 90: Calibration Verification (Pounds)
Calibration Verification (Pounds) Once you have completed the calibration sequence, you may be required to perform these step-by-step verification procedures. These procedures follow National Institute of Standards and Technology Handbook-44 guidelines for grocery scale installations. You may be required by state or local law to have these procedures performed by a certified technician or verified by a proper official.
Page 91: Shift Test (6 Pounds Dual Interval Only)
Calibration Verification (Pounds) Shift Test (6 Pounds Dual Interval ONLY) The Shift Test checks to ensure that items placed anywhere on the weighing surface of the scanner/scale are weighed properly. Refer to when per- Figure 44 forming this test. DUAL INTERVAL 1.
Page 92: Increasing-Load Test (Phase 2 Dual Interval)
Increasing-Load Test (Phase 2 Dual Interval) The upper limit of the scale is configurable according to the POS interface type and may not necessarily be set at 30 lbs, which is the standard setting. For this test, continue to place weights in 2-lb increments only up to the upper weight limit set NOTE for your scale.
Page 93: Increasing-Load Test (Single Interval Phase 2/Dual Interval Phase 3)
Calibration Verification (Pounds) Increasing-Load Test (Single Interval Phase 2/Dual Interval Phase 3) After completing the Shift Test, you must complete the Increasing Load Test using 20.0, 25.0 and 30.0 pounds of weight. The upper limit of the scale is configurable according to the POS interface type and may not necessarily be set at 30 pounds, which is the standard setting.
Page 94: Decreasing-Load Test
Decreasing-Load Test This test ensures that the scanner/scale responds properly when a heavy object is followed by a significantly smaller object. If the upper weight limit for your scale is set to other than 30 pounds, begin by placing weight equaling your upper limit set- ting.
Page 95: Calibration Verification (Kilograms)
Calibration Verification (Kilograms) Calibration Verification (Kilograms) Once you have completed the calibration sequence, you may be required to National perform these step-by-step verification procedures following the Institute of Standards and Technology Handbook-44 guidelines for grocery scale installations. You may be required by state or local law to have these pro- cedures performed by a certified technician or verified by a proper official.
Page 96: Increasing-Load Test (Phase 1)
Increasing-Load Test (Phase 1) SINGLE INTERVAL DUAL INTERVAL This test checks Scale operation for increasing loads This test checks scale operation for increasing loads from 0.100 kg and 7.50 kg. from 0.050 kg and 3 kg. 1. Check that the display reads 0.000 kg when at 1.
Page 97: Shift Test Metric (2 Kilogram Dual Interval Only)
Calibration Verification (Kilograms) Shift Test Metric (2 Kilogram Dual Interval ONLY) The Shift Test checks to ensure that items placed anywhere on the weighing surface of the scanner/scale are weighed properly. Refer to when per- Figure 45 forming this test. DUAL INTERVAL 1.
Page 98: Increasing Load Test (Phase 2 Dual Interval Only)
Increasing Load Test (Phase 2 Dual Interval ONLY) After completing the Shift Test, you must complete the Increasing Load Test using 4, 5 and 6 kilograms of weight. The upper limit of the scale is configurable according to POS interface type and may not necessarily be set at 15 kilograms, which is the standard setting.
Page 99: Increasing-Load Test (Single Interval Phase 2/Dual Interval Phase 3)
Calibration Verification (Kilograms) Increasing-Load Test (Single Interval Phase 2/Dual Interval Phase 3) The upper limit of the scale is configurable according to POS interface type and may not necessarily be set at 15 kilograms, which is the standard setting. For this test, continue to place weights in 2.50 kilograms increments only to the upper weight NOTE limit set for your scale.
Page 100: Decreasing-Load Test
Decreasing-Load Test This test ensures that the scanner/scale responds properly when a heavy object is followed by a significantly smaller object. If the upper weight limit for your scale is not set at 15 kilograms, begin by placing weight equaling your upper limit plus 0.8 kilograms. NOTE SINGLE INTERVAL DUAL INTERVAL...
Page 101: Programming
Chapter 7 Programming Introduction to Label Programming The programming bar code labels contained in this manual will allow you to customize and configure features and settings for your scanner (scanner/ scale). To ensure full compatibility and proper function, use only the program- ming bar codes in this manual and other product-specific publications to pro- gram scanner features.
Page 102 Magellan™ 9800i Scanner...
Page 103: Bar Code Mask
Understanding the Basics Bar Code Mask Cut a hole in this page and remove it from the manual as indicated to create a sleeve through which bar codes (starting in the following section) can be indi- vidually viewed and scanned. It is important that only one bar code at a time be presented to the scanner.
Page 104: Integrating The Scanner With Your Host System
Integrating the Scanner With Your Host System Your scanner MUST be equipped with the correct hardware (interface board, cable, etc.) to properly communicate with your host system. Contact your dealer for information if you have questions about your scanner’s hardware compatibility.
Page 105: Programming Overview
Eligible handheld devices must have the ability to transmit the C128 1D and Data Matrix 2D programming bar codes presented in this manual. Several Datalogic handheld models support this functionality. Handheld data format requirements (baud rate, parity, etc.) are presented in Appendix G of this manual.
Page 106: Entering And Exiting Programming Mode
Entering and Exiting Programming Mode. When needed, an Enter/Exit Programming Mode bar code is available at the top of each programming page. Your scanner will read the 2D programming bar codes in this manual while in Programming Mode, regardless of whether 2D reading capability has been enabled as an option.
Page 107: Programming Sequence
Programming Overview Additionally, when programming a feature requiring you to scan single digits to set a multi-digit number, such as Minimum Label Length, scanning the Enter/Exit Programming Mode bar code (or any item tag/ item value bar code) before completing all input will result in an error tone and cause the scanner to exit Programming Mode.
Page 108 A. Programming sample A (the most commonly used format) demon- strates how three bar codes are scanned in sequence to do the follow- ing: 1. Place the scanner in Programming Mode (Enter/Exit Programming Mode bar code). 2. Scan the Item Tag that will enable the new feature. 3.
Page 109 Programming Overview Table 2. Programming Sequence ITEM TAG ITEM VALUE END/RESET Enter/Exit Enter/Exit ENABLE Programming Programming Mode NEW FEATURE Mode 3 4 5 ENABLE NEW FEATURE USING THE Enter/Exit Enter/Exit FOLLOWING Programming Programming SETTINGS... Mode Mode ONE BAR CODE CONTAINS ENTER + ITEM TAG + ITEM VALUE + EXIT Product Reference Guide...
Page 110: Led And Beeper Indicators
LED and Beeper Indicators The scanner provides a set of indicators that verify/announce the various scan- ner functions. See Appendix A for more details. If You Make a Mistake... If, during a programming session, you find that you are unsure of the scanner’s settings or wish to reset the scanner’s configuration, use the Return to Factory Settings label below to return the scanner’s configuration to the factory set- tings.
Page 111: Test Mode
Programming Overview Test Mode Use this feature to place the scanner into a testing, or “demo” mode. This spe- cial mode disables the scanner interface, meaning that bar code data is not sent out to the host via the scanner interface. This allows the bar code to be scanned continuously without requiring a response from the POS terminal.
Page 112 NOTES Magellan™ 9800i Scanner...
Page 113: Imaging Features
Imaging Features Top Down Reader (TDR) and Mobile Commerce Imaging Features The TDR and its multiple capabilities are optional features with which your scanner may equipped. The imaging features in this chapter pertain only to the TDR and Mobile Commerce reader. Figure 46, #1 illustrates the TDR’s top down reading capability and #2 demonstrates the Mobile Commerce reader function.
Page 114: Mobile Commerce Reader Enable
Enter/Exit Programming Mode Mobile Commerce Reader Enable Mobile Commerce Reader Enable The Mobile Commerce reader is an optional customer-facing imager (see Fig- ure 46, #2) which captures images such as coupons from a cell phone screen. Use the bar codes below to enable or disable the Mobile Commerce reader. 1.
Page 115: Mobile Commerce Imagers
Enter/Exit Programming Mode Mobile Commerce Imagers This feature specifies which imagers (see Figure 46) participate in a cell read • Mobile Commerce only • Mobile Commerce and Top Down Reader (TDR) To set the desired option: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 116: Mobile Commerce Button Function
Enter/Exit Programming Mode Mobile Commerce Imagers Mobile Commerce Button Function This feature determines if pushing the Mobile Commerce button toggles the Mobile Commerce reader on and off, or just turns it on for a short period of time. 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 117: Tdr Enable
Enter/Exit Programming Mode TDR Enable The Top Down Reader (TDR) function is an optional down-facing imager (see Figure 46, #1) which can be used to expand the scanner’s good read zone. Use the bar codes below to enable or disable the TDR. 1.
Page 118: Image Camera
Enter/Exit Programming Mode Image Camera Image Camera This option selects the default imager for picture taking (optional camera func- tionality). Choices are: Vertical window imager selected for taking pictures. Vertical — Horizontal window imager selected for taking pictures. Horizontal — Top Down Reader (TDR) imager selected for taking pictures.
Page 119: Image Format
Enter/Exit Programming Mode Image Format This feature specifies the output format for images taken usinig the camera function of the TDR. Choices are: • • • TIFF 03E900(CR) DEFAULT Image Format = JPG 03E901(CR) Image Format = BMP 03E902(CR) Image Format = TIFF Product Reference Guide...
Page 120: Image Size
Enter/Exit Programming Mode Image Camera Image Size This feature specifies the size of the captured image. Choices are: Video Graphics Array. 640 x 480 pixels. VGA — Wide Video Graphics Array, various physical sizes, 16:9 shape WVGA — Maximum image height and width. Largest image. Full Size —...
Page 121: Image Brightness
Enter/Exit Programming Mode Image Brightness Specifies the image brightness value. The selectable range is from 0 to 10, with 10 being the brightest. 03EB00(CR) DEFAULT Image Brightness = 0 03EB01(CR) Image Brightness = 1 03EB02(CR) Image Brightness = 2 03EB03(CR) Image Brightness = 3 03EB04(CR) Image Brightness = 4...
Page 122 Enter/Exit Programming Mode Image Camera Image Brightness (continued) 03EB08(CR) Image Brightness = 8 03EB09(CR) Image Brightness = 9 03EB0A(CR) Image Brightness = 10 Magellan™ 9800i Scanner...
Page 123: Image Contrast
Enter/Exit Programming Mode Image Contrast This feature sets the contrast level for a captured image. The selectable range is from 0 to 10, with 0 being the lowest and 10 being the highest contrast. 03EC00(CR) DEFAULT Image Contrast = 0 03EC01(CR) Image Contrast = 1 03EC02(CR)
Page 124 Enter/Exit Programming Mode Image Camera Image Contrast (continued) 03EC08(CR) Image Contrast = 8 03EC09(CR) Image Contrast = 9 03EC0A(CR) Image Contrast = 10 Magellan™ 9800i Scanner...
Page 125: General Scanner And Scale Features
Enter/Exit Programming Mode General Scanner and Scale Features 1D Double Read Timeout The 1D Double Read Timeout feature specifies the minimum allowable time which must pass before reading the same 1D label again (e.g. two identical items in succession). To set the Double Read Timeout: 1.
Page 126: Double Read Timeout
Enter/Exit Programming Mode 2D Double Read Timeout The 2D Double Read Timeout feature specifies the minimum allowable time which must pass before reading the same 2D label again (e.g. two identical items in succession). To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 127: Label Gone Timeout
Enter/Exit Programming Mode Label Gone Timeout Specifies the amount of time in cycles (one cycle = 25ms) that data segments are stored by the software before being discarded if a label has not been suc- cessfully decoded during the current “label in volume session,” which is defined as the time between when the label gone time is first started until the label gone timer expires.
Page 128: Sleep Mode Timer
Enter/Exit Programming Mode Sleep Mode Timer This feature specifies the amount of time of inactivity (with no label reads) before the scanner enters sleep mode. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Sleep Mode Timer on page 118 below.
Page 129: Inverse Read Control
Enter/Exit Programming Mode 1D Inverse Read Control This configuration item is used to toggle inverted label reading for 1D bar codes, for example, a label printed as white on black as opposed to black on white. To set this feature: 1.
Page 130: Inverse Read Control
Enter/Exit Programming Mode 2D Inverse Read Control This configuration item is used to toggle inverted label reading for 2D bar codes, for example, a label printed as white on black as opposed to black on white. To set this feature: 1.
Page 131: Contrast Improvement
Enter/Exit Programming Mode 2D Contrast Improvement This feature enables / disables the scanner’s ability to enhance the image con- trast for scanned 2D symbologies. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 132: Good Read Led Idle State
Enter/Exit Programming Mode Good Read LED Idle State This feature specifies the state of the green scanner LEDs when the scanner is idle and ready to read a label. Options are: • • On dim To set the Scanner LEDs Idle State: 1.
Page 133: Scanner Control Button Options
Enter/Exit Programming Mode Scanner Control Button Options Configure the Scanner Control Button to one of the following modes of opera- tion: • Enable all functions: Volume, tone, diagnostics and reset. • Enable only volume, tone and reset. • Enable reset only. •...
Page 134: Power-Up Tone Control
Enter/Exit Programming Mode Power-up Tone Control Specifies the type of audible indication that is made when entering scanner- active mode on power-up. Choices are: • No tone • Play tone To set the Power-up tone: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 135: Good Read Beep Control
Enter/Exit Programming Mode Good Read Beep Control This feature enables/disables scanner beep upon successfully decoding of a label. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 136: Good Read Beep Frequency
Enter/Exit Programming Mode Good Read Beep Frequency Adjusts the scanner’s good read beep to sound at low, medium, or high fre- quency (controls the beeper’s pitch/tone). • • Medium • High To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 137: Good Read Beep Length
Enter/Exit Programming Mode Good Read Beep Length Specifies the duration of a good read beep. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Good Read Beep Length on page 127. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 138: Good Read Beep Volume
Enter/Exit Programming Mode Good Read Beep Volume Selects the beeper volume upon a good read beep. There are five selectable volumes, with each volume increment adding approximately five decibels to the previous level: • • Medium High • Medium Low •...
Page 139: Good Read When To Indicate
Enter/Exit Programming Mode Good Read When to Indicate This feature specifies when the scanner will provide indication (beep and/or flash its green LEDs) upon successfully reading a bar code. • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 140: Scale Zero Button And Scale Indicator Led
Enter/Exit Programming Mode Scale Zero Button and Scale Indicator LED Here are the configurable options for the Scale Zero Button and Scale Indicator LED: • Scale Zero Button and Scale Indicator LED active • Scale Indicator LED active • Scale Zero Button active •...
Page 141: Scale Sentry
Enter/Exit Programming Mode Scale Sentry This option enables or disables the ability of the scanner to monitor items placed on the platter to ensure they are not overhanging non-weighing sur- faces. See the topic Scale Sentry™ Option on page 6 in the Introduction on page chapter for more information.
Page 142: Scale Sentry Block Weight Transmission
Enter/Exit Programming Mode Scale Sentry Block Weight Transmission This feature may not apply to Adaptive Scale models. NOTE This option enables or disables weight transmission to the host if a Scale Sentry event is active. When enabled, this feature blocks the transmission of weight data to the host if Scale Sentry has sensed an item or items overhanging the side(s) of the scale platter.
Page 143: Scale Sentry Override Button
Enter/Exit Programming Mode Scale Sentry Override Button This option allows a press of the Scale Sentry Override Button to manually clear a Scale Sentry event. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 144: Scale Enable
Enter/Exit Programming Mode Scale Enable This feature does not apply to Adaptive Scale models. NOTE Use this feature to enable or disable scale operation. Recalibration/recertification may be required when adding scale functionality. Consult your local Weights and Measures authority. NOTE To set this feature: 1.
Page 145: Scale Diagnostics Mode
Enter/Exit Programming Mode Scale Diagnostics Mode This feature does not apply to Adaptive Scale models. NOTE Use this feature to allow or disallow the ability of an operator to initiate the advanced feature, scale diagnostics. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 146: Scale Stale Weight Timeout
Enter/Exit Programming Mode Scale Stale Weight Timeout This feature does not apply to Adaptive Scale models. NOTE This option specifies the amount of time that scale data is presented to the host before being discarded. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 147: Scale Enforced Zero Return
Enter/Exit Programming Mode Scale Enforced Zero Return This feature does not apply to Adaptive Scale models. NOTE This feature sets the mode of enforcing the scale re-zeroing operation: • Disable • Non-zero for more than 4 minutes OR below zero •...
Page 148: Scale Interface Type
Enter/Exit Programming Mode Scale Interface Type This feature does not apply to Adaptive Scale models. NOTE Use this feature to select the scale interface type. Choices are: • No scale interface • RS-232 - SASI • IBM 46XX (Port 17 ignored) •...
Page 149 Enter/Exit Programming Mode Scale Interface Type (continued) Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. 040404(CR) DEFAULT Scale Interface Type = RS-232 - SASI 040405(CR) Scale Interface Type = RS-232 - ICL 040406(CR)
Page 150: Scale Calibration Notification
Enter/Exit Programming Mode Scale Calibration Notification This feature does not apply to Adaptive Scale models. NOTE This option enables a notification that scale calibration has taken place. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 151: Scale Intercharacter Delay
Enter/Exit Programming Mode Scale Intercharacter Delay This feature does not apply to Adaptive Scale models. NOTE With regard to scale functions, this feature specifies a delay between the end of one character and the beginning of the next in 10-millisecond increments. To set the Scale Intercharacter Delay: 1.
Page 152: Remote Display - Enable/Disable
Enter/Exit Programming Mode Remote Display — Enable/Disable Remote Display — Enable/Disable The scanner-scale can be configured to operate with or without a Remote Dis- play. Recalibration/recertification may be required when adding a Remote Display. Consult your local Weights and Measures authority.
Page 153: Auxiliary Port Mode
Selects the usage for the scanner’s optional auxiliary port. The choices listed below are mutually exclusive (only one option can be active at a time). • Disabled — Port is inactive • External Handheld Input — Supports Datalogic handheld scanners (QuickScan 1000, QuickScan 6000, PowerScan ) as well as other models such as the Symbol®...
Page 154: Auxiliary Usb Mode
Enter/Exit Programming Mode Auxiliary USB Mode Auxiliary USB Mode This option specifies the function of the USB auxiliary port. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 155: Pir / Ct
Enter/Exit Programming Mode PIR / CT When PIR /CT (Productivity Index Reporting/Cashier Training) is enabled, label quality data is appended to decoded data before being presented to the POS. The PIR feature allows the scanner to provide information to an external com- puter indicating how easy the label was to read.
Page 156: Pir/Ct Auxiliary Port Baud Rate
Enter/Exit Programming Mode PIR / CT PIR/CT Auxiliary Port Baud Rate This feature specifies the baud rate of the auxiliary port when operating in PIR/ CT Mode. This setting is valid ONLY when Auxiliary Port Mode on page 143 is set to PIR/CT + Diagnostics Reporting. NOTE 1.
Page 157 Enter/Exit Programming Mode PIR/CT Auxiliary Port Baud Rate (continued) 051607(CR) PIR/CT Auxiliary Port Baud Rate = 57600 051608(CR) PIR/CT Auxiliary Port Baud Rate = 115200 Product Reference Guide...
Page 158 Enter/Exit Programming Mode PIR / CT NOTES Magellan™ 9800i Scanner...
Page 159: Eas Features
EAS Features EAS Features — Sensormatic These features control the Sensormatic® AMB-9010 or Scan- MaxPro EAS controller box. This orderable option is installed at the time of manufacture. See " EAS Features — Checkpoint" on page 161 to set options for the Checkpoint® EAS system. NOTE EAS Mode This controls the mode of operation for interfacing with the Sensormatic...
Page 160 Enter/Exit Programming Mode EAS Features — Sensormatic EAS Mode (continued) Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. 058000(CR) DEFAULT EAS Mode = Disable 058001(CR) EAS Mode = Coupled Mode 058002(CR)
Page 161: Eas Notification
Enter/Exit Programming Mode EAS Notification This feature specifies the output mode and activation of EAS event notification when operating in Coupled Mode. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 162: Eas Security Level
Enter/Exit Programming Mode EAS Features — Sensormatic EAS Security Level This feature defines the level of EAS security for operating in coupled mode. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 163: Eas Good Beep Mode
Enter/Exit Programming Mode EAS Good Beep Mode This feature sets the mode of operation for the EAS deactivation beep while operating in coupled mode. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 164: Eas Beep Duration
Enter/Exit Programming Mode EAS Features — Sensormatic EAS Beep Duration Sets the duration of the EAS successful deactivation beep, specified in 10ms increments. The beep only occurs if EAS mode is not disabled. To set the EAS Beep Duration: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 165: Eas Retry Count
Enter/Exit Programming Mode EAS Retry Count This feature sets the number of times the deactivation sequence (defined by the feature, “EAS Deactivation Duration — Retry ”) is restarted after a failed deacti- vation attempt. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 166: Eas Exception Button
Enter/Exit Programming Mode EAS Features — Sensormatic EAS Exception Button This feature is for use in Coupled Mode . When it is enabled, EAS deactivation can be manually initiated by placing the item with the EAS tag downstream the horizontal scan window and pushing the EAS Exception Push Button. The scanner emits a clicking sound while in deactivation state.
Page 167: Eas Deactivation Duration - Coupled
Enter/Exit Programming Mode EAS Deactivation Duration — Coupled Specifies the amount of time EAS deactivation is operative once the function has been initiated following a bar code read. This setting pertains only to units configured for EAS Coupled Mode. Reference the EAS Mode on page 149 description for more information about Coupled and Decoupled EAS operation.
Page 168: Eas Deactivation Duration - Retry
Enter/Exit Programming Mode EAS Features — Sensormatic EAS Deactivation Duration — Retry Specifies the amount of time EAS deactivation is operative once the function has been initiated following EAS tag detection (prior to bar code read). This setting pertains only to units configured for EAS Coupled Mode.
Page 169: Eas Deactivation Duration - Exception
Enter/Exit Programming Mode EAS Deactivation Duration — Exception Specifies the amount of time EAS deactivation is operative upon pushing the EAS Exception Button. This setting pertains only to units configured for EAS Coupled Mode. Reference the EAS Mode on page 149 description for more information about Coupled and Decoupled EAS operation.
Page 170: Eas Pre-Read Time
Enter/Exit Programming Mode EAS Features — Sensormatic EAS Pre-Read Time This feature specifies the time duration that must elapse before reading a label once an EAS tag is sensed. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 171: Eas Features - Checkpoint
Enter/Exit Programming Mode EAS Features — Checkpoint The features in this section apply only to Checkpoint EAS systems. See "EAS ® Features — Sensormatic" on page 149 to set options for that system. ERI Active State Specifies the active state polarity of ERI; the inactive state is its opposite polar- ity.
Page 172: Eri Timeout
Enter/Exit Programming Mode EAS Features — Checkpoint ERI Timeout Specifies the amount of time that an ERI signal is held in its active state for a good read. To set the ERI Timeout: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 173: Interface Related Features
Interface Related Features Interface Type Specifies the current scanner interface. Selections are: INTERFACE (I/F) TYPE I/F I.D. NUMBER RS-232 Standard RS-232 Wincor-Nixdorf RS-232 Single Cable USB OEM Port 17 Port 5B Port 9B USB Keyboard USB-TEC USB COM NOT USER-SELECTABLE 7-segment FRU display indicates System Interface 0 at start-up (accompanied by...
Page 174 A new scanner may have been shipped from the factory with a Null Interface (no interface type selected) to ensure system compatibility at installation. In this case, the correct Interface Type programming bar code must be scanned first before the NOTE scanner can be used with a POS system.
Page 175: Interface Selection
Enter/Exit Programming Mode RS-232 Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS termi- nal by attempting to change to an incompatible interface.
Page 176: Usb Interface Selection
Enter/Exit Programming Mode Interface Type USB Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS termi- nal by attempting to change to an incompatible interface.
Page 177: Ibm Interface Selection
Enter/Exit Programming Mode IBM Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS termi- nal by attempting to change to an incompatible interface.
Page 178: Keyboard Interface Selection
Enter/Exit Programming Mode Interface Type Keyboard Interface Selection Remember to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan. Great care should be taken to select the correct interface type, since you can cause damage to the scanner and/or POS termi- nal by attempting to change to an incompatible interface.
Page 179: Maximum Host-Transmitted Message Length
Enter/Exit Programming Mode Maximum Host-Transmitted Message Length Specifies the maximum number of data characters allowed in messages trans- mitted to the host. To set the Maximum Host-Transmitted Message Length: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Maximum Host-Transmitted Message Length on page 169 below.
Page 180: Ibm Features
Enter/Exit Programming Mode IBM Features IBM Features IBM Interface Options IBM interfaces offer specific control over interaction with certain devices. The USB OEM interface provides its own set of options. Refer to the feature, USB OEM Interface Options, in this section. NOTE Options for this feature are as follows: •...
Page 181: Ibm Scale Address
Enter/Exit Programming Mode IBM Scale Address This feature applies to IBM Port 17 ONLY. NOTE This feature does not apply to Adaptive Scale models. NOTE Specifies IBM scale address for IBM Port 17. The following three addresses are available: • •...
Page 182: Ibm Transmit Labels In Code 39 Format
Enter/Exit Programming Mode IBM Features IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Code 93 and Codabar for IBM Port 5B; Code 93 and Codabar for IBM Port 9B;...
Page 183: 46Xx Number Of Host Resets
Enter/Exit Programming Mode 46XX Number of Host Resets This setting specifies the number of consecutive resets before entering label Programming Mode to allow scanner configuration. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set 46XX Number of Host Resets on page 173 below.
Page 184: 46Xx Label Slicing Control
Enter/Exit Programming Mode IBM Features 46XX Label Slicing Control This feature enables slicing of IBM 46XX host data into multiple pieces when a label is longer than the length specified by the feature 46XX Maximum Label Slice Length on page 175.
Page 185: 46Xx Maximum Label Slice Length
Enter/Exit Programming Mode 46XX Maximum Label Slice Length This feature specifies the maximum allowable length of host transmitted data in each sdlc frame. This setting only applies when 46XX Label Slicing Control on page 174 is enabled. NOTE To set this feature: 1.
Page 186: Usb Oem Interface Options
Enter/Exit Programming Mode USB OEM Interface Options USB OEM Interface Options The OEM-USB interface offers specific control over interaction with certain devices. Options for this feature are as follows: • FULL host interface support — Accepts scanner and scale configuration host commands.
Page 187: Usb Oem Scanner Device Type
Enter/Exit Programming Mode USB OEM Scanner Device Type The OEM-USB protocol allows for the scanner to be identified as one of two dif- ferent types of bar code scanners. Depending on what other scanners you may already have connected to a USB POS, you may need to change this setting to enable all scanners to communicate.
Page 188: Features
Enter/Exit Programming Mode RS-232 Features RS-232 Features RS-232 Baud Rate This feature selects the baud rate required for sending and receiving data. Single cable interfaces are limited to Baud Rate selections up to 19200. They cannot communicate at Baud Rates of 38400 and up. NOTE To specify the RS-232 Baud Rate: 1.
Page 189 Enter/Exit Programming Mode RS-232 Baud Rate (continued) 001D06(CR) RS-232 Baud Rate = 38400 001D07(CR) RS-232 Baud Rate = 57600 001D08(CR) RS-232 Baud Rate = 115200 001D09(CR) RS-232 Baud Rate = 230400 001D0A(CR) RS-232 Baud Rate = 460800 001D0B(CR) RS-232 Baud Rate = 921600 Product Reference Guide...
Page 190: Number Of Data Bits
Enter/Exit Programming Mode RS-232 Features RS-232 Number of Data Bits Specifies number of data bits required for sending and receiving data. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code below representing the desired Data Bit setting. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 191: Number Of Stop Bits
Enter/Exit Programming Mode RS-232 Number of Stop Bits Specifies number of stop bits required for sending and receiving data. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code below representing the desired Stop Bit setting. You’ll need to cover any unused barc odes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 192: Parity
Enter/Exit Programming Mode RS-232 Features RS-232 Parity Specifies parity required for sending and receiving data. Options for this setting are: • RS-232 PARITY = NONE • RS-232 PARITY = EVEN • RS-232 PARITY = ODD To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 193: Hardware Control
Enter/Exit Programming Mode RS-232 Hardware Control Enables/disables use of the RS-232 CTS signal for flow control and/or scan control. Options are: • Disable — The scanner transmits to the host regardless of any activity on the CTS line. • Enable CTS Flow Control — The CTS signal controls transmission of data to the host.
Page 194: Intercharacter Delay
Enter/Exit Programming Mode RS-232 Features RS-232 Intercharacter Delay Specifies delay between the end of one character and the beginning of the next in 10-millisecond increments. To set the RS-232 Intercharacter Delay: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code below, Set RS-232 Intercharacter Delay on page 184.
Page 195: Software Flow Control
Enter/Exit Programming Mode RS-232 Software Flow Control Enables/disables RS-232 Flow Control using XON/ XOFF characters. This item will be ignored when the feature, RS-232 NAK Character, is enabled NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 196: Ignore Host Commands
Enter/Exit Programming Mode RS-232 Features RS-232 Ignore Host Commands When set to ignore host commands, the scanner will ignore all host commands except for the minimum set necessary to keep the interface active, transmit labels, and transmit scale information. For normal operation of the interface, disable this feature.
Page 197: Ttl
Enter/Exit Programming Mode RS-232 TTL Specifies whether RS-232 interface provides TTL levels on the output pins TxD and RTS. Choices are: • Normal RS-232 levels • TTL levels To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 198: Ttl Invert
Enter/Exit Programming Mode RS-232 Features RS-232 TTL Invert Enables/disables inversion of TTL. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code below which represents the desired setting for this fea- ture. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 199: Beep On Ascii Bel
Enter/Exit Programming Mode RS-232 Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiv- ing an ASCII BEL (07 hex). • Disable • Enable To enable/disable this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 200: Beep After Weigh
Enter/Exit Programming Mode RS-232 Features RS-232 Beep After Weigh This feature does not apply to Adaptive Scale models. NOTE Enables/disables the ability of the scanner to beep after weight data is trans- mitted to the host. Scale interfaces that support this item are: RS-232 ICL, RS- 232 SASI, and RS-232 Single Cable.
Page 201: Beep On Not On File
Enter/Exit Programming Mode Beep on Not on File Select for the host to beep (or not) when a not-on-file condition is detected by the host. This feature is also applicable to single cable RS-232. Options for this feature are: • Muted (no beep will sound) •...
Page 202: Ack Nak Enable
Enter/Exit Programming Mode RS-232 Features RS-232 ACK NAK Enable This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...
Page 203: Ack Character
Enter/Exit Programming Mode RS-232 ACK Character This feature specifies which ASCII character will be used as an ACK character. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.
Page 204: Nak Character
Enter/Exit Programming Mode RS-232 Features RS-232 NAK Character This feature specifies which ASCII character will be used as a NAK character. DO NOT set this feature to use previously defined characters such as XON, XOFF or host commands as this will conflict with normal operation of these characters.
Page 205: Retry On Ack Nak Timeout
Enter/Exit Programming Mode RS-232 Retry on ACK NAK Timeout This option specifies the action scanner performs on expiration of the RS-232 ACK NAK Timeout Value. Options are: • Disable (transmission failure occurs) • Enable (retry) To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 206: Ack Nak Timeout Value
Enter/Exit Programming Mode RS-232 Features RS-232 ACK NAK Timeout Value This item specifies the time the scanner will wait for an ACK character from the host following a label transmission. • 0 = Infinite timeout • 1 - 75 = Timeout in 200-millisecond increments To set the ACK NAK Timeout Value: 1.
Page 207: Ack Nak Retry Count
Enter/Exit Programming Mode RS-232 ACK NAK Retry Count This feature sets the number of times for the scanner to retry a label transmis- sion under a retry condition. To set the RS-232 ACK NAK Retry Count: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 208: Ack Nak Error Handling
Enter/Exit Programming Mode RS-232 Features RS-232 ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrec- ognized host commands and communication errors such as parity or framing errors.
Page 209: Indicate Transmission Failure
Enter/Exit Programming Mode RS-232 Indicate Transmission Failure This feature enables / disables the ability of the scanner to sound a bad label beep indication when a transmission failure occurs. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 210: Single Cable Rs-232 Options
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 Options The RS-232 Single Cable interface shares some configuration options with other RS-232 interfaces. Rather than repeat them in this section as Single Cable options, please find them referenced as follows: "RS-232 Baud Rate"...
Page 211: Single Cable Rs-232 Scanner Only Protocol
Enter/Exit Programming Mode Single Cable RS-232 Scanner Only Protocol This sets the type of interface protocol that will be used in Single Cable RS-232. Options are: • Scanner/scale RS-232 protocol • Scanner only RS-232 protocol To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 212: Single Cable Rs-232 Rts Cts Selection
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 RTS CTS Selection Specifies how RTS and CTS are used to control the data flow. RTS is controlled by the Scanner and can be continuously held high/low, or can be asserted during label transmission.
Page 213 Enter/Exit Programming Mode Single Cable RS-232 RTS CTS Selection (continued) 047B04(CR) Single Cable RS-232 RTS CTS Selection = Option 4 047B05(CR) DEFAULT Single Cable RS-232 RTS CTS Selection = Option 5 Product Reference Guide...
Page 214: Single Cable Rs-232 Use Bcc
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 Use BCC Enables/disables the ability of the scanner to use BCC (Block Check Character). To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 215: Single Cable Rs-232 Use Ack/Nak
Enter/Exit Programming Mode Single Cable RS-232 Use ACK/NAK Enables/disables the ability of the scanner to use ACK/NAK. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 216: Single Cable Rs-232 Use Stx
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 Use STX Enables/disables the ability of the scanner to use STX. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 217: Set Single Cable Rs-232 Stx Character
Enter/Exit Programming Mode Set Single Cable RS-232 STX Character This feature selects the STX character. To specify the STX Character: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Single Cable RS-232 STX Character on page 207 below.
Page 218: Single Cable Rs-232 Use Etx
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 Use ETX Enables/disables the ability of the scanner to use ETX. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 219: Set Single Cable Rs-232 Etx Character
Enter/Exit Programming Mode Set Single Cable RS-232 ETX Character Allows selection of the ETX character. To specify the ETX Character: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Single Cable RS-232 ETX Character on page 209 below.
Page 220: Single Cable Rs-232 Datalogic Extensions
Enter/Exit Programming Mode Single Cable RS-232 Options Single Cable RS-232 Datalogic Extensions When Datalogic extensions are enabled, scale calibration mode information is communicated to the host. Contact Customer Support for the format of this information. Choices for this feature are: •...
Page 221: Single Cable Rs-232 Pacesetter Plus
Enter/Exit Programming Mode Single Cable RS-232 Pacesetter Plus This option enables the scanner’s ability to send Pacesetter Plus information as trailers to UPC/EAN bar codes. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 222: Usb Keyboard And Keyboard Wedge Features
Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Intercharacter Delay Specifies a time delay between characters. To set this feature: 1. Scan the USB Keyboard and Keyboard Wedge Intercharacter Delay on page bar code.
Page 223: Keyboard Wedge No Keyboard Support
Enter/Exit Programming Mode Keyboard Wedge No Keyboard Support Enables the scanner to perform host communications normally performed by an attached keyboard. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 224: Usb Keyboard And Keyboard Wedge Send Control Characters
Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Send Control Characters This feature specifies how the scanner transmits ASCII control characters to the host. Affects suffix and prefix characters. When disabled, only ASCII characters between 20H and 127H inclusive (space... delete) plus special characters 0DH (carriage return), 08H (backspace), 27H (ESC), 09H (right tab) and 0BH (left tab) are transmitted.
Page 225: Usb Keyboard And Keyboard Wedge Country Mode
Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Country Mode This feature specifies the country/language that will be supported by the key- board. 030200(CR) DEFAULT USB Keyboard and Keyboard Wedge Country Mode = USA 030201(CR) USB Keyboard and Keyboard Wedge Country Mode = Belgium 030202(CR) USB Keyboard and Keyboard Wedge Country Mode = Britain 030203(CR)
Page 226 Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Country Mode (continued) 030206(CR) USB Keyboard and Keyboard Wedge Country Mode = Italy 030207(CR) USB Keyboard and Keyboard Wedge Country Mode = Norway 030208(CR) USB Keyboard and Keyboard Wedge Country Mode = Portugal 030209(CR) USB Keyboard and Keyboard Wedge Country Mode = Spain...
Page 227 Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Country Mode (continued) 03020C(CR) USB Keyboard and Keyboard Wedge Country Mode = Japanese 106-key 03020D(CR) USB Keyboard and Keyboard Wedge Country Mode = Hungary 03020E(CR) USB Keyboard and Keyboard Wedge Country Mode = Czech Republic 03020F(CR) USB Keyboard and Keyboard Wedge Country Mode = Slovakia...
Page 228 Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Country Mode (continued) 030213 (CR) USB Keyboard and Keyboard Wedge Country Mode = French Canadian 030214 (CR) USB Keyboard and Keyboard Wedge Country Mode = Turkish Magellan™...
Page 229: Keyboard Wedge Quiet Interval
Enter/Exit Programming Mode Keyboard Wedge Quiet Interval This setting specifies the amount of time to monitor for keyboard activity before breaking the keyboard connection. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Keyboard Wedge Quiet Interval on page 219.
Page 230: Usb Keyboard And Keyboard Wedge Caps Lock State
Enter/Exit Programming Mode USB Keyboard and Keyboard Wedge Features USB Keyboard and Keyboard Wedge Caps Lock State This feature specifies the format in which the scanner sends character data. Selections are: Send character data in normal format Caps Lock OFF — Send character data in reverse case Caps Lock ON —...
Page 231: Data Editing
Data Editing Data Editing Overview These features are not supported by the USB-OEM interface. CAUTION When a bar code is scanned, additional information can be sent to the host computer along with the bar code data. This combination of bar code data and supplementary user-defined data is called a “message string.”...
Page 232: Please Keep In Mind
Enter/Exit Programming Mode Case Conversion Please Keep In Mind... • Modifying a message string is not a mandatory requirement. Data editing is a sophisticated feature allowing highly customizable output for advanced users. Factory default settings for data editing is typically set to NONE.
Page 233: Character Conversion
Enter/Exit Programming Mode Character Conversion Character conversion is an 8-byte configuration item. The 8 bytes are 4-char- acter pairs represented in hexadecimal ASCII values. The first character in the pair is the character to be converted, the second character is the character to convert to.
Page 234: Global Prefix
Enter/Exit Programming Mode Global Prefix Global Prefix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the prefix that is added to beginning of label transmission. 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the bar code, Set Global Prefix on page 224 below.
Page 235: Global Suffix
Enter/Exit Programming Mode Global Suffix This feature applies to RS-232 interfaces (Standard, Wincor-Nixdorf, and Single Cable). It specifies the suffix that is added to end of a label transmission. Three standard options are available below. Contact your dealer for other alternate settings for this feature.
Page 236: Global Aim Id Enable
Enter/Exit Programming Mode Global AIM ID Enable Global AIM ID Enable This option enables or disables the addition of the AIM ID to all bar code types except for EAN 128. To set this option: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 237: Label Id Control
Enter/Exit Programming Mode Label ID Control This feature specifies whether or not Label IDs are transmitted to the host and if so, whether to attach them as a prefix or suffix. Choices are: • Disable • Enable as a Prefix •...
Page 238: Label Id
Enter/Exit Programming Mode Label ID Label ID This feature allows the setting of custom Label ID character(s) for each available symbology type if other than the default Label ID is desired. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 239 Enter/Exit Programming Mode Label ID (continued) 002F(CR) Default Label ID for this symbology is: 45 = E Set UPC-E 2-Digit Supplemental Label ID 0030(CR) Default Label ID for this symbology is: 45 = E Set UPC-E 5-Digit Supplemental Label ID 0027(CR) Default Label ID for this symbology is: 46 = F...
Page 240 Enter/Exit Programming Mode Label ID Label ID (continued) 0034(CR) Default Label ID for this symbology is: 4646 = FF Set EAN-8 5-Digit Supplemental Label ID 0560(CR) Default Label ID for this symbology is: 47 = G Set GTIN Label ID 0561(CR) Default Label ID for this symbology is: 4732 = G2...
Page 241 Enter/Exit Programming Mode Label ID (continued) 04D8(CR) Default Label ID for this symbology is: 5258 = RX Set DataBar Expanded Label ID 0367(CR) Default Label ID for this symbology is: 5258 = RX Set DataBar Expanded Composite Label ID 0035(CR) Default Label ID for this symbology is: 2A = * Code 39 Label ID...
Page 242 Enter/Exit Programming Mode Label ID Label ID (continued) 0036(CR) Default Label ID for this symbology is: 69 = i I 2 of 5 Label ID 0037(CR) Default Label ID for this symbology is: 25 = % Codabar Label ID 0038(CR) Default Label ID for this symbology is: 26 = &...
Page 243: Symbologies
Enter/Exit Programming Mode 2D Symbologies 0105(CR) Default Label ID for this symbology is: 446D = Dm Data Matrix Label ID 05A9(CR) Default Label ID for this symbology is: 50 = P PDF 417 Label ID 0353(CR) Default Label ID for this symbology is: 6D50 = mP Micro PDF 417 Label ID 03DC(CR)
Page 244: Global Mid-Label Id
Enter/Exit Programming Mode Global Mid-Label ID Global Mid-Label ID This feature specifies a global mid-label ID that is added between two bar codes for transmission. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the Set Global Mid-Label ID on page 234 bar code below.
Page 245: Symbology Programming
1D Symbology Programming 1D Symbologies If the scanner’s interface type must be changed, always be sure that interface configuration is the FIRST item scanned during a program- ming session. (Selecting an interface type resets ALL other configu- ration items — including symbology programming — to the factory NOTE default for that interface type.) The following pages contain configuration information concerning the various...
Page 246: Coupon Control
Enter/Exit Programming Mode 1D Symbologies Coupon Control This feature is used to control the method of processing coupon labels. For the puposes of this feature, coupon labels are defined as: 1. UPC-A labels that start with a ‘5’ 2. GS1 DataBar Expanded labels that start with ‘8110’ The options for this setting are: •...
Page 247: Upc-A Enable
Enter/Exit Programming Mode UPC-A Enable Enables/disables the ability of the scanner to decode UPC-A labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 248: Upc-A Number System Character Transmission
Enter/Exit Programming Mode UPC-A Enable UPC-A Number System Character Transmission Enables/disables transmission of a UPC-A number system character. This feature MUST be enabled for IBM interfaces for proper function. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 249: Upc-A Check Character Transmission
Enter/Exit Programming Mode UPC-A Check Character Transmission Enables/disables transmission of a UPC-A check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 250: Upc-A Minimum Read
Enter/Exit Programming Mode UPC-A Enable UPC-A Minimum Read This feature specifies the minimum number of consecutive UPC-A decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 251: Expand Upc-A To Ean-13
Enter/Exit Programming Mode Expand UPC-A to EAN-13 Enables/disables expansion of UPC-A labels to EAN/JAN-13. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 252: Upc-E Enable
Enter/Exit Programming Mode UPC-E Enable UPC-E Enable Enables/disables the ability of the scanner to decode UPC-E labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 253: Upc-E Number System Character Transmission
Enter/Exit Programming Mode UPC-E Number System Character Transmission Enables/disables transmission of a UPC-E number system character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 254: Upc-E Check Character Transmission
Enter/Exit Programming Mode UPC-E Enable UPC-E Check Character Transmission Enables/disables transmission of a UPC-E check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 255: Expand Upc-E To Upc-A
Enter/Exit Programming Mode Expand UPC-E to UPC-A Enables/disables expansion of UPC-E labels to UPC-A. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 256: Expand Upc-E To Ean-13
Enter/Exit Programming Mode UPC-E Enable Expand UPC-E to EAN-13 Enables/disables expansion of UPC-E labels to EAN/JAN-13. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 257: Upc-E Minimum Read
Enter/Exit Programming Mode UPC-E Minimum Read This feature specifies the minimum number of consecutive UPC-E decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 258: Enable
Enter/Exit Programming Mode EAN-13 Enable EAN-13 Enable Enables/disables the ability of the scanner to decode EAN/JAN-13 labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 259: First Character Transmission
Enter/Exit Programming Mode EAN-13 First Character Transmission Enables/disables transmission of EAN/JAN-13 first character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 260: Check Character Transmission
Enter/Exit Programming Mode EAN-13 Enable EAN-13 Check Character Transmission Enables/disables transmission of an EAN/JAN-13 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 261: Isbn Conversion Enable
Enter/Exit Programming Mode EAN-13 ISBN Conversion Enable Enables/disables conversion of EAN/JAN-13 labels starting with 978 to Bookland ISBN labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 262: Minimum Read
Enter/Exit Programming Mode EAN-13 Enable EAN-13 Minimum Read This feature specifies the minimum number of consecutive EAN-13 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 263: Enable
Enter/Exit Programming Mode EAN-8 Enable Enables/disables the ability of the scanner to decode EAN/JAN-8 labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 264: Check Character Transmission
Enter/Exit Programming Mode EAN-8 Enable EAN-8 Check Character Transmission Enables/disables transmission of an EAN/JAN-8 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 265: Expand Ean-8 To Ean-13
Enter/Exit Programming Mode Expand EAN-8 to EAN-13 Enables/disables expansion of EAN/JAN-8 labels to EAN/JAN-13. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 266: Minimum Read
Enter/Exit Programming Mode EAN-8 Enable EAN-8 Minimum Read This feature specifies the minimum number of consecutive EAN-8 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 267: Guard Insertion
Enter/Exit Programming Mode EAN-8 Guard Insertion This setting enables the insertion of either a missing leading or trailing guard to a scanned bar code. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 268: Guard Substitution
Enter/Exit Programming Mode EAN-8 Enable EAN-8 Guard Substitution This setting enables the scanner to substitute a guard pattern for even-parity 6 for EAN8/JAN8 labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 269: Stitch Exact Label Halves
Enter/Exit Programming Mode EAN-8 Stitch Exact Label Halves This setting enables the stitching of exact EAN-8 label halves with no overlap- ping characters. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 270: Stitch Unlike Label Halves
Enter/Exit Programming Mode EAN-8 Enable EAN-8 Stitch Unlike Label Halves This setting enables the stitching of two EAN-8 label halves together that may have different characters. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 271: Other Upc/Ean Options
Enter/Exit Programming Mode Other UPC/EAN Options The following pages contain other selectable features for UPC/EAN symbolo- gies: • In-Store Printed Label Minimum Read on page 262 • UPC/EAN Reconstruction on page 263 • UPC/EAN Correlation on page 264 • UPC/EAN Guard Insertion on page 265 •...
Page 272: In-Store Printed Label Minimum Read
Enter/Exit Programming Mode Other UPC/EAN Options In-Store Printed Label Minimum Read This feature specifies the minimum number of consecutive In-Store Printed Label decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 273: Upc/Ean Reconstruction
Enter/Exit Programming Mode UPC/EAN Reconstruction Enables/disables the ability of the scanner to decode a class of UPC/EAN labels with voids. The label voids may be caused by printing defects or physical dam- age. This feature may be helpful in environments with in-store printed labels. Enabling this feature increases the potential of misreads.
Page 274: Upc/Ean Correlation
Enter/Exit Programming Mode Other UPC/EAN Options UPC/EAN Correlation Enables/disables character correlation for UPC/EAN. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 275: Upc/Ean Guard Insertion
Enter/Exit Programming Mode UPC/EAN Guard Insertion This setting enables the insertion of either a missing leading or trailing guard to a scanned bar code. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 276: Upc/Ean Stitch Exact Label Halves
Enter/Exit Programming Mode Other UPC/EAN Options UPC/EAN Stitch Exact Label Halves This setting enables the stitching of exact UPC-A/EAN-13 label halves with no overlapping characters. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 277: Upc/Ean Stitch Unlike Label Halves
Enter/Exit Programming Mode UPC/EAN Stitch Unlike Label Halves This setting enables the stitching of two UPC-A/EAN-13 label halves together that may have different characters. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 278: Upc/Ean Minimum Segment Length
Enter/Exit Programming Mode Other UPC/EAN Options UPC/EAN Minimum Segment Length This feature specifies the minimum number of characters needed in a UPC/EAN segment in order to be accepted for decoding. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 279 Enter/Exit Programming Mode UPC/EAN Minimum Segment Length (continued) 048F0A(CR) UPC/EAN Minimum Segment Length = 10 Characters 048F0B(CR) UPC/EAN Minimum Segment Length = 11 Characters 048F0C(CR) UPC/EAN Minimum Segment Length = 12 Characters 048F0D(CR) UPC/EAN Minimum Segment Length = 13 Characters 048F0E(CR) UPC/EAN Minimum Segment Length = 14 Characters 048F0F(CR)
Page 280: Price Weight Check
Enter/Exit Programming Mode Other UPC/EAN Options Price Weight Check Enables/disables calculation and verification of price/weight check digits. Applies to all UPC-A and EAN/JAN-13 labels with eligible Number System/First Character digits. Options are: • Disable • 4-digit price/weight • 5-digit price/weight •...
Page 281 Enter/Exit Programming Mode Price Weight Check (continued) 005C03(CR) Price Weight Check = 4-digit European price/weight 005C04(CR) Price Weight Check = 5-digit European price/weight Product Reference Guide...
Page 282: Enable Ean Two Label
Enter/Exit Programming Mode Other UPC/EAN Options Enable EAN Two Label Enables/disables the ability of the scanner to decode EAN two-label pairs. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 283: Ean Two Label Minimum Read
Enter/Exit Programming Mode EAN Two Label Minimum Read This feature specifies the minimum number of consecutive EAN Two Label decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 284: Addons
Enter/Exit Programming Mode Other UPC/EAN Options Addons The scanner is capable of processing different types of addon codes, including: • 2-Digit Supplemental • 5-Digit Supplemental Options are provided on the following pages for your convenience: • Disable all addons — The scanner will not look for or read addons. •...
Page 285 Enter/Exit Programming Mode P2 Addon Minimum Read This feature specifies the minimum number of times a P2 addon must decode before it is marked valid. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan the barcode representing the desired option on this and the following page.
Page 286 Enter/Exit Programming Mode Other UPC/EAN Options P2 Addon Minimum Read (continued) 005F07(CR) P2 Addon Minimum Read = 7 005F08(CR) P2 Addon Minimum Read = 8 005F09(CR) P2 Addon Minimum Read = 9 005F0A(CR) P2 Addon Minimum Read = 10 005F0B(CR) P2 Addon Minimum Read = 11 005F0C(CR) P2 Addon Minimum Read = 12...
Page 287 Enter/Exit Programming Mode P2 Addon Minimum Read (continued) 005F0E(CR) P2 Addon Minimum Read = 14 005F0F(CR) P2 Addon Minimum Read = 15 Product Reference Guide...
Page 288 Enter/Exit Programming Mode Other UPC/EAN Options P5 Addon Minimum Read This feature specifies the minimum number of times a P5 addon must decode before it is marked valid. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 289 Enter/Exit Programming Mode P5 Addon Minimum Read (continued) 007D07(CR) P5 Addon Minimum Read = 7 007D08(CR) P5 Addon Minimum Read = 8 007D09(CR) P5 Addon Minimum Read = 9 007D0A(CR) P5 Addon Minimum Read = 10 007D0B(CR) P5 Addon Minimum Read = 11 007D0C(CR) P5 Addon Minimum Read = 12 007D0D(CR)
Page 290 Enter/Exit Programming Mode Other UPC/EAN Options P5 Addon Minimum Read (continued) 007D0E(CR) P5 Addon Minimum Read = 14 007D0F(CR) P5 Addon Minimum Read = 15 Magellan™ 9800i Scanner...
Page 291: Gtin Enable
Enter/Exit Programming Mode GTIN Enable Enables/Disables the ability to convert UPCE, UPCA, EAN8, and EAN13 labels into the GTIN 14-character format. If add-on information is present on the base label prior to the conversion taking place, the add-on information will be appended to the converted GTIN barcode.
Page 292: Gs1 Databar
Enter/Exit Programming Mode GS1 DataBar GS1 DataBar The symbology family, GS1 DataBar , was formerly known as Reduced Space Symbology (RSS). For the purpose of simplicity, GS1 DataBar variants are listed in this manual as “DataBar.” DataBar Omnidirectional Enable Enables/disables the ability of the scanner to decode DataBar Omnidirectional labels.
Page 293: Databar Omnidirectional/Ean-128 Emulation
Enter/Exit Programming Mode DataBar Omnidirectional/EAN-128 Emulation Enables/disables the ability of DataBar Omnidirectional to be transmitted as EAN-128. 1. To set this feature: 2. Scan the ENTER/EXIT Programming Mode bar code. 3. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 294: Databar Omnidirectional 2D Component Enable
Enter/Exit Programming Mode DataBar Omnidirectional Enable DataBar Omnidirectional 2D Component Enable When this feature is enabled, the software will not decode an DataBar Omnidi- rectional barcode with a 2D component associated with it, and the 2D compo- nent will be discarded. To set this feature: 1.
Page 295: Databar Omnidirectional Minimum Read
Enter/Exit Programming Mode DataBar Omnidirectional Minimum Read This feature specifies the minimum number of consecutive DataBar Omnidirec- tional decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 296: Databar Expanded Enable
Enter/Exit Programming Mode DataBar Expanded Enable DataBar Expanded Enable Enables/disables the ability of the scanner to decode DataBar Expanded labels. This value-added feature is a factory-programmed option. Contact your dealer for information about upgrading your system to include this advanced capability. NOTE To set this feature: 1.
Page 297: Databar Expanded Ean-128 Emulation
Enter/Exit Programming Mode DataBar Expanded EAN-128 Emulation Enables/disables EAN 128 emulation for DataBar Expanded. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 298: Databar Expanded 2D Component Enable
Enter/Exit Programming Mode DataBar Expanded Enable DataBar Expanded 2D Component Enable When this feature is enabled, the software will not decode an DataBar Expanded barcode with a 2D component associated with it, and the 2D component will be discarded. To set this feature: 1.
Page 299: Databar Expanded Minimum Read
Enter/Exit Programming Mode DataBar Expanded Minimum Read This feature specifies the minimum number of consecutive DataBar Expanded decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 300: Databar Expanded Length Control
Enter/Exit Programming Mode DataBar Expanded Enable DataBar Expanded Length Control This feature specifies either variable-length or fixed-length decoding for DataBar Expanded. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 301: Databar Expanded Length 1
Enter/Exit Programming Mode DataBar Expanded Length 1 Length 1 is the minimum label length if in variable length mode, or the first fixed length if in fixed length mode. Length includes the bar code's data char- acters only. To set this feature: 1.
Page 302: Databar Expanded Length 2
Enter/Exit Programming Mode DataBar Expanded Enable DataBar Expanded Length 2 Length 2 is the maximum label length if in variable length mode, or the second fixed length if in fixed length mode. Length includes the barcode's data char- acters only. When in Fixed Length mode, if Length 2 is set to the value of 00 (zero), then only Length 1 will apply.
Page 303: Code 39 Enable
Enter/Exit Programming Mode Code 39 Enable Enables/disables the ability of the scanner to decode Code 39 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 304: Code 39 Start Stop Character Transmission
Enter/Exit Programming Mode Code 39 Enable Code 39 Start Stop Character Transmission Enables/disables transmission of Code 39 start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 305: Code 39 Check Character Calculation
Enter/Exit Programming Mode Code 39 Check Character Calculation Enables/disables calculation and verification of an optional Code 39 check character. When disabled, any check character in label is treated as a data char- acter. If check calculation is disabled, the risk is increased that a misread can occur.
Page 306: Code 39 Check Character Transmission
Enter/Exit Programming Mode Code 39 Enable Code 39 Check Character Transmission Enables/disables transmission of optional Code 39 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 307: Code 39 Full Ascii
Enter/Exit Programming Mode Code 39 Full ASCII Enables/disables the ability of the scanner to translate to Code 39 full ASCII labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 308: Code 39 Minimum Read
Enter/Exit Programming Mode Code 39 Enable Code 39 Minimum Read This feature specifies the minimum number of consecutive Code 39 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 309: Code 39 Correlation
Enter/Exit Programming Mode Code 39 Correlation Enables/disables character correlation for Code 39. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 310: Code 39 Length Control
Enter/Exit Programming Mode Code 39 Enable Code 39 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 39. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 311: Code 39 Length 1
Enter/Exit Programming Mode Code 39 Length 1 If Code 39 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 39 first fixed length. If Code 39 Length Control is set to Variable- Length decoding, this feature specifies the minimum label length. To set this feature: 1.
Page 312: Code 39 Length 2
Enter/Exit Programming Mode Code 39 Enable Code 39 Length 2 If Code 39 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 39 second fixed length. If Code 39 Length Control is set to Variable- Length decoding, this feature specifies the maximum label length. When in Fixed Length mode, if Length 2 is set to the value of 00, then only Length 1 will apply NOTE...
Page 313: Code 39 Stitching
Enter/Exit Programming Mode Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 314: Code 39 Require Margins
Enter/Exit Programming Mode Code 39 Enable Code 39 Require Margins Enables/disables the requirement that quiet zones be present in a Code 39 bar code. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 315: Code 32 Italian Pharmacode Enable
Enter/Exit Programming Mode Code 32 Italian Pharmacode Enable Enables/disables the ability of the scanner to decode Italian Pharmaceutical Code 39 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 316: Code 32 Start Stop Character Transmission
Enter/Exit Programming Mode Code 32 Italian Pharmacode Enable Code 32 Start Stop Character Transmission Enables/ disables transmission of start and stop characters for Code 32. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 317: Code 32 Check Character Transmission
Enter/Exit Programming Mode Code 32 Check Character Transmission Enables/disables transmission of Code 32 check character. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 318: Code 128 Enable
Enter/Exit Programming Mode Code 128 Enable Code 128 Enable Enables/disables the ability of the scanner to decode Code 128 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 319: Code 128 Transmit Function Characters
Enter/Exit Programming Mode Code 128 Transmit Function Characters Enables/disables transmission of Code 128 function characters 1, 2, 3, and 4. Disabled is the recommended setting for all interfaces. NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 320: Expand Code128 To Code 39
Enter/Exit Programming Mode Code 128 Enable Expand Code128 to Code 39 Enables/disables expansion of Code 128 labels to Code 39. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 321: Code 128 Minimum Read
Enter/Exit Programming Mode Code 128 Minimum Read This feature specifies the minimum number of consecutive Code 128 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 322: Code 128 Correlation
Enter/Exit Programming Mode Code 128 Enable Code 128 Correlation Enables/disables character correlation for Code 128. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 323: Code 128 Length Control
Enter/Exit Programming Mode Code 128 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 128. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 324: Code 128 Length 1
Enter/Exit Programming Mode Code 128 Enable Code 128 Length 1 If Code 128 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 128 first fixed length. If Code 128 Length Control is set to Variable- Length decoding, this feature specifies the minmum label length. To set this feature: 1.
Page 325: Code 128 Length 2
Enter/Exit Programming Mode Code 128 Length 2 If Code 128 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 128 second fixed length. If Code 128 Length Control is set to Vari- able-Length decoding, this feature specifies the maximum label length. When in Fixed Length mode, if Length 2 is set to the value of 00 (zero), then only Length 1 will apply.
Page 326: Code 128 Stitching
Enter/Exit Programming Mode Code 128 Enable Code 128 Stitching Enables/disables stitching for Code 128 labels. When parts of a Code 128 bar- code are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 327: Enable
Enter/Exit Programming Mode EAN-128 Enable Enables/disables the ability of the scanner to translate EAN128 labels to the EAN128 data format. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 328: Interleaved 2 Of 5 (I 2 Of 5) Enable
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 OF 5) Enable Interleaved 2 of 5 (I 2 OF 5) Enable Enables/disables the ability of the scanner to decode Interleaved 2 of 5 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 329: I 2 Of 5 Check Character Calculation
Enter/Exit Programming Mode I 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Interleaved 2 of 5 check character. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check characters in a barcode are treated as data charac- ters.
Page 330: I 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Check Character Transmission Enables/disables transmission of an optional Interleaved 2 of 5 check charac- ter. This feature applies only when I 2 of 5 Check Character Cal- culation is enabled.
Page 331: I 2 Of 5 Minimum Read
Enter/Exit Programming Mode I 2 of 5 Minimum Read This feature specifies the minimum number of consecutive I 2 of 5 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 332: I 2 Of 5 Correlation
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Correlation Enables/disables character correlation for I 2 of 5. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 333: I 2 Of 5 Length Control
Enter/Exit Programming Mode I 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for I 2 of 5. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 334: I 2 Of 5 Length 1
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Length 1 If I 2 of 5 Length Control is set to Fixed-Length decoding, this feature specifies I 2 of 5 first fixed length. If I 2 of 5 Length Control is set to Variable-Length decoding, this feature specifies the minimum label length.
Page 335: I 2 Of 5 Length 2
Enter/Exit Programming Mode I 2 of 5 Length 2 If I 2 of 5 Length Control is set to Fixed-Length decoding, this feature specifies I 2 of 5 second fixed length. If I 2 of 5 Length Control is set to Variable-Length decoding, this feature specifies the maximum label length.
Page 336: I 2 Of 5 Stitching
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 OF 5) Enable I 2 of 5 Stitching Enables/disables stitching for I 2 of 5 labels. When parts of an I 2 of 5 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 337: Codabar Enable
Enter/Exit Programming Mode Codabar Enable Enables/disables the ability of the scanner to decode Codabar labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 338: Codabar Start Stop Character Transmission
Enter/Exit Programming Mode Codabar Enable Codabar Start Stop Character Transmission Enables/disables transmission of Codabar start and stop characters. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 339: Codabar Start Stop Character Set
Enter/Exit Programming Mode Codabar Start Stop Character Set This feature specifies the format of transmitted Codabar start/stop characters. Options are: • ABCD/TN* E • ABCD/ABCD • abcd/tn* e • abcd/abcd To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 340: Codabar Start Stop Character Match
Enter/Exit Programming Mode Codabar Enable Codabar Start Stop Character Match Enables/disables the requirement that start and stop characters match. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 341: Codabar Check Character Calculation
Enter/Exit Programming Mode Codabar Check Character Calculation Enables/disables calculation and verification of an optional Codabar check character. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check characters in a barcode are treated as data charac- ters.
Page 342: Codabar Check Character Transmission
Enter/Exit Programming Mode Codabar Enable Codabar Check Character Transmission Enables/disables transmission of an optional Codabar check character. Applies only when Codabar Check Character Calculation is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 343: Codabar Minimum Read
Enter/Exit Programming Mode Codabar Minimum Read This feature specifies the minimum number of consecutive Codabar decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 344: Codabar Correlation
Enter/Exit Programming Mode Codabar Enable Codabar Correlation Enables/disables character correlation for Codabar. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 345: Codabar Length Control
Enter/Exit Programming Mode Codabar Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Codabar. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 346: Codabar Length 1
Enter/Exit Programming Mode Codabar Enable Codabar Length 1 If Codabar Length Control is set to Fixed-Length decoding, this feature speci- fies Codabar first fixed length. If Codabar Length Control is set to Variable- Length decoding, this feature specifies the minimum label length. To set this feature: 1.
Page 347: Codabar Length 2
Enter/Exit Programming Mode Codabar Length 2 If Codabar Length Control is set to Fixed-Length decoding, this feature speci- fies Codabar second fixed length. If Codabar Length Control is set to Variable- Length decoding, this feature specifies the maximum label length. When in Fixed Length mode, if Length 2 is set to the value of 00 (zero), then only Length 1 will apply.
Page 348: Codabar Stitching
Enter/Exit Programming Mode Codabar Enable Codabar Stitching Enables/disables stitching for Codabar labels. When parts of a Codabar barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 349: Codabar Require Margins
Enter/Exit Programming Mode Codabar Require Margins Enables/disables the requirement that quiet zones be present in a Codabar bar code. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 350: Code 93 Enable
Enter/Exit Programming Mode Code 93 Enable Code 93 Enable Enables/disables the ability of the scanner to decode Code 93 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 351: Code 93 Minimum Read
Enter/Exit Programming Mode Code 93 Minimum Read This feature specifies the minimum number of consecutive Code 93 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 352: Code 93 Correlation
Enter/Exit Programming Mode Code 93 Enable Code 93 Correlation Enables/disables character correlation for Code 93. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 353: Code 93 Length Control
Enter/Exit Programming Mode Code 93 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Code 93. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 354: Code 93 Length 1
Enter/Exit Programming Mode Code 93 Enable Code 93 Length 1 If Code 93 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 93 first fixed length. If Code 93 Length Control is set to Variable- Length decoding, this feature specifies the minimum label length. To set this feature: 1.
Page 355: Code 93 Length 2
Enter/Exit Programming Mode Code 93 Length 2 If Code 93 Length Control is set to Fixed-Length decoding, this feature speci- fies Code 93 second fixed length. If Code 93 Length Control is set to Variable- Length decoding, this feature specifies the maximum label length. When in Fixed Length mode, if Fixed Length 2 is set to the value of 00 (zero), then only Length 1 will apply.
Page 356: Code 93 Stitching
Enter/Exit Programming Mode Code 93 Enable Code 93 Stitching Enables/disables stitching for Code 93 labels. When parts of a Code 93 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 357: Msi Enable
Enter/Exit Programming Mode MSI Enable Enables/disables the ability of the scanner to decode MSI labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 358: Msi Check Character Calculation
Enter/Exit Programming Mode MSI Enable MSI Check Character Calculation Enables/disables calculation and verification of optional MSI check characters. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check characters in a barcode are treated as data charac- ters.
Page 359: Msi Number Of Check Characters
Enter/Exit Programming Mode MSI Number of Check Characters Specifies number of MSI check characters to be calculated and verified. Check characters are always modulus 10. NOTE To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan the barcode below representing the desired number of MSI check characters to be calculated and verified.
Page 360: Msi Check Character Transmission
Enter/Exit Programming Mode MSI Enable MSI Check Character Transmission Enables/disables transmission of optional MSI check characters. This feature applies only when MSI Check Character Cal- culation on page 348 is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled. NOTE To set this feature: 1.
Page 361: Msi Minimum Read
Enter/Exit Programming Mode MSI Minimum Read This feature specifies the minimum number of consecutive MSI decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 362: Msi Correlation
Enter/Exit Programming Mode MSI Enable MSI Correlation Enables/disables character correlation for MSI. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 363: Msi Length Control
Enter/Exit Programming Mode MSI Length Control This feature specifies whether variable-length or fixed-length decoding will be set for MSI. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan your selection from the barcodes below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 364: Msi Length 1
Enter/Exit Programming Mode MSI Enable MSI Length 1 If MSI Length Control is set to Fixed-Length decoding, this feature specifies MSI first fixed length. If MSI Length Control is set to Variable-Length decoding, this feature specifies the minimum label length. To set this feature: 1.
Page 365: Msi Length 2
Enter/Exit Programming Mode MSI Length 2 If MSI Length Control is set to Fixed-Length decoding, this feature specifies MSI second fixed length. If MSI Length Control is set to Variable-Length decoding, this feature specifies the maximum label length. When in Fixed Length mode, if Length 2 is set to the value 00 (zero), then only Length 1 will apply.
Page 366: Msi Stitching
Enter/Exit Programming Mode MSI Enable MSI Stitching Enables/disables stitching for MSI labels. When parts of an MSI barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all bar- code proofing requirements are met.
Page 367: Standard 2 Of 5 Enable
Enter/Exit Programming Mode Standard 2 of 5 Enable Enables/disables the ability of the scanner to decode Standard 2 of 5 labels. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 368: Standard 2 Of 5 Check Character Calculation
Enter/Exit Programming Mode Standard 2 of 5 Enable Standard 2 of 5 Check Character Calculation Enables/disables calculation and verification of an optional Standard 2 of 5 check character. If check character calculation is disabled, the risk is increased that a misread can occur. When disabled, any check character in a barcode is treated as data character.
Page 369: Standard 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Standard 2 of 5 Check Character Transmission Enables/disables transmission of an optional Standard 2 of 5 check character. This feature applies only when Standard 2 of 5 Check Character Calculation on page 358 is enabled. This item is ignored when the advanced feature, Full Label Edit, is enabled.
Page 370: Standard 2 Of 5 Minimum Read
Enter/Exit Programming Mode Standard 2 of 5 Enable Standard 2 of 5 Minimum Read This feature specifies the minimum number of consecutive Standard 2 of 5 decodes before is accepted as good read. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 371: Standard 2 Of 5 Correlation
Enter/Exit Programming Mode Standard 2 of 5 Correlation Enables/disables character correlation for Standard 2 of 5. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2. Scan either the enable or disable barcode below. You’ll need to cover any unused barcodes on this and the facing page to ensure that the scanner reads only the barcode you intend to scan.
Page 372: Standard 2 Of 5 Length Control
Enter/Exit Programming Mode Standard 2 of 5 Enable Standard 2 of 5 Length Control This feature specifies whether variable-length or fixed-length decoding will be set for Standard 2 of 5. To set this feature: 1. Scan the ENTER/EXIT Programming Mode bar code. 2.
Page 373: Standard 2 Of 5 Length 1
Enter/Exit Programming Mode Standard 2 of 5 Length 1 If Standard 2 of 5 Length Control is set to Fixed-Length decoding, this feature specifies Standard 2 of 5 first fixed length. If Standard 2of 5 Length Control is set to Variable-Length decoding, this feature specifies the minimum label length.
Page 374: Standard 2 Of 5 Length 2
Enter/Exit Programming Mode Standard 2 of 5 Enable Standard 2 of 5 Length 2 If Standard 2 of 5 Length Control is set to Fixed-Length decoding, this feature specifies Standard 2 of 5 second fixed length. If Standard 2of 5 Length Control is set to Variable-Length decoding, this feature specifies the maximum label length.
Page 375: Standard 2 Of 5 Stitching
Enter/Exit Programming Mode Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 labels. When parts of a Standard 2 of 5 barcode are presented to the scanner with this feature enabled, the bar- code parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 376 Enter/Exit Programming Mode Standard 2 of 5 Enable NOTES Magellan™ 9800i Scanner...
Page 377: Symbology Programming
2D Symbology Programming 2D Symbologies If the scanner’s interface type must be changed, always be sure that interface configuration is the FIRST item scanned during a programming session. (Selecting an interface type resets ALL other configuration items — including symbology programming NOTE —...
Page 378: Data Matrix Enable
Enter/Exit Programming Mode Data Matrix Enable Data Matrix Enable Enables/disables the ability of the scanner to decode Data Matrix labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 379: Data Matrix Length Control
Enter/Exit Programming Mode Data Matrix Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 380: Data Matrix Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode Data Matrix Enable Data Matrix Length 1, Length 2 Programming Instructions If Data Matrix Length Control is set to Fixed-Length decoding, this feature specifies Data Matrix first fixed length. If Data Matrix Length Control is set to Variable-Length decoding, this feature specifies the minimum label length.
Page 381: Pdf 417 Enable
Enter/Exit Programming Mode PDF 417 Enable Enablesthe processing of PDF417 labels read by a handheld scanner attached to the auxiliary port. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 382: Pdf 417 Length Control
Enter/Exit Programming Mode PDF 417 Enable PDF 417 Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 383: Pdf 417 Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode PDF 417 Length 1, Length 2 Programming Instructions If PDF417 Length Control is set to Fixed-Length decoding, this feature specifies PDF417 first fixed length. If PDF417 Length Control is set to Variable-Length decoding, this feature specifies the minimum label length. This tag is only valid for units with a model id that sup- ports PDF.
Page 384: Pdf 417 Read Option
Enter/Exit Programming Mode PDF 417 Read Option PDF 417 Read Option This feature specifies an additional read control option for PDF 417 bar codes. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 385: Micro Pdf 417 Enable
Enter/Exit Programming Mode Micro PDF 417 Enable Enables/disables the ability of the scanner to decode Micro PDF 417 labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 386: Micro Pdf 417 Length Control
Enter/Exit Programming Mode Micro PDF 417 Enable Micro PDF 417 Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 387: Micro Pdf 417 Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode Micro PDF 417 Length 1, Length 2 Programming Instructions If Micro PDF 417 Length Control is set to Fixed-Length decoding, this feature specifies Micro PDF 417 first fixed length. If Micro PDF 417 Length Control is set to Variable-Length decoding, this feature specifies the minimum label length.
Page 388: Micro Pdf 417 128 Emulation
Enter/Exit Programming Mode Micro PDF 417 128 Emulation Micro PDF 417 128 Emulation This feature specifies which AIM ID to use for Micro PDF 417 labels when per- forming Code 128 or EAN 128 emulation. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2.
Page 389: Qr Code Enable
Enter/Exit Programming Mode QR Code Enable Enables/disables the ability of the scanner to decode QRCode labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 390: Qr Code Length Control
Enter/Exit Programming Mode QR Code Enable QR Code Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 391: Qr Code Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode QR Code Length 1, Length 2 Programming Instructions If QR Code Length Control is set to Fixed-Length decoding, this feature speci- fies QR Code first fixed length. If QR Code Length Control is set to Variable- Length decoding, this feature specifies the minimum label length. Length 1 is the minimum label length if in variable length mode, or the first fixed length if in fixed length mode.
Page 392: Micro Qr Code Enable
Enter/Exit Programming Mode Micro QR Code Enable Micro QR Code Enable Enables/disables the ability of the scanner to decode Micro QRCode labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 393: Micro Qr Code Length Control
Enter/Exit Programming Mode Micro QR Code Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 394: Micro Qr Code Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode Micro QR Code Enable Micro QR Code Length 1, Length 2 Programming Instructions If Micro QR Code Length Control is set to Fixed-Length decoding, this feature specifies Micro QR Code first fixed length. If Micro QR Code Length Control is set to Variable-Length decoding, this feature specifies the minimum label length.
Page 395: Aztec Enable
Enter/Exit Programming Mode Aztec Enable Enables/disables the ability of the scanner to decode Aztec labels. To set this feature: 1. Scan the Enter/Exit Programming Mode bar code. 2. Scan either the enable or disable bar code below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 396: Aztec Length Control
Enter/Exit Programming Mode Aztec Enable Aztec Length Control When fixed length decoding is enabled, the scanner Fixed Length Decoding — will decode a bar code if the label length matches one of the configurable fixed lengths. When variable length decoding is enabled, the scan- Variable Length Decoding —...
Page 397: Aztec Length 1, Length 2 Programming Instructions
Enter/Exit Programming Mode Aztec Length 1, Length 2 Programming Instructions If Aztec Length Control is set to Fixed-Length decoding, this feature specifies Aztec first fixed length. If Aztec Length Control is set to Variable-Length decoding, this feature specifies the minimum label length. Length 1 is the minimum label length if in variable length mode, or the first fixed length if in fixed length mode.
Page 398 NOTES Magellan™ 9800i Scanner...
Page 399: Led/Audio Indications & Controls
Appendix A LED/Audio Indications & Controls Good Read Indicators The scanner features two prominent LED indicator bars on top of its vertical “bonnet” as well as another highly visible LED indicator for indicating Mobile Commerce reading activities atop the Top Down Reader (if a TDR is present). Figure 48.
Page 400: Controls And Indicators
Controls and Indicators Two panels on either side of the vertical scan windows contain control buttons and more LED indicators. Additionally, a configurable speaker is used to sound scanning, weighing and EAS deactivation indications. Figure 49. Control Buttons and Indicator LEDs Scale Indicator LED (Yellow) EAS Indicator LED (Red/Green/Orange) Scale Zero Button...
Page 401: Led And Audio Indications
Controls and Indicators LED and Audio Indications Since audio indications are configurable, your unit may not be programmed to sound all the indications as listed. For more information, see the Programming section of this manual. NOTE Scanner and Scale LEDs The Green Good Read indicator bars (Figure 48Figure 48) show scanner status,...
Page 402 Audio Indications The speaker (beeper) mounted in the scanner’s bonnet will beep or sound other audio indications to announce scanning, weighing, errors or other functions. Beep indications specific to Electronic Article Surveillance (EAS) are listed in the next section. The indications listed below are the factory default settings.
Page 403 Controls and Indicators Deactivator LED The tri-color Deactivator LED (see Figure 49) designates EAS deactivation sta- tus. The table also provides information about special beeper indications which can be sounded in response to changes in deactivation status. EAS DEACTIVATION DISABLED INDICATION LED DURATION EAS BEEPER...
Page 404: Scalesentry / Scale Service Button
Upon initiating this state Deactivation (Tri-color) LED is (pressing EAS Button for Upon EAS malfunction/failure, Deactivate flashing slowly Red. FRU Status 3 seconds): 3 high- scanning function can continue EAS System LED displays error code nine (9) pitched beeps independent of EAS if the EAS When Failed button is held for 3 seconds.
Page 405: Sensormatic Eas Button
Controls and Indicators Sensormatic EAS Button The Sensormatic EAS Button has configurable functions. Use the Programming on page 91 section to configure the button to operate always, or only function when the scanner is enabled. PRESS FUNCTION COMMENT DURATION Manually initiates EAS Place the item with the EAS tag downstream of the hori- Momentary...
Page 406: Scanner Control Button
Scanner Control Button The Scanner Control Button (item #8 in Figure 49) also performs multiple func- tions depending upon the duration of time it is pressed: Volume changes made using the Scanner Control Button are lost when the scanner is powered-down and are reset to the factory default setting.
Page 407: Scale Zero Button
Controls and Indicators Scale Zero Button The Scale Zero Button (shown in Figure 49) is used for multiple functions as listed below. The Scale Zero Button has no function in a “scanner only” model. NOTE PRESS FUNCTION COMMENT DURATION When programmed to do so, the Scale Indicator LED (see Figure 49) should be lit when no weight is on the scale, Momentary...
Page 408: Calibration Switch
Calibration Switch This switch initiates the scale’s calibration routine. A certified weight set is needed to perform the scale calibration steps detailed in Chapter 6, Calibration Procedures. This switch is not included in scanners without scale modules. Calibration Switch Seal This seal allows you to secure the Calibration Switch access cover and restrict access to the Calibration Switch.
Page 409: Cable Information
Appendix B Cable Information Introduction The following pages contain pinout information, enabling you to create stan- dard interface cables for use in interconnecting the scanner, scale, external handheld scanner, and POS terminal. General Specifications Wire Requirements • Cable length should not exceed 15 feet. •...
Page 410: External Cable Pinouts
External Cable Pinouts Connector Hardware RJ45, 10 Position AUXILIARY RS-232 EAS COMM PORT PORT Scan- External Handheld Sensormatic Control Scale IBM USB Input +5v pul- +5V pul- +5V pul- USB D+ Clear To Clear To Send CTS in Connection Send (input) (input) USB D- Connection...
Page 411: Peripheral Ports / Connectors
Peripheral Ports / Connectors Peripheral Ports / Connectors POWER REMOTE DISPLAY CABLE Hardware: 3 pin Hardware: 4 pin SDL +12 OUT +12 OUT SIGNAL GND LINE_A Line A Display 12V IN DSPLY LINE_A Line B Dis- EARTH DSPLY play Ground Product Reference Guide...
Page 412 NOTES Magellan™ 9800i Scanner...
Page 413: Keypad
Appendix C Keypad Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 414 Use the bar codes in this section to enter numbers and characters as you would select digits/characters from a keypad. Scan your selection from the bar codes below. You’ll need to cover any unused bar codes on this and the facing page to ensure that the scanner reads only the bar code you intend to scan.
Page 415: Microsd Card
Appendix D microSD Card microSDHC Compatibility At the time of this writing, the microSD card interface for this product supports SD-Memory Card Specifications/ Part 1. Physical Layer Specification; Version 1.01, but the processor MCI can communicate with SDHC Cards. For example, the scanner can perform the functions specified in this appendix for the SDA 2.0 specification.
Page 416: Microsd Card Removal
4. Carefully insert the microSD card into the slot until it "clicks" into place. The microSD card slot is spring-loaded. Keep your finger lightly in place atop the card until you are sure it is fully seated in place. See Fig- ure 51 CAUTION Use your finger or thumbnail to push in on the top edge of the card to...
Page 417: Autorun File Processing
Autorun File Processing Autorun File Processing After insertion of the card, the scanner will mount the microSD card and search for the file “AUTORUN.DLS”. Embedded in that file is a validation pattern of the ASCII strings “$START$” and “$END$” located at the respective starting and ending of the file.
Page 418: Microsd Function Details
microSD Function Details From Scanner to microSD Card Capture and save an image to a microSD card by scanning a label. 1. Insert the microSD card into the scanner 2. Scan the Capture Label The scanner enters image capture mode. 3.
Page 419 microSD Function Details Export Scanner Status to microSD card The data includes scanner ID, statistics and scanner health. By scanning a label 1. Insert the microSD card into the scanner. 2. Scan the status export label. <FNC3>STATUS<CR> 3. Upon scanner audio indication of completion, the scanner status text file named STATUS.TXT is saved to the microSD card.
Page 420: From Microsd Card To Scanner
From microSD Card to Scanner Application code load to scanner By AUTORUN.DLS file 1. Generate a text file by any text editor as follows and save it as AUTO- RUN.DLS $START$ LOADSW,R96-APP1.BIN $END$ 2. Step 2: Save or copy file AUTORUN.DLS to microSD card and copy the application code (example R96-APP1.BIN) to the microSD card.
Page 421: Host Commands
Appendix E Host Commands Accepting Commands from an RS-232 Scanner Host The scanner responds to the following RS-232 commands: COMMAND ASCII COMMENT Enable Scanner 0x45 Disable Scanner 0x44 Reset Scanner 0x52 Not On File Indication 0x46 Long series of beeps Beep Good Read Tone 0x42 Beeps if Good Read Beep is enabled...
Page 422 NOTES Magellan™ 9800i Scanner...
Page 423: Factory Defaults
Appendix F Factory Defaults The following table provides a listing of the most common factory settings for the interfaces shown. Some of the individual interfaces listed in the defaults table below appear in the same column since they share similar fea- ture settings with few (if any) exceptions.
Page 424 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Image Size on page 00 (VGA) 00 (VGA) 00 (VGA) 00 (VGA) 00 (VGA) 00 (VGA) 00 (VGA) 00 (VGA) Image Brightness on Level 0 Level 0...
Page 425 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Good Read Beep Vol- 04 (high) 04 (high) 04 (high) 04 (high) 04 (high) 04 (high) 04 (high) 04 (high) ume on page 128 Good Read When to 00 (after...
Page 426 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Auxiliary USB Mode on page 144 (disable) (disable) (disable) (disable) (disable) (disable) (disable) (disable) PIR / CT on page 145 (disable) (disable) (disable)
Page 427 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B ERI Timeout on page (20ms) (20ms) (20ms) (20ms) (20ms) (20ms) (20ms) (20ms) Interface Related Features 000 (no 000 (no 000 (no 000 (no 000 (no...
Page 428 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B RS-232 Intercharacter 00 (no 00 (no 00 (no 00 (no Delay on page 184 delay) delay) delay) delay) RS-232 Software Flow Control on page 185 (disable) (disable)
Page 429 (enable) Set Single Cable RS- 232 ETX Character on 00D (CR) 00D (CR) page 209 Single Cable RS-232 00 (std. 00 (std. Datalogic Extensions protocol) protocol) on page 210 Single Cable RS-232 00 (do 00 (do Pacesetter Plus on send)
Page 430 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B USB Keyboard and Keyboard Wedge 00 (USA) 00 (USA) Country Mode on page Keyboard Wedge Quiet Interval on page 219 (100ms) (100ms) USB Keyboard and...
Page 431 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B UPC-A Number Sys- tem Character Trans- (enable) (enable) (enable) (enable) (enable) (enable) (enable) (enable) mission on page 238 UPC-A Check Charac- ter Transmission on (enable) (enable)
Page 432 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B EAN-8 Check Charac- ter Transmission on (enable) (enable) (enable) (disable) (enable) (enable) (enable) (enable) page 254 Expand EAN-8 to EAN- 13 on page 255 (disable) (disable)
Page 433 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B EAN Two Label Mini- 01 (1 01 (1 01 (1 01 (1 01 (1 01 (1 01 (1 01 (1 mum Read on page read) read)
Page 434 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B DataBar Expanded Length 2 on page 292 Code 39 Enable on page 293 (enable) (enable) (disable) (enable) (enable) (enable) (enable) (enable) Code 39 Start Stop...
Page 435 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Code 128 Enable on page 308 (enable) (enable) (enable) (enable) (enable) (enable) (enable) (enable) Code 128 Transmit Function Characters (disable) (disable) (disable)
Page 436 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B I 2 of 5 Length 2 on page 325 I 2 of 5 Stitching on page 326 (disable) (disable) (disable) (disable) (disable)
Page 437 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Code 93 Correlation on page 342 (disable) (disable) (disable) (disable) (disable) (disable) (disable) (disable) Code 93 Length Con- trol on page 343 (variable) (variable) (variable)
Page 438 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Standard 2 of 5 Check Character Transmis- (enable) (enable) (enable) (enable) (enable) (enable) (enable) (enable) sion on page 359 Standard 2 of 5 Mini- 01 (1 01 (1...
Page 439 RS-232 RS-232 Default Key- COM / Port 17 Feature RS-232 Wincor- Single Master board USB- Port 9B Nixdorf Cable Port 5B Micro PDF 417 Length Control on page 376 (variable) (variable) (variable) (variable) (variable) (variable) (variable) (variable) Set Micro PDF 417 0001 0001 0001...
Page 440 NOTES Magellan™ 9800i Scanner...
Page 441: Handheld Data Format Requirements
Maximum label lengths will be enforced for label validation (i.e. labels lon- ger than the maximum label size will not be validated). • Standard Datalogic formats generally use a single prefix character. see specific formats section. • Maximum label size allowed including identifiers is 2714 bytes •...
Page 442: Datalogic Handheld Data Format Requirements
Datalogic Handheld Data Format Requirements The following sections describe label transmission formats that are typically observed in factory configurations of Datalogic handheld scanners. UPC-A • Number system must be included in label data • Check digit must be included in label data and is assumed to be correct •...
Page 443 UPC-E with 2-Digit Supplemental • Number system must be included in label data • Check digit must be included in label data and is assumed to be correct • Supplemental data is appended to base label • Prefix must be an ASCII character ‘E’ - total length including prefix must be 11 •...
Page 444 EAN8 with Code128 Supplemental • Check digit must be included in label data and is assumed to be correct • Supplemental data is appended to base label • Prefix must be an ASCII characters ‘FF’ - total length including prefix must be greater than 16 (code 128 supplemental codes are variable length hav- ing a minimum of 2 data characters) •...
Page 445 Code 39-Pharmacode (Code 32) • Check character must be included in label data • Label length including start, stop and check characters and excluding pre- fix character must meet requirements imposed by the main scanner’s fixed or variable label length control for this symbology type. •...
Page 446 MSI Plessey • Check character must be included in label data • Label length including check character and excluding prefix character must meet requirements imposed by the main scanner’s fixed or variable label length control for this symbology type. • Prefix must be an ASCII character ‘@’...
Page 447: Aim Formats
AIM Formats AIM specifies a 3-character string that is attached as a prefix to the label data for transmission. Because AIM specifies one identifier for UPCA, UPCE and EAN13 labels, UPCA, UPCE and EAN13 will be received from the handheld and transmitted by the scanner as EAN13.
Page 448 2-Digit Add-on • Add-on data is appended to the end of an EAN base label. • If the main label has an AIM Id prefix with the ASCII characters ']E0', the add-on data must have an AIM Id prefix with the ASCII characters ‘]E1’. •...
Page 449 Bookland • The ‘Bookland’ / ISBN code will be formatted as a vendor specific AIM label. • Prefix must be ASCII characters ‘]X0’ • Length of label data including prefix is 13. • Examples: ‘]X01234567890’ Code 39 • Check character must be included in label data •...
Page 450 GS1 DataBar Omnidirectional • Prefix must be ASCII characters ‘]e0’ • Check character must be included in label • Application identifier “01” must follow the prefix and precede the base label • Label length excluding prefix characters must be 16 characters. •...
Page 451 PDF 417 • Prefix must be ASCII characters ‘]L0’ thru ']L5' ('0' thru '5' inclusive) • Label length excluding prefix character must meet requirements imposed by the main scanner’s fixed or variable label length control for this sym- bology type. •...
Page 452 NOTES Magellan™ 9800i Scanner...
Page 453 ASCII Character Set The table on this page shows a set of ASCII characters and their corresponding Hex Values. The Hex Values in this table are needed for setting symbology specific label identifiers, as well as enabling cus- tom prefix and suffix characters. ASCII ASCII ASCII...
Page 454 © 2012-2016 Datalogic ADC, Inc. • All rights reserved. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402...

Datalogic MAGELLAN 9800i Product Reference Manual

Introduction

Manual Overview

Scanner Overview

Physical Parameters

Electrical Specifications

Labeling

Agency Compliances

Bar Codes Supported

References

Technical Support

Site Preparation and Installation

SECTION I. Pre-Installation Considerations

SECTION II. Checkstand Preparation

SECTION III. Installation

Optional Remote Scale Display

Operation and Maintenance

Scanner Maintenance

Scanner Usage

Operational Controls

Operational Modes

Additional Functions

Operational Maintenance

Tdr, Camera and Mobile Commerce

Optional TDR Feature

Camera Feature

Mobile Commerce Reader

Problem Isolation

Diagnostic Procedures

Error Codes

Scale Error Reporting

Flowcharts

Calibration Procedures

Description of Calibration Sequence

Motion Test

Automatic Zero Setting Test

Preparing the Scanner/Scale for Calibration

Calibrating the Scale (Pounds & Kilograms)

Calibration Verification (Pounds)

Calibration Verification (Kilograms)

Programming

Introduction to Label Programming

Understanding the Basics

Integrating the Scanner with Your Host System

Customizing Your Scanner's Operation

Programming Overview

Imaging Features

Top down Reader (TDR) and Mobile Commerce Imaging Features

Mobile Commerce Reader Enable

Mobile Commerce Imagers

TDR Enable

Image Camera

General Scanner and Scale Features

Remote Display - Enable/Disable

Auxiliary Port Mode

Auxiliary USB Mode

Pir / Ct

Eas Features

EAS Features - Sensormatic

EAS Features - Checkpoint

Interface Related Features

Interface Type

Maximum Host-Transmitted Message Length

IBM Features

USB OEM Interface Options

Features

Single Cable RS-232 Options

USB Keyboard and Keyboard Wedge Features

Data Editing

Data Editing Overview

Case Conversion

Character Conversion

Global Prefix

Global Suffix

Global AIM ID Enable

Label ID Control

Label ID

Global MID-Label ID

Symbology Programming

Symbologies
