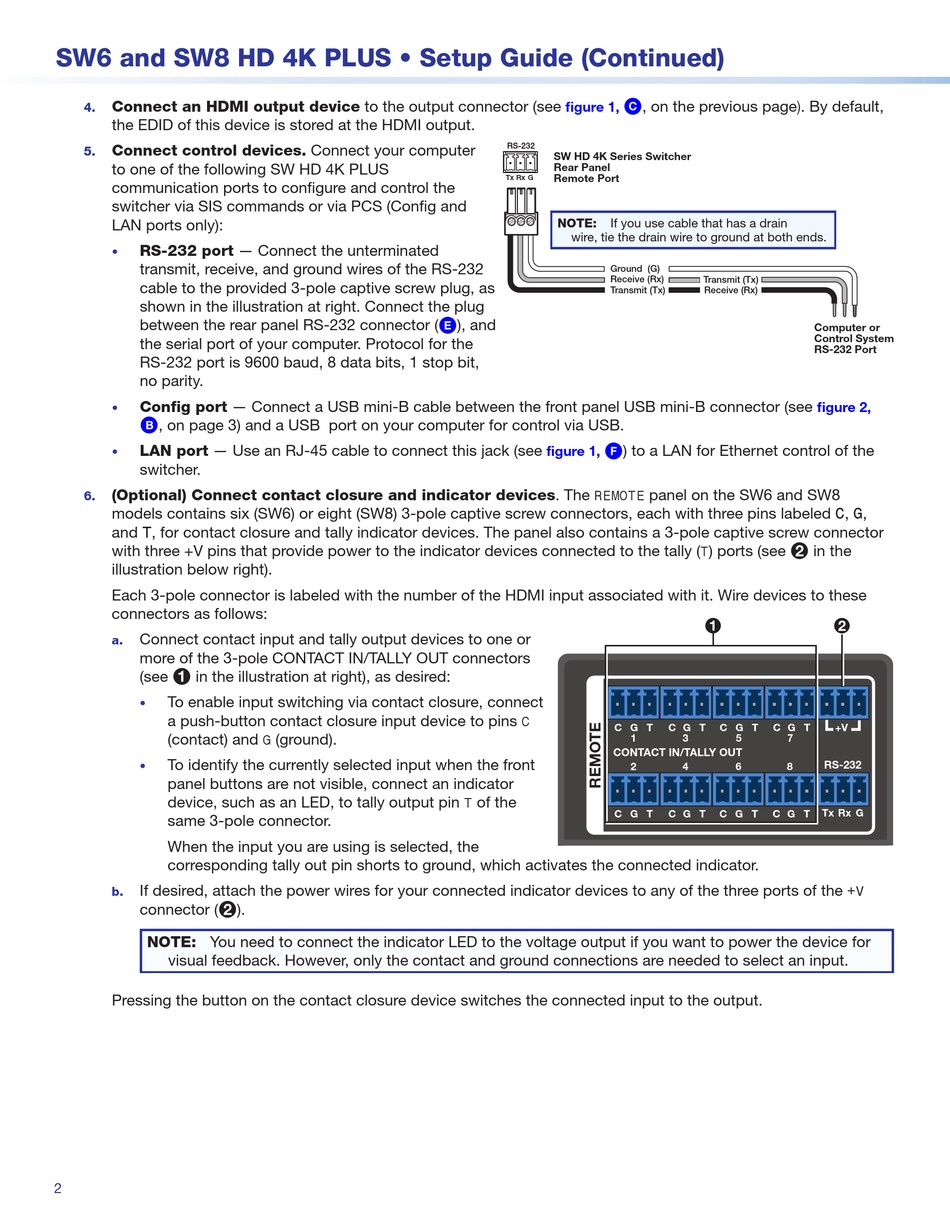

SW6 and SW8 HD 4K PLUS • Setup Guide (Continued)
Connect an HDMI output device to the output connector (see
4.
the EDID of this device is stored at the HDMI output.
Connect control devices. Connect your computer
5.
to one of the following SW HD 4K PLUS
communication ports to configure and control the
switcher via SIS commands or via PCS (Config and
LAN ports only):
RS-232 port — Connect the unterminated
•
transmit, receive, and ground wires of the RS-232
cable to the provided 3-pole captive screw plug, as
shown in the illustration at right. Connect the plug
between the rear panel RS-232 connector (
the serial port of your computer. Protocol for the
RS-232 port is 9600 baud, 8 data bits, 1 stop bit,
no parity.
Config port — Connect a USB mini-B cable between the front panel USB mini-B connector (see
•
, on page 3) and a USB port on your computer for control via USB.
B
LAN port — Use an RJ-45 cable to connect this jack (see
•
switcher.
(Optional) Connect contact closure and indicator devices. The
6.
models contains six (SW6) or eight (SW8) 3-pole captive screw connectors, each with three pins labeled C, G,
and T, for contact closure and tally indicator devices. The panel also contains a 3-pole captive screw connector
with three +V pins that provide power to the indicator devices connected to the tally (
illustration below right).
Each 3-pole connector is labeled with the number of the HDMI input associated with it. Wire devices to these
connectors as follows:
Connect contact input and tally output devices to one or
a.
more of the 3-pole CONTACT IN/TALLY OUT connectors
(see
in the illustration at right), as desired:
1
To enable input switching via contact closure, connect
•
a push-button contact closure input device to pins
(contact) and
To identify the currently selected input when the front
•
panel buttons are not visible, connect an indicator
device, such as an LED, to tally output pin
same 3-pole connector.
When the input you are using is selected, the
corresponding tally out pin shorts to ground, which activates the connected indicator.
If desired, attach the power wires for your connected indicator devices to any of the three ports of the
b.
connector (
2
NOTE: You need to connect the indicator LED to the voltage output if you want to power the device for
visual feedback. However, only the contact and ground connections are needed to select an input.
Pressing the button on the contact closure device switches the connected input to the output.
2
(ground).
G
).
figure 1,
RS-232
SW HD 4K Series Switcher
Rear Panel
Remote Port
Tx Rx G
NOTE:
If you use cable that has a drain
wire, tie the drain wire to ground at both ends.
Ground (G)
Receive (Rx)
Transmit (Tx)
E
), and
figure 1,
F
REMOTE
C
C
CONTACT IN/TALLY OUT
of the
T
C
, on the previous page). By default,
C
Transmit (Tx)
Receive (Rx)
) to a LAN for Ethernet control of the
panel on the SW6 and SW8
) ports (see
2
T
1 1
G
T
C
G
T
C
G
T
C
G
1
3
5
7
2
4
6
8
G
T
C
G
T
C
G
T
C
G
Computer or
Control System
RS-232 Port
figure 2,
in the
2 2
T
+V
RS-232
Tx Rx G
T
+V
