Summary of Contents for Pride Jazzy 1402

  • Page 1 JAZZY 1402...
  • Page 2 Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). Copyright © 2011 Pride Mobility Products Corp. INFMANU3185/Rev B/August 2011 www.pridemobility.com Jazzy 1402...

  • Page 3: Table Of Contents

    This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Jazzy 1402 www.pridemobility.com...

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.
  • Page 5 PRIDE OWNERS CLUB As an owner of a Pride product, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed product registration card or by visiting Pride's web site at www.pridemobility.com.
  • Page 6 Locked and in drive mode. Place unit on level ground and stand in front or to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Unlocked and in freewheel mode. www.pridemobility.com Jazzy 1402...

  • Page 7: Safety

    3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension cord to the AC/DC converter or the battery charger. Jazzy 1402 www.pridemobility.com...
  • Page 8 Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.

  • Page 9: Your Power Chair

    Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Exceeding the weight capacity voids your warranty and may result in personal injury and/or damage to your power chair. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 10 In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to have a maximum slope of 5° (8.7%). Therefore, Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 5° (8.7%). See figure 1.
  • Page 11 Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to yourself and to others and/or damage your power chair. Jazzy 1402 www.pridemobility.com...
  • Page 12 Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the trunk of a car or in the back of a truck or van with the batteries removed and properly secured.
  • Page 13 Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend while seated on your power chair, it is important to maintain a stable center of gravity and keep the power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
  • Page 14 Removable Parts WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal injury and/or damage to the power chair may result. www.pridemobility.com Jazzy 1402...
  • Page 15 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unin- tended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact your authorized Pride Provider to report the incident. Jazzy 1402...

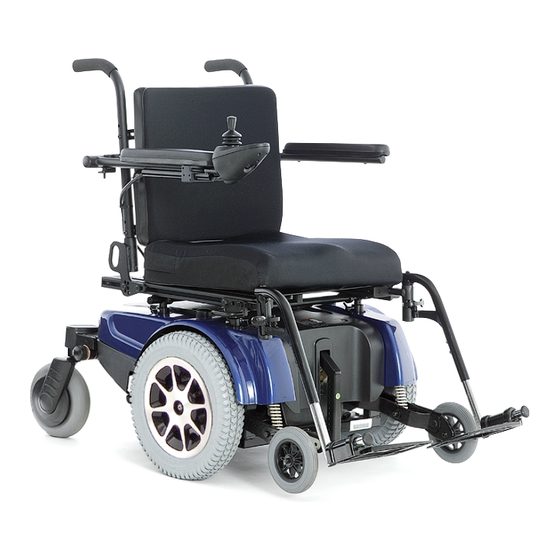

  • Page 16 See figures 5 and 6. SEATBACK SEAT ASSEMBLY ARMRESTS CONTROLLER POWER BASE ASSEMBLY CASTER WHEEL BODY SHROUD FOOT RIGGINGS (SWING-AWAY FOOTRESTS SHOWN) DRIVE WHEEL ANTI-TIP WHEEL Figure 5. The Jazzy 1402 www.pridemobility.com Jazzy 1402...
  • Page 17 I I I . Y O U R P O W E R C H A I R JAZZY 1402 SPECIFICATIONS Suspension: Active-Trac system and rear suspension Drive Wheels: 35.5 cm (14 in.), pneumatic, center-mounted (solid tires are optional) Caster Wheels: 20 cm (8 in.), solid, rear articulating...
  • Page 18 If the circuit trips, allow your power chair to “rest” for approximately one minute. Then, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeat- edly, contact your authorized Pride Provider. Accessory Connector (optional): This is where the controller connects to optional power equipment.
  • Page 19 To clear this code, turn off the controller and place the power chair in drive mode. Then turn on the controller. The error message should be cleared. If it is not, contact your authorized Pride Provider. NOTE: The power chair will be significantly easier to push with the power off.
  • Page 20 As the front anti-tip wheels come in contact with an obstacle, the front anti-tip wheel assembly is drawn upward. At the same time, the motors are forced downward. This allows the motors to push the Jazzy 1402 over an obstacle and limits the possibility of your power chair getting caught on the obstacle.

  • Page 21: Assembly

    Replacement nylon insert lock nuts are available at local hardware stores or through your authorized Pride Provider. ARMREST ADJUSTMENT CONTROLLER POSITION SEAT HEIGHT ADJUSTMENT FOOT RIGGING ADJUSTMENT ANTI-TIP WHEEL ADJUSTMENT Figure 10. Jazzy 1402 Assembly View Jazzy 1402 www.pridemobility.com...
  • Page 22 Figure 12. Controller Installation - Mounting Block tray. 9. Plug the controller connector into the power base. See figure 6. 10. Secure the controller cable to the armrest receiver with one or more wire ties if mounted to a contour seat. www.pridemobility.com Jazzy 1402...
  • Page 23 I V . A S S E M B L Y Power Seat Option Installation Your Jazzy 1402 may be equipped with the power elevating seat option. To install the power seat: SETSCREW Position the seat post on the bottom of the power seat frame over the actuator.

  • Page 24: Comfort Adjustments

    COMFORT ADJUSTMENTS Once you are familiar with the operation of your Jazzy 1402, there are some adjustments you can make to increase your comfort, such as seat height and angle, armrest width, angle and height, joystick position, and footrest height, depth, and angle.
  • Page 25 1. Remove the seatback angle adjusting screw from each ARMREST KNOB seat hinge. See figure 18. 2. Set the seatback at the desired angle. 3. Reinstall the screws on both seat hinges and tighten. SEATBACK ANGLE ADJUSTING SCREW Figure 18. Armrest and Seatback Adjustments Jazzy 1402 www.pridemobility.com...
  • Page 26 1. Loosen the setscrew(s) on the underside of the armrest or in the mounting block. See figures 12 and 13. 2. Slide the controller mounting bracket into or out of the armrest to the desired position. 3. Tighten the setscrew(s). www.pridemobility.com Jazzy 1402...
  • Page 27 1. Remove the two adjustment screws from the side of each footrest extension. See figure 21. 2. Slide the footrest up or down to the desired length. 3. Reinstall the two adjustment screws. Figure 21. Swing-Away Footrests Jazzy 1402 www.pridemobility.com...
  • Page 28 3. Tighten the hardware. To change foot plate angle (D): 1. Turn the setscrew clockwise to decrease the angle. 2. Turn the setscrew counterclockwise to increase the angle. SETSCREW LOCATION Figure 23. Multi-Axis Foot Plate (ELR Shown) www.pridemobility.com Jazzy 1402...
  • Page 29 WARNING! Always fasten the positioning belt when operating the power elevating seat. NOTE: For more information on operating the power elevating seat through the controller, contact your au- thorized Pride Provider. To change the seat height through toggle switch: 1. Press forward on the toggle switch to raise the seat. See figure 24.
  • Page 30 Jazzy 1402. Failure to do so may result in personal injury. PROHIBITED! Do not remove the anti- tip wheels.

  • Page 31: Batteries And Charging

    WARNING! Prevent injury and/or equipment damage! Inspect the battery charger, wiring, and connectors for damage before each use. Contact your authorized Pride Provider if damage is found.
  • Page 32 4. Plug the off-board charger into the electrical outlet. NOTE: If it is a Pride off-board charger, then there are two lights in it. The red light indicates that power to the off-board charger is on. The green light indicates that the batteries are fully charged. If it is not a Pride off- board charger, then follow the instructions that came with it.
  • Page 33 (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, call your authorized Pride Provider for assistance. How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries.
  • Page 34 We work closely with our battery manufacturer to provide a battery that best suits your power chair’s specific demands. Fresh batteries arrive regularly at Pride and are promptly shipped with a full charge. During shipping, the batteries encounter temperature extremes that may influence initial performance. Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery).

  • Page 35: Care And Maintenance

    M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy 1402 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized Pride Provider. Preventive maintenance is very important.
  • Page 36 Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Yearly Checks Take your power chair to an authorized Pride Provider for yearly maintenance. This helps ensure that your power chair is functioning properly and helps prevent future complications.
  • Page 37 Store and maintain your power chair in a dry and clean condition. Cleaning Instructions WARNING! Never hose off your Jazzy 1402 or place it in direct contact with water. Your power chair has a painted, ABS plastic body shroud that allows it to be easily wiped clean with a damp cloth.
  • Page 38 5. Disconnect the wiring harnesses from their respective quick disconnects on the frame by pulling the quick disconnects toward you. 6. Remove the batteries from the power base assembly. 7. Disconnect the battery harnesses from the positive and negative terminals on the batteries. www.pridemobility.com Jazzy 1402...

  • Page 39: Corrective Maintenance

    When to See Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride Provider. When calling, have the model number, serial number, nature of the problem, and the error code if available. Motor noise...
  • Page 40 N O T E S www.pridemobility.com Jazzy 1402...
  • Page 42 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU3185* Product Serial #...
