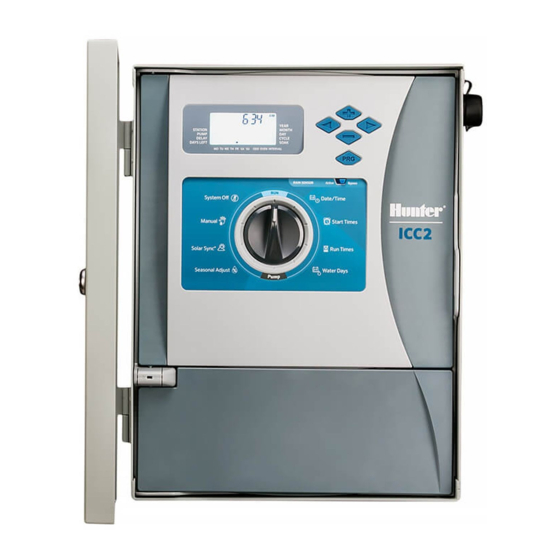

Hunter ICC2 Programming Instructions

ICC2
CONTROLLER PROGRAMMING INSTRUCTIONS
SYSTEM OFF
Stops all watering.
Turn dial to System Off position to stop unexpected watering immediately.
Wait 2 seconds for OFF to appear in display.
RAIN OFF: When display says OFF, press + or – to set a number of days off,
then turn dial back to Run.
SET DATE AND TIME
Sets the controller date/time like a clock, so it will water at the right time on
the right day.
Turn dial to Date/Time.
YEAR: Press + or – to set .
Press „ to advance to month.
MONTH: Press + or – to set.
Press „ to advance to DAY.
DAY: Press + or – to set date. Press „ to advance to TIME.
TIME: Press + or – to select AM, PM, or 24 HR. Press „ to set the hour, + or
– to change the hour. Press „ to go to minutes, + or – to set minutes.
SET START TIMES
A Start Time is the time of day a program starts watering.
A program only needs one Start Time to run all of its stations.
Turn dial to Start Times.
Select program (A, B, C, or D) by pressing PRG.
Press + or – to change the Start Time in 15 minute increments.
Additional Start Times will repeat the entire program (up to 8 starts per
program).
Add start times by pressing „ and setting the next start, if desired.
To eliminate a Start Time:
Press + or – to change the Start Time to OFF, between 11:45 PM and 12:00
AM (or between 23:45 and 0:00).
SET STATION RUN TIMES
A station is usually a valve, connected to sprinklers. The Run Time sets how
long the station runs, and how much water is applied.
Turn dial to Run Times.
Select program A, B, C or D by pressing PRG (display shows program letter).
Station number is shown with run time. Press + or – to set run time.
Press „ to advance to next station desired in the program.
Repeat for each station in program.
SET WATER DAYS
Water Days are the days on which a program waters at the selected
start time.
Turn the dial to Water Days.
Press PRG to select the program (A, B, C, or D).
Current water day schedule is shown at bottom of display.
Each program may have Day of Week, Odd Dates, Even Dates, or Interval
Day programming.
①
②
③
④
⑤
LIT-666-ICC2-DoorCard.indd 3
➐
➑
➒
➓
⓫
⓬
⑥
DAY OF WEEK SCHEDULES
Choose the desired watering days of the week.
Select program (A, B, C, or D) by pressing PRG.
Day pointer begins on Monday.
Press + for water day, press – for no water.
shows water day, shows no water day.
Pointer will advance to next day after +/- buttons are pressed.
Repeat until week is set correctly.
See Owner's Manual for Odd, Even, and Interval day programming or visit
us online.
RAIN SENSOR BYPASS SWITCH
The bypass switch allows watering, even when the rain sensor is active.
If the bypass switch is enabled, watering will occur as scheduled. If the rain
sensor is active, the schedule will adjust according to the sensor.
SEASONAL ADJUSTMENT
Adjusts all station run times in all programs by a percentage. Return to
100% to restore original programming.
Turn dial to Seasonal Adjust.
Press + or – to change run times by a percentage.
Setting changes run times in 5% increments, from 5% to 300%.
50% = half as much water.
SOLAR SYNC
Add optional Solar Sync sensor for automatic daily Seasonal Adjustment to
local weather conditions.
Select Region (1-4) with + and -.
Set Water Adjustment factor (1-10). For detailed information, see the Solar
Sync documentation or visit us online.
MANUALLY OPERATE A SINGLE STATION
Immediately turns on a station.
Turn dial to Manual.
Station run time will flash. Press „ to move to the desired station.
Press + or – to set the desired run time.
Turn dial to RUN position to run the station.
MANUAL PROGRAM START (One Touch Manual Start & Advance)
Immediately turns on a station.
Turn dial to RUN.
Press and hold „ until station 1 appears.
Quickly select another program by pressing PRG.
Wait 3 seconds for watering to begin.
OR: Enter a run time for the station, and all stations will run sequentially
with that run time, regardless of program.
Press „ to advance to another station, and watering will begin on
that station.
ADVANCED FEATURES
See manual for advanced settings.

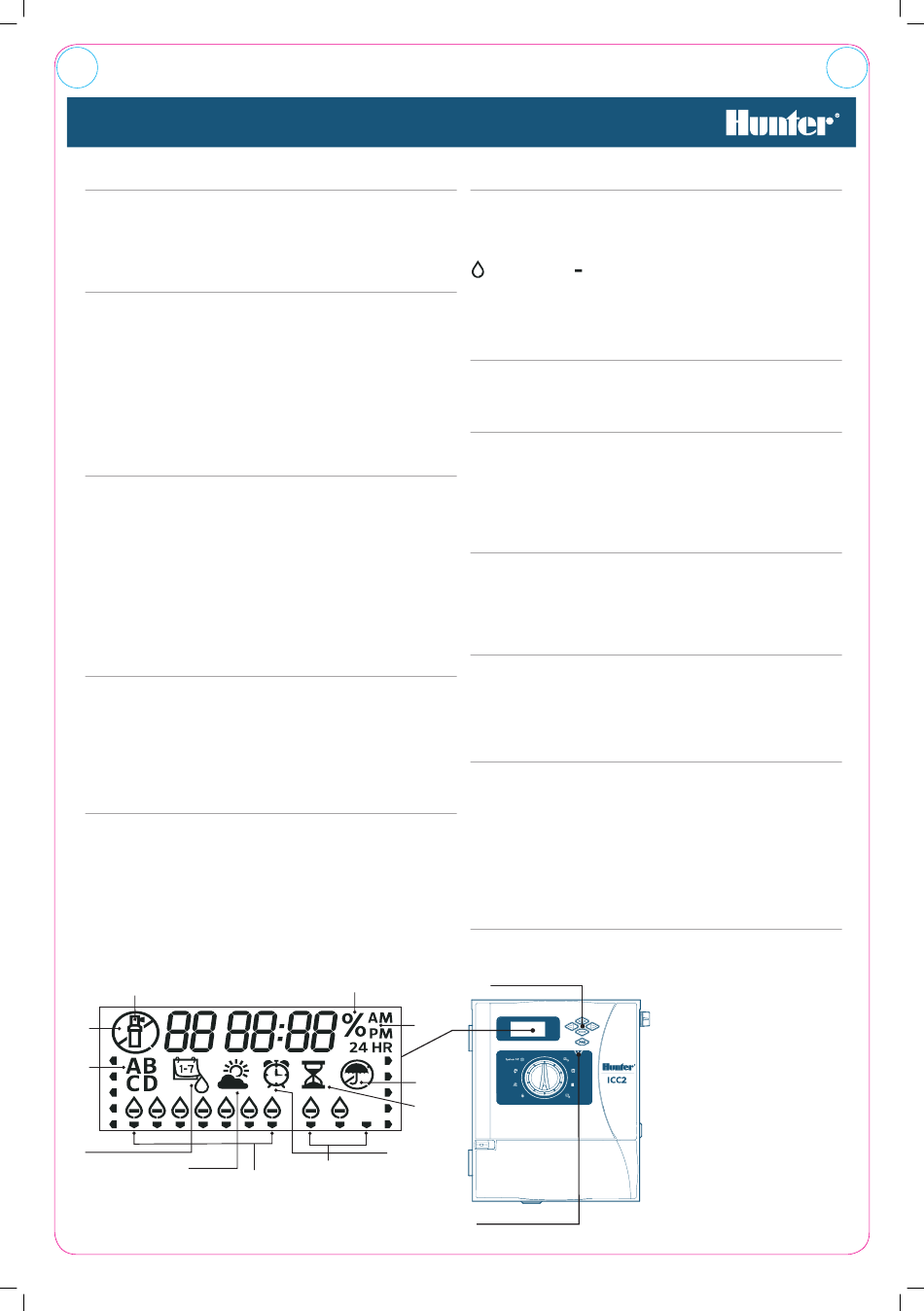

Control Buttons
Date/Time
Manual Start Times
Run Times
Solar Sync ®
Seasonal Adjust Water Days
Sensor Bypass Switch
① Station running
② Sprinkler Off Days
③ Program Indicators
④ Water Days Symbol
⑤ Solar Sync Symbol
⑥ Days of the Week
⑦ Season Adjust %
⑧ Time mode (AM/PM/24)
⑨ Rain Sensor Active/Override
⑩ Run Time Symbol
⑪ Start Time Symbol
⑫ Odd/Even/Interval Days
LIT-666-DC-M-US 8/16
