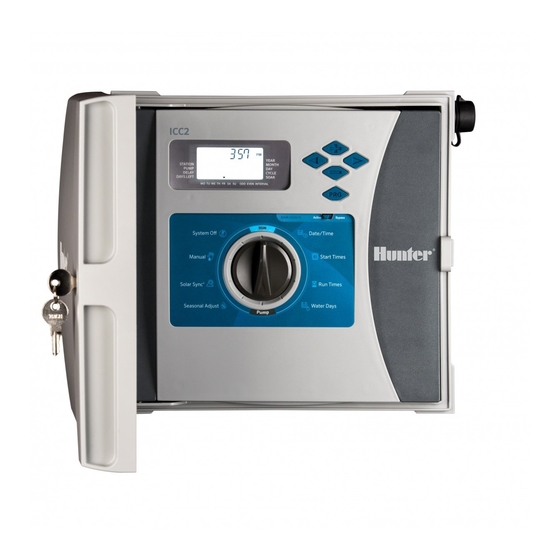

Hunter ICC2 Owner's Manual
Modular residential and commercial irrigation controller
Hide thumbs
Also See for ICC2:
- User manual ,
- Owner's manual (36 pages) ,
- Programming instructions (2 pages)
Table of Contents
Advertisement
Quick Links

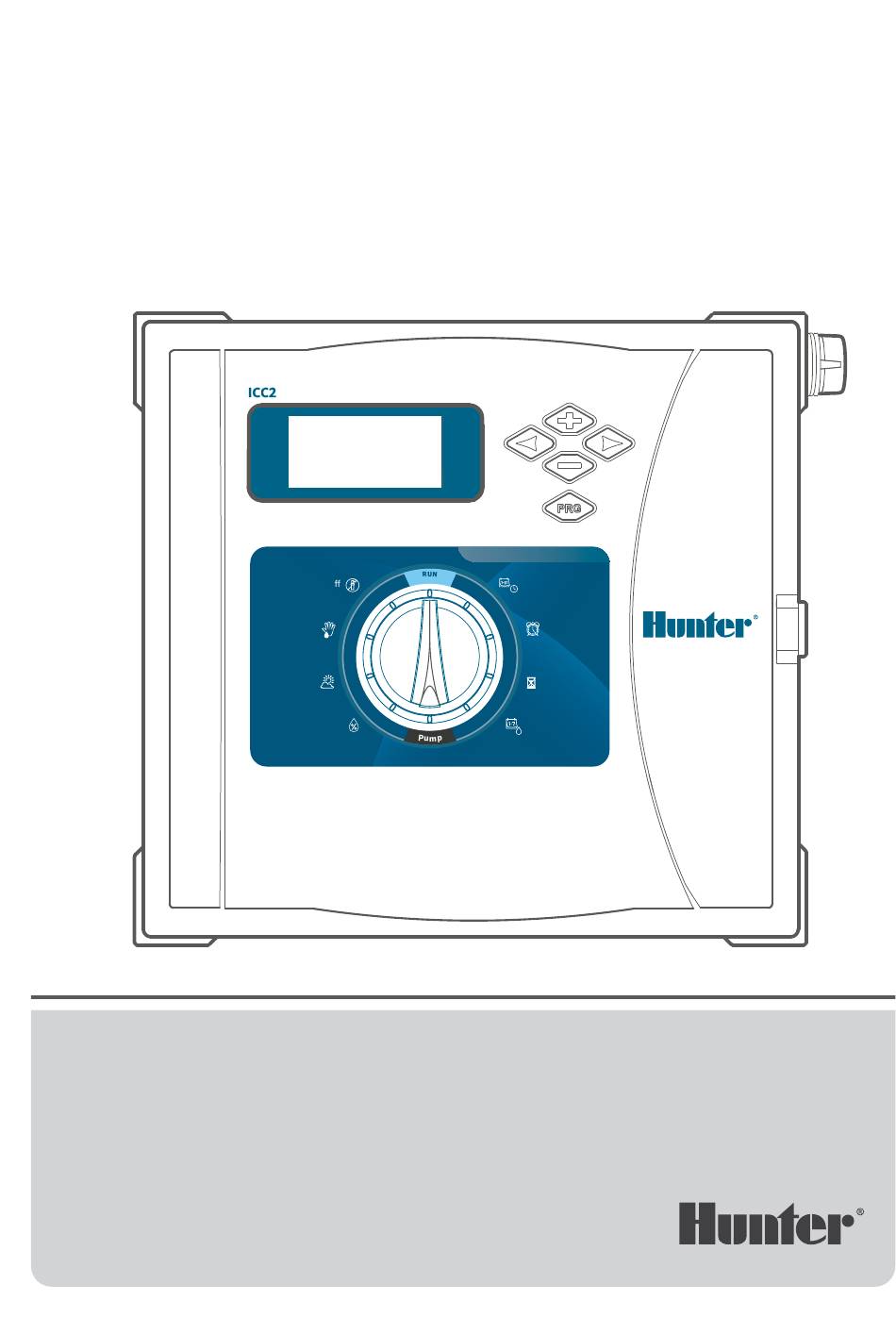

ICC2
MODULAR RESIDENTIAL AND COMMERCIAL
IRRIGATION CONTROLLER
Owner's Manual
•
I2C-800-PL: 8-station base model, plastic outdoor cabinet
•
I2C-800-M: 8-station base model, grey metal outdoor cabinet
•
I2C-800-SS: 8-station base model, stainless steel outdoor cabinet
•
I2C-800-PP: 8-station base model, plastic pedestal
System O
Manual
Solar Sync
®
Seasonal Adjust
RAIN SENSOR
Active
Bypass
Date/Time
Start Times
Run Times
Water Days
Advertisement
Table of Contents
Related Manuals for Hunter ICC2
Summary of Contents for Hunter ICC2
- Page 1 ICC2 MODULAR RESIDENTIAL AND COMMERCIAL IRRIGATION CONTROLLER RAIN SENSOR Active Bypass System O Date/Time Start Times Manual Solar Sync Run Times ® Water Days Seasonal Adjust Owner’s Manual • I2C-800-PL: 8-station base model, plastic outdoor cabinet • I2C-800-M: 8-station base model, grey metal outdoor cabinet •...
- Page 2 FORWARD DESIGN. BACKWARD COMPATIBLE. RAIN SENSOR Active Bypass System O Date/Time Start Times Manual Solar Sync Run Times ® Water Days Seasonal Adjust hunter.help/ICC2EM...
-
Page 3: Table Of Contents
Default Settings ..........4 Test Program ..........Sensor Bypass Switch ......... Easy Retrieve™ Memory ......ICC2 Controller Components ..... Connecting a Hunter Solar Sync™ Sensor Total Reset .............32 Display Screens ..........(Not Included) ..........QuickCheck™ Technology ......32 Control Buttons ..........Wired Solar Sync Installation ...... -
Page 4: Specifications
METAL PEDESTAL (GREY OR STAINLESS STEEL) • Height: 91.4 cm • Width: 29.2 cm • Depth: 12.7 cm PLASTIC PEDESTAL • Height: 99.1 cm • Width: 61 cm • Depth: 43.2 cm hunter.help/ICC2EM... -
Page 5: Icc2 Controller Components
(A, B, C, or D). ③ ➒ Water Days Symbol: Choose desired watering days. ➓ Solar Sync Symbol: Indicates optional Hunter Solar Sync Sensor is in use. ④ ⓫ Days of the Week: Select the specific days, from Monday ⑤... -
Page 6: Control Dial
Run Times ® Seasonal Adjust: Change all run times in all programs by a percentage from 5% to 300%. Water Days Seasonal Adjust Solar Sync: Set up and adjust option for Hunter Solar Sync Sensor. ➑ ➐ ⑥ ⑤ ④... -
Page 7: Wiring Compartment
Power Module: Provides power to the controller and must be in place for controller to operate; contains ⑥ 24 VAC, sensor, remote, and P/MV terminals. SmartPort™ Connector: Enables use of Hunter ROAM ➑ and ROAM XL Remotes. ⑤ Transformer: Preinstalled with 120 VAC, 230 VAC, ➐... -
Page 8: Mounting The Controller
Drill four pilot holes for the remaining mounting screws. Secure the controller in place by installing screws in the four remaining holes from inside the cabinet. Reattach Wall Mounting, plastic box.2 the control panel and the door. Wall Mounting, plastic box.2 hunter.help/ICC2EM... -
Page 9: Metal Cabinet Wall Mounting
Mounting the Controller Wall Mounting METAL CABINET WALL MOUNTING Remove the door and control panel for easier access. Use the enclosed hole template to mark and drill mounting holes. Be sure to leave enough room to open the door. Install screw anchors if attaching to drywall or masonry wall. -
Page 10: Metal Pedestal Mounting
Screw, #10-32 x 7/8" (qty: 2) Lock ⑤ Pedestal Mounting J-Bolt (qty: 4) Nut, Hex 3/8" (qty: 8) Washer, Flat 3/8" (qty: 8) 2" Conduit Nipple 2" Conduit Locknut Hex Nut, Door Lock 1/2" Conduit Coupler 1/2" Conduit Nipple ① ② ➑ ➐ ⑥ hunter.help/ICC2EM... -
Page 11: Prepare The Concrete
Mounting the Controller PREPARE THE CONCRETE PLASTIC PEDESTAL MOUNTING Prepare a form for a concrete pad, approximately 50 cm wide x 40 cm deep x 10 cm high at grade level. Mount the irrigation controller pedestal to the Slope the concrete downward away from the pedestal. concrete form. -
Page 12: Connecting Ac Power
Turn off AC power at the source and verify it is off. Disconnect the facepack ribbon cable, and remove the facepack from the cabinet. Remove the screw and wiring compartment cover from the front of the transformer junction box. Wiring Controller Power Wiring Controller Power hunter.help/ICC2EM... -
Page 13: Vac Wire Nut
Connecting AC Power 120 VAC WIRE NUT INSTALLATION 120 VAC TERMINAL BLOCK INSTALLATION Wiring Controller Power, 120V - Wire block Wiring Controller Power, 120V-Wire nut Brown Wire Black Wire Blue Wire Green Wire (230 V) (120 V) (Neutral) (Ground) Brown Wire (230 V) Black Wire (120 V) Blue Wire (Neutral) Green Wire (Ground) -
Page 14: Battery Activation
Optional: If desired, use a 9 V battery (not included) to program the control panel when removed from the cabinet. Note that the control panel cannot run automatic schedules or activate stations on battery-supplied power. Reinstall the cover plate to enclose the battery ③ compartment. ④ ⑤ hunter.help/ICC2EM... -
Page 15: Installing Modules
Installing Modules To add a station output module ① ② Flip the blue locking lever into the vertical (unlocked) position. Tip the two tabs on one end of the module into the mating holes in one end of the slot, and tip the module firmly into place. -
Page 16: Power Modules
Solar Sync or Clik Sensor input. ➎ Test 24 VAC (always on): Use to test and locate valve wires. ➏ REM (Remote Control Input): Prewired to Hunter ➐ SmartPort connector for use with Hunter ROAM and/or ROAM XL Remotes. ➑... - Page 17 Installing Modules The ICM-2200 expansion module increases conventional station count to 38 (plastic) and 54 (metal). This module can be installed exactly like the ICM-400 and ICM-800 station modules; however, it covers only the two last station output slots. Note: The ICM-2200 must be installed in the highest two output slots: 3 and 4 (plastic) or 5 and 6 (metal).
-
Page 18: Installation Instructions
The P/MV output is located on the power output module control wire to the second remaining solenoid wire of in the upper left corner of the ICC2 Controller. each valve. All wire splice connections should be made Connect either wire from the Master Valve to the using waterproof connectors. -
Page 19: Connecting A Pump Start Relay (Optional)
The P/MV output is located on the power output module active or disabled with any individual station. in the upper left corner of the controller. Hunter Pump Start Relays come with two yellow 24 VAC flying leads, one of which will connect to the common SCAN “COM”... -
Page 20: Connecting A Hunter Clik Sensor
• Wind-Clik™ Sensor irrigation will occur. All Hunter Clik Sensors are normally closed and open on Note: The Manual Single Station function ignores any alarm, which alerts the controller to suspend watering. attached sensor and will allow manual watering to occur. -
Page 21: Connecting A Hunter Solar Sync Sensor (Not Included)
When connected to an ICC2 Controller, the Solar Sync The sensor can be mounted up to 240 m from the Sensor will automatically adjust your programmed watering receiver. -
Page 22: Connecting A Hunter Remote (Not Included)
Installation Instructions CONNECTING A HUNTER REMOTE (NOT INCLUDED) The ICC2 Controller is compatible with both Hunter ROAM and ROAM XL Remotes, and each controller comes with a factory-installed SmartPort Wiring Harness. This provides instant remote connection capability, which enables manual operation of your system without having to walk back and forth from the controller. -
Page 23: Programming The Controller
Programming the Controller SETTING CURRENT DATE AND TIME RAIN SENSOR Active Bypass System O Date/Time Turn the dial to the Date/Time position. The current year will flash. Use the – buttons ► to change the year. Press the button to proceed to Start Times Manual setting the month. -
Page 24: Setting Station Run Times
2nd, 4th, 6th, etc.). Press the ► button past all days of the week so the pointer blinks above “ODD” or “EVEN.” Press the button to select or the – button to cancel Odd or Even days. hunter.help/ICC2EM... -
Page 25: Selecting Interval Watering
Programming the Controller SELECTING INTERVAL WATERING This feature is convenient if you want a more consistent watering schedule without having to worry about specific dates or days of the week. The interval you select is the amount of days between watering, including the water day (e.g., 2-day interval will water every other day). -
Page 26: Selecting Pump/Master Valve Activation
Turn the dial to the Seasonal Adjust position. Press the – buttons to change from 5% to 300% Run Times Solar Sync ® of original run times. Note: The default setting for Seasonal Adjust is 100%. Water Days Seasonal Adjust hunter.help/ICC2EM... -
Page 27: Setting Solar Sync
Scan below to access the online Solar Sync support section. RAIN SENSOR Active Bypass SCAN System O Date/Time for help hunter.help/SolarSync Start Times Manual MANUAL OPERATION OF A SINGLE STATION Run Times Solar Sync ® Turn the dial to the Manual position. ►... -
Page 28: Setting System Off
Note: To cancel Programmable Rain Off settings, turn the dial to the System Off position, wait for the “OFF” to stop blinking, and turn the dial back to the Run position. hunter.help/ICC2EM... -
Page 29: Hidden And Advanced Features
5 minutes per cycle, and 10 minutes of soak time in between watering. The ICC2 Controller allows the user to program the controller so a sensor response is independent from station However, if there are stations programmed to run after to station. -
Page 30: Delay Between Stations
SOLAR SYNC DELAY This feature allows the user to program a delay between The ICC2 Controller with built-in Solar Sync programming station activation and shutoff. This is particularly helpful on has the ability to delay the automatic, daily update of the... -
Page 31: Clik Delay
PRG buttons simultaneously. Once three dashes appear on the screen, release the buttons. The ICC2 Controller keeps a running total of each program’s The symbol will scroll left to right across the display station run times. This feature provides a quick way to indicating the program is being saved into memory. -
Page 32: Total Reset
The Total Reset feature will erase all of the controller’s memory and set everything back to factory presets. The ICC2 Controller is also capable of activating an entire Once you perform a Total Reset, all programming will program without using the dial. This option is great for a... -
Page 33: Troubleshooting
Troubleshooting Symptom Possible Cause Solution Display shows a station number Faulty station solenoid or short in Check field wiring and solenoids for continuity, with “ERR” the field wiring and replace any faulty solenoids. Check the master valve or pump start wires for Short in the pump start/master valve continuity, and replace or repair any shorted Display shows “P ERR”... -
Page 34: Compliance Information
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Hunter Industries could void the user’s authority to operate this device. If necessary, consult a representative of Hunter Industries Inc. or an experienced radio/television technician for additional suggestions. - Page 35 Notes Built on Innovation ®...
- Page 36 Built on Innovation™ 1940 Diamond Street, San Marcos, CA 92078 USA Website hunterindustries.com © 2023 Hunter Industries Inc. Hunter, the Hunter logo, and other marks are trademarks of Hunter Industries Inc., registered in the U.S. and certain other countries. Please recycle.
