NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
Safety Notice
Important Assembly
Information
Care and Maintenance
Parts List
Warranty
Ordering Parts
Model
ME-1016U
Retain This
Manual for
Reference
180501
OWNER'S
MANUAL

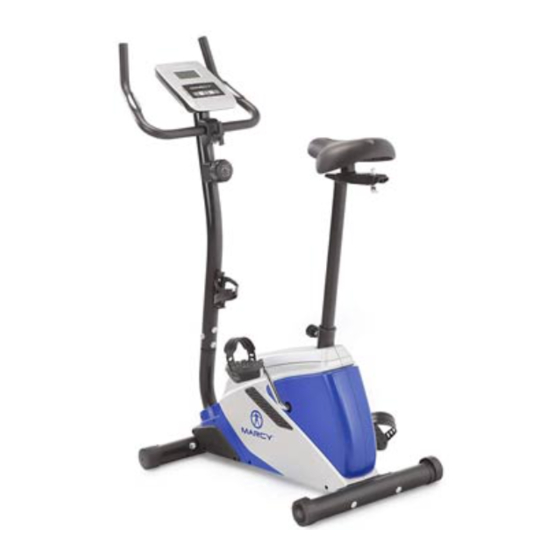

MAGNETIC UPRIGHT BIKE
IMPORTANT:
Please read this manual before commencing
assembly of this product.
2801 S. Towne Ave, Pomona, CA 91766
ME-1016U
®
IMPEX
INC.
Tel: 800- 999-8899
www.marcypro.com
support@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex MARCY ME-1016U
Summary of Contents for Impex MARCY ME-1016U
- Page 1 Parts List Warranty Ordering Parts Model ME-1016U Retain This Manual for Reference 180501 IMPORTANT: Please read this manual before commencing assembly of this product. OWNER'S ® MANUAL IMPEX INC. 2801 S. Towne Ave, Pomona, CA 91766 Tel: 800- 999-8899 www.marcypro.com support@impex-fitness.com...
-
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for selecting MARCY MAGNETIC UPRIGHT BIKE ME- ® 1016U by IMPEX INC. For your safety and benefit, read this manual carefully before using the equipment. As a manufacturer, we are committed to providing you with complete customer satisfaction. If you... -
Page 3: Important Safety Notices
ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE- EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Base Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacements. Apply the labels in the location shown. © Impex Inc. www.marcypro.com... -
Page 5: Hardware Pack
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size. Q’ty Description DRAWING Carriage Bolt M10x3” Curved Washer Φ⅜” Domed Nut Quick Release Knob Allen Bolt M8x⅝” Decorative Cover T-type Knob Curved Washer Φ⅓” Box Wrench Allen key L6 © Impex Inc. www.marcypro.com... -
Page 6: Components
COMPONENTS FOR ASSEMBLY NO.1 NO.22 NO.15 NO.9 NO.10 NO.18 NO.19 NO.3 NO.2 NO.41 NO.16 Q’TY PART NO. DESCRIPTION Main frame Front support Seat support Meter 9/10 Pedal ( L/R ) Seat Handlebar Front stabilizer Rear stabilizer Bottle holder © Impex Inc. www.marcypro.com... -
Page 7: Assembly Instructions
1. Attach the front stabilizer (#3) to the main frame (#1), Secure using two carriage bolts (#6), two curved washers (#7), two domed nuts (#8). 2. Attach the rear stabilizer (#2) to the main frame (#1), Secure using two carriage bolts (#6), two curved washers (#7), two domed nuts (#8) © Impex Inc. www.marcypro.com... - Page 8 (#23). Adjust the tension control knob (#20) to level 8, then connect it to the lower tension cable (21). 2. Insert front post (#22) into main frame (#1) and tighten with 4 sets of Allen bolts (#17) and curved washers (#42). © Impex Inc. www.marcypro.com...
- Page 9 Drop down the Connector so the fitting sits firmly on top of the bracket. NOTE: In able to hold the Front Post while connecting the cables and wires, extra help may be needed © Impex Inc. www.marcypro.com...
-
Page 10: T-Type Knob
(#43) out of front post (#22) 4. Connect lower pulse wire (#43) with the upper pulse wire from the back of the computer (#18). 5. Attach computer (#18) to bracket on the front post (#22), tighten with four screws (#29). © Impex Inc. www.marcypro.com... - Page 11 1. Attach the seat pad (#16) to the seat post (#15), tighten with knob (#34), sleeve (#33), washer (#32) and bowl shaped nut (#31)). 2. Insert the seat post (#15) into the main frame (1) and tighten with quick release knob (#11). © Impex Inc. www.marcypro.com...
- Page 12 3. Attach the left and right pedals (#9/#10) to the left and right crank arms. Note: The pedals and crank arms are marked with "R" and "L" stickers. The left pedal (L) should be threaded on clockwise and the right pedal (R) should be threaded on counter- clockwise. © Impex Inc. www.marcypro.com...
-
Page 13: Exploded Diagram
EXPLODED DIAGRAM 27 28 © Impex Inc. www.marcypro.com... - Page 14 © Impex Inc. www.marcypro.com...
-
Page 15: Parts List
Sliding Tube Sensor Bracket Bowl Shaped Nut French nut Washer Self-Tapping Screw Sleeve Self-Tapping Screw ST5x⅔" Knob Chain Cover L End Cap Chain Cover R Foam Grip for Handlebar Decorative Cover Hand Pulse Sensor Grommet Washer © Impex Inc. www.marcypro.com... -
Page 16: Computer Instructions
The setting values of 40-240 RPM , the computer will sound alarm when heart rate is below the SET value. NOTE： 1. If the display is faint or does not show any digits, please replace the batteries. 2. The monitor will automatically shut off after 4 minutes of inactivity. © Impex Inc. www.marcypro.com... -
Page 17: Exercise Guidelines
Work to your targeted heart rate but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below. © Impex Inc. www.marcypro.com... - Page 18 The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © Impex Inc. www.marcypro.com...
-
Page 19: Warranty
No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
