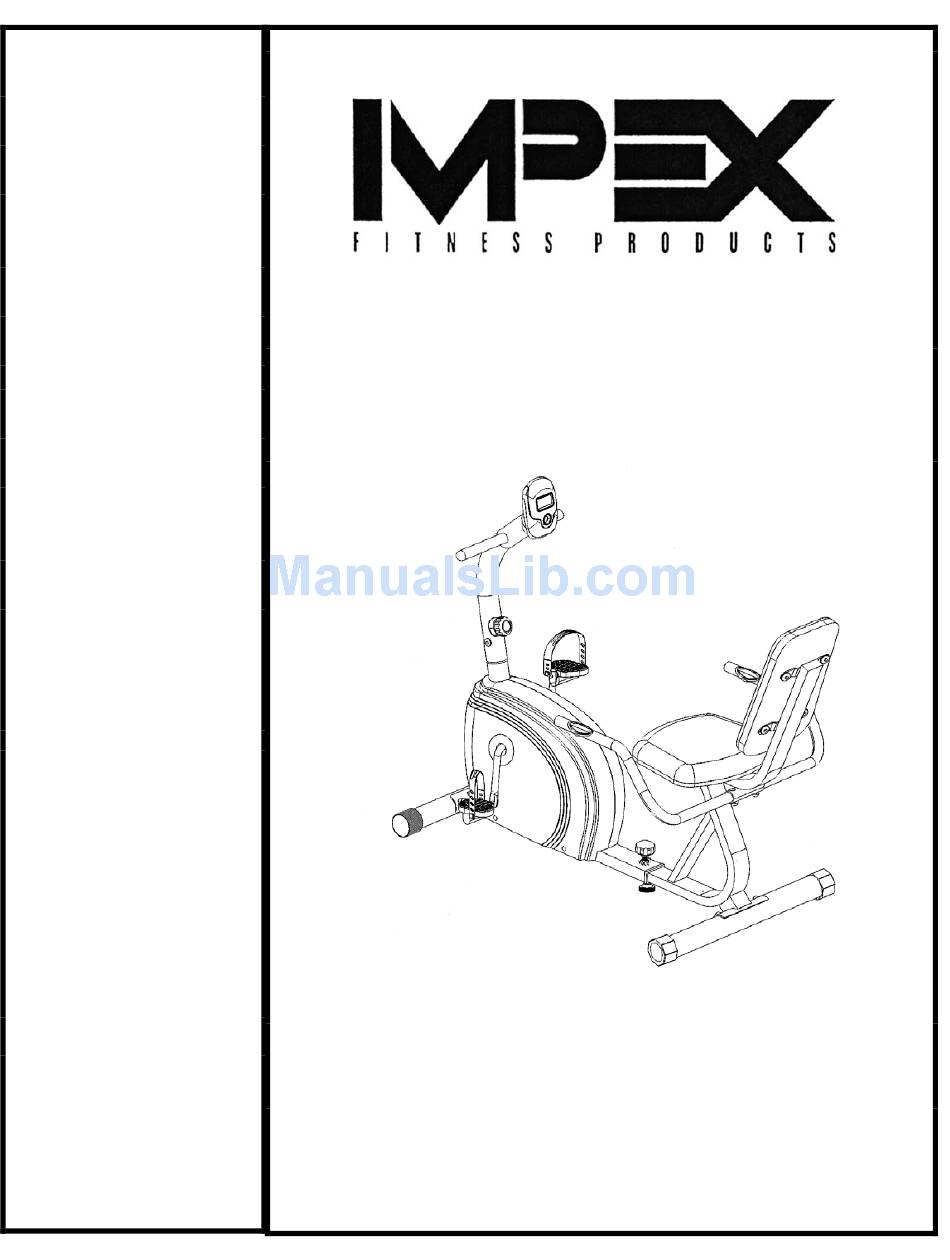

- Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice Magnetic-Resistance Hardware Pack Recumbent Bike/Hand Pulse Assembly Instruction NS-908R Parts List Warranty Ordering Parts Model NS-908R Retain This Manual for Reference 120731 ASSEMBLY & ®...
-
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for selecting the MARCY Magnetic-Resistance Recumbent Bike with Hand ® Pulse NS-908R by IMPEX INC. For your safety and benefit, read this manual carefully before using the bike. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notices
BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 4: Warning Label Placement
NS-908R WARNING LABEL PLACEMENT The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown. -
Page 5: Hardware Pack, Components For Assembly
Carriage Bolt M8 x 2 3/8” Curved Washer Ø 5/8” Acorn Nut M8 Carriage Bolt M8 x 1 5/8” Quick Release Knob Allen Bolt M8 x 5/8” Washer Ø 5/8” Leverage Knob Allen Wrench 6# Box Wrench © IMPEX INC. www.impex-fitness.com... - Page 6 NS-908R COMPONENTS FOR ASSEMBLY © IMPEX INC. www.impex-fitness.com...
-
Page 7: Assembly Instructions
STEP-1 A.) Attach the Front Stabilizer (#5) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two Acorn Nuts (#8). DIAGRAM 1 © IMPEX INC. www.impex-fitness.com... - Page 8 G.) Connect the Middle Sensor Wire (#33) from Front Post to the Upper Sensor Wire (#32) from the Computer (#10). Connect the Middle Computer Wire (#23) from Front Post to Upper Computer Wire (#31) from Computer. Attach the Computer on to the Front Post. DIAGRAM 2 © IMPEX INC. www.impex-fitness.com...
- Page 9 Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two M8 Acorn Nuts (#8). D.) Place Seat Support (#11) to Sliding Frame. Secure them together with two M8 x 1 5/8” Carriage Bolts (#13), two Ø 5/8” Washers (#25), and two M8 Acorn Nuts (#8). DIAGRAM 3 © IMPEX INC. www.impex-fitness.com...
- Page 10 A.) Attach the Backrest Board (#17) to Seat Support (#11). Secure it with four M8 x 5/8” Allen Bolts (#24). B.) Attach the Seat Pad (#18) to Seat Support. Secure it with four M8 x 5/8” Allen Bolts (#24). DIAGRAM 4 © IMPEX INC. www.impex-fitness.com...
- Page 11 B.) Connect the Lower Sensor Wire *#36) from the Handle to the Middle Sensor Wire (#35) from the Sliding Frame. C.) Thread the left Pedal (#19) counterclockwise into the left Crank (#27). D.) Thread the Right Pedal (#20) clockwise into the Crank on the other side. © IMPEX INC. www.impex-fitness.com...
-
Page 12: Exploded Diagram
DIAGRAM 5 NS-908R EXPLODED DIAGRAM © IMPEX INC. www.impex-fitness.com... -
Page 13: Parts List
NS-908R PARTS LIST © IMPEX INC. www.impex-fitness.com... -
Page 14: Care, Maintenance And Storage
Upper Sensor Wire Middle Sensor Wire/Front Post Middle Sensor Wire/Main Frame Middle Sensor Wire/Sliding Frame Lower Sensor Wire CARE, MAINTENANCE AND STORAGE 1. Inspect and tighten all parts each time you use the machine. Replace any worn parts © IMPEX INC. www.impex-fitness.com... -
Page 15: Operating Notes
4. The seat adjustment is in approximately 1” increment. TRANSPORT The Bike has a pair of Roller Caps on Front Stabilizer. To move, carefully raise the Handle and Rear Stabilizer up from floor, and roll. COMPUTER © IMPEX INC. www.impex-fitness.com... -
Page 16: Exercise Guidelines
STORAGE TEMPERATURE 14°F ~ +140°F EXERCISE GUIDELINES Using your MAGNETIC BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight. © IMPEX INC. www.impex-fitness.com... - Page 17 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching © IMPEX INC. www.impex-fitness.com...
-
Page 18: Warranty
The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. © IMPEX INC. www.impex-fitness.com... -
Page 19: Limited Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
