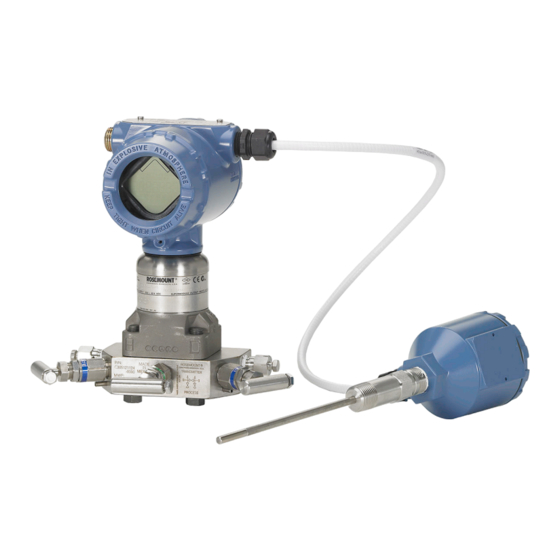

Emerson Rosemount 4088B MultiVariable Quick Start Manual
Emerson Rosemount 4088B MultiVariable Quick Start Manual

Emerson Rosemount 4088B MultiVariable Quick Start Manual

Hide thumbs Also See for Rosemount 4088B MultiVariable:

Advertisement

Quick Start Guide
00825-0200-4088, Rev CB
September 2018
Rosemount
4088B MultiVariable
Transmitter
with Bristol
Standard Asynchronous/
Synchronous Protocol (BSAP)/MVS
Protocol

Advertisement

loading

Summary of Contents for Emerson Rosemount 4088B MultiVariable

  • Page 1 Quick Start Guide 00825-0200-4088, Rev CB September 2018 ™ ™ Rosemount 4088B MultiVariable Transmitter ™ with Bristol Standard Asynchronous/ Synchronous Protocol (BSAP)/MVS Protocol...
  • Page 2: Table Of Contents

    Verify device configuration ......25 Mount the transmitter ........6 Trim the transmitter ........26 Consider housing rotation ......13 Product Certifications ......... 27 Set the switches ......... 15 Wiring and power up ........16 Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 3 September 2018 Quick Start Guide Quick Start Guide...
  • Page 4: Steps Required For Quick Installation

    September 2018 Quick Start Guide Steps required for quick installation • Start > • Mount the transmitter : Mount the Transmitter • Consider housing rotation : Consider Housing Rotation • Set the switches : Set the Switches • Wiring and power up : Wiring and Power Up •...
  • Page 5: Mount The Transmitter

    3. Mount the transmitter so that the drain/vent valves are oriented upward. A. Direction of flow Gas flow applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. A. Direction of flow Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 6 September 2018 Quick Start Guide Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. A. Direction of flow Mounting brackets Figure 2-1: Mounting Bracket – Coplanar Flange Panel mount Pipe mount Quick Start Guide...
  • Page 7 Only use bolts ™ supplied with the transmitter or sold by Emerson as spare parts. Figure 2-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 8 Table 2-1 . If bolt material is not shown in Table 2-1, contact the local Emerson representative for more information. Use the following bolt installation procedure: Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.
  • Page 9 Table 2-1: Torque Values for the Flange and Flange Adapter Bolts Bolt material Head markings Initial torque Final torque Carbon Steel 300 in-lb 650 in-lb (CS) Stainless Steel 150 in-lb 300 in-lb (SST) Figure 2-5: Proper Bolt Installation A. Bolt B. Sensor module Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 10 September 2018 Quick Start Guide O-rings with flange adapters WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. A.
  • Page 11 Quick Start Guide September 2018 Figure 2-6: In-line Gage Transmitter A. Low side pressure port (under neck label) Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 12: Consider Housing Rotation

    September 2018 Quick Start Guide Consider housing rotation About this task To improve field access to wiring or to better view the optional LCD display: Procedure 1. Loosen the housing rotation set screw. 2. Turn the housing up to 180° left or right of its original (as shipped) position.
  • Page 13 After the cover is seated properly, replace the flathead screw located on the bottom of the housing cover. Figure 3-2: Optional LCD Display A. Electronics board B. LCD display C. Display cover Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 14: Set The Switches

    September 2018 Quick Start Guide Set the switches Procedure 1. If the transmitter is installed, secure the bus and remove power. 2. Required: Remove the transmitter cover opposite the field terminal side. Do not remove the instrument covers in explosive environments when the circuit is live.
  • Page 15: Wiring And Power Up

    Connect the B lead to the “B” terminal. Note ® The Rosemount 4088 MultiVariable Transmitter uses RS-485 Modbus with 8 data bits, one stop bit and no parity. The default baud rate is 9600. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 16 September 2018 Quick Start Guide Note Twisted pair wiring is required for RS-485 bus wiring. Wiring runs under 1000 ft. (305 m) should be AWG 22 or larger. Wiring runs from 1000 to 4000 ft. (305 to 1219 m) should be AWG 20 or larger. Wiring should not exceed AWG 16.
  • Page 17 Note Certain BSAP parameters (such as MANUAL.LOCK.CFG or EXECUTE.CALIB) are accessible only through BSAP and must be configured using the TechView component of OpenEnterprise Field Tools. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 18 September 2018 Quick Start Guide ® Figure 5-2: Configuration via HART or BSAP (Local) Port A. TechView (BSAP protocol) component of OpenEnterprise Field Tools ® ® B. MACTek Viator USB HART Interface C. User-provided power supply Note In the TechView component of OpenEnterprise Field Tools, specify a baud rate of 1200 baud, and specify the transmitter’s local address.
  • Page 19 If shielded wiring is used, ground the shield of the signal wiring at any one point on the signal loop. Device must be properly grounded or earthed according to local electric codes. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 20 September 2018 Quick Start Guide Figure 5-4: Signal Ground Wiring A. Positive B. Minimize distance C. Trim shield and insulate D. Insulate shield E. Connect shield back to the power supply F. Negative Transmitter case Always ground the transmitter case in accordance with national and local electrical codes.
  • Page 21 Table 5-1 or is available as a spare part (03151-9060-0001). Figure 5-6: External Ground Connection A. External ground lug B. External ground assembly (03151-9060-0001) Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 22 September 2018 Quick Start Guide Table 5-1: External Ground Screw Approval Option Codes Option code Description ATEX Flameproof ATEX Intrinsic Safety ATEX Type n ATEX Dust ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and IECEx Flameproof, Dust Ignition-proof IECEx Type n IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combinatio ATEX and CSA Explosion-proof, Intrinsically Safe, Division 2 (combination of E1...
  • Page 23 Figure 5-7: Transmitter RTD Wiring Connection 3-wire 4-wire White White A. Ground Lug B. Pt 100 RTD sensor C. Connection head Note Verify the installed PT sensor type (3-wire or 4-wire) matches the device setting. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 24 September 2018 Quick Start Guide Verify device configuration ™ For Rosemount 4088B, use ROCLINK or TechView components of OpenEnterprise Field Tools to communicate with and verify configuration of the transmitter. Note Device configuration procedures are given in the ROCLINK Configuration Software User Manual (for ROC800-Series), part D301250X012;...
  • Page 25 See the product-specific ROCLINK manual (ROCLINK Configuration Software User Manual [for ROC800-Series], part D301250X012, or the ROCLINK Configuration Software User Manual [for FloBoss 107], part D301249X012) or the TechView User’s Guide (part D301430X012) for information. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 26 A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that...
  • Page 27 6. Display glass shall be positioned in such a way as to minimize the risk of mechanical impact. I5 FM Intrinsic Safety (IS) and Nonincendive (NI) Certificate FM17US0263X Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 28 September 2018 Quick Start Guide Standards FM Class 3600 - 2011, FM Class 3610 - 2010, FM Class 3611 - 2004, FM Class 3810 - 2005, ANSI/NEMA 250 - 1991, ANSI/ISA 60529 - 2004, ANSI/ISA 61010-1 - 2004 Markings Intrinsic Safety Class I, Division 1, Groups C, D; Class II, Groups E, F, G;...
  • Page 29 6. Display glass shall be positioned in such a way as to minimize the risk of mechanical impact. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 30 September 2018 Quick Start Guide I1 ATEX Flameproof Certificate Baseefa13ATEX0221X Standards EN 60079-0:2012, EN 60079-11:2012 Markings Ex II 1 G Ex ia IIB T4 Ga (–60≤ T ≤ +70 °C) Supply Modbus Voltage U 22 V 15.51 V Current I 147 mA 26 mA 20.89 mA...
  • Page 31 T6 for –50 ≤ T ≤ 65 °C with T process = –50 to 65 °C 5. Non-standard paint options (paint options other than Rosemount Blue) may cause risk from Electrostatic discharge. Avoid installation Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 32 September 2018 Quick Start Guide that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. 6. Display glass shall be positioned in such a way as to minimize the risk of mechanical impact. I7 IECEx Intrinsic Safety Certificate IECEx BAS 13.0110X...
  • Page 33 4. Non-standard paint options (paint options other than Rosemount Blue) may cause risk from electrostatic discharge. Avoid installation that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 34 September 2018 Quick Start Guide 5. Display Glass should be positioned in such a way as to minimize the risk of mechanical impact. 6. The applicable temperature class, ambient temperature range and process temperature range of the equipment is as follows: •...
  • Page 35 Combination of E1, I1, E6, and I6 Combination of E5, I5, E6, and I6 Combination of E1, I1, E5, and I5 Combination of E1, I1, E5, I5, E6, and I6 Combination of EM and IM Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 36 September 2018 Quick Start Guide 8.11 EU Declaration of Conformity Quick Start Guide...
  • Page 37 Quick Start Guide September 2018 Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 38 September 2018 Quick Start Guide Quick Start Guide...
  • Page 39 Quick Start Guide September 2018 Rosemount 4088B MultiVariable Transmitter Quick Start Guide...
  • Page 40 September 2018 Quick Start Guide Quick Start Guide...
  • Page 41 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
