- Page 1 DNZ9320W HIGH RESOLUTION DUAL-CODEC WDR PTZ SPEED DOME NETWORK CAMERA...
-
Page 2: Package Contents
PACKAGE CONTENTS This installation guide provides instructions for installing the Digimerge DNZ9320W High Resolution Dual-Codec WDR PTZ Speed Dome Network Camera. For all other aspects of using the product, please refer to the user manual available at www. digimerge.com or on the Installation CD included with this product. -
Page 3: Hardware Mounting

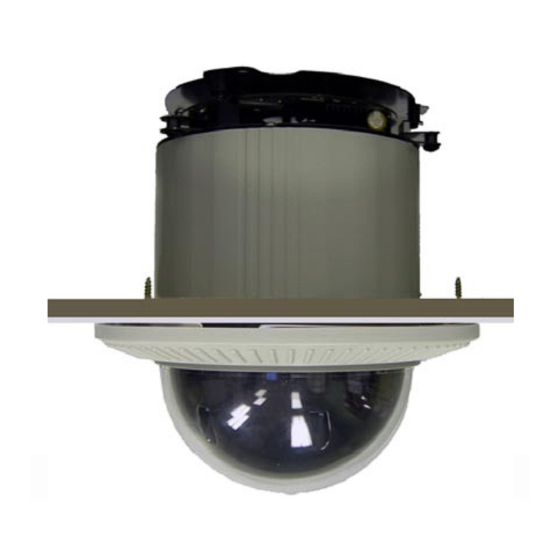

HARDWARE MOUNTING 1. Mounting the Camera: A. Embedded (flush) Mounting B. Surface Mounting 2. Connections: A. Power and Ethernet Connections Safety WiRe (NOt iNCLuded) B. Optional Connections 3. Software installation & Network Configuration Mounting the Camera: The Camera can be mounted to a ceiling by either Embedding (only the dome is visible) or Surface Mounting (the entire assembly is visible). - Page 4 HARDWARE MOUNTING Continued 1a. embedded (flush) Mounting: Before starting the Mounting procedure, confirm that the ceiling can hold the weight of the camera. A Safety Wire (not included) is also required. i. Cut a hole in the ceiling 170mm (6.7”) in diameter. ii.
- Page 5 HARDWARE MOUNTING Continued iv. Connect the safety cable (not included) - make sure the Camera is secure. v. Connect the Power and Ethernet cables (necessary) and any optional connection cables to the Camera before inserting into the Ceiling. vi. Insert the Camera Base into the ceiling hole. Secure the Camera to the Ceiling Mounting Ring using the three (3) provided screws.
-
Page 6: Hardware Connections
HARDWARE CONNECTIONS Connections: 2a. power and ethernet Connections: Make sure that the cables have been run to the Camera Location prior to permanent mounting. i. Connect the Ethernet Cable to the Ethernet Port on the base of the Camera. ii. Connect a Power Cable to the Camera. NOte: If using Optional Connections, connect the Power Cable last. -
Page 7: Software Installation
CD included with your package, and provides you with the following: 1. Web links to various resources and documentation 2. Discovery of all the Digimerge IP devices on the network 3. Provides Network configuration of IP Devices 4. Installs DigiConsole and... -
Page 8: Software Setup
3rd party software support links. find devices: Locates all available Digimerge IP devices on your network and displays a snapshot of the results. Click on any available device to display image on the right side screen display. - Page 9 SOFTWARE SET-UP Continued OPTIONAL edit Network parameters: The Network Parameters are automatically assigned to the Device by the network router (by using DHCP). These settings can be manually changed if desired. 1. Select the IP device you would like to edit by clicking on its icon. 2.
-
Page 10: Open Device In Browser
SOFTWARE SET-UP Continued The DigiViewer browser allows the user The DigiViewer application is a Live View / to view streaming video from the device Remote Access application that allows you to as well as change certain settings on the access the IP Device directly from any com- device depending on the level of access patible web browser. - Page 11 Continued NOte: To access the DigiViewer directly without going through DigiConsole application. 1. Open a compatible web browser (ex. Internet Explorer, FireFox, Opera, Safari, etc.). 2. Enter the IP Address in the ‘Address’ Bar of the Web Browser: • Internal Connectivity: The Internal IP address can be located using the DigiConsole application.
-
Page 12: Troubleshooting
SOFTWARE SET-UP Continued Trouble ShooTing: What do i do if the streaming video ActiveX control loads ok, but i see no image when using internet explorer web browser (Windows only)? Try one of the following options: 1. Press the “Play ”... - Page 13 SOFTWARE SET-UP Continued 3 Levels of user access: • Administrator (current user) • Operator (general user) default user Name: guest password: <leave blank> • Viewer (anonymous guest) Creating Current user account: 1. Click SETTINGS 2. Select ACCOUNTS 3. Fill in a user name and password in the assigned fields 4.
- Page 14 Opens up a window to search your computer for downloaded firmware (with .bin extension). NOte: This product will not auto- matically check for firmware updates. Please visit the Digimerge website to download the most current firmware for your product. Register: Provides you with information on the device warranty and/or free DDNS service.
-
Page 15: Surveillance Software
The application is optional as we offer software solution compatibility with some of the premier IP software developers in the industry. Visit the Digimerge website for the most up to date information on compatible software solutions. application installation: When you install the Digiconsole... - Page 16 DDNS SET-UP AND REGISTRATION port forwarding on your router and the creation of a ddNS account with digimerge is required in order for you to have remote internet access. Open your Web Browser. Select the Create account Enter http://ddns.digimerge.net Option http://ddns.digimerge.net...
- Page 17 Router: Refer to your for DDNS, click on the ‘register with DDNS Router’s manual for specific service’ link. This will bring up the Digimerge instructions on port forwarding DDNS Account login screen. Log in using or check DNZ9320W product...
- Page 18 DIGIMERGE IP CAMERA LINE-UP • Full Range of High Resolution (520TVL+) Cameras • Dual Codec (MPEG4/MJPEG) • Hardware Solutions to Fit Most Common CCTV • Full D1 Resolution (@ up to 30fps) Applications (Day/Night/PTZ/ WDR/ Weatherproof/ • Complete Software Solution Included...
- Page 19 THIS PAGE IS INTENTIONALLY LEFT BLANK w w w d i g i m e r g e c o m DNZ930W_Quick Installation Guide_En_R1 Page 19...
- Page 20 For additional information or troubleshooting help, refer to your owners manual for assistance. You can also call or email for further support. Toll Free Technical Support: 1--3- or +90-9- Email Support: tech@digimerge.com Website: www.digimerge.com w w w d i g i m e r g e...
