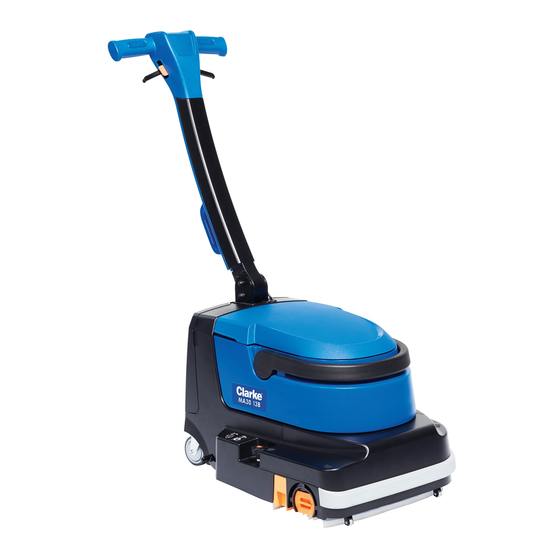

Clarke MA30 13B Use And Maintenance

ATTENTION! Do not use the machine before you have read and understood the Instructions for Use Manual.
1. Disconnect the battery charger cord 2. Fill the solution tank with water.
from the machine and electrical
outlet.
6. Grab the handles to activate the 7. Press the solution button to select
brush and solution flow, then start
cleaning the floor.
When finished using
11. For transporting and parking the 12. Empty the recovery and solution
machine, push the pedal down
(slightly lift the front of the machine
by tilting the handlebar).
16. Clean the squeegee bars and the 17. Clean the debris collection tray.
cylindrical brush with water.
Check for wear and replace
when necessary.
(*) ALWAYS FOLLOW THE DETERGENT DOSING RECOMMENDATION ON THE LABEL OF THE CHEMICAL PRODUCT USED.
9435 Winnetka Avenue North • Brooklyn Park, MN 55445
Phone: 800.253.0367 • Fax: 800.825.2753
240 Superior Boulevard • Mississauga, Ontario, Canada L5T 2L2
Phone: 800.668.8400 • Fax: 800.263.5111
3. The tank cap can be used for dosing
The water temperature must not the detergent. One full cap is 30 ml
exceed 105° F (40° C). giving 0.5% detergent of the 1.6 gal
(6 L) tank capacity. (*)
8. For sweeping functions, lift/lock the
the type of cleaning required. right lever to lift the front squeegees
in order to collect light debris.
13. Remove the cover and clean it with
tanks. Clean them out with water.
18. Clean the machine using a damp
Use and Maintenance
4. Adjust the handle to the desired
height. Turn the machine on with
the power button.
9. For double scrubbing, press the
vacuum suction button to switch the
vacuum off.
14. Check and clean the solution and
vacuum filters regularly.
hot water. Remove the ball float
cage along with the float and clean
them thoroughly.
19. Charge the batteries: Connect
cloth and where needed use a the battery charger cord from the
neutral cleaning product. machine to an electical outlet.
MA30 13B
™
5. Lift the pedal to lower the machine
and start working.
10. Turn the machine off with the
power button.
15. Remove the squeegee bars.
Remove the cylindrical brush by
turning the side knob clockwise.
20. Store the machine in a clean and
dry place.
