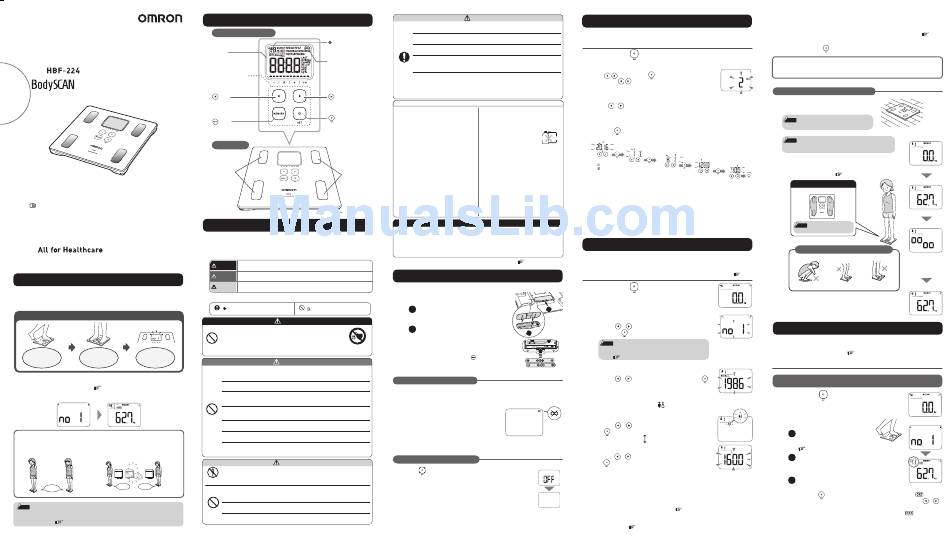

Omron BodyScan HBF-224 Instruction Manual

INSTRUCTION
MANUAL
Body Composition Monitor
Model
Thank you for purchasing the OMRON Body Composition Monitor.
Please read this Instruction Manual thoroughly before using the unit.
Please keep this Instruction Manual for future reference.
9301973-8A
HBF-224-APDB
1. ABOUT THE BODY COMPOSITION MONITOR
The Body Composition Monitor is equipped with an automatic
recognition function to recognize who is using the monitor in
accordance with the registered personal data.
How does automatic recognition works?
Turn on its
It recognizes
The user is
power and
who is using
No.1!
step on it.
it.
Be sure to register your personal data before using the automatic recognition
function.
Refer to REGISTERING PERSONAL DATA ( Page 4).
Your Personal Profile Number will be displayed after the measurement.
Check your Personal Profile Number.
■ Wrong Personal Profile Number may be displayed in the following
cases.
• Users of similar body type and body • Your body weight has changed since last
weight are measured. measurement.
C 62Kg C 67Kg
A 62.3Kg B 62.7Kg
1 2 30
no 1 no 3
no 1
･･･ 30 days later
If inaccurate recognition continues, select your Personal Profile Number before
NOTE
taking a measurement.
Refer to Select Personal Profile Number and Take a Measurement on HOW TO TAKE A
MEASUREMENT ( Page 7).
- 1 -
2. KNOWING YOUR UNIT
Display and Buttons
Symbol
Lights when the operation
Display
buttons are touched.
The illustration shows all
Battery Low Indicator
display items.
Operation Buttons
Touch the buttons with
your fingers.
Button Button
Touch the button to return. Touch the button to advance.
Touch continuously to Touch continuously to
recede rapidly. advance rapidly.
Button
Button
Power ON ... Touch
Displays the result of the
Power OFF ... Touch and hold
last measurement.
Confirm Value and Set ... Touch
Main Unit
Foot Electrodes
Foot Electrodes
4
Feet (x4)
3. SAFETY NOTES
Please read carefully before use.
●The following is intended to prevent personal injury or property damage of the user or other people caused by the
product.
●Symbols and definitions are as follows.
■ Meaning of danger, warning and caution
Danger
Improper use may cause danger resulting in death or serious injury.
Warning Improper use may result in possible death or serious injury.
Caution
Improper use may result in injury or property damage*.
* Property damage includes damage to house, property, livestock and pet.
■ Meanings
Compulsory item (which must be observed).
Forbidden item (which is not permitted).
Compulsory Forbidden
Danger
Never use this unit in combination with the following medical electronic devices.
①Medical electronic implants such as pacemakers.
②Electronic life support systems such as an artificial heart/lung.
③Portable electronic medical devices such as electrocardiograph.
Forbidden
• This unit could cause these devices to malfunction, posing a considerable health risk to users of
these devices.
Warning
Although tempered glass is used, please avoid imposing strong impact on the main body like
knocking it down, dropping it, dropping things on it.
• Otherwise, the impact might break the glass and cause injury. Or incorrect measurement might be caused.
Do not use the unit on tiles or other surfaces that may be slippery, such as a wet floor.
• Otherwise, slip and injury might be caused.
Do not use this unit immediately after taking a bath, or when your body, hands or feet are wet.
• Otherwise, slip and injury might be caused.
• Otherwise, water might get into this unit and cause a failure or incorrect measurement.
Do not jump or bounce on the unit.
• Otherwise, falling and injury might be caused. Or the impact might exceed its application range and
Forbidden
causes damage.
Do not step on the edge of the unit.
• Otherwise, falling and injury might be caused. Or incorrect measurement might be caused.
Do not use without any assistance if the user has a disability.
• Otherwise, falling and injury might be caused.
Never start weight reduction or exercise therapy solely based on your own judgment. Be sure
to follow the instructions of a doctor or specialist.
• Otherwise, self-judgment might cause damage to your health.
Caution
Do not try to disassemble, repair or remodel the unit.
• Otherwise, a failure or injury might be caused.
Disassembly
prohibited
This unit is intended for home use only. It is not intended for professional use in hospitals or
other medical facilities.
• This unit does not support the standards required for professional use.
Do not use a cellular phone near the unit
Forbidden • Incorrect measurement might be caused.
Do not let an infant carry it.
• Otherwise, injury might be caused.
- 2 -
Caution
Stand on the unit bare-footed.
• Otherwise, slip and injury might be caused or incorrect measurement might be taken.
Keep this unit out of the reach of young children.
• Otherwise, injury might be caused.
Insert the batteries with the polarities in correct direction.
• Otherwise, heat generation, liquid spill or rupture might cause damage of the unit or injury.
Use the specified battery.
Do not use new and worn batteries together or use batteries of a different kind together.
Compulsory
• Otherwise, heat generation, liquid spill or rupture might cause damage of the unit or injury.
Remove the batteries from this unit when you are not going to use it for a long period
(approximately three months or more) of time.
Additionally, immediately remove a battery which has run out and replace all batteries with new
ones at the same time.
• Otherwise, heat generation, liquid spill or rupture might cause damage of the unit or injury.
Notes
■ Notes on Installation Always keep the unit clean before use.
Do not place this unit in highly humid environment, • Wipe the main unit with a soft dry cloth.
where water may splash, under direct sunshine, in a place • If necessary, use a cloth moistened with water or
where the air conditioner blows directly, or near fire. neutral detergent and squeeze it well before wiping
• Otherwise, it might cause malfunction. the unit, then wipe dry with a dry cloth.
Do not place this unit on cushioned floor surface Do not wipe the unit with benzene or paint thinner.
• Otherwise it might cause
such as on carpet or a mat to avoid incorrect
decolouration or malfunction.
measurement.
Benzene Thinner
• Otherwise, when stepping on the main unit, it will
sunken and measurement will be affected. When cleaning the unit, prevent from touching the
buttons and change or delete the personal data.
■ Notes on use
Clean the monitor before using the unit with people ■ Notes on storage
who have a skin or foot disease. If storing the unit in a vertical position, always
• Otherwise, it will cause infection. If use the unit secure it so that it will not fall over.
together, use a cloth moistened with water or neutral
Do not store the unit in the following conditions.
detergent to squeeze it well before wiping the unit,
• Where water may get in.
then wipe dry with a dry cloth.
• Extreme high temperature and humidity, direct
Do not use the unit for purpose other than
sunshine, and dusty places.
measuring weight and body composition.
• Where there will be sudden shock or vibration.
• In storage places of chemicals or where corrosive
Do not step on the operation buttons.
gas is present.
• Otherwise, it might cause malfunction.
Do not place objects on the unit or store it
■ Notes on daily maintenance
upside-down.
Do not wash display unit or the main unit. • Otherwise, it might cause malfunction.
• Otherwise, it might cause malfunction.
INCORRECT MEASUREMENT
■ A target user of the unit should be above 6 years old.
Incorrect measurement might occur to the following users:
Elderly people / People with a fever / Body builders or highly trained athletes / Patients undergoing dialysis /
Patients with osteoporosis who have very low bone density / Pregnant women / People with swelling / Children
in growth stage
• Because the body composition such as body water might greatly deviate from the average value.
If you have doubt about the measured results, refer to TROUBLESHOOTING ( Page 9).
4. BATTERY INSTALLATION
1
Open the Battery Cover
on the back of the unit.
Tab
1 1
Press the tab on the battery cover in the
direction of the arrow to release the cover
as illustrated.
2
Pull the tab of the cover upwards.
2
2
Insert the batteries by aligning
them as indicated.
The end with the spring is for the negative terminal.
3
Close the battery cover.
Battery Life and Replacement
■ New batteries will last for approximately one year
(when manganese batteries are used with four
measurements a day at a room temperature of 23°C).
・Because the supplied batteries are for trial use only, they may have a shorter life.
・Do not use rechargeable batteries. This could cause inaccurate operation. Battery Low Indicator
■ When the Battery Low Indicator flashes, it indicates
running out of the battery.
Replace with four new batteries at the same time.
■ Replace the batteries after turning off the main unit
power.
・Measurement values and personal profiles stored in the memory will not be deleted during battery replacement.
・Dispose of the device, batteries and components according to applicable local regulations.
About the Power Off Function
■ Touch the
button for 3 seconds or longer to turn off the power.
The "OFF" symbol appears on the display when the power is turned
off.
■ The power is automatically turned off in the following conditions:
・If the unit is not used within 1 minute of "0.0 kg" appearing on the display.
・If no personal data information is entered within 3 minutes.
・If the unit is not used for 30 seconds after weight result is displayed.
・If the unit is not used for 3 minutes after body composition results are displayed.
・10 seconds after the "Err" symbol appears on the display.
- 3 -
5. SETTING THE AREA, DATE AND TIME
In order to measure your weight accurately, the product will correct the deviation caused by gravitational acceleration.
Accurate measurement cannot be conducted if the area of the usage place, date and time are not correctly set.
■ Please input "2" as the area code of the usage place.
1
Touch the button to turn on the power.
2
Set "AREA".
Use Use Use to change and then use to change and then use to change and then use (SET) to confirm. (SET) to confirm. (SET) to confirm.
Every time the Every time the Every time the key is touched, area codes "2" and "1" will be displayed alternately. key is touched, area codes "2" and "1" will be displayed alternately. key is touched, area codes "2" and "1" will be displayed alternately.
Please select area code "2".
Once area code is confirmed, the year begins to blink.
3
Set "DATE".
Touch Touch Touch or or or button to change the year. button to change the year. button to change the year.
・The setting range is January 1, 2016 ~ December 31, 2040.
When the display reaches 2040, it will return to 2016.
4
Set "TIME".
Touch the (SET) button to confirm the year and then the month flashes.
Repeat the same steps to change the month, day, hour, and minute.
Year
Month
Day
Hour
Change Confirm
: Forward Change Confirm Minute
: Back
Change Confirm
Change Confirm
Change Confirm
After the settings for year, month, day, hour and minute are displayed in that sequence, the power is
automatically turned off.
■ When error occurs during setting...
Turn on the power. If "year" flashed, please start from step 2 of SETTING THE AREA, DATE AND TIME.
■ The power is automatically turned off during setting...
Turn on the power to reset. If no operation for 3 minues during setting, the power will be automatically turned
off.
■ When you want to modify date and time which have already been set...
Remove the batteries and insert again after 20 seconds at least, and then turn on the unit. If "AREA" flashes,
start from step 2 of SETTING THE THE AREA, DATE AND TIME.
6. REGISTERING PERSONAL DATA
To use the automatic recognition function, you must register your personal data in advance.
You can register personal data of up to 4 persons.
Those whose personal data have not been registered can use a Guest mode to measure his/her body composition.
What is a Guest mode? Refer to For Those Who Use the Guest Mode to Take a Measurement ( Page 7).
1
Touch the button to turn on the
power.
All symbols appear on the display briefly, then the display changes to "0.0kg".
2
Select a Personal Profile Number.
Touch the or button to select a Personal Profile Number, and
then touch the (SET) button.
NOTE If "0.0kg" is displayed, then that Personal Profile Number has
already been registered. Choose a different Personal Profile Number or delete
the personal data for that number. Refer to CHANGE/DELETE PERSONAL
DATA ( Page 7).
3
Set the date of birth.
Touch the or button to change the date, and then touch the (SET)
button.
Complete setting in the sequence of "YEAR OF BIRTH", "MONTH OF BIRTH"
and "DAY OF BIRTH".
・The setting range is January 1, 1900~December 31, 2040.
Once the "Birth Date" is confirmed, (the gender symbol) will blink.
4
Set the gender.
Touch the or button to change the gender, and then touch
the (SET) button.
Once the gender is confirmed, (the height symbol) will blink.
5
Set the height.
Touch the or button to change the height, and then touch
the (SET) button.
・The setting range is 100.0~199.5cm.
Once the height is confirmed, "0.0kg" will be displayed after the date of
birth, gender and height are displayed.
6
Step on the main unit.
Use the automatic recognition function to take a measurement
and record the data of body composition in the unit.
Refer to CORRECT MEASUREMENT METHOD ( Page 5).
If the power has turned off before you step on the main unit, select your Personal Profile Number.
Refer to Select Personal Profile Number and Take a Measurement on HOW TO TAKE A
MEASUREMENT ( Page 7).
- 4 -
7 Once the body composition is displayed,
the measurement is finished.
Refer to Check the Measurement Results for the check method of the measurement results ( Page 6).
Now, you have completed personal data registering.
Touch the button for 3 seconds or longer to turn off the power.
■ Your personal data have not been registered in the following cases. Please re-register the
personal data information.
・If no buttons are touched for 3 minutes while setting the personal data and the power is automatically turned off.
・If the power goes off while you are configuring settings.
CORRECT MEASUREMENT METHOD
■ Measurement should be taken on level
and hard surface.
NOTE Do not place this unit on cushioned floor surface
such as on carpet or a mat to avoid incorrect measurement.
NOTE Do not touch or move the main unit or add objects on it before
"0.0kg" is displayed after the power is turned on. Otherwise, it might
cause incorrect measurement.
When all symbols are lighted, the preparation for a correct measurement has
been taken. If the main unit is moved or a load is applied onto it before
"0.0kg" is displayed, "Err (error)" might be displayed or incorrect
measurement might be taken.
Refer to TROUBLESHOOTING ( Page 9).
Step on the Main Unit barefoot.
Set both feet on the electrodes.
NOTE If you wear shoes, correct
measurement cannot be taken.
Postures to Avoid During Measurement!
The above scenario might
Incorrect posture may result in inaccurate measurement of body composition.
be displayed during
measurement. Wait for a
moment.
Your feet are not
Knees bent
Crouching correctly positioned
on the electrodes.
When the body composition is displayed,
the measurement is finished.
Step off the main unit.
7. HOW TO TAKE A MEASUREMENT
When the automatic recognition function is used to take a measurement, register your personal data in
advance.
Refer to REGISTERING PERSONAL DATA ( Page 4).
Even if you do not have personal data information stored on the unit, you can use Guest mode to measure body
composition.
7-1. Use the Automatic Recognition Function to Take a Measurement
1
Touch the button to turn on the
power.
All symbols appear on the display briefly, then the display changes to "0.0kg".
2
Take a measurement.
1 Step on the main unit.
Refer to CORRECT MEASUREMENT METHOD
( Page 5).
2 When the body composition is displayed,
the measurement is finished.
Step off the main unit.
3 Check your Personal Profile Number.
■ If your Personal Profile Number is correct...
Touch the (SET) button, your Personal Profile Number is confirmed and disappears.
After making a confirmation, you can switch to a desired measured value with the or
button.
Even if you turn off the power while your Personal Profile Number or blinks, it will be
recorded as the measured value of the displayed Personal Profile Number.
- 5 -
