21.3-inch (54 cm) Color LCD Monitor
CL-S200

Operation Manual

Model: CL-S200Bx0xA
Important
This operation manual contains important information on how to use the product.
Please make sure to read the safety precautions first and keep this manual in a safe and
easily accessible place for future reference.
B5A-2228-00

Advertisement

Table of Contents
loading

Related Manuals for JVC CL-S200

Summary of Contents for JVC CL-S200

  • Page 1: Operation Manual

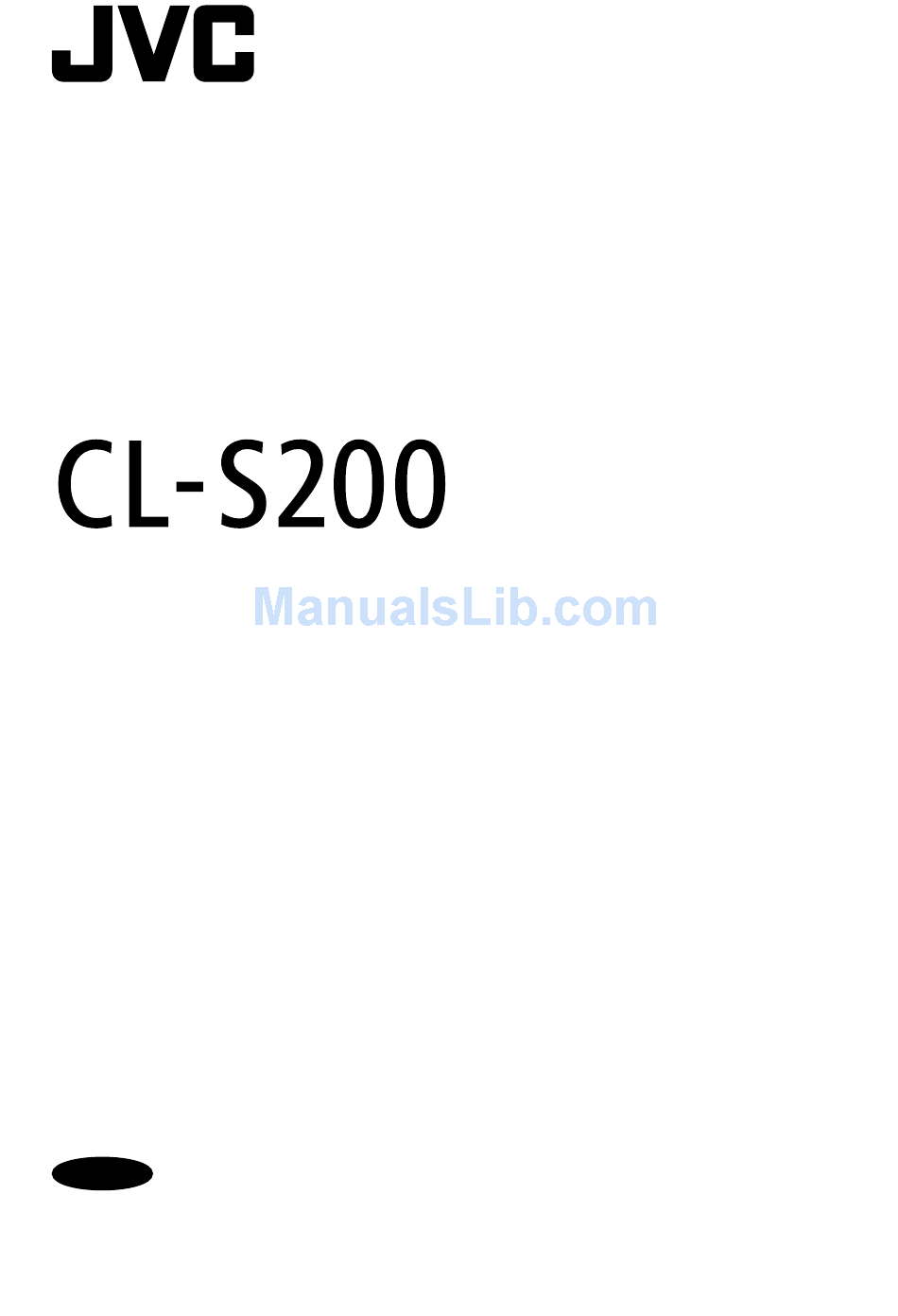

    21.3-inch (54 cm) Color LCD Monitor CL-S200 Operation Manual Model: CL-S200Bx0xA Important This operation manual contains important information on how to use the product. Please make sure to read the safety precautions first and keep this manual in a safe and easily accessible place for future reference.
  • Page 2 Attention! The monitor orientation can be changed by rotating the LCD panel 90 degrees and the screen orientation (display mode) can be changed by switching the Extended Display Identification Data (EDIDs.) Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved. License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc.

  • Page 3: Table Of Contents

    Contents Before use ......................4 Power Cord Important Information ..............6 EMC precaution ....................7 Label ......................10 Explanation of symbols ..................11 Safety precautions ...................12 Features ......................16 Names and functions of parts ................17 Reference ......................19 Operating Principle ..................19 Cleaning the monitor ..................20 Connector pin assignment ................21 Technical specification ..................22 External dimensions ..................23 After-sales service ...................24...

  • Page 4: Before Use

    Before use Thank you for purchasing our color LCD CL-S200. Please read this manual carefully for proper use. For your safety This manual contains important information on how to use the product. Please make sure to read the safety precautions first and keep this manual in a safe and easily accessible place for future reference.
  • Page 5 CE certification This device complies with the requirements of Medical Devices Directive 93/42/EEC. Manufacturer JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN Authorized representative JVCKENWOOD Deutschland GmbH...

  • Page 6: Power Cord Important Information

    Power Cord Important Information CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your sup- plier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standards of your particular country.

  • Page 7: Emc Precaution

    Guidance and manufacturer’s declaration – electromagnetic emissions The model CL-S200 is intended for use in the electromagnetic environment specified below. The customer or the user of the model CL-S200 should assure that it is used in such an environment. Emissions test...
  • Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The model CL-S200 is intended for use in the electromagnetic environment specified below. The customer or the user of the model CL-S200 should assure that it is used in such an environment. Immunity test...
  • Page 9 Guidance and manufacturer’s declaration – electromagnetic immunity The model CL-S200 is intended for use in the electromagnetic environment specified below. The customer or the user of the model CL-S200 should assure that it is used in such an environment. Immunity...

  • Page 10: Label

    Label Please read the label containing warnings and cautions carefully before use. Important - 10 -...

  • Page 11: Explanation Of Symbols

    Explanation of symbols These following symbols and labels indicate meanings as below. Caution Mark Indicates the monitor is approved according to the UL & c-UL regulations Indicates compliance to the essential requirements of the Directive 93/42/EEC Indicates compliance with Part 15 of the FCC rules (Class B) VCCI Notice (Japan Only) Indicates the compliance to the Class B...

  • Page 12: Safety Precautions

    Safety precautions This manual contains important warnings and information to prevent potential personal injury and property damage. The symbols and signs used in this manual and their meanings are as follows. Symbols Indicates a hazard which, if not avoided, could result in death or serious injury.
  • Page 13 Warning Do not disassemble, repair, or alter the monitor. It could cause fire, electric shock, or injury. Servicing of such a monitor may be refused. Or a fee may be charged even within the warranty period. Ask your dealer for repairs. Do not continue using the monitor when failure or abnormality is found.
  • Page 14 Follow the instructions below in handling the power plug. • Hold the plug when unplugging. Pulling the cord could cause damage and result in fire or electric shock. • Do not plug/unplug with wet hands. It could cause electric fire. •...
  • Page 15 Disconnect the power cord if abnormalities such as smoke and fire, etc. are observed. Do not position the monitor so that it is difficult to operate the disconnection. Even if it is used properly, the monitor may cause harmful interference to radio or television reception.

  • Page 16: Features

    Realized the power saving by the LED backlight. ● Luminance Uniformity correction feature CL-S200 has Uniformity correction function to provide uniformity of color/luminance. Corrects luminance unevenness or color unevenness, which arising from the LCD panel. This function enables monitors to be used in pairs without peculiarity among any monitors.

  • Page 17: Names And Functions Of Parts

    Names and functions of parts ① Human presence sensor When leaving your seat, the status of the monitor automatically switches into “Standby” due to “Human presence sensor.” ② Operation button Displaying Menu on OSD or configuration can be available by these four buttons. Stand-by button ③...
  • Page 18 ⑪ DOWN: USB downstream ports (x2). A USB device with a maximum current consumption of 500 mA per port can be connected to each port. Multiple CL-S200 monitors, connected in a daisy chain, can be calibrated in succession by connecting the supplied USB cable between here and the next monitor’s UP.

  • Page 19: Reference

    Reference Power save function The monitor enters into power save mode after idling for a certain period of time to reduce power consumption. Refer to the computer instruction manual on how to set it. Digital input This monitor supports only DVI digital signal. It is normal for noise to occur during startup, shutdown, and/or at switching resolutions.

  • Page 20: Cleaning The Monitor

    Cleaning the monitor ● When cleaning the monitor, remove the Power cord from the monitor and the wall outlet for your safety. ● Wipe off dust on the cabinet with a soft cloth. Dampen it lightly in mild soap solution to wipe off grease.

  • Page 21: Connector Pin Assignment

    Connector pin assignment DVI 24-pin (female) connector for DVI signals Pin # Signal Pin # Signal TMDS Data 2- TMDS Data 2+ 14 +5V Power TMDS Data 2 Shield 15 GND 16 Hot Plug Detect 17 TMDS Data 0- DDC Clock 18 TMDS Data 0+ DDC Data 19 TMDS Data 0 Shield...

  • Page 22: Technical Specification

    Calibration sensor and software (Optional) ANSI/AAMI ES60601-1 (2005)+A1 (2012), Conformities CAN/CSA-C22.2 No.60601-1 (2014), FCC-B, ICES-003-B, FDA510(k), CE, VCCI-B, RoHS, J-Moss Use CL-S200 in the room that its ambient light is less than Specifications are subject to change without notice. - 22 -...

  • Page 23: External Dimensions

    External dimensions Portrait (vertical orientation) 166.5 80.5 34.5 361.5 +20° -5° 326.5 196.5 Landscape (horizontal orientation) 434.5 Unit: mm - 23 -...

  • Page 24: After-Sales Service

    After-sales service Warranty Consult your dealer about the warranty. Requesting repair • Read "When a failure is suspected... " carefully and check if the problem solves. • If the problem remains, stop using the monitor, unplug it, and consult your dealer. Do not try to repair yourself.

  • Page 25: Disposal Of Electrical And Electronic Equipment

    Disposal of Electrical and Electronic Equipment Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
  • Page 26 This page is intentionally left blank. - 26 -...
  • Page 27 CL-S200 Operation Manual October 2017 Edition PZZ11-2499 Notes for the Instruction Manual • No part of this manual, whether partly or wholly, may be reproduced or copied without authorization. • The content of this manual is subject to change without notice.
  • Page 28 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN Printed in Japan © 2017 JVCKENWOOD Corporation B5A-2228-00 171012...
