Getting Ready
Connecting External Devices
The SH-32 does not contain an amp or speakers. In order to produce sound, you need to hook up audio
equipment such as a monitor speaker or a stereo set, or use headphones.
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn
off the power on all devices before making any connections.
1. Before you make connections, make sure that power is turned off for all devices.
2. Connect supplied AC adaptor to the DC IN jack, and plug the other end into an AC power outlet.
To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and
to avoid applying undue stress to the AC adaptor jack, anchor the power cord using the cord hook, as shown
in the illustration.

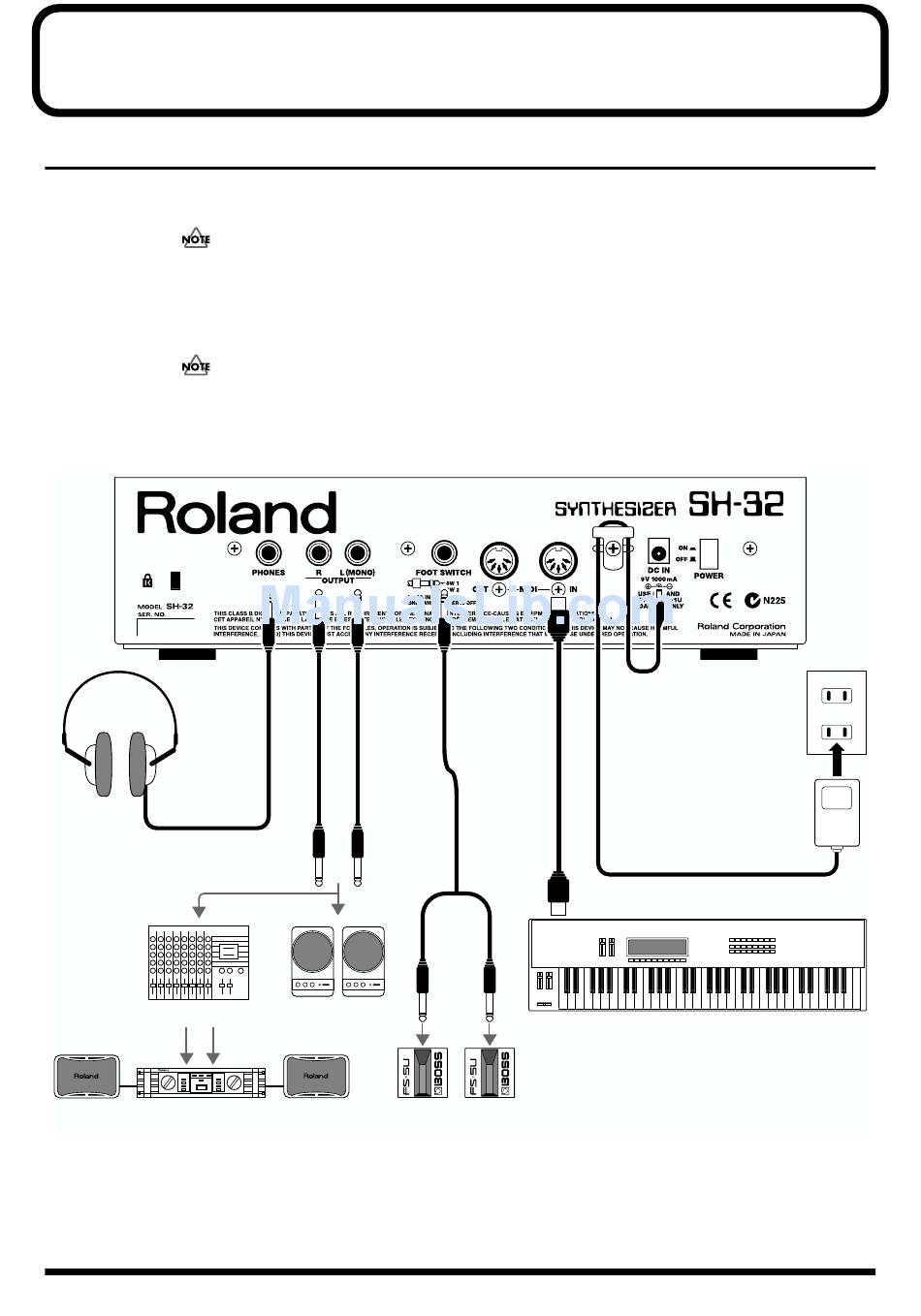

3. Connect the SH-32 and the external device as shown in the figure.
fig.00-04.e
Stereo headphones
Mixer etc.
Power amp
Use audio cables to connect audio equipment, such as an amp or speakers. Use MIDI cables to connect MIDI
keyboard. If you are using headphones, plug them into the PHONES jack. Connect foot switches or pedal
switches as necessary (p. 91).
16
PCS-31
Monitor speakers
(powered)
Foot switch (BOSS FS-5U)
or pedal switch (DP-2)
AC adaptor
MIDI OUT
MIDI keyboard
