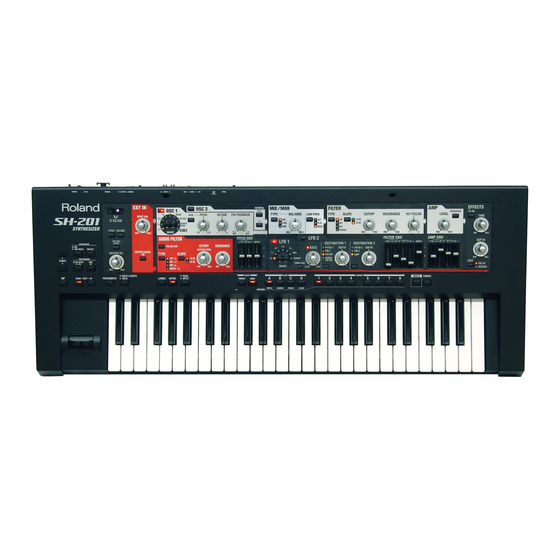

Roland SH-201 Supplementary Manual

Roland sh-201: supplementary guide.
Hide thumbs

SH-201 MIDI Implementation
●Program Change
Model:
SH-201
Date:
March 1, 2006
Status
2nd byte
Version:
1.00
CnH
ppH
n = MIDI channel number:
0H - FH (ch.1 - 16)
pp = Program number:
00H - 7FH (prog.1 - prog.128)
1. Receive data
* Not received when the PROGRAM CHANGE RECEIVE SWITCH parameter (SYSTEM
COMMON MIDI) is OFF.
■Channel Voice Messages
●Pitch Bend Change
●Note off
Status
2nd byte
3rd byte
Status
2nd byte
3rd byte
EnH
llH
mmH
8nH
kkH
vvH
n = MIDI channel number:
0H - FH (ch.1 - 16)
9nH
kkH
00H
mm, ll = Pitch Bend value:
00 00H - 40 00H - 7F 7FH (-8192 - 0 - +8191)
n = MIDI channel number:
0H - FH (ch.1 - 16)
■Channel Mode Messages
kk = note number:
00H - 7FH (0 - 127)
vv = note off velocity:
00H - 7FH (0 - 127)
* Not received in when the Receive Switch parameter (SYSTEM Com Part MIDI) is OFF.
●Note on
Status
2nd byte
3rd byte
●All Sounds Off (Controller number 120)
9nH
kkH
vvH
Status
2nd byte
3rd byte
n = MIDI channel number:
0H - FH (ch.1 - 16)
BnH
78H
00H
kk = note number:
00H - 7FH (0 - 127)
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = note on velocity:
01H - 7FH (1 - 127)
* When this message is received, all notes currently sounding on the corresponding
●Control Change
channel will be turned off.
* If the corresponding Controller number is selected for the Patch Control Source 1, 2, 3, 4,
5, 6, 7 or 8 parameter (PATCH Edit Com Matrix Ctrl), the corresponding effect will
●Reset All Controllers (Controller number 121)
occur.
Status
2nd byte
3rd byte
BnH
79H
00H
❍Bank Select (Controller number 0, 32)
n = MIDI channel number: 0H - FH (ch.1 - 16)
Status
2nd byte
3rd byte
BnH
00H
mmH
* When this message is received, the following controllers will be set to their reset values.
BnH
20H
llH
n = MIDI channel number:
0H - FH (ch.1 - 16)
Controller
Reset value
mm, ll = Bank number:
00 00H - 7F 7FH (bank.1 - bank.16384)
Pitch Bend Change +/-0 (center)
Modulation
0 (off)
* Not received when the BANK SELECT RECEIVE SW (SYSTEM COMMON MIDI) is
Expression
127 (max)
However the controller will be at minimum.
OFF.
Hold 1
0 (off)
* The Patches corresponding to each Bank Select are as follows.
Sostenuto
0 (off)
BANK SELECT
| PROGRAM
| PATCH
●All Notes Off (Controller number 123)
MSB | LSB
| NUMBER
| NUMBER
-----+-----------+-----------+------------------
Status
2nd byte
3rd byte
087 | 000
| 001 - 032 | PRESET A-1 - D-8
| 020
| 001 - 032 | USER
A-1 - D-8
BnH
7BH
00H
n = MIDI channel number: 0H - FH (ch.1 - 16)
❍Volume (Controller number 7)
Status
2nd byte
3rd byte
* When All Notes Off is received, all notes on the corresponding channel will be turned
BnH
07H
vvH
off. However, if Hold 1 or Sostenuto is ON, the sound will be continued until these are
n = MIDI channel number:
0H - FH (ch.1 - 16)
turned off.
vv = Volume:
00H - 7FH (0 - 127)
●OMNI OFF (Controller number 124)
❍Panpot (Controller number 10)
Status
2nd byte
3rd byte
Status
2nd byte
3rd byte
BnH
7CH
00H
BnH
0AH
vvH
n = MIDI channel number: 0H - FH (ch.1 - 16)
n = MIDI channel number:
0H - FH (ch.1 - 16)
vv = Panpot:
00H - 40H - 7FH (Left - Center - Right),
* The same processing will be carried out as when All Notes Off is received.
❍Expression (Controller number 11)
●OMNI ON (Controller number 125)
Status
2nd byte
3rd byte
Status
2nd byte
3rd byte
BnH
0BH
vvH
BnH
7DH
00H
n = MIDI channel number:
0H - FH (ch.1 - 16)
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = Expression:
00H - 7FH (0 - 127)
* The same processing will be carried out as when All Notes Off is received. OMNI ON
❍Hold 1 (Controller number 64)
will not be turned on.
Status
2nd byte
3rd byte
BnH
40H
vvH
n = MIDI channel number:
0H - FH (ch.1 - 16)
vv = Control value:
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
❍Sostenuto (Controller number 66)
Status
2nd byte
3rd byte
BnH
42H
vvH
n = MIDI channel number:
0H - FH (ch.1 - 16)
vv = Control value:
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
1
Copyright © 2006 ROLAND CORPORATION
No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
1PS

   Also See for Roland SH-201

   Related Manuals for Roland SH-201

   Summary of Contents for Roland SH-201

  • Page 1

    00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON Copyright © 2006 ROLAND CORPORATION No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. ●Program Change...

  • Page 2: System Realtime Message, System Exclusive Message

    = ID number: an ID number (manufacturer ID) to indicate the manufacturer whose Exclusive message this is. Roland’s manufacturer ID is 41H. ID numbers 7EH and 7FH are extensions of the MIDI standard; Universal Non-realtime Messages (7EH) and Universal Realtime Messages (7FH).

  • Page 3

    Explanation Exclusive status ID number (Roland) Device ID (dev: 00H - 17H, 7FH) Model ID #1 (SH-201) Model ID #2 (SH-201) Model ID #3 (SH-201) Command ID (DT1) Address MSB: upper byte of the starting address of the data to be sent...

  • Page 4: System Realtime Messages, System Exclusive Messages

    Universal Non-realtime System Exclusive Message and Data Set 1 (DT1) are the only System Exclusive messages transmitted by the SH-201. ● Universal Non-realtime System Exclusive Message ❍ Identity Reply Message Receiving Identity Request Message, the SH-201 send this message. Status Data byte 7EH, dev, 06H, 02H, 41H, 16H, 02H,...

  • Page 5

    00 3E | 0aaa aaaa | Portamento Time 00 3F | 0000 00aa | Mono/Solo Select |—————————————+————————————————————————————————————————————————————————————————| | 00 00 00 40 | Total Size +——————————————————————————————————————————————————————————————————————————————+ SH-201 MIDI Implementation Description SAW, SQU, PW—SQU, TRI, SINE, | NOISE, FB—OSC, SUPER—SAW, EXT—IN SAW, SQU, PW—SQU, TRI, SINE, | NOISE, FB—OSC, SUPER—SAW, EXT—IN...

  • Page 6

    SH-201 MIDI Implementation ❍ Patch Delay +——————————————————————————————————————————————————————————————————————————————+ | Offset Address | Description |—————————————+————————————————————————————————————————————————————————————————| 00 00 | 0aaa aaaa | Time 00 01 | 0aaa aaaa | Feedback 00 02 | 000a aaaa | HF Damp 00 03 | 0aaa aaaa | Modulation Rate 00 04 | 0aaa aaaa | Modulation Depth |—————————————+————————————————————————————————————————————————————————————————|...

  • Page 7

    74H | 55H || 117 | 75H | Roland Exclusive messages (RQ1, DT1) are transmitted with a checksum at the end (before 56H || 118 | 76H | F7) to make sure that the message was correctly received. The value of the checksum is...

  • Page 8

    (1) Exclusive Status (2) ID (Roland) (4) Model ID (SH-201) (5) Command ID (RQ1) Then calculate the checksum. 20H + 02H + 02H + 00H + 00H + 00H + 01H + 04H = 32 + 2 + 3 + 0 + 0 + 0 + 0 + 5 = 42 (sum) 42 (sum) ÷...

  • Page 9

    ************** 0–31 O (120, 126, 127) O (123–127) * 1 O X is selectable. * 2 Recognized as M=1 even if M≠1. SH-201 MIDI Implementation Date : March 1, 2006 Version : 1.00 Recognized Remarks Program No. 1–32 * 3 Refer to “Control change message list”...
