N
otice :
1.
When unpacking the units, check carefully for any external scratches
or other damage. Also, shake the units gently and check for any
abnormal sound.
2.
Turn OFF the power supply to the PT before mounting or dismounting
I/F Units. Correctly mount the I/F Units according to the User's Manual
of the PT.
3.
Do not touch the PCBs with bare hands. Discharge static electricity
accumulated in your body in advance.
4.
Tighten the mounting brackets evenly. Make sure the panel is not
dirty or warped and that it is strong enough to hold the units.
5.
Do not let metal particles enter the units when preparing the panel.
6.
Double check all the wiring before turning ON the power supply.
7.
Do not perform a dielectric voltage test.
8.
Make sure that the connector screws are properly tightened.
9.
Always tighten the connector screws after connecting communication
cables.
10.
The max. pull load for cables is 30N. Do not apply loads greater than
this.
NT2S-SF123B-EV2
Programmable Terminal
INSTRUCTION SHEET
Thank you for purchasing this OMRON product.
Please read this Instruction sheet and thoroughly familiarize
yourself with functions and characteristics of the product
before use. Please retain this sheet for future.
For more information on specifications and usage, please
refer to each PT.

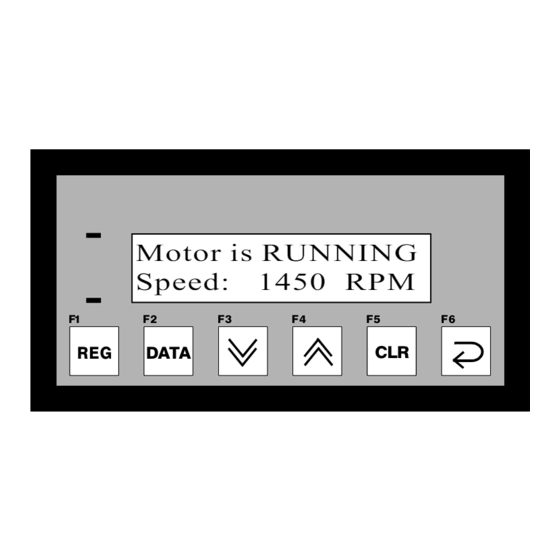

Motor is RUNNING
Speed:
F1
F 2
F 3
REG
DATA
OMRON
OMRON Corporation 2001. All Rights Reserved. NT2S-2/1001
OMRON
OMRON
OMRON
OMRON
OMRON
1450 RPM
F 4
F 5
F 6
CLR
Page 3
Page 1
