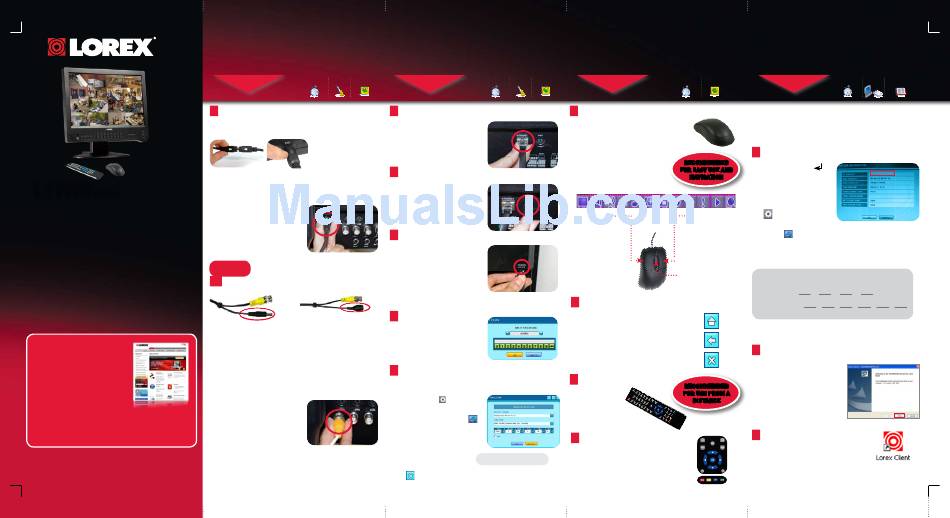

Lorex L19WD Series Quick Setup Manual

L19WD
Series
Quick Setup Guide
PACKAGE CONTENTS:
• 19" Widescreen LCD DVR • Cameras & stands*
• HDD Pre-Installed* • 60 ft. camera extension cables*
• Mouse • Ethernet cable
• Remote Control • Software application CD
• Power Supply • Quick Start Guide
* Screen size, number of cameras, accessories and hard drive capacity
may vary by model. Check your package for specific content information.
ATTENTION:
• Broadband Router and Computer are required for local and
remote monitoring (not included).
• Lorex Client software is compatible with Windows XP™ and Vista™
operating systems.
• For detailed setup and software information, please refer to
your printed User's manual (included).
• User Manual's in additional languages, consumer guides and storage
calculator are included on your CD.
It's all on the Web
For detailed setup information,
please refer to your included
User's Manual. For additional
information, please visit our
www.lorexcctv.com
website
Email Support: support@lorexcorp.com
Toll Free Technical Support:
North America: 1-888-42 LOREX (1-888-425-6739)
Mexico: 1-800-514-6739
Toll Free Technical Support - International (outside of North America):
+800-425-6739-0
(Example: From the UK, dial 00 instead of +)
Lorex International Website - www.lorexcctv.com
Information in this document is subject to change without notice. As our products are subject
to continuous improvement, Lorex Technology INC. and our subsidiaries reserve the right to
modify product design, specifications and prices, without notice and without incurring any
obligation. E&OE © 2008 LOREX. All rights reserved.
Time
SETUP YOUR MONITOR FIRST
under 15 minutes under 30 minutes under 60 minutes
Time
Hand Tools Hardware
BASIC INSTALLATION GUI DE
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Easy
STEP 1
Skill Level
Hand Tools Hardware Hi Speed
Router
easy Intermediate
1 Skill Level
Connect DIN Cameras to the Monitor:
* Connect cameras to extension
NOTE: The arrow mark
Intermediate advanced
easy
cables by aligning the arrows.
on top of the flat side of
the camera and cable
connectors should face
UP while inserting to the
Monitor.
TIP: Test the cameras prior to selecting a permanent mounting
location by temporarily connecting the Cameras and Cables to
your System.
Connect the first camera to the CH1
input. Follow the same steps to
connect the additional cameras.
You cannot connect BNC and
NOTE:
DIN cameras to the same channel
simultaneously.
OPTIONAL
1a
Connect BNC Cameras to the Monitor:
Male Power Connector - The Female Power Connector - The
male power connector end of the female power connector (barrel)
Extension cable connects to the
end of the Extension cable
Camera. connects to the Power Adaptor.
ATTENTION: The ends of the extension cable are NOT the same - one
end has a Male power connector, and the other has a Female power
connector. Before permanently running the Camera Extension Cable,
make sure that the cable has been oriented between the Camera and
the unit correctly.
If You are using BNC cameras:
1. Connect the extension cable to the
Camera.
a. Connect the Male Power connector
to the Camera.
b. Connect the BNC connector to the
Camera.
2. Connect the extension cable to the
system.
a. Connect the BNC connector to an
available BNC port on the system.
b. Connect the Female Barrel Power
connector to a power adaptor.
3. Connect the Power Adaptor to a wall outlet.
Time
SETUP YOUR MONITOR FIRST
over 60 minutes under 15 minutes under 30 minutes under 60 minutes
Time
Hi Speed Hand Tools Hardware
BASI C I NSTA L LATIO N GU IDE
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Easy
STEP 1
Skill Level
Hand Tools Hardware Hi Speed
CONTINUED
Router
advanced easy Intermediate
2 Skill Level
Connect the Ethernet Cable:
Connect one end of the Ethernet
Intermediate advanced
easy
cable (for remote monitoring) to
one of the router's (not included)
LAN ports and the other end to
Monitor's Network Port located at
the back of the Monitor.
3
Connect the Mouse:
Connect the included mouse to the
PS/2 port located at the back panel
of the system.
4
Connect the Power Cable:
Connect one end of the power
adaptor to the monitor and the
other end to an electrical outlet.
Note: The system automatically
powers on once connected to a
power source. By default, all
connected cameras are set to
record in Continuous Mode when
the system is first powered on.
5
Login to the System:
To enter the system menu, you will
need to login to the system.
Leave the default user as ADMIN.
Leave the password field blank and
click OK.
6
Setting the Date and Time:
Using the Mouse, move the cursor toward the
bottom of the screen to open the Function
Bar. 6
1. Click on the Settings icon to enter the
system Main Menu. You will be prompted
to enter the User Name and Password.
4
2. From the System Main Menu, click .
3. From the Configuration menu click
DATE/TIME.
4. Click +/- to change the DISPLAY FORMAT,
5
TIME ZONE and Date and Time for the
system. Check the DST box to enable
Daylight Savings Time. Congratulations!
5. Click OK to save your settings or click
DEFAULT to restore factory defaults.
You have completed Step 1 successfully.
6. Click to exit. You can now view, record and playback
images on your system.
Time
NAVIGATION AND CONTROLS
over 60 minutes under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Hi Speed Hand Tools Hardware Hi Speed
BAS IC IN S TALL ATI ON GU IDE
Router
Time: 20 Minutes Skills - Easy
STEP 2
Skill Level
advanced easy Intermediate advanced
1
Mouse:
This system has been designed to use
a PS/2 mouse control as its primary
methods of navigation and configuration.
Connect the included mouse to the PS/2
port located on the rear panel before
powering on the system. RECOMMENDED
FOR EASY USE AND
Once the unit has loaded, the mouse
NAVIGATION
will be recognized by the system.
RIGHT CLICK:
LEFT CLICK:
• Select options and • Switch between active
camera channels in
change values in menus,
full-screen mode, or
Recording mode, and
switch between groups
Search mode
of channels in Quad or
• Operate controls in PTZ
split-screen views
mode
DOUBLE-CLICK:
• Double-click on a chan- SCROLL:
nel in Quad or split-screen
• To change values in menus
view to view the channel in
full-screen.
2 Using the Navigation Icons:
Use the Navigation Icons when navigating the
system menus.
• HOME Click the Home Icon while in any
menu to return to the System Main
Menu.
• BACK Click the Back Icon to return to
the previous menu.
• EXIT Click the Exit Icon to exit menus.
3
Remote Control:
RECOMMENDED
The Remote Control
FOR USE FROM A
can also be used
DISTANCE
as a primary mode
of navigation and
configuration.
4
Using the Navigation Buttons:
When using the remote control, the
Navigation Buttons are the primary way
to move through the system menus.
Time
SET-UP LOCAL VIEWING ON YOUR PC
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time
Hand Tools Hardware Hi Speed
LOCAL VIEWI N G I N STA LLATIO N GUI DE
Time: 30 Minutes Hardware Skills - Intermediate
STEP 3 Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
PC/Router
Skill Level
Hand Tools Hardware
Hi Speed
easy Intermediate advanced
Router
THIS STEP RELATES TO REMOTE VIEWING OVER THE Skill Level
LAN (LOCAL AREA NETWORK) BY USING A PC LOCATED
ON THE SAME NETWORK AS THAT OF THE SYSTEM. easy Intermediate advanced
*Your system MUST be connected to a Router prior to powering it ON.
1 Retrieve System Information:
Press the Enter button on
192.168.1.12
the monitor Front Panel OR
1. Move the mouse cursor
toward the bottom of the
screen to open the Function
Bar and click .
2. From the System Main
NOTE: The system will lease networking
Menu, click
information from your Router. If you wish to
set your information manually, then remove
Configuration and click
the  from DHCP option. Please consult
System Information.
your Hardware Manual for further Menu
options.
Record the IP and MAC Addresses in the section below:
IP ADDRESS : . . .
MAC ADDRESS : : : : : :
(Required for DDNS registration)
If the IP Address is 127.0.0.1 it means that you are either not connected
to your local network or your system is not in DHCP detect mode.
2
Install Software:
(on your local computer for local viewing):
Insert the Lorex Client Software
CD into your local computer's CD
ROM.
Click Next and follow the
installation screens to
complete Lorex Client
Software installation.
Lorex Client Software:
3
(on your local computer for local viewing):
Close the CD Menu Screen. A
Lorex Client icon will appear on
your desktop.
L19WD Series Quick Setup Guide - English - R1
