INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
Model:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.

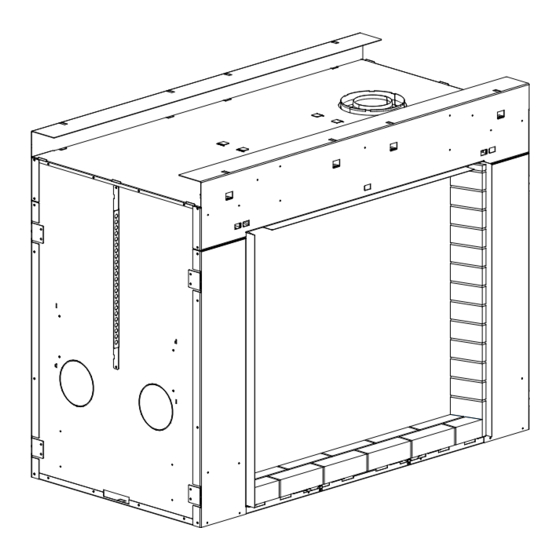

Installation Manual
Installation and Appliance Setup
Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1
Advertisement
Table of Contents
Related Manuals for Heat & Glo LifeStyle ESC-42ST-IFT
Summary of Contents for Heat & Glo LifeStyle ESC-42ST-IFT
- Page 1 In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter. See Table of Contents for location of additional Commonwealth of Massachusetts requirements. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 2: Table Of Contents
C. Securing and Leveling the Appliance ....25 = Contains updated information. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 3: Installation Standard Work Checklist
_____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date) = Contains updated information. 2464-982 12/16 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 4: Product Specific And Important Safety Information
• A 110-120 VAC circuit for this product must be pro- tected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 5: Requirements For The Commonwealth Of Massachusetts
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 6: Getting Started
Non-corrosive leak check solution 1/2 - 3/4 in. length, #6 or #8 Self-drilling screws Caulking material (300 ºF minimum continuous exposure rating) One 1/4 in. female connection (for optional fan). Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 7: Inspect Appliance And Components
Call a qualified service technician to inspect the appliance and to replace any part of the control system and/or gas control which has been under water. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 8: Framing And Clearances
Location Inches Millimeters Location Inches Millimeters 9-1/8 58-1/8 1476 1067 39-7/16 1002 12-3/4 35-1/8 45-3/8 1153 8 dia. 1524 30-3/8 46-3/8 1178 14-1/16 Figure 3.1 Appliance Dimensions Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 9 (926 mm) (895mm) 32-7/16 IN. (824 mm) 41-15/16 IN. 1-1/8 IN. 2-5/8 IN. (1065 mm) (29 mm) (67 mm) Figure 3.2 Decorative Front Dimensions - FS-42STIFT, FSA-42STIFT Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 10: Clearances To Combustibles
36 IN. 13 IN. TO FIREPLACE OPENING 13 IN. NOTE: 1/2 IN. THICK FACTORY- SUPPLIED NON-COMBUSTIBLE 36 IN. BOARD NOT SHOWN ATTACHED TO APPLIANCE. Figure 3.3 Appliance Locations Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 11: Constructing The Appliance Chase
300 ºF continu- ous exposure rating or stuffed with unfaced insulation. If the appliance is being installed on a cement surface, a layer of Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 12: Hearth Extension
FLOOR OR PLATFORM Figure 3.6 Fireplace Raised A Minimum of 3 Inches Above Combustible Surface 60-1/4 1530 Figure 3.8 Non-Combustible Hearth Extension Minimum Dimensions (Fireplace Positioned on Combustible Surface) Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 13: Termination Location And Vent Information
Over 20/12 to 21/12 ..........8.0 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof to Lowest Discharge Opening Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 14: Chimney Diagram
2 sides beneath the floor. venting system does not meet these requirements. • Vinyl protection kits are suggested for use with vinyl siding. Figure 4.3 Minimum Clearances for Termination Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 15: Approved Pipe
WARNING! Risk of Fire or Asphyxiation. This appli- ance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 16: Use Of Elbows
Figure 4.5 Vertical and Horizontal Offset for DVP and SLP Elbows DVP24 DVP36 25-1/2 DVP48 1219 DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.4 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 17: Measuring Standards
(OUTSIDE MOUNTING SURFACE) Figure 4.6 Measure to Outside Mounting Surface 1/4 in. max. (6 mm) Figure 4.8 Figure 4.7. Measure to Top of Last Section of Pipe Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 18 6.1 m After V = 6 ft then H = 2 x V ft Maximum = 60 ft Maximum = 20 ft Maximum INSTALLED Figure 4.10 HORIZONTALLY Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 19 EXCEPT, = 2 x V and V cannot exceed 60 ft Maximum t max total total Figure 4.11 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 20 *No specific restrictions on this value EXCEPT elbow to the appliance. cannot exceed 60 ft (18.3 m). After V = 6 ft, then H Max.= V Figure 4.13 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 21: Pvlp-Slp And Pvi-Slp-B Information
H has no specific restrictions EXCEPT, after V = 6 ft, then H Max = 2 x V = 60 ft Max. INSTALLED HORIZONTALLY Figure 4.14 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 22: Vent Clearances And Framing
(1) in. (25.4 mm) above the center of the horizontal vent pipe. only on interior walls. If your local inspector requires a wall shield firestop on both sides, then both wall shield Figure 5.2 Wall Penetration Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 23: Ceiling Firestop/Floor Penetration Framing
INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.4 Installing the Attic Shield Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 24: Appliance Preparation
Figure 6.2 Seal Cap. 3. Remove the two non-combustible assemblies by re- moving the two 1/4 in. screws fastening the non-com- bustible assemblies to the appliance. See Figure 6.3. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 25: Non-Combustible Material Installation
NON-COMBUSTIBLE BOARD FINISHING STRIPS Figure 6.6 Attaching Non-Combustible Board Figure 6.7 Proper positioning, leveling and securing of an appliance Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 26: Venting And Chimneys
If predrilling holes, DO NOT penetrate inner pipe. Figure 7.4 Seams INCORRECT For 90º and 45º elbows that are changing the vent direction Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 27: Assemble Slip Sections
“Assembling Pipe Sections.” NOTICE: If slip section is too long, the inner and outer flues of the slip section can be cut to the desired length. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 28: Secure The Vent Sections
Figure 7.10 Rotate Seams for Disassembly 120º Figure 7.11 Align and Disassemble Vent Sections Figure 7.8 Securing Vertical Pipe Sections 120º Figure 7.9 Securing Horizontal Pipe Sections Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 29: Vertical Termination Requirements
• Caulk the perimeter of the flashing where it contacts the roof surface. See Figure 7.13. • Caulk the overlap seam of any exposed pipe sections that are located above the roof line. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 30: Horizontal Termination Requirements
• Rest the small leg on the extended heat shield on top of the pipe section to properly space it from the pipe section. Figure 7.15 Important Notice: Heat shields may not be fi eld constructed. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 31 VENT DEPTH FROM BACK OF APPLIANCE TO OUTSIDE SURFACE OF EXTERIOR WALL from touching the hot cap. (SEE CHART BELOW) Figure 7.16 Venting Through the Wall Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 32: Electrical Information
• This appliance is equipped with an Intellifire control valve which operates on a 6 volt system. JUNCTION BOX ELECTRICAL ACCESS HOLE SCREWS ELECTRICAL COMPONENT ACCESS PLATE Figure 8.1 Junction Box Detail Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 33 RF MODULE EMBER BULBS (1-4) ACCENT LIGHT #2 ACCENT LIGHT #1 6 PIN APPLIANCE 6V DC ON/OFF BATTERY PACK CONTROL (OPTIONAL) Figure 8.2 IntelliFire™ Touch Wiring Diagram Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 34: Gas Information
4500 feet (1370 m). • If substituting for these components, please consult local codes for compliance. Check with your local gas utility to determine proper orifice size. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 35: Air Shutter Setting
NOTICE: If sooting occurs, provide more air by opening the air shutter. Air Shutter Settings ESC-42ST-IFT 1-1/2 in. Fully Open SHUTTER STOP SHUTTER ADJUSTMENT ROD Figure 9.1 Shutter Adjustment Rod and Shutter Stop Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 36: Finishing
190°F. COMBUSTIBLE MATERIAL 61-5/8 in. 0 in. 0 in. 0 in. 47-1/8 in. NON-COMBUSTIBLE BOARD Figure 10.1 Noncombustible Facing Diagram Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 37: Mantel And Wall Projections
13 IN. MIN. FIREPLACE OPENING Figure 10.3 Clearances to Mantels or other Non-Combustibles Above Appliance NON-COMBUSTIBLE WALL Figure 10.5 Clearances to Non-Combustible Mantel Legs or Wall Projections. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 38: Decorative Fronts
When using thin finishing material, you may want to use thicker non-combustible backer board to bring the finishing material flush with the firescreen. This is not required. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 39: Appliance Setup
Engage an end latch first, then middle latch, and finally Figure 11.2 . the last end latches. HANDLE Figure 11.4 Glass Latch Engaged into Frame Latch. Figure 11.2 Initial Positioning of Frame into Opening. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 40 See Figure 11.6 and Figure 11.7. Figure 11.6 Top Glass Latch Access GLASS FRAME REFRACTORY Figure 11.7. Top Glass Latch Detail Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 41: Remove The Shipping Materials
Gas Kit instructions for the ® remaining installations steps. Note: Only one Heat-Zone Gas Kit may be used with this ® appliance. HEAT-ZONE ® KNOCKOUTS Figure 11.8 Heat-Zone® Gas Knockouts. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 42: Install Light Bulbs
1. Remove the screw that secures the two bottom sheet metal refractory standoffs that are installed around the left and right accent light assemblies. See Figure 11.13. Figure 11.13 Accent Light Bulb Installation Completed Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 43: Install Refractory
5. Install two outer bottom refractory pieces as shown in Figure 11.18. Ensure that outer bottom refractory Figure 11.15 Refractory Clip Installation pieces do not extend past the outer firebox flange. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 44: Install Teco-Sil (Glass Ember Rock)
See Figure 11.20 and Figure 11.21. Figure 11.22 Ember Placement on Base Refractory Figure 11.20 Ember Bed Painting Figure 11.21 Finished Ember Bed Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 45: Install Logs
#1 onto the grate and pull forward so that the indentation on the front of the log engages the left grate tine. The “burnt” tip of Log #1 should rest on the burner. The log must NOT block any burner ports. See Figure 4. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 46 Figure 10. Push log so that it rests against the grate tine shown in Figure 11. The “burnt” end of the log rests on the burner. The log must NOT block any burner ports. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 47 LOG NUMBER 9 (SRV582-707): Place log #9 onto Log #2 and Log #5. The “burnt area” of log 9 will face the pilot side of the log assembly. Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 48: Ember/Mineral Wool Placement
• Use non-combustible materials to cover the gap between the sheet rock and the appliance (if desired). Figure 11.24 Shipping Location of Refractory Brackets Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... -
Page 49: Reference Materials
(508 MM) 6 in. 14 IN. (152 mm) (356 MM) 12 IN. (305 MM) DVP-WS (Wall Shield Firestop) DVP-RDS ROOF DECK INSULATION SHIELD Figure 12.1 DVP Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17... - Page 50 79 mm 117 mm Length DVP-TRAP 5-3/8 in. 9-3/8 in. Trap2 Horizontal Termination Cap 137 mm 238 mm DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 Figure 12.2 DVP Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 51 13-7/8 in. 9-1/2 in. (352 mm) (241 mm) 26 in. 660 mm 14 in. (356 mm) DVP-HSM-B DRC-RADIUS Extended Heat Shield Cap Shield Figure 12.3 DVP Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 52 (184 mm) 12-1/2 in. 152 mm (318 mm) 5-1/4 in. 12 in. (133 mm) (305 mm) DVP-TB1 DVP-TVHW Basement Vent Cap VerticalTermination Cap (Highwind) Figure 12.4 Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 53 16-11/16 IN. (346 mm) 424 mm (424 mm) 12-1/2 IN. (318 mm) SLP-LPC SLP Low Profile Cap (Approved for use with PVI-SLP-B only) Figure 12.5 PVI-SLP-B Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
- Page 54 60 FT PV Wire Harness PVI-WH60 80 FT PV Wire Harness PVI-WH80 100 FT PV Wire Harness PVI-WH100 PVLP-HS PVLP-BEK Heat Shield Brick Kit Figure 12.6 PVLP-SLP Vent Components Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
-
Page 55: Accessories
Please contact your Heat & Glo dealer with any questions or concerns. For the location of your nearest Heat & Glo dealer, please visit www.heatnglo.com. Printed in U.S.A. - Copyright 2017 Heat & Glo • ESC-42ST-IFT Installation Manual • 2464-980 Rev. C • 7/17...
