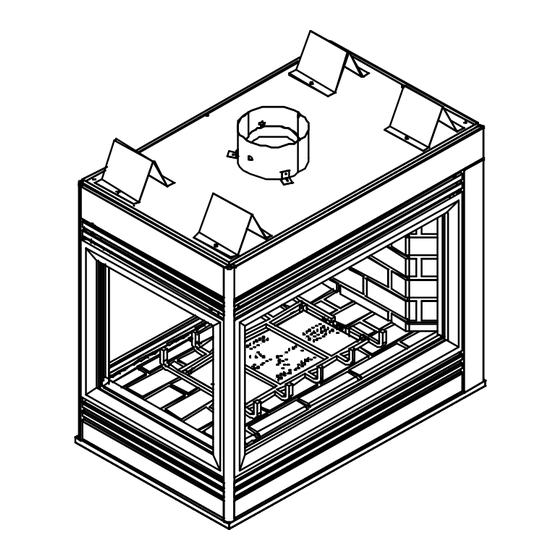

Models:
PIER-TVFL
ST-42TVFL
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTL Y, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790;
586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH THE APPLIANCE
FOR FUTURE REFERENCE.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
Installers Guide
Underwriters
Laboratories Listed
1
455-900G 2/04
Advertisement
Table of Contents
Related Manuals for Heat & Glo LifeStyle PIER-TVFL
Summary of Contents for Heat & Glo LifeStyle PIER-TVFL
- Page 1 Installers Guide Models: PIER-TVFL ST-42TVFL Underwriters Laboratories Listed READ THIS MANUAL BEFORE INSTALLING OR OPERATING THIS APPLIANCE. THIS INSTALLERS WARNING: IF THE INFORMATION GUIDE MUST BE LEFT WITH THE APPLIANCE IN THESE INSTRUCTIONS IS NOT FOR FUTURE REFERENCE. FOLLOWED EXACTL Y, A FIRE OR...
- Page 2 SAFETY AND WARNING INFORMATION READ and UNDERSTAND all instructions carefully before starting the installation. FAILURE TO FOLLOW these installation instructions may result in a possible fire hazard and will void the warranty. Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the Owners Guide.
-
Page 3: Table Of Contents
Safety and Warning Information ....2 Service Parts List ..........4 Section 1: Approvals and Codes ....10 Appliance Certification .......... 10 Table of Installation Codes ..........10 Contents High Altitude Installations ........10 Section 2: Getting Started ......11 Introducing the Heat-N-Glo Gas Fireplaces ..11 Pre-installation Preparation ........ -
Page 4: Section 1: Approvals And Codes
Codes The Heat-N-Glo fireplace models discussed in this Installers Guide have been tested to certification standards and listed by the applicable laboratories. CERTIFICATION MODEL LABORATORY TYPE STANDARD Pier-TVFL Underwriters B- Vent ANSI Z21.50•CGA2.22 ST-42TVFL Laboratories Decorative Approvals and Codes Installation Codes The fireplace installation must conform to local codes. -
Page 5: Section 2: Getting Started
Introducing the Heat-N-Glo B-type vent gas fireplaces are designed to Heat-N-Glo operate with all exhaust gases expelled to the outside of the building. Gas Fireplaces The information contained in this Installers Guide, unless noted otherwise, applies to all models and gas control systems. - Page 6 (64mm) (64mm) 36 7/8 (937mm) 24 1/4 (616mm) 40 3/4 (1035mm) (102mm) (102mm) LEFT SIDE FRONT RIGHT SIDE 1/2" TOP STANDOFFS STANDOFFS RATING PLATES & LABELS GAS CONTROL ELECTRICAL VALVE ACCESS GAS LINE ACCESS Figure 1. Diagram of the Pier-TVFL...
- Page 7 21 5/8 (549mm) 24 1/4 (616mm) 12 1/8 (308mm) VENT COLLAR ELECTRICAL ACCESS GAS LINE ACCESS (1042mm) 36 7/8 (937mm) 2 1/2 2 1/2 (64mm) (64mm) 36 1/8 (918mm) 4 (102mm) 43 (1093mm) (102mm) LEFT SIDE FRONT RIGHT SIDE TOP STANDOFFS ELECTRICAL ACCESS 1/2"...
-
Page 8: Section 3: Installing The Fireplace
Step 1 The diagram below shows space and clearance Locating the requirements for locating a fireplace within a room. Fireplace GLASS GLASS 36" GLASS PIER-TVFL Installing the 36 " Fireplace VIEW 36" ST-42TVFL GLASS 1" GLASS Figure 3. Fireplace Locations and Space... -
Page 9: Step 2 Framing The Fireplace
Fireplace fireplace facing material. The diagram below shows framing reference dimensions. CAUTION MEASURE FIREPLACE DIMENSIONS, AND VERIFY FRAMING METHODS AND WALL COVERING DETAILS, BEFORE FRAMING CONSTRUCTION BEGINS. PIER-TVFL ST-42TVFL FRAMING HEADERS MODEL PIER ST-42TVFL Figure 5. Framing Dimensions... -
Page 10: Step 3 Negative Pressure Make-Up Air
Negative Pressure warning: When negative pressure Step 3 is present, an atmospherically vented fireplace (with a Negative draft hood) may not function properly and it may down Pressure draft. In the case of a gas appliance, spillage of the Make-up Air combustion gases may occur. - Page 11 Detailed installation instructions for Model AK-TV Outside Air kit are found in the kit. Air Damper Before lighting the burner, open the damper plate by sliding the air damper rod, located by the gas valve, towards you. DUCT COLLAR DAMPER ASSEMBLY Figure 5.
-
Page 12: Step 4 Installing The Vent System
Step 4 A. Vent System Approvals Installing the These fireplaces are approved to use 6-inch (152mm) diameter B-type vent. B-type vent must be used Vent System when the vent system is within combustible construction. These models may also use single wall rigid or flexible gas vent IF and ONLY IF the vent system is installed within non-combustible construction such as a masonry chimney. - Page 13 4 FT. MINIMUM MAXIMUM HORIZONTAL RUN 17 FT. MAXIMUM 10 FT. MINIMUM 4 FT MINIMUM Figure 6. Vent System Attachment WARNING: THIS GAS FIREPLACE MUST NEVER BE VENTED BY CONNECTING TO A CHIMNEY FLUE SERVING A SEPARA TE SOLID FUEL BURNING APPLIANCE.
-
Page 14: Bedroom Installation In Canada
C. Bedroom Installation in Canada This model MUST NOT be vented into a vent system installed exterior to a building. The part of the vent system above the roof line can be exterior to the building. D. Vent Termination WARNING: MAJOR U.S. BUILDING CODES SPECIFY MINIMUM CHIMNEY AND/OR VENT HEIGHT ABOVE THE ROOF TOP. -
Page 15: Step 5 Positioning, Leveling, And Securing The Fireplace
Step 5 Positioning, The diagram below shows how to properly position, Leveling, and level, and secure the fireplace. Securing the Fireplace 1. Place the fireplace into position. 2. Level the fireplace from side to side and from front to back. 3. -
Page 16: Step 7 The Gas Supply Line
DSI IGNITION STANDING PILOT Figure 9. Gas Controls Systems Step 7 NOTE: Have the gas supply line installed in accordance with local building codes by a qualified The Gas installer approved and/or licensed as required Supply Line by the locality. (In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter). -
Page 17: Step 8 Gas Pressure Requirements
• At the gas line access hole, use insulation to re- pack the space around the gas pipe. • Insert insulation from the outside of the fireplace and pack the insulation tightly to totally seal between the pipe and the outer casing. The gas line should be installed by a qualified service technician. -
Page 18: Step 9 Wiring The Fireplace
Step 9 NOTE: Electrical wiring must be installed by a Wiring the licensed electrician. Fireplace Caution: Disconnect remote controls if you are absent for extended time periods. This will prevent accidental fireplace operation. For Standing Pilot Ignition Wiring Appliance Requirements •... - Page 19 476-500 DSI CONTROL VALVE OPTIONAL REMOTE, HI TEMP WALL SWITCH LIMIT SWITCH OR THERMOSTAT (NEUTRAL) (ON CERTIFIED UNITS ONLY) 100-254A OPTIONAL JUNCTION 459-591 (HOT) SWITCHES IGNITOR 120 VAC BLACK WHITE ON/OFF BLUE 501-592 GROUND MODULE WHITE YELLOW GROUND GREEN FIREPLACE BLUE CHASSIS WHITE...
-
Page 20: Step 10 Finishing
Step 10 The following diagram shows the minimum vertical and corresponding maximum horizontal Finishing dimensions of fireplace mantels or other combustible projections above the top front edge of the fireplace. See Figures 3 and 4 for other fireplace clearances. Only non- CEILING combustible materials may be... -
Page 21: Step 11 Installing Trim, Logs & Ember Material
1/2" GAP BOTH ENDS TOP EDGE 1/2" SIDE EDGE 1/2" GAP PIER-TVFL Figure 14. Sealant Material Hearth Extensions A hearth extension may be desirable for aesthetic reasons. However, ANSI or CAN/CGA testing standards do not require hearth extensions for gas fireplace appliances. -
Page 22: Placing The Ember Material
GLASS SPECIFICA TIONS: LARGE GLASS: TEMPERED SMALL GLASS: TEMPERED Heat-N-Glo fireplaces manufactured with tempered glass may be installed in hazardous locations such as bathtub enclosures as defined by the CPSC. The tem- pered glass has been tested and certified to the require- ments of ANSI Z97.1-1984 and CPSC 16 CFR 1202. -
Page 23: Step 12 Before Lighting The Fireplace
Step 12 Before lighting the fireplace, be sure to do the following: Before Lighting the Fireplace Remove all paperwork and documents from underneath the fireplace. Review safety warnings and cautions • Read the Safety and Warning Information section at the beginning of this Installers Guide. Double-check for gas leaks •... -
Page 24: Your Fireplace
Fireplace Although the frequency of your fireplace servicing Maintenance and maintenance will depend on use and the type of installation, you should have a qualified service technician perform an appliance check-up at the beginning of each heating season. See the table below for specific guidelines regarding each fireplace maintenance task. - Page 25 MAKE SURE THE FLAMES ARE STEADY—NOT LIFTING OR FLOATING. Figure 16. Burner Flame Patterns STANDING PILOT 3/8" (10mm) DSI IGNITION NOTE: FLAMES TOO CLOSE TO IGNITOR THE CERAMIC INSULATORS CAN CAUSE NUISANCE 3/8" LOCKOUTS AND (10mm) ELECTRODE FAILURE. CERAMIC INSULATOR 3/32"...
