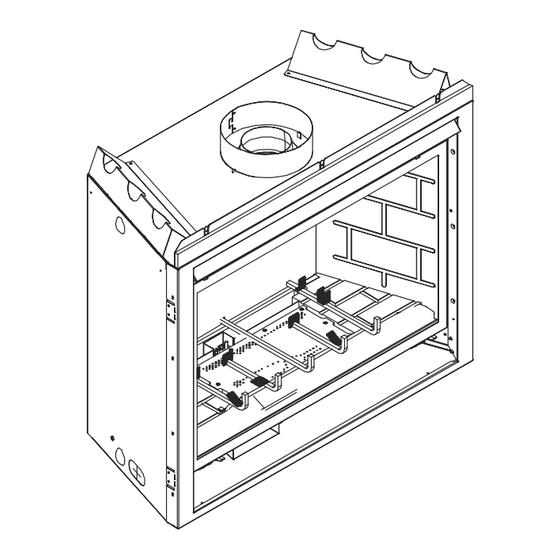

Model:
8000TVD
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
- What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTURE REFERENCE.
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICE AGENCY, OR THE
GAS SUPPLIER.
Please contact your Heat-N-Glo dealer for any questions
or concerns. For the number of your nearest Heat-N-Glo
dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004,
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
1
Installers Guide
Underwriters
Laboratories Listed
379-900I 1/04
Advertisement
Table of Contents
Related Manuals for Heat & Glo LifeStyle 8000TVD
Summary of Contents for Heat & Glo LifeStyle 8000TVD
- Page 1 Model: Installers Guide 8000TVD Underwriters Laboratories Listed READ THIS MANUAL BEFORE INSTALLING OR OPERATING THIS APPLIANCE. THIS INSTALLERS WARNING: IF THE INFORMATION GUIDE MUST BE LEFT WITH APPLIANCE FOR FUTURE REFERENCE. IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE OR...
-
Page 2: Safety And Warning Information
SAFETY AND WARNING INFORMATION These units MUST use one of the vent systems READ and UNDERSTAND all instructions carefully described in the Installing the Fireplace section of before starting the installation. FAILURE TO the Installers Guide. NO OTHER vent systems or FOLLOW these installation instructions may result components MAY BE USED. -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety and Warning Information..........2 Service Parts List................ 4 Section 1: Approvals and Codes..........8 Appliance Certification ..............8 Installation Codes ................8 High Altitude Installations ..............8 Section 2: Getting Started ............9 Introducing the Heat-N-Glo Gas Fireplaces ........ -
Page 4: Service Parts List
8000TVD Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 9-97 Ending Manufacturing Date: ______ (GN, PL) Vue éclatée des pièces Log Set Assembly * Part number list on following page. * La liste des numéros de pièce se trouve à la page suivante. - Page 5 (NG, LP) Service Parts List / (GN, PL) Liste des pièces de rechange 8000TVD ITEM / SERIAL # PART NUMBER ENGLISH / FRENCH DESCRIPTION PIÈCE / N° DE SÉRIE / N° DE PIÈCE COMMON PARTS / PIÉCES COMMUNES PRE 002324001 100-250A Junction Box - Pilot / Boîtier de raccordement - de veilleuse...
- Page 6 8000TVD Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 9-97 (GN, PL) Vue éclatée des pièces Ending Manufacturing Date: ______ Standing Pilot Ignition Valve Assembly ITEM / SERIAL # PART NUMBER DESCRIPTION PIÈCE / N° DE SÉRIE / N° DE PIÈCE Pilot Bracket / Parenthèse Pilote...
- Page 7 8000TVD-IPI Service Parts (NG, LP) Exploded Parts Diagram Beginning Manufacturing Date: 9-01_ (GN, PL) Vue éclatée des pièces Ending Manufacturing Date: ______ Intermittent Pilot Ignition Valve Assembly ITEM / SERIAL # PART NUMBER DESCRIPTION PIÈCE / N° DE SÉRIE / N° DE PIÈCE Pilot Bracket / Parenthèse Pilote...
-
Page 8: Section 1: Approvals And Codes
These models (natural gas and propane) can be installed in a bedroom (in Canada) if a thermostat (Model WH-STAT) is Certification installed with the unit. Consult local code authorities. Detailed installation instructions for Model WH-STAT are MODELS: 8000TVD included with the kit. LABORATORY: Underwriters Laboratories TYPE: Vented Gas Fireplace STANDARD: ANSI Z21.50•CGA2.2... -
Page 9: Section 2: Getting Started
Getting Started Introducing the Heat-N-Glo Gas Fireplaces The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo disclaims any responsibility for, the following actions: Heat-N-Glo B-type vent gas fireplaces are designed to op- • Installation of any damaged fireplace or vent system erate with all exhaust gases expelled to the outside of the component. - Page 10 26 7/8” (681mm) 2 1/4” (56mm) 43” (1091mm) 3 1/2” (89mm) 9 1/8” 8 3/8” (212mm) (233mm) 48 3/8” (1229mm) VENT COLLAR STANDOFFS HOOD RATING PLATES & LABELS OUTSIDE AIR GAS CONTROLS ELECTRICAL ACCESS GAS ACCESS Figure 1. Diagram of 8000TVD...
-
Page 11: Section 3: Installing The Fireplace
Installing the Fireplace Step 1. Locating the Fireplace Minimum Clearances from the B-Type Vent Pipe to Combustible Materials is 1” (25mm) all around the pipe. The diagram below shows space and clearance require- ments for locating a fireplace within a room. 1”... -
Page 12: Step 3 Negative Pressure Make-Up Air
Step 3. Negative Pressure Make-up Air A 4-inch side collar/damper (found in AK-TV Kit) must be installed on the fireplace by attaching the side collar to the Negative Pressure warning: When negative pressure is outer wrap of the fireplace at the right-hand rear corner using present, an atmospherically vented fireplace (with a draft sheetmetal screws. -
Page 13: Step 4 Installing The Vent System
Step 4. Installing the Vent System A. Vent System Approvals LISTED TERMINATION CAP Model 8000TVD is approved to use 6-inch (152mm) diameter B-type vent. B-type vent must be used when the vent system is within combustible construction. LISTED SINGLE-WALL These models may also use single wall rigid or flexible gas... -
Page 14: Bedroom Installation In Canada
C. Bedroom Installation in Canada Step 5. Positioning, Leveling, and Securing the Fireplace This model MUST NOT be vented into a vent system in- stalled exterior to a building. The part of the vent system To properly position, level, and secure the fireplace: above the roof line can be exterior to the building. -
Page 15: Step 7 The Gas Supply Line
• After the gas line installation is complete, use a com- mercially available, non-corrosive leak check solution to STANDING PILOT carefully check all gas connections for leaks. 3/8” (10mm) WARNING: DO NOT USE AN OPEN FLAME TO CHECK FOR GAS LEAKS. •... -
Page 16: Step 9 Wiring The Fireplace
BLACK L2 BLACK L1 HI-TEMP LIMIT SWITCH REMOTE SWITCH PIGTAIL GAS VALVE ON/OFF SWITCH WHITE T2 RED T1 THERMOPILE THERMOCOUPLE BLACK S1 OPTIONAL WALL SWITCH, Figure 10. Standing Pilot Ignition Wiring Diagram THERMOSTAT OR REMOTE Step 9. Wiring the Fireplace NOTE: Electrical wiring must be installed by a licensed Wall Switch electrician. - Page 17 For Intermittent Pilot Ignition (IPI) Wiring Wiring to the battery pack should be left disconnected in order to conserve battery life. In the case of a loss of power, 3 Volt Transformer simply connect red and black wire leads to activate battery power (connect red to red, black to black).
-
Page 18: Step 10 Finishing
Step 10. Finishing Step 11. Installing Trim, Logs, and Ember Material Figure 13 shows the minimum vertical and corresponding maximum horizontal dimensions of fireplace mantels or other Installing the Trim combustible projections above the top front edge of the Combustible materials may be brought up to the specified fireplace. -
Page 19: Glass Specifications
Step 12. Before Lighting the Fireplace Before lighting the fireplace, be sure to do the following: Remove all paperwork from underneath the fireplace. Review safety warnings and cautions LATCHES • Read the Safety and Warning Information section at (BOTH BOTTOM AND TOP) the beginning of this Installers Guide. -
Page 20: Section 4: Maintaining And Servicing Your Fireplace
Maintaining and Servicing Your Fireplace Fireplace Maintenance MAKE SURE THE FLAMES ARE STEADY—NOT Although the frequency of your fireplace servicing and main- LIFTING OR FLOATING. tenance will depend on use and the type of installation, you should have a qualified service technician perform an appli- ance check-up at the beginning of each heating season.
