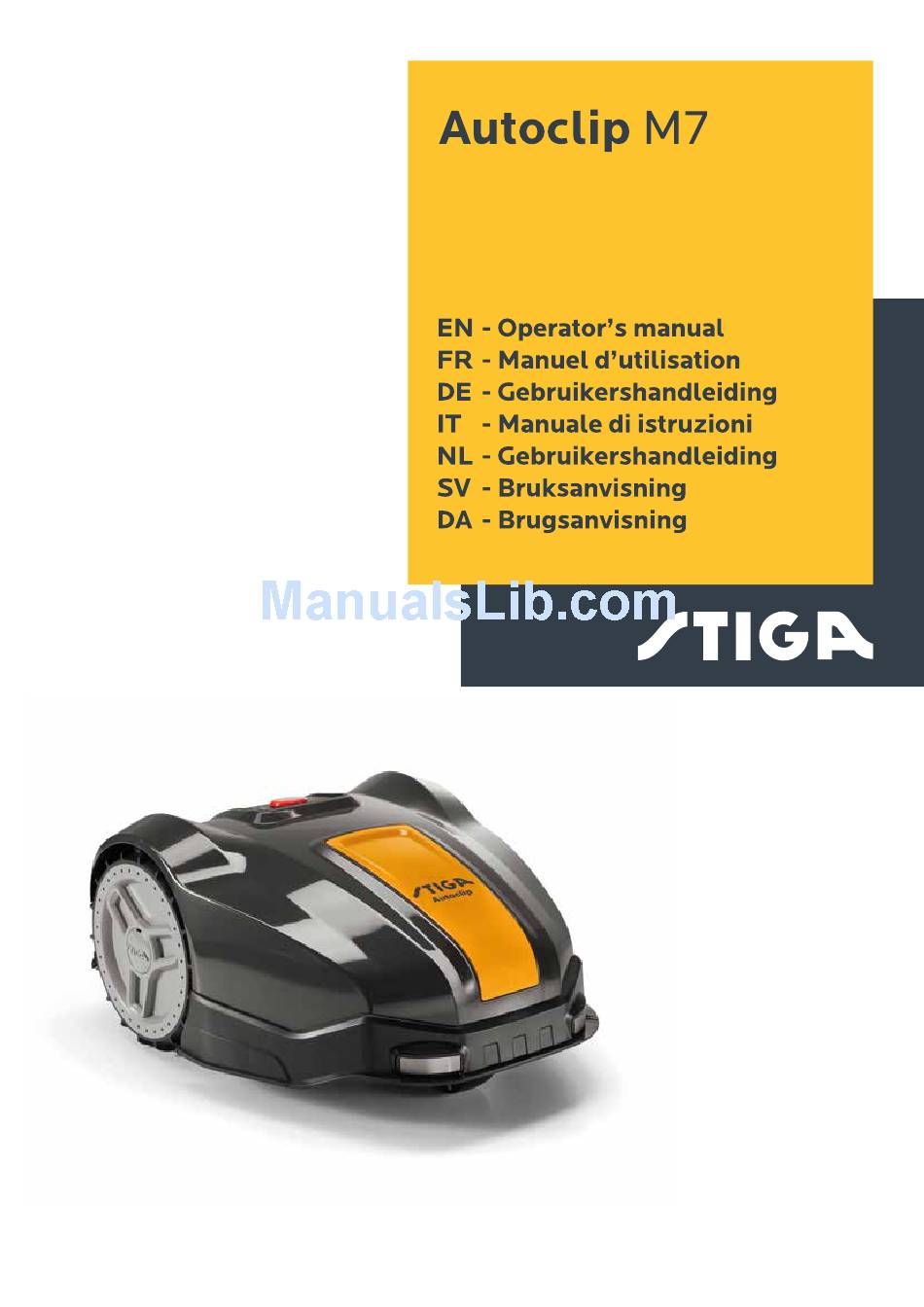

Summary of Contents for Stiga Autoclip M7
-
Page 3: Table Of Contents
© 2008 – Text, illustrations and page layout by Tipolito La Zecca. The text may be reproduced, in whole or in part, on condition that the author is mentioned. User’s manual MD-CT-RO-12-R1.0- STIGA - EN - 10-2017... -
Page 4: General Information
GENERAL INFORMATION PURPOSE OF THE MANUAL • This manual forms an integral part of the appliance and was produced by the Manufacturer to provide the necessary information to people authorised to interact with it during its working life. • Operators of the appliance must adopt correct working practices and must carefully read and follow all the instructions contained in this manual. -
Page 5: Identification Of Manufacturer And Equipment
IDENTIFICATION OF MANUFACTURER AND EQUIPMENT The nameplate shown here is applied directly onto the appliance. DATA PLATE It contains references and all the information essential for safely operating the device. (A) Name of manufacturer For any technical requirements, please contact the Manufacturer’s (C) Model (C) Manufacturing Technical Service Centre or an authorised dealer. -
Page 6: Safety Devices
• Never allow people to sit on the robot. Never lift the robot to inspect the blade or to carry it while it is running. Do not place hands and feet under the robot when it is in operation. • Do not use the robot when a sprinkler system is running. In this case, program the robot and the sprinkler system so that they do not operate at the same time. -
Page 7: Safety Signals
SAFETY SIGNALS Keep an adequate safe distance from the machine while it is running. Read user instructions carefully to understand meanings before While the robot is working, using the machine. make sure there are no people in the working area (especially children, elderly or disabled people) and pets. -
Page 8: Technical Information
TECHNICAL INFORMATION TECHNICAL SPECIFICATIONS Model Description Autoclip M7 8030M70 Maximum recommended surface that can be mowed Working capacity ( -20%(*)) (sq ') (8070 ') Features Dimensions (W x H x D) 537x415x252 Robot weight (incl. battery) 25-60 (0,98-2,36 ") Cutting height (Min-Max) mm (") -
Page 9: General Description Of The Appliance
Equipment / Accessories / Functions Areas managed, including the primary zone Management Closed Areas standard Rain sensor standard Mowed lawn sensor – Self-programming standard (patented) Re-entry method to the charging “follow wire” station Setup quick re-entry standard Maximum length of perimeter wire m (') 800 (2624 ') (approximate, calculated based on a... -
Page 10: Main Parts
MAIN PARTS Autoclip M7 MODEL 8030M70 Version Robot � Keyboard commands � Rain sensor � Battery � Handle � Cutting blade � Perimeter wire coil 150mt Pegs Power cord for the power supply unit � Power Supply unit � Charging station �... -
Page 11: Installation
INSTALLATION PACKING AND UNPACKING The equipment is delivered suitably packaged. When unpacking, carefully remove and check the integrity of the parts. Warning – Caution Keep plastic wrapping and plastic containers away from infants and children: risk of suffocation! Important Keep the packaging materials for future use. PLANNING OF SYSTEM INSTALLATION The robot is not difficult to install, but requires some preliminary planning in order to find the best area for installing the charging station, power supply unit and for laying out the perimeter wire. - Page 12 • The charging station is connected to the power supply unit via a cord that must move away from the charging station on the outside of the cutting area. • Position the power supply unit according to these rules: in a well-ventilated area protected against atmospheric agents and direct sunlight;...
-
Page 13: Setting Up Of The Perimeter Wire
SETTING UP OF THE PERIMETER WIRE Before installing the perimeter wire, it is necessary to check the entire surface of the lawn. Make any necessary adjustments to the grassy surface during the laying of the perimeter wire in order to allow the robot to function correctly. -
Page 14: Preparation And Marking The Boundaries Of The Work Areas
PREPARATION AND MARKING THE BOUNDARIES OF THE WORK AREAS Preparation of the lawn to be mowed 1. Make sure the lawn to be mowed is even and does not contain holes, stones or other obstacles. If necessary, prepare the lawn by filling in any holes and removing any obstacles. If some obstacles cannot be removed, it is necessary to properly mark these areas with the perimeter wire. - Page 15 Marking the boundary of the work area 3. Check the entire lawn surface and assess whether it is necessary to divide it into separate work areas as per the rules described here below. Before installing the perimeter Track for laying the perimeter wire wire, check the entire path to make this procedure easier.
- Page 16 4. If there is a pavement or driveway inside or outside the work area, which is at the same level of the lawn, lay the perimeter wire at a distance of 5 cm (1.96 ") from the edge of the pavement. The robot will come out slightly from the lawn and all the grass will be mowed.
- Page 17 If there is a pool, pond, ravine, ditch, steps or public roads not protected by an easily crossable fence or wall inside or outside the work area, install the perimeter wire at least 90 cm (35.43 inches) from the edge. In order to install the perimeter wire as close as possible to the edge of the cutting area, we recommend installing a fence that is difficult to cross if adjacent to public areas, or a fence at least 15 cm high in other cases.
-
Page 18: Installation Of Perimeter Wire
INSTALLATION OF PERIMETER WIRE The perimeter wire can be buried or laid on the ground. If you have a wire layer machine, it is better to bury the wire for greater protection. Otherwise, install the wire on the ground with the pegs provided as perimeter wire described below. -
Page 19: Installation Of The Charging Station And Power Supply Unit
Joining of the perimeter wire Use an original joint if another perimeter wire is needed to complete the installation. Insert each end of the wire in the joint, making sure the wires are fully inserted so that the ends are visible on each side. Press the button on the upper side all the way down using a pair of pliers. -
Page 20: Battery Charging On First Use
5. Fasten the charging station (N) to the ground with the pegs (P). If necessary, secure the charging station with screw anchors (Q). pegs (P) screw anchors (Q) charging station (N) 6. Install the power supply unit (A). current power supply unit (A) 7. -
Page 21: Adjustments
ADJUSTMENTS ADJUSTMENT RECOMMENDATIONS Important The user must make any adjustments according to the procedures described in this manual. Do not make any adjustments which are not expressly indicated in this manual. Any special adjustments, not expressly indicated in this manual, must only be performed by personnel from the Manufacturer’s authorised service centre. -
Page 22: Use And Operation
USE AND OPERATION OBLIGATIONS FOR USE Important When using the robot for the first time, please read the manual carefully and make sure you have understood it completely; in particular, all the information on safety. The product must only be used for its intended purpose as described by the Manufacturer. Do not tamper with any device to obtain different operating performances. -
Page 23: Navigation
NAVIGATION Follow these instructions to navigate through the programming menu: - “+” and “-”: allows scrolling through the menu items in a cyclical manner or changing the value of the function displayed. - “ENTER”: moves to the next menu level or confirms and memorises the value shown in the display and skips to the next function. - Page 24 Safety Change password Allows setting the password Enable Determines whether to request the Start password password upon start-up of the robot Disable Enable If enabled, prompts for the password Lock Keyboard to access the robot functions. Disable Work mode Sets the automatic operation of the Automatic robot Sets a work cycle in a closed area...
-
Page 25: Settings - Programming Mode
SETTINGS – PROGRAMMING MODE RAIN SENSOR: Function for setting the robot in case of rain. RAIN SENSOR: • Enable: in case of rain, the robot returns to the station and remains in “charging” mode. At the end of the charging cycle, the robot only starts mowing again if it has stopped raining. -
Page 26: Work Schedules - Programming Mode
Below is a table with the indicative times for configuring the robot on first use. NB. Set all the weekdays at “1” – “Work Days.” Model m² (ft²) Time 1 Time 2 400 (4304) 10:00 12:00 Autoclip M7 750 (8070) 10:00 12:00 15:00 17:00 User’s manual... -
Page 27: Secondary Areas - Programming Mode
SECONDARY AREAS – PROGRAMMING MODE If the area to be mowed includes secondary areas based on the definition given in the chapter “Preparation and Marking the Boundaries of the Work Areas”, then it is necessary to program the secondary areas so the robot knows how to reach them and how many times. -
Page 28: Operating Mode - Programming Mode
Important To set or change the password, it is first necessary to enter the previous one and then enter the new one. Upon purchase, the password entered by the manufacturer consists of four numbers (0000). Important When entering the password, you will be prompted to re-enter the password in order to ensure that it has been set correctly. -
Page 29: Robot Safety Stop
ROBOT SAFETY STOP During use, it may be necessary to stop the robot. In normal conditions, the robot can be stopped with the “OFF” key. In case of danger or when performing any maintenance, it is necessary to stop the robot in safe conditions in order to prevent the blade from accidentally starting. -
Page 30: Password Entry
1. Press the ON key and wait a few seconds for the robot to turn on completely. PAUSE Enter the password (if prompted) (See “Password Entry”). Press “Enter” if the information messages remain on the display. 2. The “PAUSE” function appears on the display. E N T E R 3. -
Page 31: Prolonged Inactivity And Restarting
PROLONGED INACTIVITY AND RESTARTING After a long period of inactivity of the robot and before the mowing season, it is necessary to perform a series of operations to guarantee the correct functioning at the time of reuse. 1. Fully charge the battery before winter storage. Recharge the battery at least once every five months. 2. -
Page 32: Battery Charging After Prolonged Inactivity
BATTERY CHARGING AFTER PROLONGED INACTIVITY Danger - Attention STOP Do not recharge the robot in explosive and flammable environments. RAIN SENSORS 1. Supply electricity to the charging station and make sure the plates are clean. 2. Position the robot inside the charging station. E N T E R “PLAY/PAUSE”... -
Page 33: Operating Tips
OPERATING TIPS Below are some useful operating tips to follow when using the robot: even after being suitably informed on the use of the robot, it is always a good idea to simulate some test manoeuvres on first use to identify the commands and main functions; check and secure the fastening screws of the main components;... -
Page 34: Robot Cleaning
ROBOT CLEANING 1. Stop the robot safely (see “Robot Safety Stop”). Warning – Caution Use protective gloves to prevent cutting your hands. 2. Clean all the outside surfaces of the robot with a sponge soaked in warm water and a mild detergent. Squeeze well to remove any excess water before use. -
Page 35: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING GUIDE The information below is designed to help identify and correct any faults and/or malfunctions which may occur during operation. Some faults can be fixed by the user, while others require specific technical skills or special expertise and therefore must only be fixed by qualified personnel with certified experience in the specific field of intervention. - Page 36 Problem Cause Remedies Extend the working time (see “Programming Not enough work hours Mode”) Stop the robot safely (see “Robot Safety Stop”) Cutting blade clogged with deposits Warning – Caution and/or residuals Use protective gloves to prevent injuries to your hands. Clean the cutting blade The work area is not Replace the blade with an original spare part...
- Page 37 Problem Cause Remedies Make sure the lawn to be mowed is even and does not contain holes, stones or other Ground is uneven or contains obstacles obstacles. Otherwise, fill in any holes and that prevent movement remove any obstacles (see “Preparation and “Wheel error”...
-
Page 38: Part Replacement
Use protective gloves to prevent injuries to your hands. For replacement, use only the original blade suitable for the device. blade (A) screws (B) MODEL: Autoclip M7 Cutting blade code: 122104111/0 2. Turn the robot over and position it so as not to ruin the covering hood. -
Page 39: Robot Disposal
ROBOT DISPOSAL • At the end of its useful lifespan, this product is classified as WEEE (waste electrical and electronic equipment). It must therefore not be disposed of as normal domestic waste, as mixed urban waste (undifferentiated) or as separated urban waste (differentiated). •... -
Page 40: Garden Example
GARDEN EXAMPLE GARDEN WITH NARROW PASSAGE FOR RE-ENTRY TO THE CHARGING BASE, SECONDARY AREA AND CLOSED AREA 30cm 0 cm 0 cm < 70cm 20cm References: A. trees with protruding roots must be delimited by perimeter wire. For making the boundary, in case of a step lower than 70cm respect to the ground perimeter on the external wire, it is necessary to leave 20cm space between the outgoing and incoming wire. - Page 41 GARDEN SPECIAL SHAPE TO U ≥ 2m ≥ 2m Notes: because of the garden special shape, it is recommended to set the robot work starting from different points (not always from the charging station) to optimize the cutting performance. References: A - B: exiting work in secondary areas.
- Page 42 GARDEN WITH CENTRAL HOUSING: CONNECTED WITH DRIVEWAY OR SURROUNDED COMPLETELY BY LAWN < 70cm < 70cm > 70cm > 70cm 0 cm 0 cm Notes: the example on the right differs from the one on the left, because of the absence of the driveway which connects the street to the home.
- Page 43 F. trampoline. It is recommended to delimit it with perimeter wire. Programming: • garden total size: 1700 smq • working time: Autoclip M7: time 1: 10:00 - 12:00 time 2: 15:00 - 17:00 • secondary areas: area 1- D: percentage: 50%;...
-
Page 44: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY ZUCCHETTI Centro Sistemi S.p.A. Via Lungarno 305/A Terranuova B.ni (AR) ITALY Declares and assumes liability that the product: battery-powered automatic lawnmower robot, model 8030M70, complies with the basic requisites for safety, health and environmental protection provided for by the following European Union directives: Machinery directive 2006/42/EC, electromagnetic compatibility directive 2014/30/EC, Radio (RED) directive 2014/53/UE, RoHS directive 2011/65/EC, WEEE directive 2012/19/EU, directive for noise emission in the environment 2005/88/EC;...
