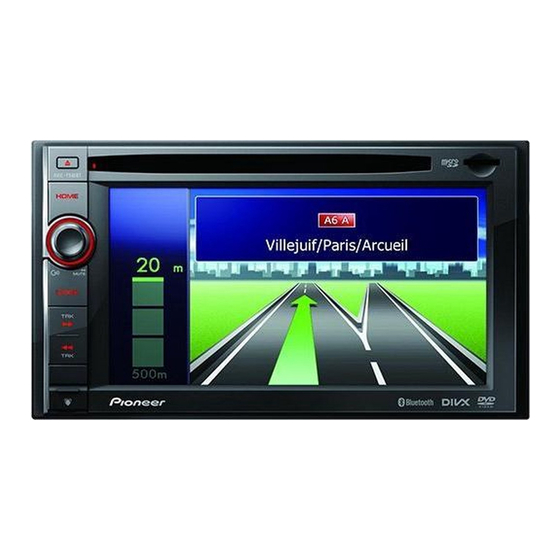

NAVIGATION AV SYSTEM
AVIC-F940BT/AVIC-F840BT
Quick Start Guide
This guide is intended to guide you through the basic functions of this navi-
gation system. For details, please refer to Operation Manual.
Basic hardware buttons
1 button
1
Press to display the touch panel keys for
ejecting the media.
2
2 HOME button
3
Press to display the
"Top
Menu" screen.
3 Multi-control (Volume knob/
/MUTE)
4
Rotate to adjust the AV (Audio and Video)
5
source volume.
Press briefly to hear the current route guid-
ance.
Press and hold to mute the AV source.
4 MODE button
Press to switch between the map screen
and the AV operation screen.
5 TRK (m/n) button
© 2011 PIONEER CORPORATION.
All rights reserved.
Printed in Thailand
<KYTZX> <11L00000>
<CRB3867-A/N> EU
Screen switching overview
Top Menu (Classic Menu)
Shortcut Menu
Destination Menu
Phone Menu
AV operation screen
Basic items on the map
1
2
Dragging the map
3
allows scrolling.
9
4
8
5
7
6
1 Name of the street to be used
5 Current position
(or next guidance point)
6 Street name that your vehicle
2 Current time
is travelling along
3 Estimated time of arrival
7 Eco-Meter
(default)
8 Map control
4 Current route
9 Next direction of travel
Destination Menu
Touch
Destination
on the
"Top
Menu" screen.
1
2
3
4
5
6
7
8
9
a
b
1 Searches for a location by
6 Returns to the previous
address
screen
2 Calculates the route to your
7 Selects a previously routed
home
destination
3 Searches for a place such as
8 Searches for a location by
stores, restaurants, and
coordinates
other facilities (Points Of
9 Cancels your current route
Interest – POI) in the data-
guidance
base
a Displays the current route
4 Searches for POIs by using
information
the data on the microSD
b Displays traffic information
card
5 Stores and selects your
favourite locations
Searching for your destination
by address
1
4
Display the
"Destination
Touch OK.
Menu" screen and touch
Address.
After searching for the destina-
tion, the Route confirmation
screen appears.
2
Select the country you
5
Touch OK.
desire.
3
Input the information that
you want to set as the des-
tination.
Touch one of the options. After
narrowing down your destina-
tion, the Location confirmation
screen will appear.
The navigation system gives you
route guidance both visually and
by voice.
